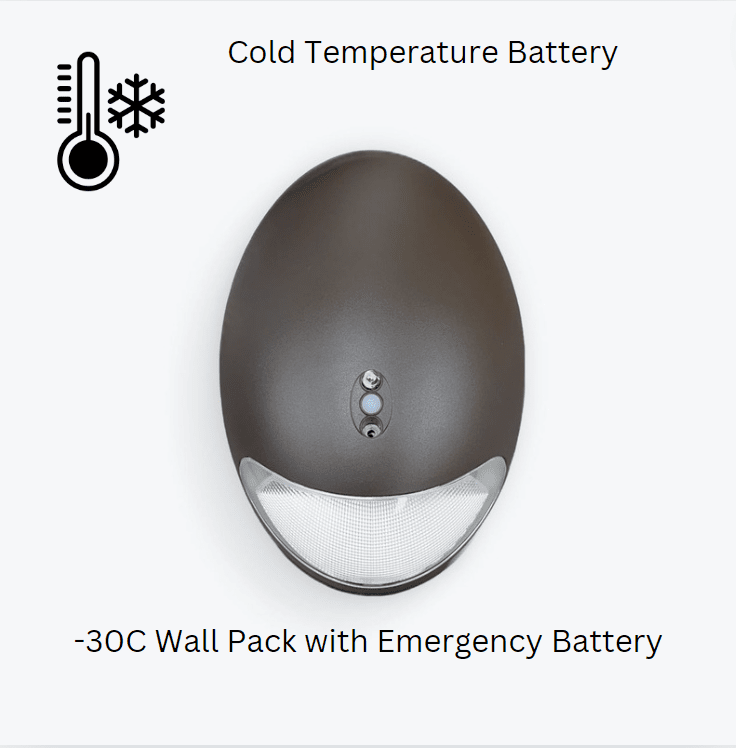

Mini Wall Pack with Emergency Battery for Cold Temperature
Mini Wall Pack with Emergency Battery for Cold Temperature
Model: E2-WP-M-12W-30/40/50K-E-DB
12W, 1,250 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
Built-in 4W Emergency Battery, 90+ Minutes
120-277 Volt
Wet Location, IP65
Dark Bronze Finish
Specifications
| Wattage | 12W |
| Voltage | 120-277V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 1,250 lm (at 4000K) |
| Lifespan | 50,000 hours |
| Dimensions | 231.5 × 154.5 × 85 mm / 9.11 × 6.08 × 3.35 in |
| Listings | cUL Certified, DLC Standard, IP65 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Color Consistency (SDCM) | 5 SDCM |
| Cutoff | Full cutoff |
| Frequency | 60 Hz |
| Ambient Temperature | -30–50 °C (ambient) |
| Color | Dark bronze |
| Mounting | Wall |
| Recharge Time | 24 hours |
| Emergency Lumens | 400 lm (at 4000K) |
| Emergency Power | 4W |
| Emergency Runtime | 90+ minutes |
| Operating Mode | AC + Emergency / Non-maintained (jumper-cable configuration) |
| Test Switch | Self-test and self-diagnostics (automatic) |
| CCT Selectable | Yes, switchable (jumper cap) |
| Photocell | Included (ACEM) |
| IK Rating | IK10 |
| Location Rating | Wet location |
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
Description
This 12W LED mini wall pack is built for outdoor use in the cold, with an emergency battery backup that provides 90+ minutes of light at 4W and 400 lumens in a power outage, and operates from -30 to 50 °C. Smart battery temperature control, self-testing and self-diagnostics keep the battery ready, and it recharges in 24 hours.
In normal operation it delivers 1,250 lumens, with color temperature selectable at 3000K, 4000K or 5000K and a CRI of 80+. An integrated photocell handles dusk-to-dawn operation, and it runs on 120–277V. The die-cast housing has a full-cutoff distribution and a dark bronze finish, and is IK10, wet-location and IP65 rated to withstand rain and harsh weather, for safety and security lighting.
UL and cUL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Color Consistency (SDCM) | 5 SDCM |
| Cutoff | Full cutoff |
| Lumens | 1,250 lm (at 4000K) |
| Electrical | |
|---|---|
| Frequency | 60 Hz |
| Voltage | 120–277V |
| Wattage | 12W (nominal) |
| Physical | |
|---|---|
| Ambient Temperature | -30–50 °C (ambient) |
| Dimensions | 231.5 × 154.5 × 85 mm / 9.11 × 6.08 × 3.35 in |
| Finish | Dark bronze |
| Mounting | Wall |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Lumens | 400 lm (at 4000K) |
| Emergency Power | 4W |
| Emergency Runtime | 90+ minutes |
| Operating Mode | AC + Emergency / Non-maintained (jumper-cable configuration) |
| Test Switch | Self-test and self-diagnostics (automatic) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (jumper cap) |
| Photocell | Included (ACEM) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | UL / cUL |
| IK Rating | IK10 |
| IP Rating | IP65 |
| Location Rating | Wet location |
