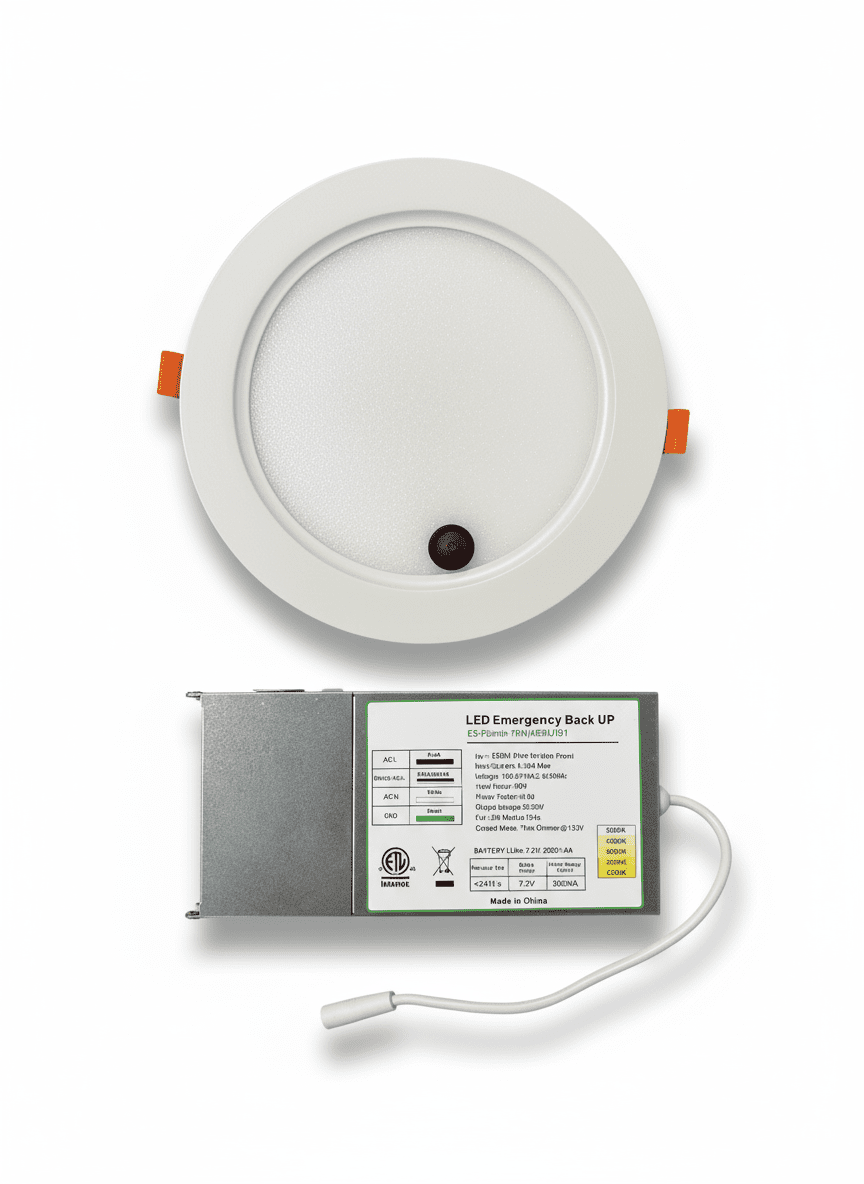

4″/6″/8″ Emergency LED Slim Panel G1 9W/16W/18W – 5CCT Selectable – Up to 1800lm – AC 100-277VAC – 4W/8W EBBU

4″/6″/8″ Emergency LED Slim Panel G1 9W/16W/18W – 5CCT Selectable – Up to 1800lm – AC 100-277VAC – 4W/8W EBBU

Models: E2-P4inch-9W-EBBU

9W, 16W or 18W
Up to 900, 1,600 or 1,800 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 4W or 8W Emergency Battery, 90 Minutes
TRIAC Dimmable
100-277 Volt
Indoor

πŸ“„ Download Spec Sheet (PDF)

Specifications

WattageE2-P4inch-9W-EBBU: 9W / E2-P8inch-18W-EBBU: 18W / E2-P6inch-16W-EBBU: 16W
Voltage100-277V
DimmingTRIAC
CCT2700 / 3000 / 3500 / 4000 / 5000K
CRI> 90
Lumens720–900 lm (at E2-P4inch-9W-EBBU) / 1,440–1,800 lm (at E2-P8inch-18W-EBBU) / 1,280–1,600 lm (at E2-P6inch-16W-EBBU)
Lifespan50,000 hours
Dimensions5.1", 7.48", 8.2"
ListingscETLus
Warranty5-Year Manufacturer's Warranty
SizeE2-P4inch-9W-EBBU: 4 in / E2-P8inch-18W-EBBU: 8 in / E2-P6inch-16W-EBBU: 6 in
MountingRecessed (ceiling) / Spring clips
Recharge Time24 hours
Emergency BackupIntegrated
Emergency PowerE2-P4inch-9W-EBBU: 4W / E2-P8inch-18W-EBBU: 8W / E2-P6inch-16W-EBBU: 8W
Test SwitchTest button (button, manual)
Emergency Lumens320–400 lm (at E2-P4inch-9W-EBBU) / 640–800 lm (at E2-P8inch-18W-EBBU) / 640–800 lm (at E2-P6inch-16W-EBBU)
Emergency RuntimeE2-P4inch-9W-EBBU: 90 minutes (at 4W) / E2-P8inch-18W-EBBU: 90 minutes (at 8W) / E2-P6inch-16W-EBBU: 90 minutes (at 8W)
Indicator LightLED indicator (on in emergency mode; slow flicker while charging; quick flicker for an emergency-backup issue)
DimmableYes
Location RatingIndoor
StandardsFCC / RoHS
FamilyDownlight
SeriesUltra Slim Downlight (SLIM, SLIM-E)

Description

These slim recessed LED panels have the emergency battery built in, so the ceiling stays lit through a power outage without a separate emergency fixture. They come in 4-inch 9W, 6-inch 16W and 8-inch 18W models; when the power fails the battery runs the 4-inch panel at 4W for 90 minutes, giving 320–400 lumens, and the 6-inch and 8-inch panels at 8W, giving 640–800 lumens. Every model recharges in 24 hours and has a test button and an LED indicator that show battery status.

In normal operation the three models deliver 720–900, 1,280–1,600 and 1,440–1,800 lumens, with color temperature selectable at 2700K, 3000K, 3500K, 4000K or 5000K and a CRI of 90+. They dim on TRIAC controls, run on 100–277V and mount into the ceiling with spring clips for indoor use.

cETLus listed and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.

Specifications

General
FamilyDownlight
SeriesUltra Slim Downlight (SLIM, SLIM-E)
SizeE2-P4inch-9W-EBBU: 4 in / E2-P8inch-18W-EBBU: 8 in / E2-P6inch-16W-EBBU: 6 in
Light
CCT2700 / 3000 / 3500 / 4000 / 5000K
CRI90+
Lumens720–900 lm (at E2-P4inch-9W-EBBU) / 1,440–1,800 lm (at E2-P8inch-18W-EBBU) / 1,280–1,600 lm (at E2-P6inch-16W-EBBU)
Electrical
Voltage100–277V
WattageE2-P4inch-9W-EBBU: 9W / E2-P8inch-18W-EBBU: 18W / E2-P6inch-16W-EBBU: 16W
Physical
Dimensions5.1 / 7.48 / 8.2 in
MountingRecessed (ceiling) / Spring clips
Emergency
Charge Time24 hours
Emergency BackupIntegrated
Emergency PowerE2-P4inch-9W-EBBU: 4W / E2-P8inch-18W-EBBU: 8W / E2-P6inch-16W-EBBU: 8W
Test SwitchTest button (button, manual)
Emergency Lumens320–400 lm (at E2-P4inch-9W-EBBU) / 640–800 lm (at E2-P8inch-18W-EBBU) / 640–800 lm (at E2-P6inch-16W-EBBU)
Emergency RuntimeE2-P4inch-9W-EBBU: 90 minutes (at 4W) / E2-P8inch-18W-EBBU: 90 minutes (at 8W) / E2-P6inch-16W-EBBU: 90 minutes (at 8W)
Indicator LightLED indicator (on in emergency mode; slow flicker while charging; quick flicker for an emergency-backup issue)
Controls
DimmableYes
Dimming TypeTRIAC
Warranty
Rated Life50,000 hours
Warranty5 years
CertificationscETLus
Location RatingIndoor
StandardsFCC / RoHS
