Retrofit Kit
Retrofit Kit
Models: E2-RTUV-80W-5000K, E2-RTUV-100W-5000K, E2-RTUV-150W-5000K
80W, 100W or 150W
5000K CCT
90-305 Volt
Specifications
| Light Source | LED |
| Beam Angle | 120° (lens) / 45° (lens) |
| CCT | 5000K |
| Connection Type | Wago connector / Quick connector |
| Frequency | 47–63 Hz |
| Power Factor | 0.9+ |
| THD | 20% |
| Voltage | 90–305V |
| Wattage | 80 / 100 / 150W |
| Ambient Temperature | -40–113 °F (operating) |
| Dimensions | WL-RTUV-080 / -100 / -150: 180 × 140 × 78 mm |
| Color | Silver (default) / White |
| Lamp Base | E26 (base adapter option) / E39 (base adapter option) |
| Mounting | Bracket / Bracket (pre-plate) / Plate |
| Quick Disconnect | Yes (electrical connection) |
| Standards | RoHS |
| Lifespan | 50,000 hours (at L70) |
| Warranty | 5 years |
| Listings | DLC / cULus |
| Family | LED retrofit kit |
| Series | E2 WL-RTU LED retrofit kit |
Description

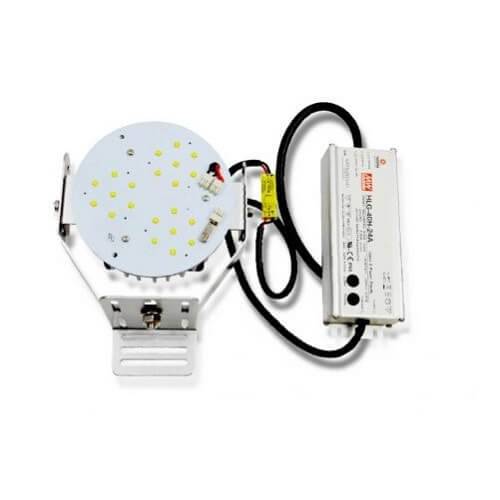

These LED retrofit kits convert HID fixtures to LED quickly, in 80W, 100W and 150W models. You remove the existing HID lamp and ballast and keep the wiring and tray in place, and the kits work with fixtures from all major manufacturers, for interior and exterior spaces.
All three deliver 5000K light through a 120° or 45° optic and run on 90–305V at 47–63 Hz. The LED module measures 180 × 140 × 78 mm and connects to its driver with quick-release Wago connectors. It mounts by bracket or plate, with E26 or E39 base adapter options, and comes in silver as standard or white. Rated from -40°F to 113°F, with a power factor of 0.9+.
DLC and cULus listed and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | LED retrofit kit |
| Series | E2 WL-RTU LED retrofit kit |
| Light Source | LED |
| Light | |
|---|---|
| Beam Angle | 120° (lens) / 45° (lens) |
| CCT | 5000K |
| Electrical | |
|---|---|
| Connection Type | Wago connector / Quick connector |
| Frequency | 47–63 Hz |
| Power Factor | 0.9+ |
| THD | 20% |
| Voltage | 90–305V |
| Wattage | 80 / 100 / 150W |
| Physical | |
|---|---|
| Ambient Temperature | -40–113 °F (operating) |
| Dimensions | WL-RTUV-080 / -100 / -150: 180 × 140 × 78 mm |
| Finish | Silver (default) / White |
| Lamp Base | E26 (base adapter option) / E39 (base adapter option) |
| Mounting | Bracket / Bracket (pre-plate) / Plate |
| Quick Disconnect | Yes (electrical connection) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | cULus / DLC |
| Standards | RoHS |
