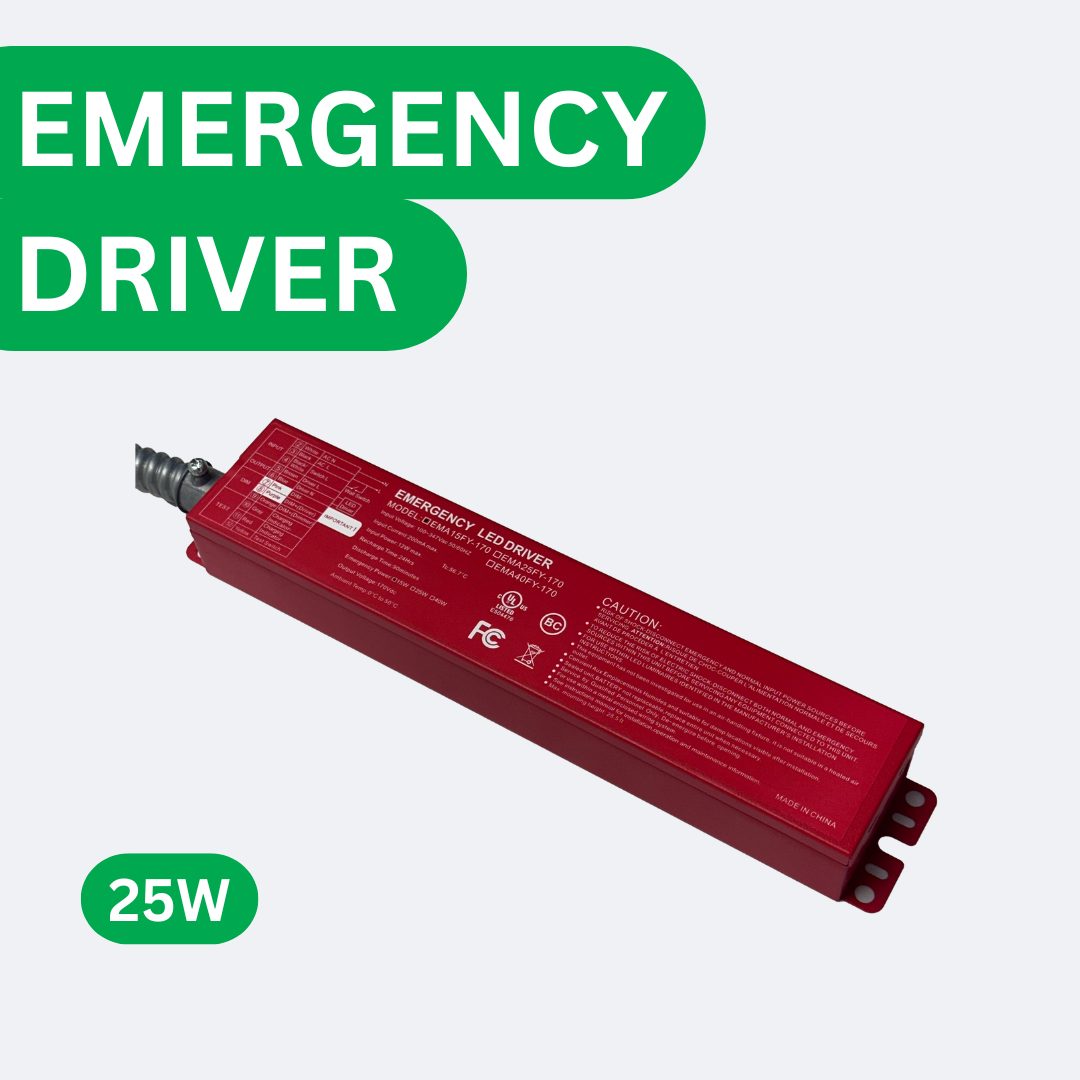

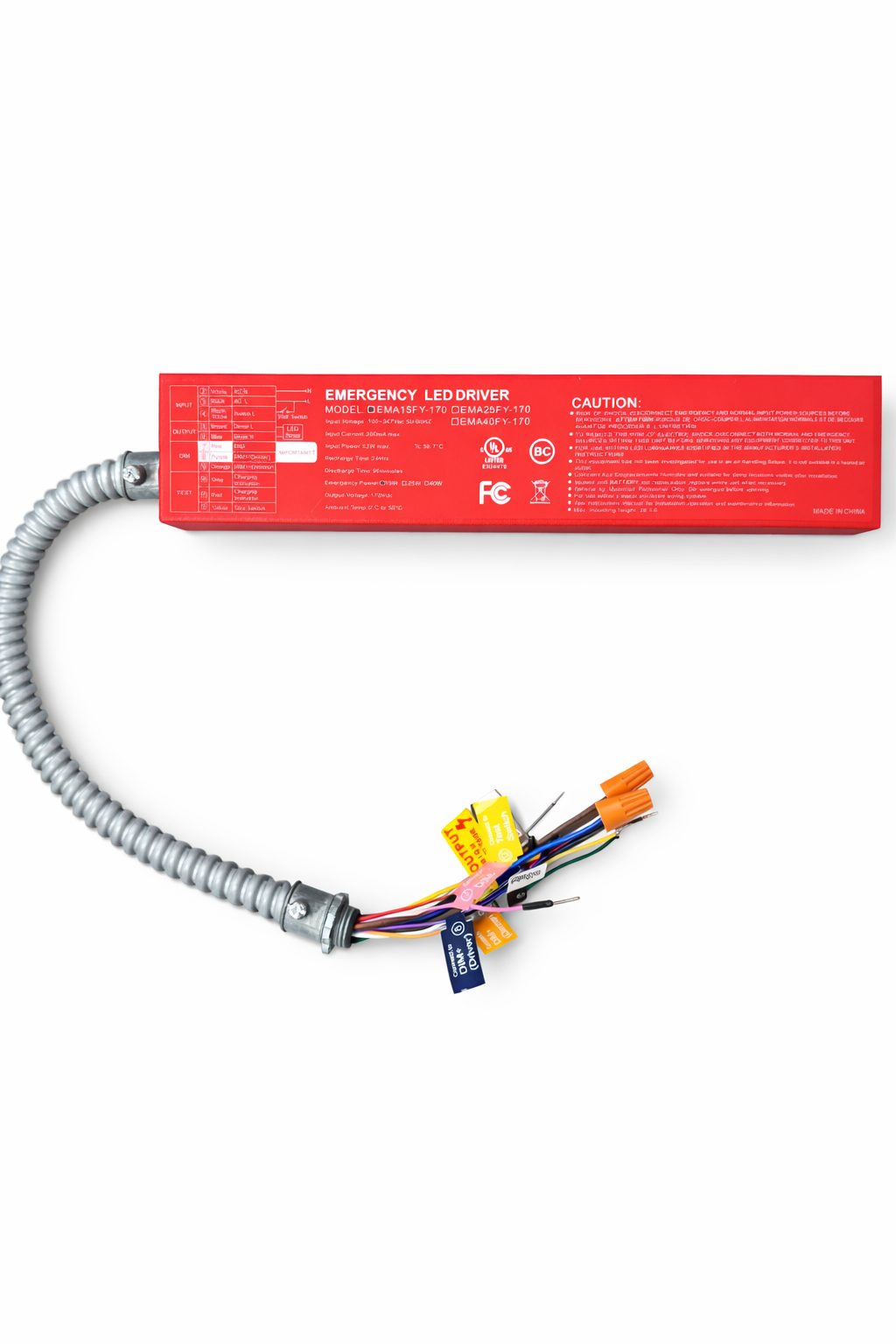

LED Emergency Battery 25W 100-347V
LED Emergency Battery 25W 100-347V
Model: E2-EM-AFY-25W-170VDC
25W Emergency Output, 90+ Minutes
100-347 Volt
Output 170V
Recharges in 24 Hours
Specifications
| Wattage | 12W |
| Emergency Power | 25W |
| Input Voltage | 100-347V |
| Output Voltage | 170V |
| Ambient Temperature | 0°C(32°F) - 50°C(122°F) |
| Recharge Time | 24 hours |
| Dimensions | 12.32" × 2.32" × 1.48" |
| Listings | UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Compatibility | Dimmable LED lamps only (dimmable LED lamps) |
| Weight | 2.66 lb |
| Emergency Runtime | 90+ minutes |
| Test Switch | Self-test (automatic) / Test button (button, manual) |
| Indicator Light | Status indicator (AC: steady on; emergency: 2 seconds on / 2 seconds off; failure: 0.2 seconds on / 0.2 seconds off) |
| Dimming Input Voltage Limit | up to 20V |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
Description
A 25W self-testing emergency driver for compatible dimmable LED fixtures, including LED panels with internal drivers, high bay lights and commercial downlights. When AC power fails it delivers 25W at 170V DC for 90+ minutes, then returns to charging when power is restored, with a 24-hour recharge.

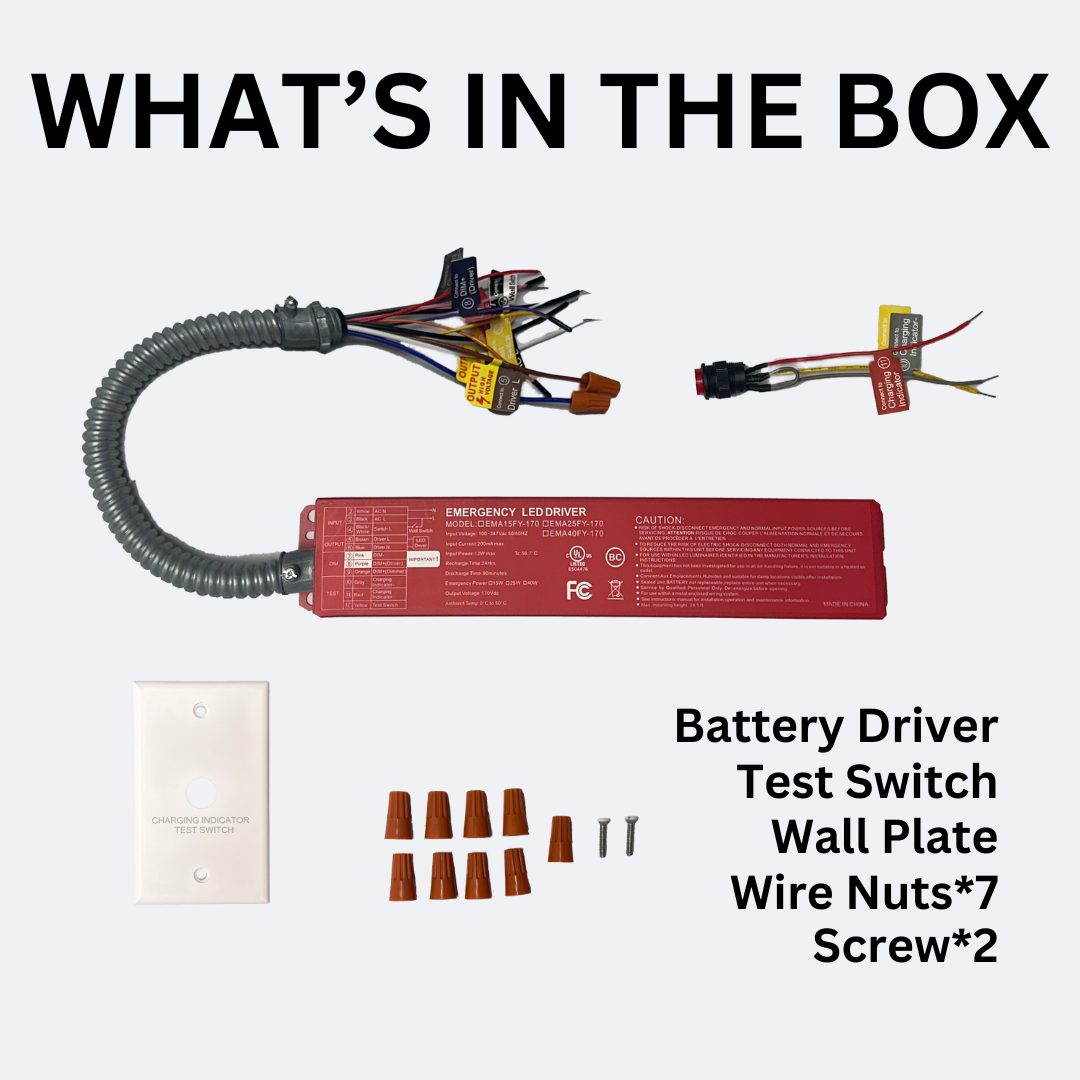

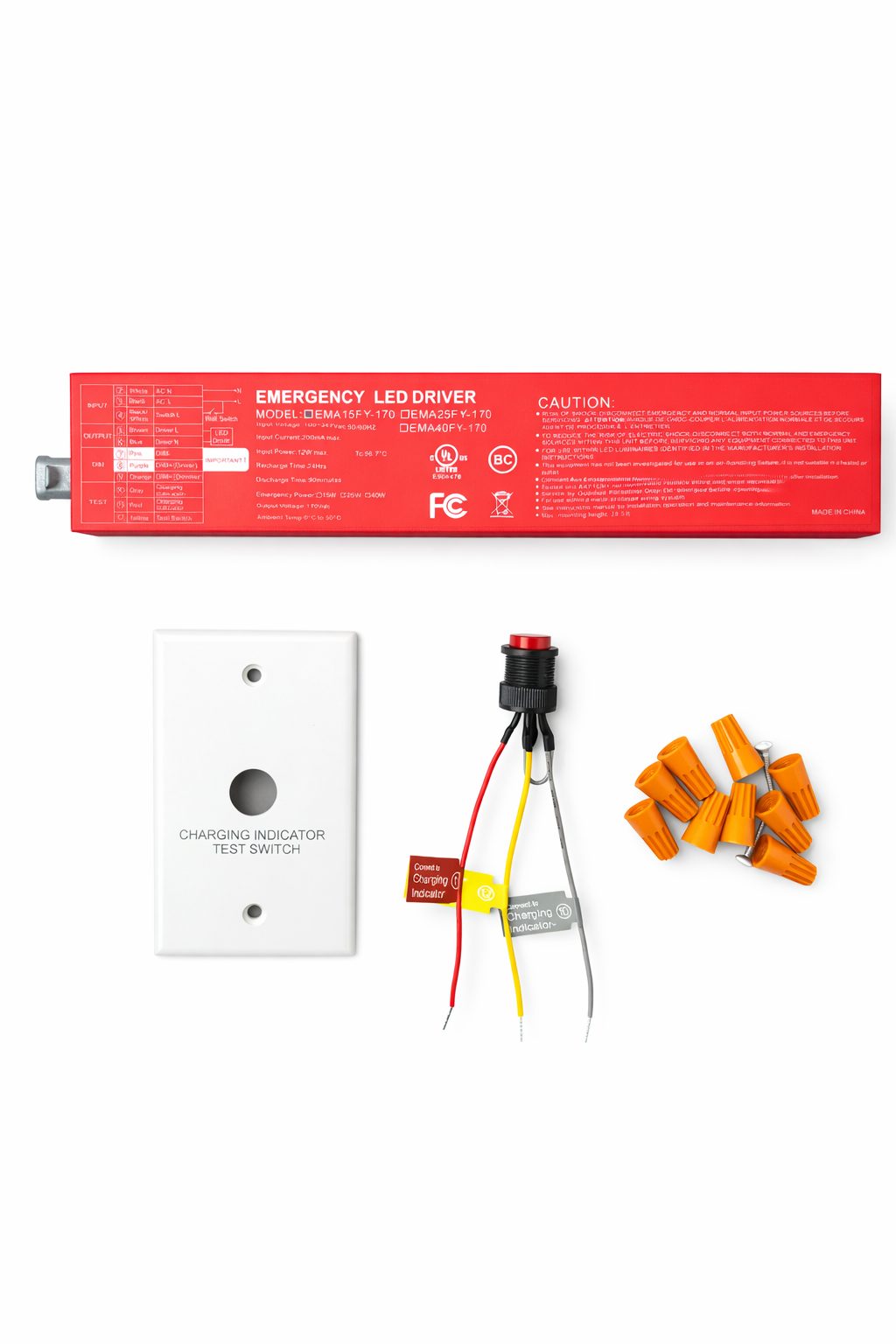

It runs on 100–347V input and draws up to 12W. Automatic monthly and annual tests monitor the LED load, battery voltage and emergency duration; the status indicator stays on during AC operation, flashes slowly in emergency mode and flashes quickly on a fault. A test button and installation faceplate are included, and the unit measures 12.32 × 2.32 × 1.48 in and weighs 2.66 lb.
UL listed for emergency use and compliant with California Title 20, rated for 0–50 °C ambient, with a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
| Electrical | |
|---|---|
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 170V |
| Voltage | 100–347V |
| Wattage | up to 12W (input, maximum) |
| Compatibility | Dimmable LED lamps only (dimmable LED lamps) |
| Physical | |
|---|---|
| Ambient Temperature | 0–50 °C (ambient) |
| Dimensions | 12.32 × 2.32 × 1.48 in |
| Weight | 2.66 lb |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 25W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Self-test (automatic) / Test button (button, manual) |
| Indicator Light | Status indicator (AC: steady on; emergency: 2 seconds on / 2 seconds off; failure: 0.2 seconds on / 0.2 seconds off) |
| Controls | |
|---|---|
| Dimming Input Voltage Limit | up to 20V |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
