Linear High Bay Light TAA Compliant Series
Linear High Bay Light TAA Compliant Series
Model: E2-HB-LIN-1.5FT-100/120/155W-40/50K
100/120/155W Wattage Selectable, Up to 23,250 Lumens
4000K/5000K CCT Selectable
0-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | E2165T3_802CCTW01 configuration: 100 / 120 / 155W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 4000K / 5000K |
| Efficacy | 150 lm/W |
| Lumens | E2165T3_802CCTW01: 15,000 / 18,000 / 23,250 lm |
| Lifespan | 50,000 hours (at L70) |
| Other Features | Smart Control with Jack Base Connection for Sensor, Sold Separately Pre-wired (DLC NLC 5.1) |
| Listings | DLC Premium / UL (damp location) |
| Warranty | 5-Year Manufacturer's Warranty |
| Construction | Die-cast (housing, heat sink) |
| CRI | 80+ |
| Power Factor | 0.9+ |
| Housing and Heat Sink | Housing acts as heat sink (housing, heat sink) |
| Linking Option | Yes |
| Material | Aluminum (housing, heat sink) |
| Mounting | Suspended |
| Emergency Backup | Optional (sold separately) |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Sensor-ready / Optional (microwave) / Optional (PIR) |
| Photocell | Optional (optional, motion/daylight sensor) |
| Wattage Selectable | E2165T3_802CCTW01 configuration: Yes |
| Location Rating | Damp location |
| Standards | FCC / RoHS |
| Accessories | V-hook (included) / Chain (included) |
| Family | High bay |
| Series | TAA-compliant linear high bay |
Description

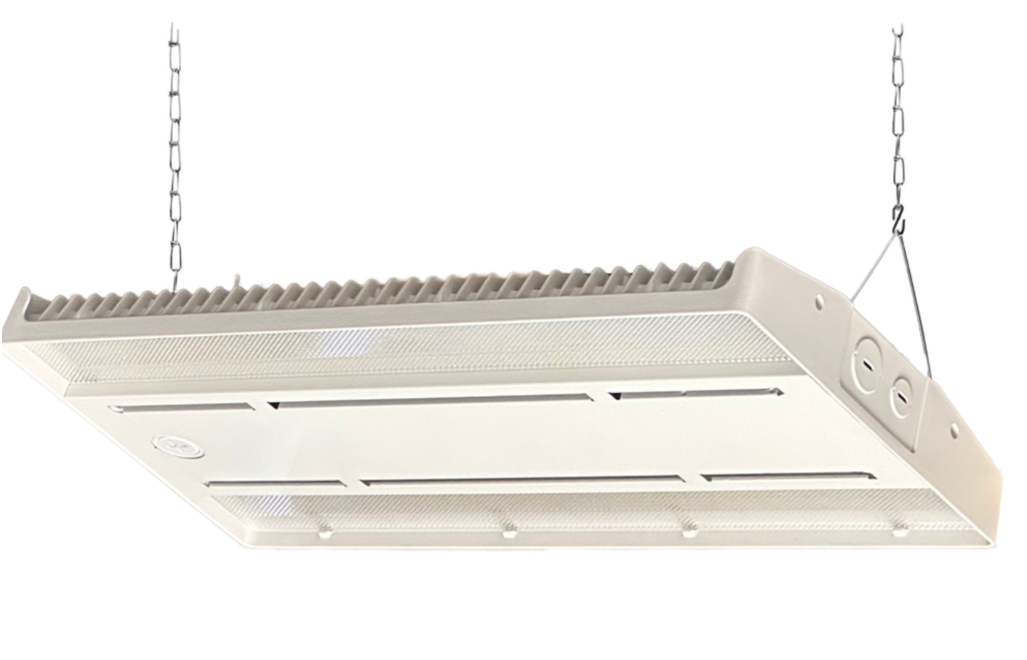

This linear LED high bay lights large spaces with high ceilings, such as warehouses, factories, gyms, recreational facilities, retail spaces, distribution centers and hangars. Wattage is selectable at 100, 120 or 155W, giving 15,000, 18,000 or 23,250 lumens, and color temperature at 4000K or 5000K. A pre-installed sensor receptacle accepts an optional plug-and-play sensor, and emergency backup is sold separately.
It produces 150 lm/W with CRI 80+, dims with 0–10V controls and runs on 120–277V. The die-cast aluminum housing and heat sink are damp-location rated, fixtures can be joined, and suspension mounting uses the included V-hook and chain.
UL and DLC Premium listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | TAA-compliant linear high bay |
| Construction | Die-cast (housing, heat sink) |
| Light | |
|---|---|
| CCT | 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 150 lm/W |
| Lumens | E2165T3_802CCTW01: 15,000 / 18,000 / 23,250 lm |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 120–277V |
| Wattage | E2165T3_802CCTW01 configuration: 100 / 120 / 155W |
| Physical | |
|---|---|
| Housing and Heat Sink | Housing acts as heat sink (housing, heat sink) |
| Linking Option | Yes |
| Material | Aluminum (housing, heat sink) |
| Mounting | Suspended |
| Emergency | |
|---|---|
| Emergency Backup | Optional (sold separately) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Sensor-ready / Optional (microwave) / Optional (PIR) |
| Photocell | Optional (optional, motion/daylight sensor) |
| Wattage Selectable | E2165T3_802CCTW01 configuration: Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | UL (damp location) / DLC Premium |
| Location Rating | Damp location |
| Standards | FCC / RoHS |
| Accessories | V-hook (included) / Chain (included) |
