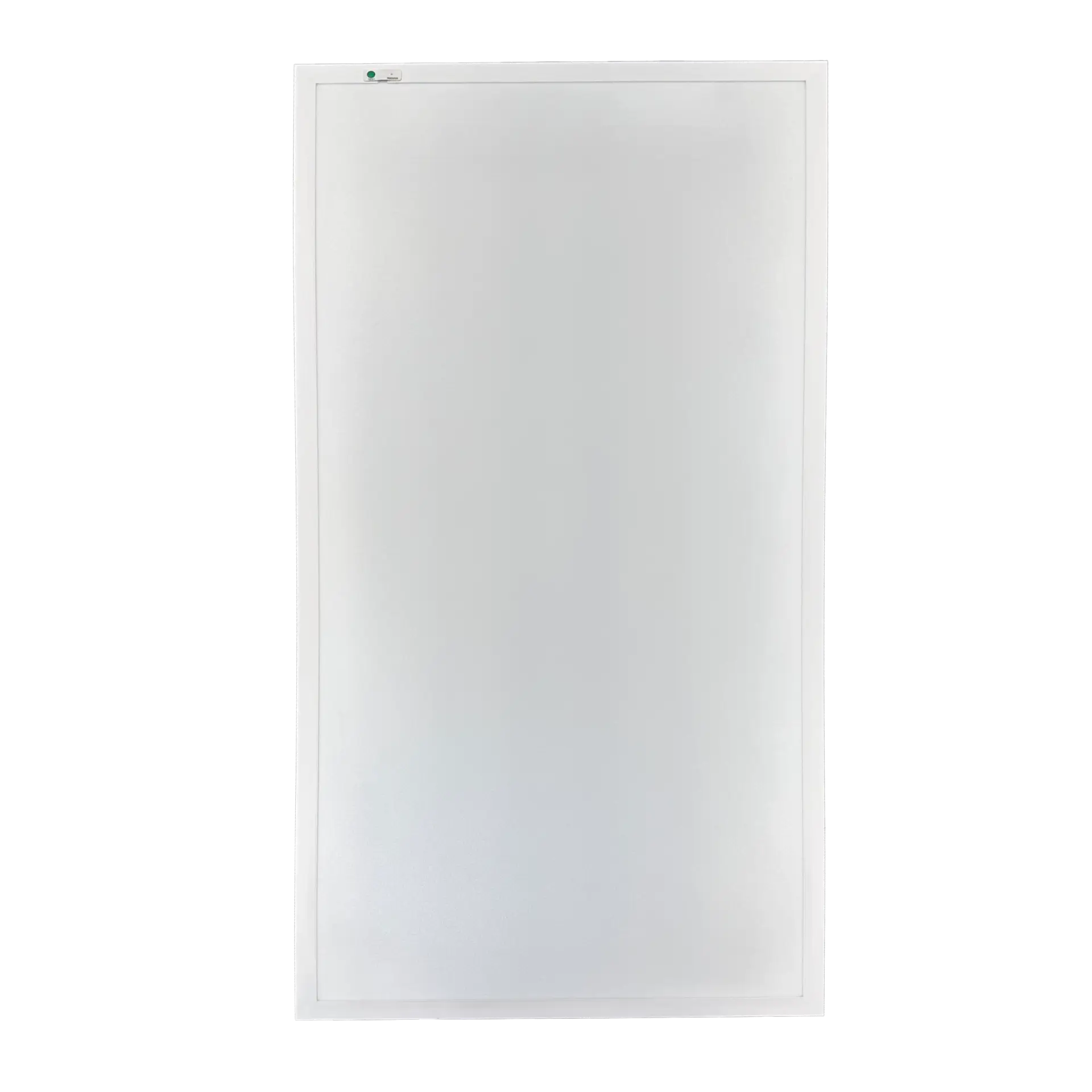

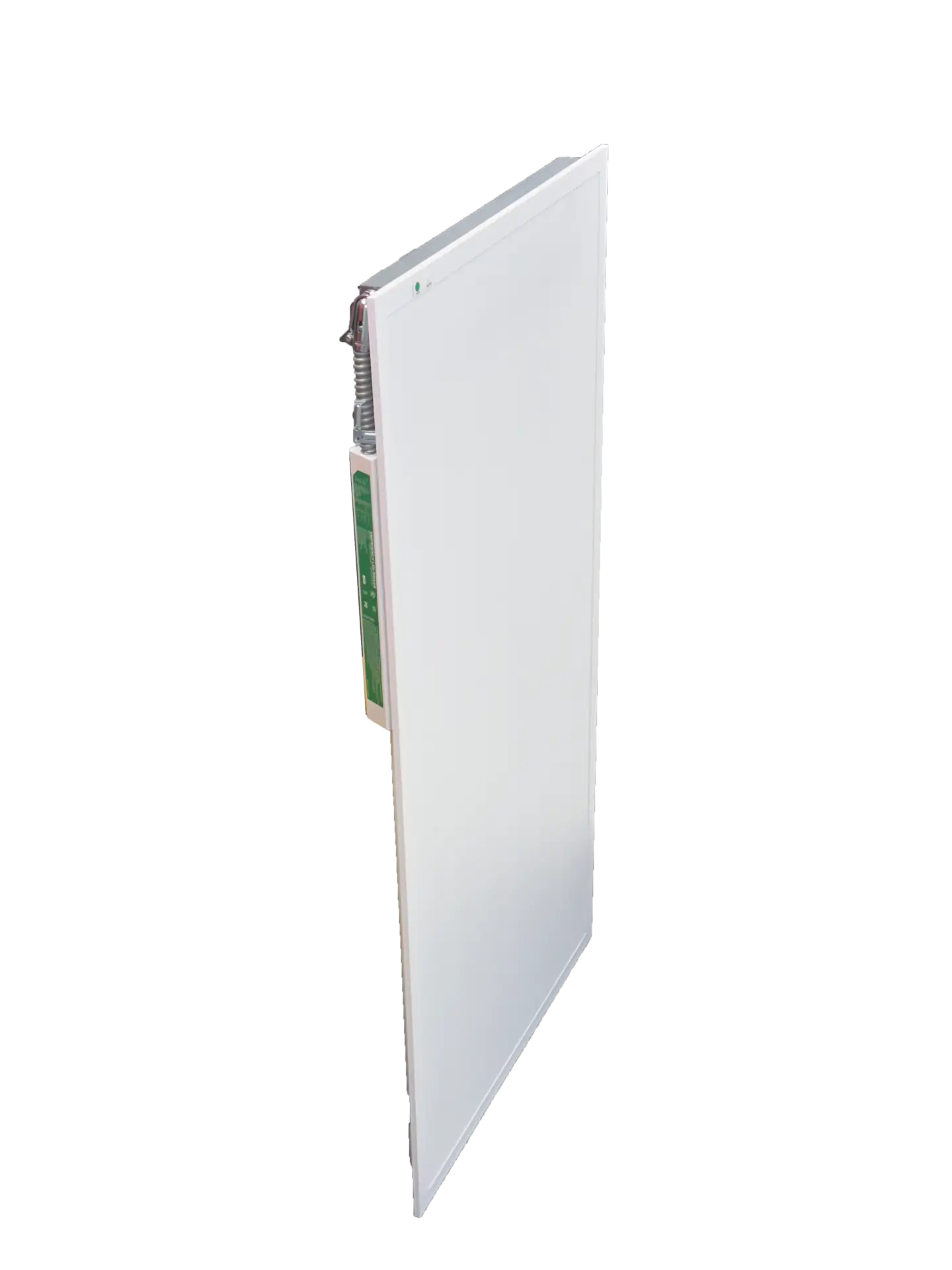

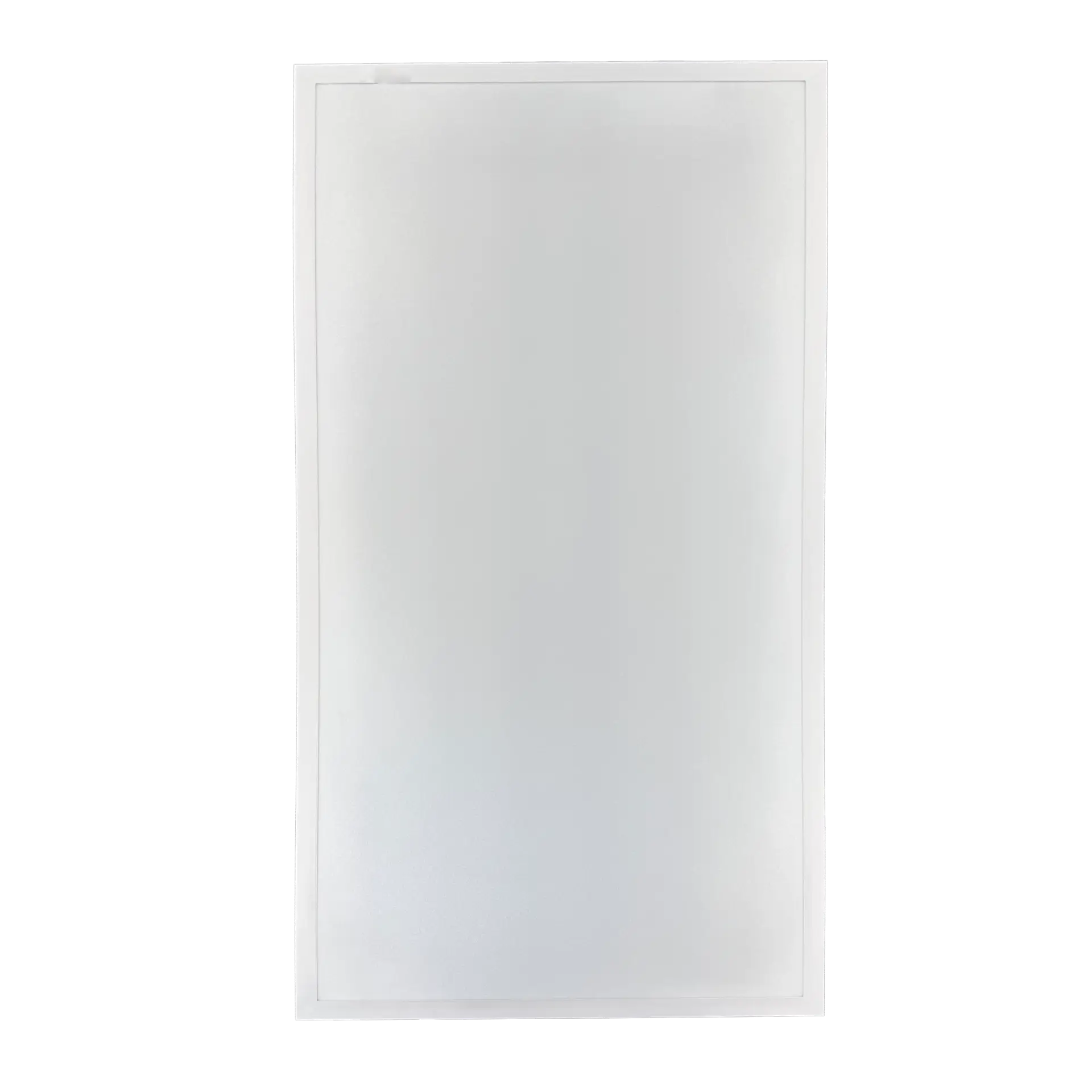

LED Flat Panel 2X4 CCT & Wattage Tunable
LED Flat Panel 2X4 CCT & Wattage Tunable
Model: E2-BPL-2X4-30/40/50/60/72W-35/40/50/57/65K
30/40/50/60/72W Wattage Selectable, Up to 9,180 Lumens

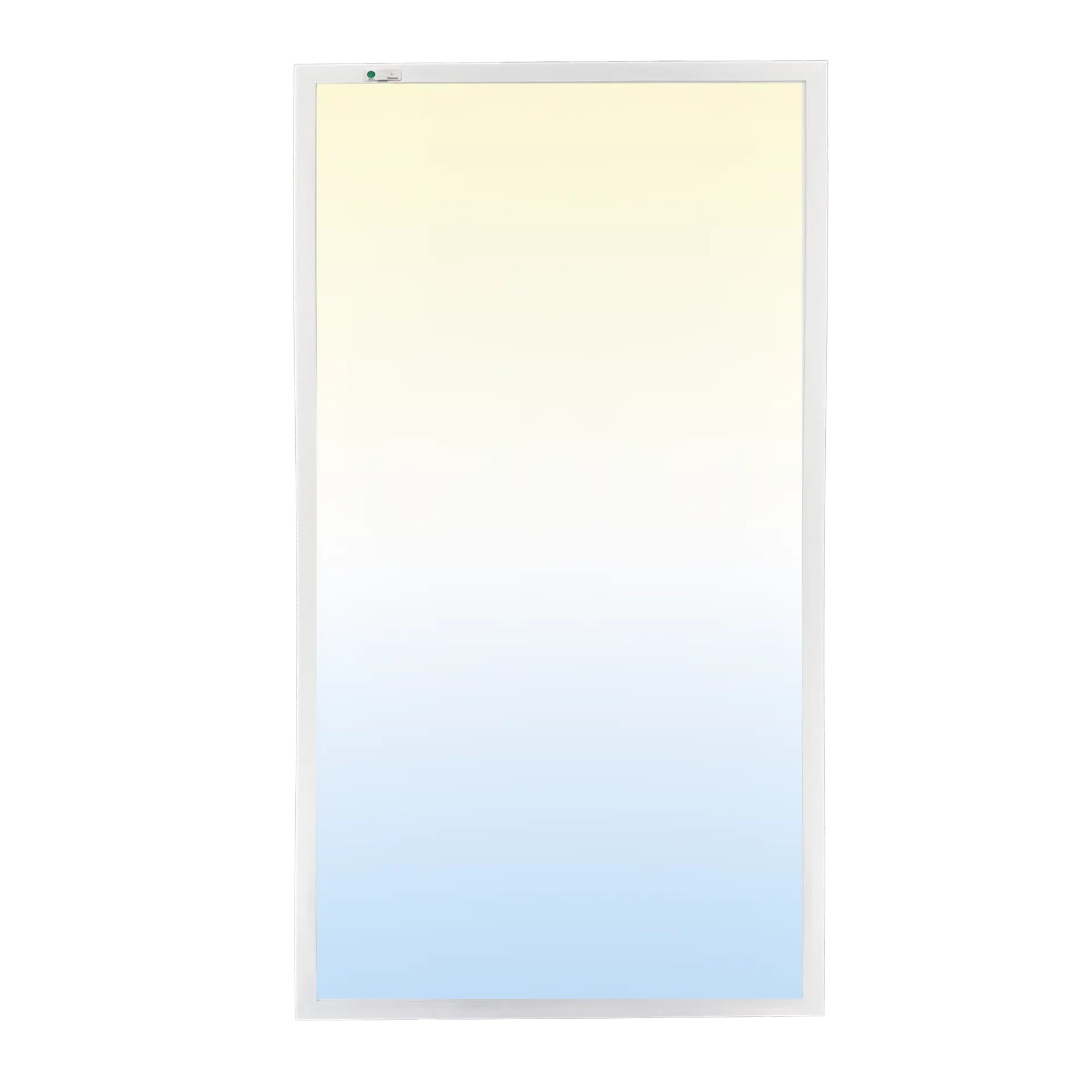

3500K/4000K/5000K/5700K/6500K CCT Selectable
0-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 30W / 40W / 50W / 60W / 72W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| CRI | > 80 |
| Lumens | 3,825 / 5,100 / 6,375 / 7,650 / 9,180 lm |
| Lifespan | 50,000 hours |
| Listings | DLC Premium / UL (damp location) |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 2×4 ft |
| Beam Angle | 120° |
| Color Consistency (SDCM) | up to 5 SDCM |
| Efficacy | 127.5 lm/W |
| UGR | up to 22 |
| Ambient Temperature | -20–35 °C (operating) |
| Dimensions | 47.8 × 23.7 × 1.6 in |
| Color | White |
| Material | Aluminum (frame) / Steel (back enclosure) |
| Mounting | Grid lay-in (integrated earthquake clips) |
| CCT Selectable | Yes, switchable |
| Dimming Range | 10–100% |
| Wattage Selectable | Yes |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC / RoHS |
| Pack Quantity | 4 (carton) / 72 (pallet) |
| Accessories | Surface-mount cable-kit accessory (sold separately) / Suspension-mount cable-kit accessory (sold separately) |
| Family | Troffer and flat panel |
| Series | Back-lit flat panel (BPL) |
Description
This versatile 2×4 LED flat panel offers a wide range of settings to match your lighting needs in commercial spaces with T-bar grid ceilings. Choose a power level of 30, 40, 50, 60 or 72W, giving 3,825, 5,100, 6,375, 7,650 or 9,180 lumens at 127.5 lm/W, and a color temperature of 3500K, 4000K, 5000K, 5700K or 6500K.

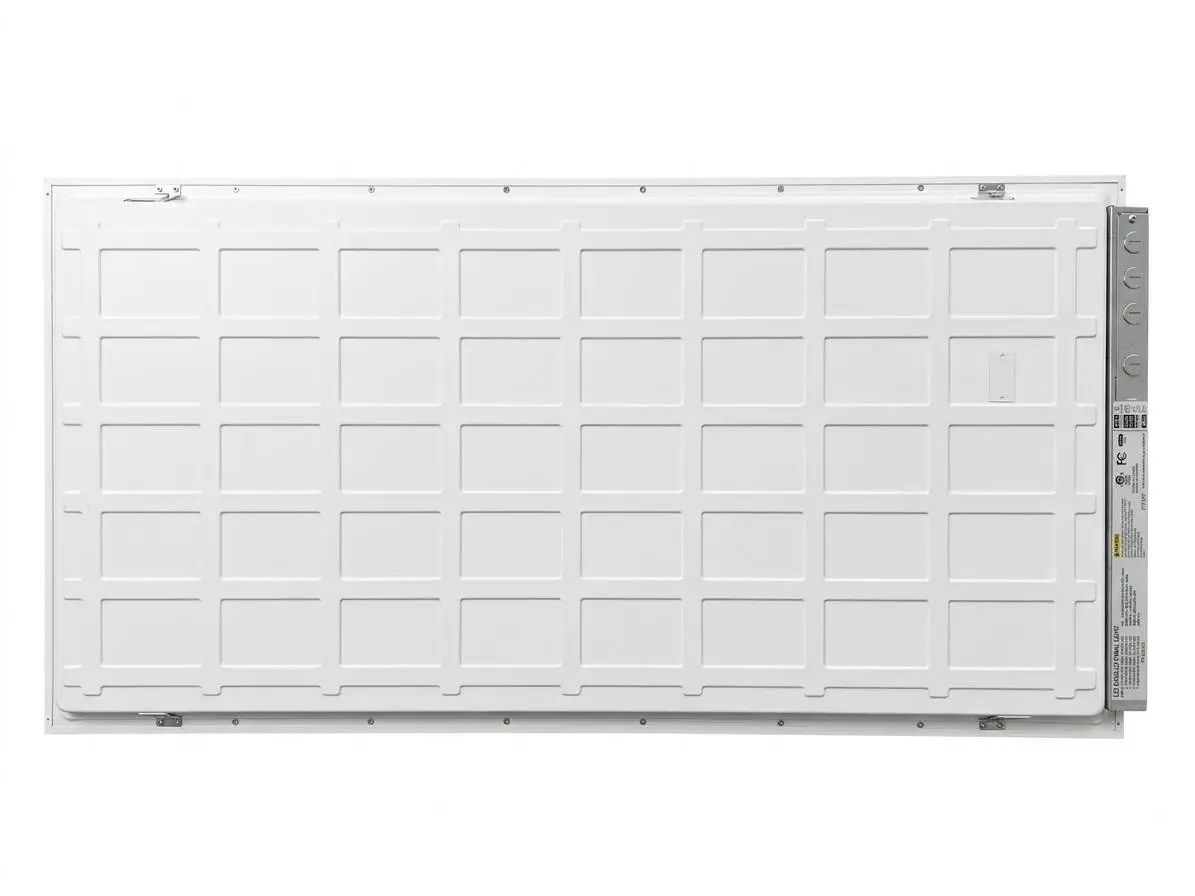

Brightness can be fine-tuned from 10–100% with 0–10V dimming, and the panel runs on standard 120–277V circuits with CRI 80, color consistency within 5 SDCM and UGR up to 22. A white aluminum frame and steel back enclosure measure 47.8 × 23.7 × 1.6 in, and integrated earthquake clips secure it in a recessed grid.
UL listed for damp locations, IC rated and DLC Premium listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Back-lit flat panel (BPL) |
| Size | 2×4 ft |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 3500 / 4000 / 5000 / 5700 / 6500K |
| CRI | 80 |
| Color Consistency (SDCM) | up to 5 SDCM |
| Efficacy | 127.5 lm/W |
| Lumens | 3,825 / 5,100 / 6,375 / 7,650 / 9,180 lm |
| UGR | up to 22 |
| Electrical | |
|---|---|
| Voltage | 120–277V |
| Wattage | 30 / 40 / 50 / 60 / 72W |
| Physical | |
|---|---|
| Ambient Temperature | -20–35 °C (operating) |
| Dimensions | 47.8 × 23.7 × 1.6 in |
| Finish | White |
| Material | Aluminum (frame) / Steel (back enclosure) |
| Mounting | Grid lay-in (integrated earthquake clips) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Range | 10–100% |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | UL (damp location) / DLC Premium |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC / RoHS |
| Pack Quantity | 4 (carton) / 72 (pallet) |
| Accessories | Surface-mount cable-kit accessory (sold separately) / Suspension-mount cable-kit accessory (sold separately) |
