8″ LED Ultra Slim Recessed Downlight – 18W -3 CCT Selectable (3000K/4000K/5000K) – 100-277V – Tri-Dimming & Type IC – Energy Star – 120W Equal
8″ LED Ultra Slim Recessed Downlight – 18W -3 CCT Selectable (3000K/4000K/5000K) – 100-277V – Tri-Dimming & Type IC – Energy Star – 120W Equal
Model: E2-DL-SLIM-8IN-18W-30/40/50K
18W, 1,260 Lumens
3000K/4000K/5000K CCT Selectable
TRIAC Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 18W |
| Voltage | 120-277V |
| Dimming | TRIAC |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 1,260+ lm |
| Dimensions | 8" |
| Listings | ENERGY STAR / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 in |
| Beam Angle | 110° |
| Power Factor | 0.95+ |

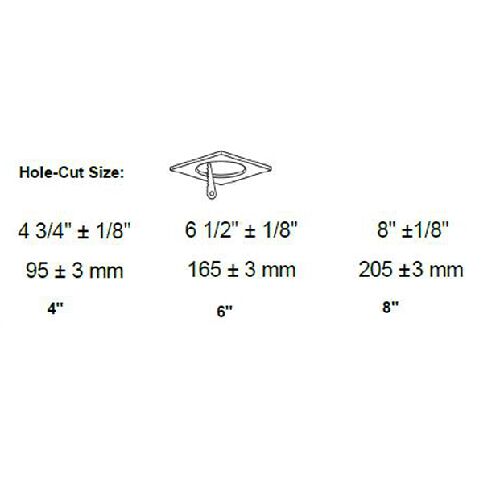

| Cutout | 8 in (± 1/8 in) |

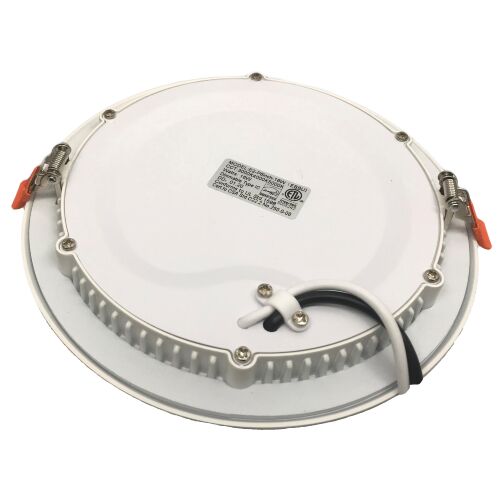

| Mounting | Pressure-fit clips |

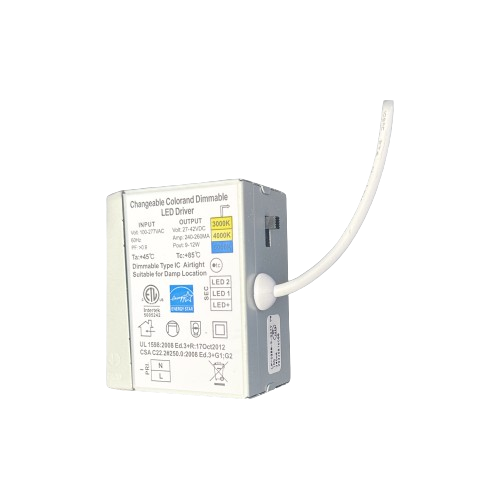

| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Lifespan | 50,000 hours |

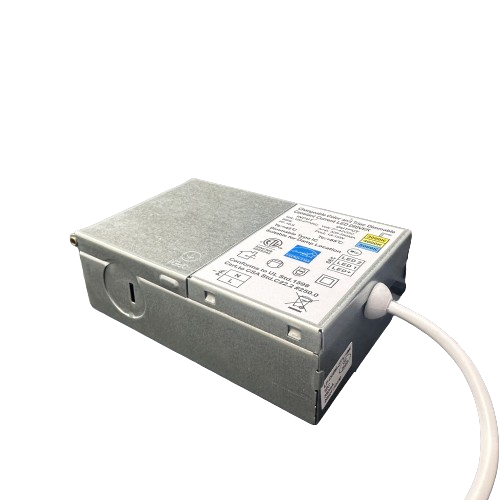

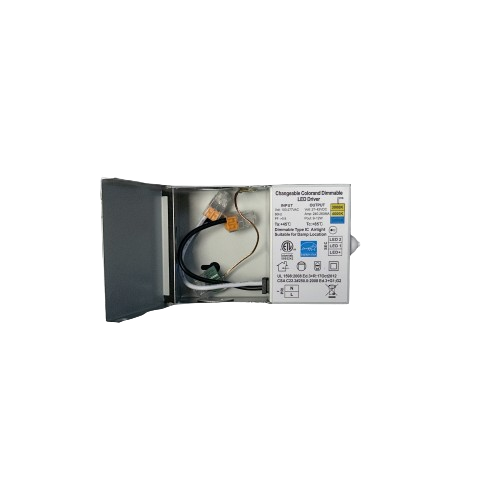

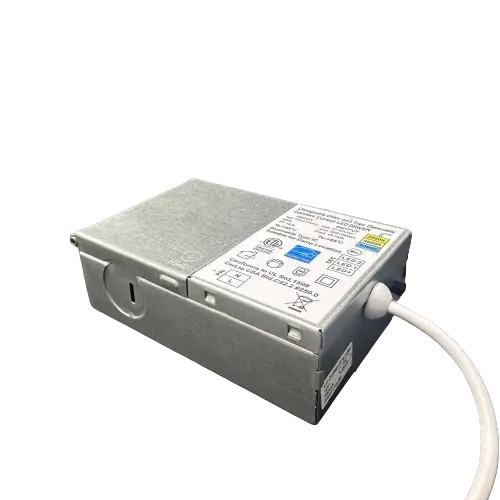

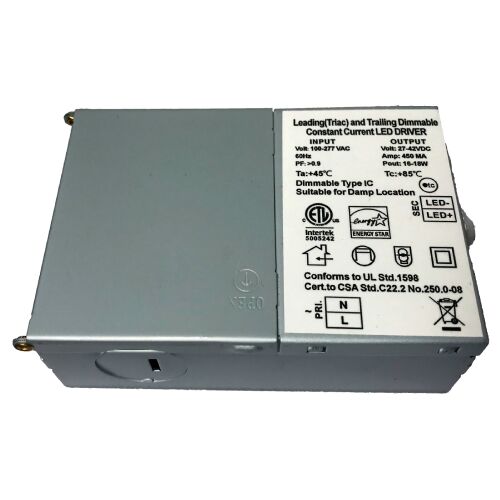

| Accessories | Driver junction box (included) |
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
Description

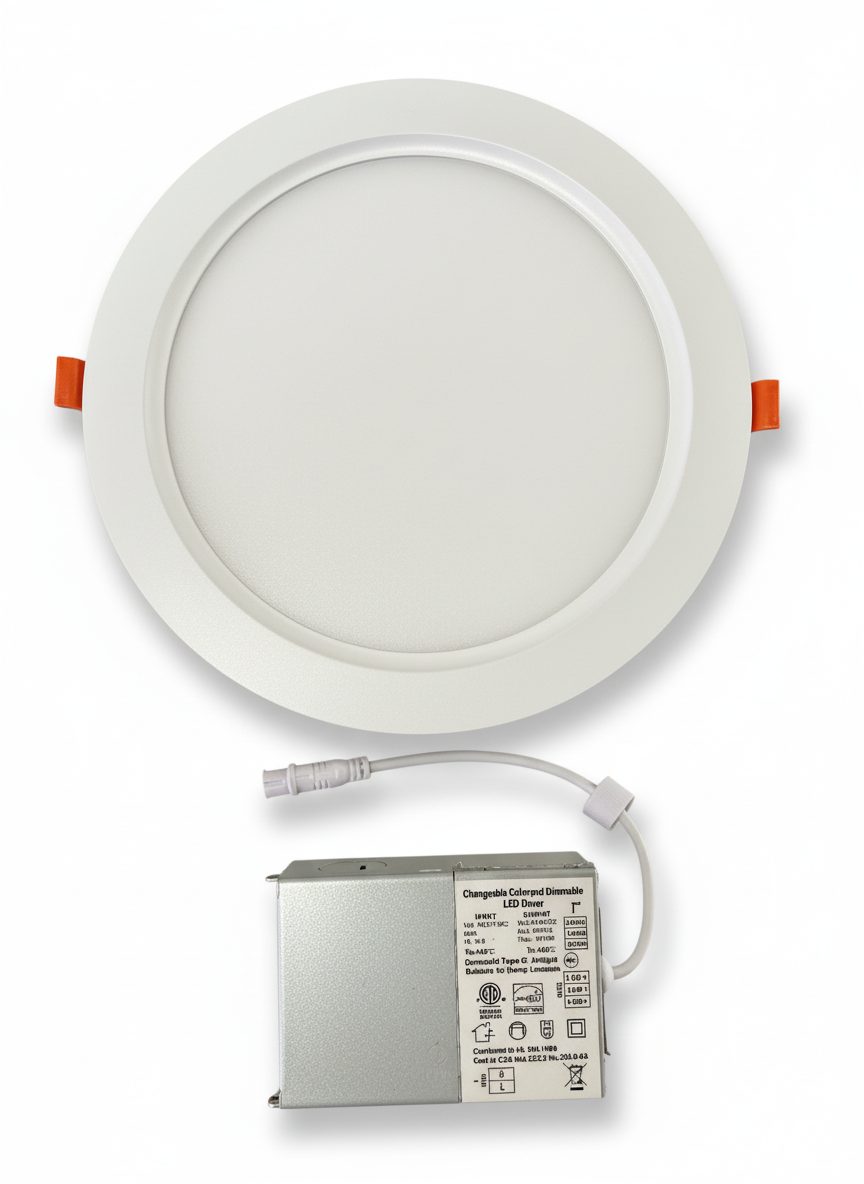

This 8-inch ultra-slim recessed downlight suits space-limited ceilings and soffits in living rooms, hallways, kitchens, bathrooms, hotels and offices. It is Type IC rated for insulation contact, comes with a driver junction box and installs with pressure-fit clips, with no recessed housing needed.
It draws 18W for 1,260+ lumens with a 110° beam, and a dip switch selects 3000K, 4000K or 5000K, with CRI 80. TRIAC dimming works with most wall dimmers, and it runs on 120–277V. It fits an 8-inch cutout and is rated for damp locations.
ENERGY STAR and cETLus listed, with a 50,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
| Size | 8 in |
| Light | |
|---|---|
| Beam Angle | 110° |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80 |
| Lumens | 1,260+ lm |
| Electrical | |
|---|---|
| Power Factor | 0.95+ |
| Voltage | 120–277V |
| Wattage | 18W |
| Physical | |
|---|---|
| Cutout | 8 in (± 1/8 in) |
| Mounting | Pressure-fit clips |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cETLus / ENERGY STAR |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Accessories | Driver junction box (included) |
