4″ Emergency LED Slim Panel SLIM-4Inch-9W – Up to 650 Lumens – 5 CCT Selectable (2700K-5000K) – AC 100-277V – 10W EBBU for 90 Mins – 60W Equal
4″ Emergency LED Slim Panel SLIM-4Inch-9W – Up to 650 Lumens – 5 CCT Selectable (2700K-5000K) – AC 100-277V – 10W EBBU for 90 Mins – 60W Equal
Model: E2-DL-SLIM-4IN-9W-27/30/35/40/50K-E-G2
9W, 650 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90+ Minutes
TRIAC Dimmable
120-277 Volt
Wet Location, IP54
Specifications
| Wattage | 9W |
| Voltage | 120-277V |
| Dimming | TRIAC |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | > 80 |
| Lumens | 650 lm |
| Lifespan | 50,000 hours |
| Dimensions | 5.1" |
| Listings | cETLus, Energy Star & FCC Approved, IP54 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 in |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 4 in |
| Mounting | Recessed / Pressure-fit clips |
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in EBBU mode; slow flicker while charging; quick flicker for a battery issue, at self-inspection) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| IC Rating | Yes |
| Location Rating | Wet location / Indoor |
| Standards | FCC |
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
Description

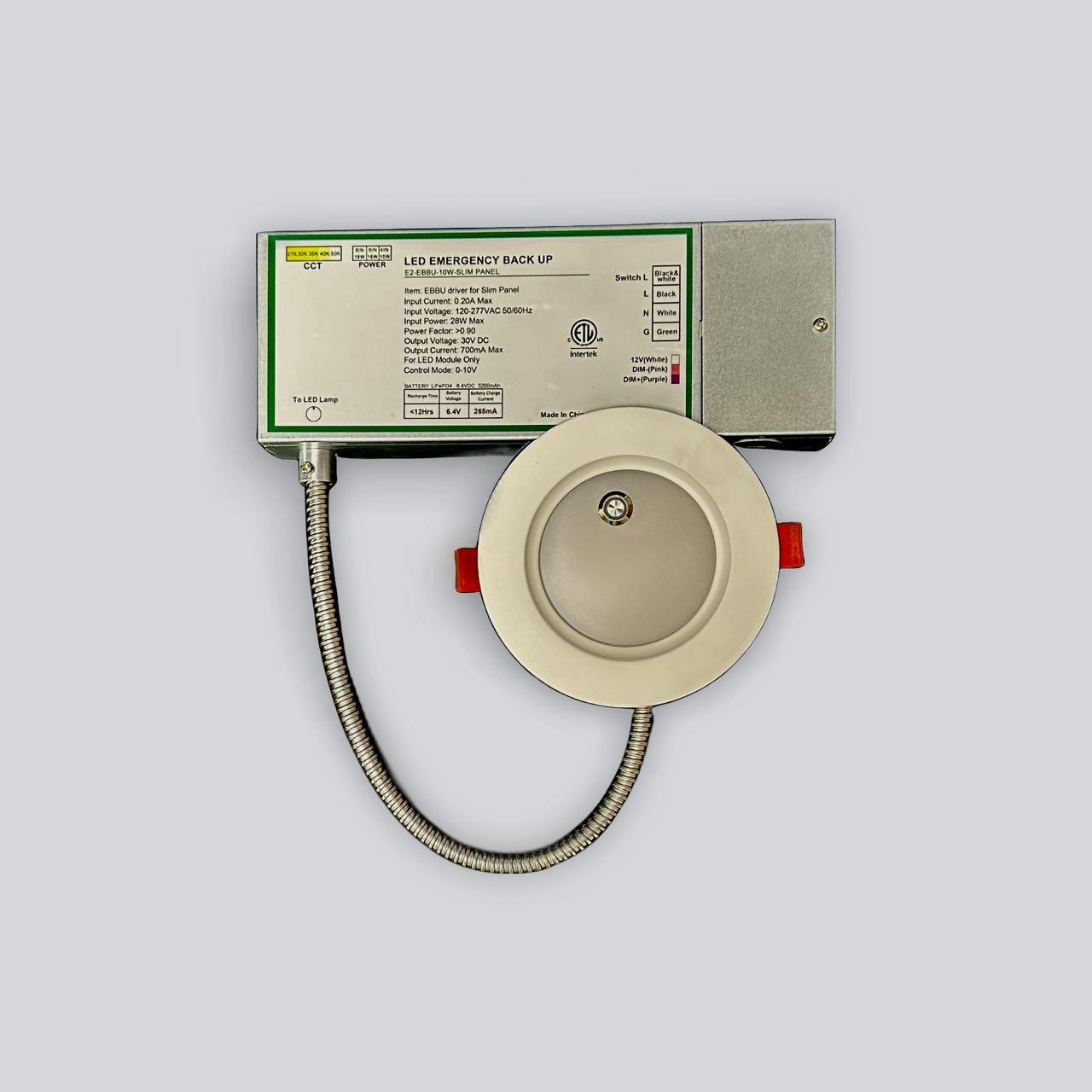

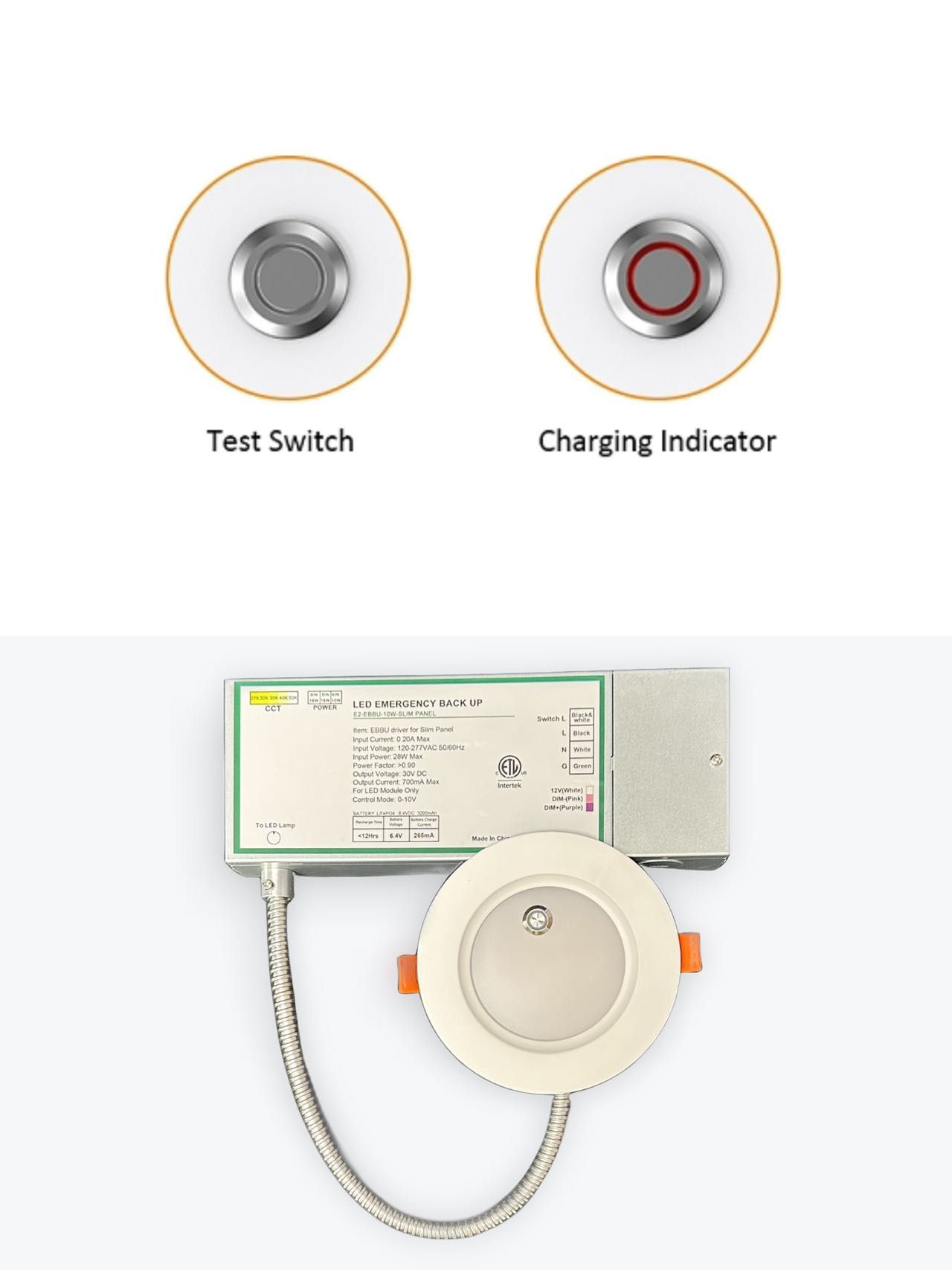

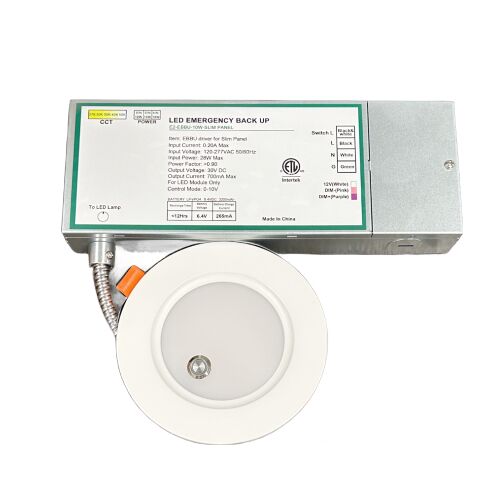

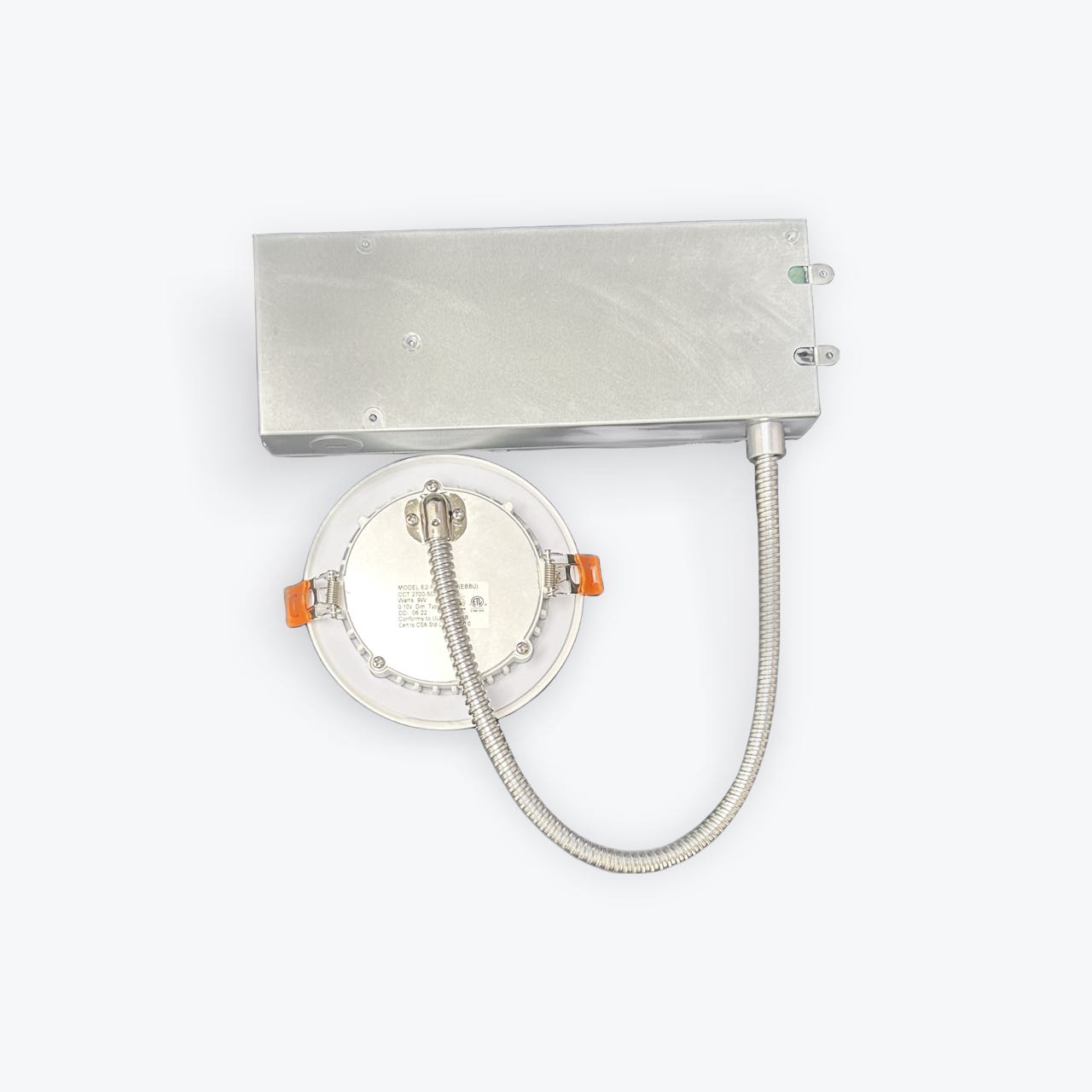

The 4-inch emergency LED slim panel combines everyday downlighting with a built-in 10W emergency battery that switches on when the power fails and keeps it lit for 90+ minutes. A test button and LED indicator check the battery, which is pre-wired to the panel through conduit.
In normal operation it delivers 650 lumens at 9W, with five selectable color temperatures (2700K, 3000K, 3500K, 4000K or 5000K), CRI 80 and TRIAC dimming on 120–277V. The ultra-slim, IC-rated panel fits a 4-inch cutout and holds with pressure-fit clips, with no ceiling can needed. Its wet-location, IP54 rating suits indoor ceilings in office buildings, hotels, hospitals and schools, and it operates from -4 to 104 °F.
ETL and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
| Size | 4 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 80 |
| Lumens | 650 lm |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 9W |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 4 in |
| Dimensions | 5.1 in |
| Mounting | Recessed / Pressure-fit clips |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in EBBU mode; slow flicker while charging; quick flicker for a battery issue, at self-inspection) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | ETL / ENERGY STAR |
| IC Rating | Yes |
| IP Rating | IP54 |
| Location Rating | Wet location / Indoor |
| Standards | FCC |
