Premium Commercial Downlights with Emergency Battery 8 Inch
Premium Commercial Downlights with Emergency Battery 8 Inch
Model: E2-DL-PCOM-8Inch20/30/40W27/30/35/40/50K-E
20/30/40W Wattage Selectable, Up to 4,000 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90 Minutes
0-10V Dimmable
100-277 Volt
Specifications
| Wattage | 20W / 30W / 40W |
| Voltage | 100-277V |
| Dimming | 0-10V |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | > 85 |
| Lumens | 2000 lm / 3000 lm / 4000 lm |
| Lifespan | 50,000 hours |
| Dimensions | 8 in (inner horizontal dimension) |
| Listings | cETLus, Energy Star & FCC Approved |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 in |
| Housing and Heat Sink | Heat sink (housing, heat sink) |
| Material | Aluminum (housing, heat sink) |
| Mounting | Spring clips |
| Emergency Lumens | 900–1,000 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Indicator Light | LED indicator (on in EBBU mode; slow flicker while charging; quick flicker for EBBU issue) |
| Test Switch | Test button (button, manual) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Standards | FCC |
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
Description

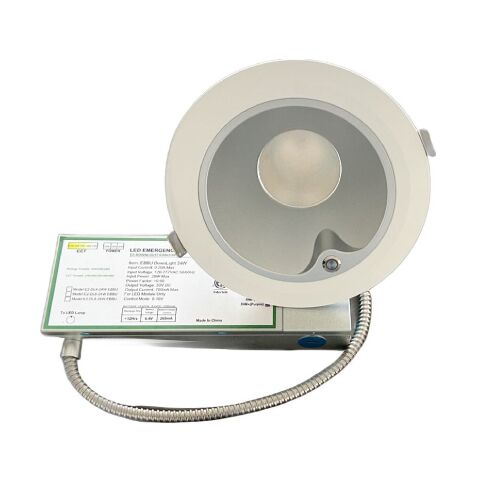

An 8-inch premium commercial recessed downlight with an integrated emergency battery, so the ceiling stays lit through a power outage without a separate emergency fixture. The 10W battery supplies 900–1,000 lumens for 90 minutes, with a test button and an LED status indicator.
Wattage is selectable at 20, 30 or 40W for 2,000–4,000 lumens, and color temperature at 2700K, 3000K, 3500K, 4000K or 5000K, with CRI 85+, both set at the connected driver box. It dims with 0–10V controls and runs on 100–277V. An aluminum housing with a heat sink mounts with spring clips for retrofit or new construction in schools, hospitals, retail spaces and offices.
FCC compliant, rated for 50,000 hours, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
| Size | 8 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 85+ |
| Lumens | 2,000–4,000 lm |
| Electrical | |
|---|---|
| Voltage | 100–277V |
| Wattage | 20 / 30 / 40W |
| Physical | |
|---|---|
| Dimensions | 8 in (inner horizontal dimension) |
| Housing and Heat Sink | Heat sink (housing, heat sink) |
| Material | Aluminum (housing, heat sink) |
| Mounting | Spring clips |
| Emergency | |
|---|---|
| Emergency Lumens | 900–1,000 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Indicator Light | LED indicator (on in EBBU mode; slow flicker while charging; quick flicker for EBBU issue) |
| Test Switch | Test button (button, manual) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Standards | FCC |
