LED Emergency Battery 15W 100-347V
LED Emergency Battery 15W 100-347V
Model: E2-EM-AFY-15W-170VDC
15W Emergency Output, 90+ Minutes
100-347 Volt
Output 170V
Recharges in 24 Hours
Specifications
| Wattage | 12W |
| Emergency Power | 15W |
| Input Voltage | 100-347V |
| Output Voltage | 170V |
| Ambient Temperature | 0°C(32°F) - 50°C(122°F) |
| Recharge Time | 24 hours |

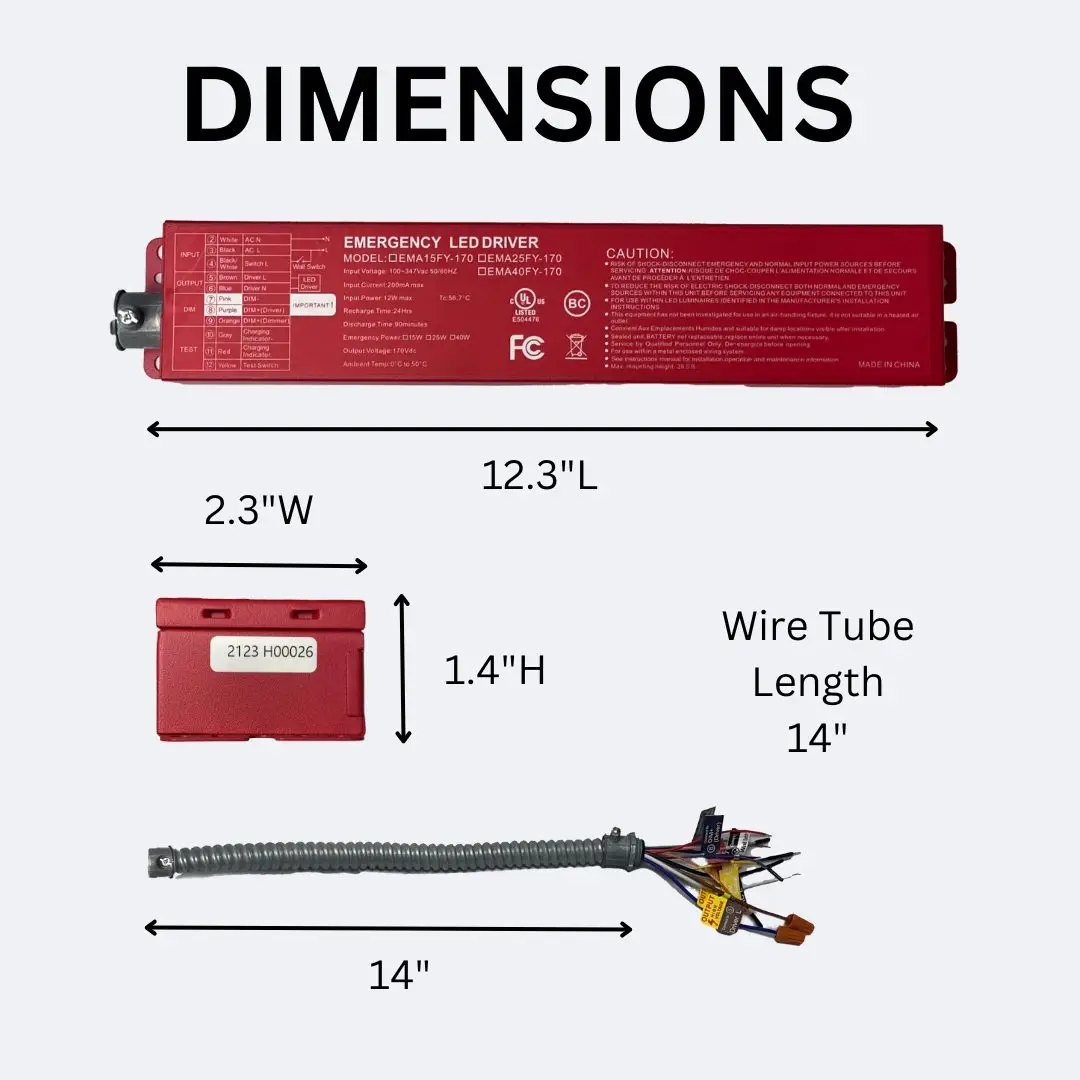

| Dimensions | 12.32" × 2.32" × 1.48" |
| Listings | UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Compatibility | Dimmable LED fixtures with an internal driver (dimmable LED fixtures with an internal driver) |
| Weight | 2.66 lb |
| Emergency Runtime | 90+ minutes |
| Test Switch | Self-test (automatic) / Test button (button, manual) |
| Indicator Light | Status indicator (emergency: 2 seconds on / 2 seconds off; failure: 0.2 seconds on / 0.2 seconds off) |
| Dimming Input Voltage Limit | up to 20V |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
Description

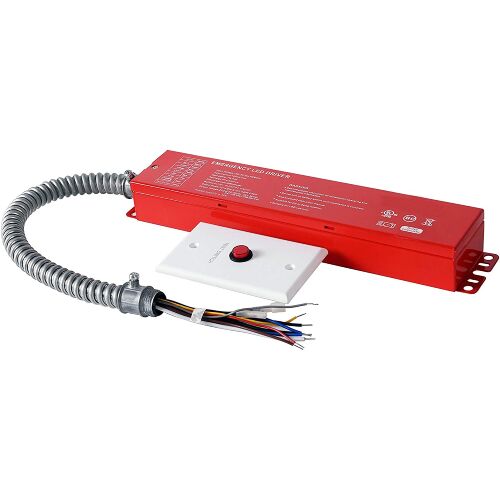

A 15W self-testing emergency driver for compatible dimmable LED fixtures with an internal driver, including high bay lights and commercial downlights. When AC power fails it delivers 15W at 170V DC for 90+ minutes, then returns to charging when power is restored, with a 24-hour recharge.

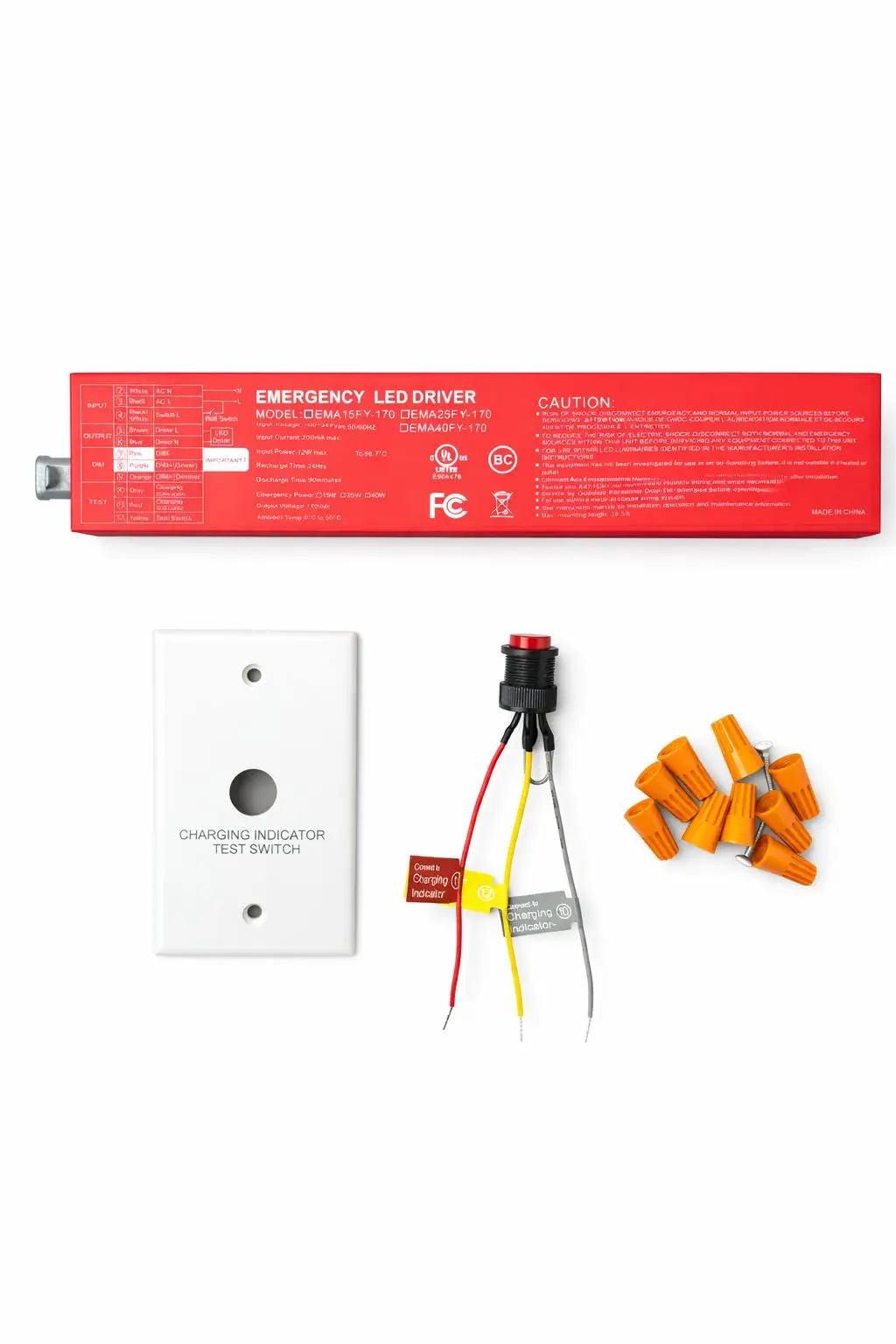

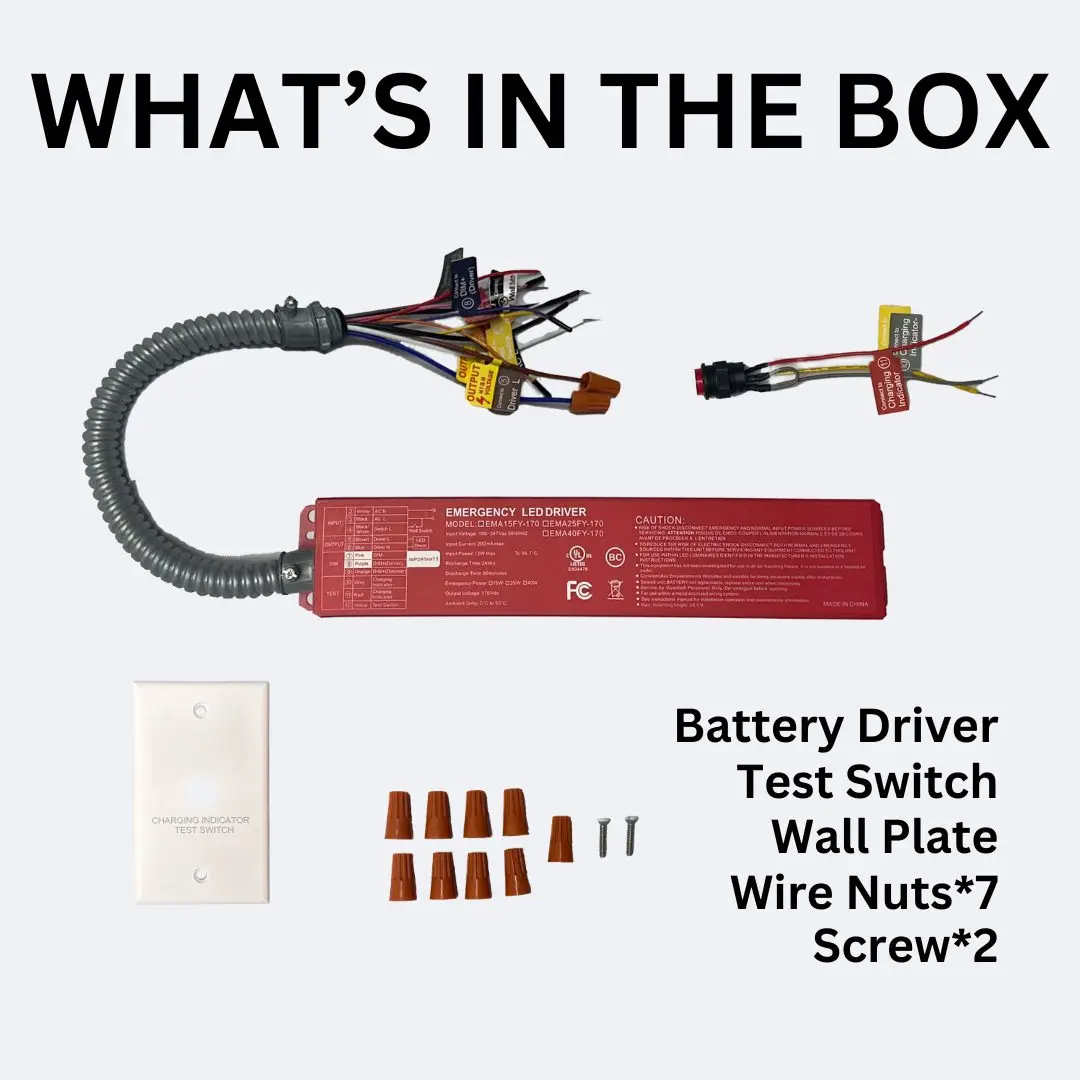

It runs on 100–347V input and draws up to 12W. Automatic monthly and annual tests monitor the LED load, battery voltage and emergency duration; the indicator stays on during AC operation, flashes slowly in emergency mode and flashes quickly on a fault. A test button and installation faceplate are included, and the unit measures 12.32 × 2.32 × 1.48 in and weighs 2.66 lb.
UL listed to UL 924, tested to CSA C22.2 No. 141 and compliant with California Title 20, rated for 0–50 °C ambient, with a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Series | AFY emergency LED driver |
| Electrical | |
|---|---|
| Constant Wattage | Yes |
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 170V |
| Voltage | 100–347V |
| Wattage | up to 12W (input, maximum) |
| Compatibility | Dimmable LED fixtures with an internal driver (dimmable LED fixtures with an internal driver) |
| Physical | |
|---|---|
| Ambient Temperature | 0–50 °C (ambient) |
| Dimensions | 12.32 × 2.32 × 1.48 in |
| Weight | 2.66 lb |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 15W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Self-test (automatic) / Test button (button, manual) |
| Indicator Light | Status indicator (emergency: 2 seconds on / 2 seconds off; failure: 0.2 seconds on / 0.2 seconds off) |
| Controls | |
|---|---|
| Dimming Input Voltage Limit | up to 20V |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 |
