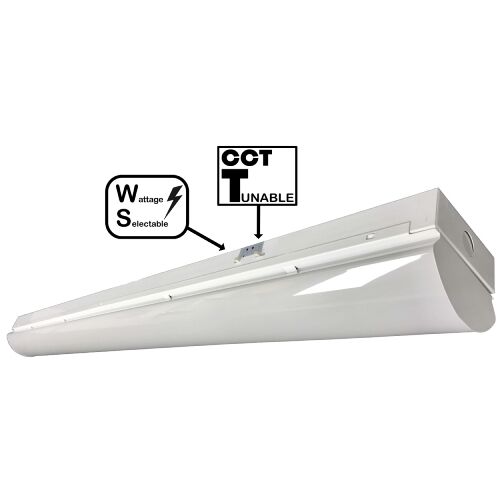

8FT Wide LED Linear Strip With Emergency Battery Backup
8FT Wide LED Linear Strip With Emergency Battery Backup
Model: E2-LS-WIDE-8FT-63/85W-35/40/50K-E
63/85W Wattage Selectable, Up to 10,625 Lumens
3500K/4000K/5000K CCT Selectable

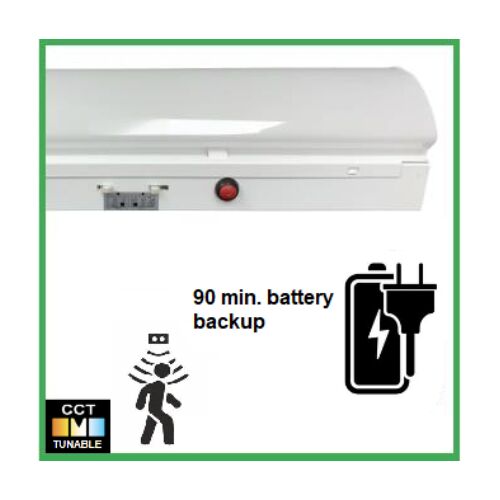

Built-in Emergency Battery
0-10V Dimmable
100-277 Volt
Specifications
| Wattage | 63W / 85W / 63W (at 7875 lm) / 85W (at 10625 lm) |
| Voltage | 63W configuration: 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | 80+ (at 63W configuration) |
| Lumens | 7,875 lm (at 63W) / 10,625 lm (at 85W) |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 2438 × 115 × 91 mm (95.98" × 4.53" × 3.58") |
| Listings | UL and DLC® Premium |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 ft |
| Beam Angle | 120° (at 63W configuration) |
| Connection Type | Terminal |
| Power Factor | 0.9+ (at 63W configuration) |
| Knockouts | 8 locations |
| Mounting | Surface / Chain suspended |
| Emergency Backup | Integrated |
| Emergency Power | 8W (emergency option) |
| Motion Sensor | Not included |
| Wattage Selectable | Yes |
| Family | Linear strip and wraparound |
| Series | Wide linear strip |
Description
Ideal for indoor commercial applications, this 8-foot wide LED linear strip comes with an emergency battery installed and replaces T12 and T8 strip fixtures in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more. When normal power is interrupted, the battery provides 1.5 hours of 8W backup lighting.
Wattage is selectable at 63 or 85W, giving 7,875 or 10,625 lumens, and color temperature at 3500K, 4000K or 5000K, over a 120° beam. It dims with 0–10V controls, runs on 100–277V and wires through terminals for normal and emergency power. Surface or chain-suspended mounting and 8 knockout locations give installation flexibility, with a 50,000-hour rated life.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Wide linear strip |
| Size | 8 ft |
| Light | |
|---|---|
| Beam Angle | 120° (at 63W configuration) |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ (at 63W configuration) |
| Lumens | 7,875 lm (at 63W) / 10,625 lm (at 85W) |
| Electrical | |
|---|---|
| Connection Type | Terminal |
| Power Factor | 0.9+ (at 63W configuration) |
| Voltage | 63W configuration: 100–277V |
| Wattage | 63W / 85W / 63W (at 7875 lm) / 85W (at 10625 lm) |
| Physical | |
|---|---|
| Dimensions | 2,438 × 115 × 91 mm |
| Knockouts | 8 locations |
| Mounting | Surface / Chain suspended |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 8W (emergency option) |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Motion Sensor | Not included |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
