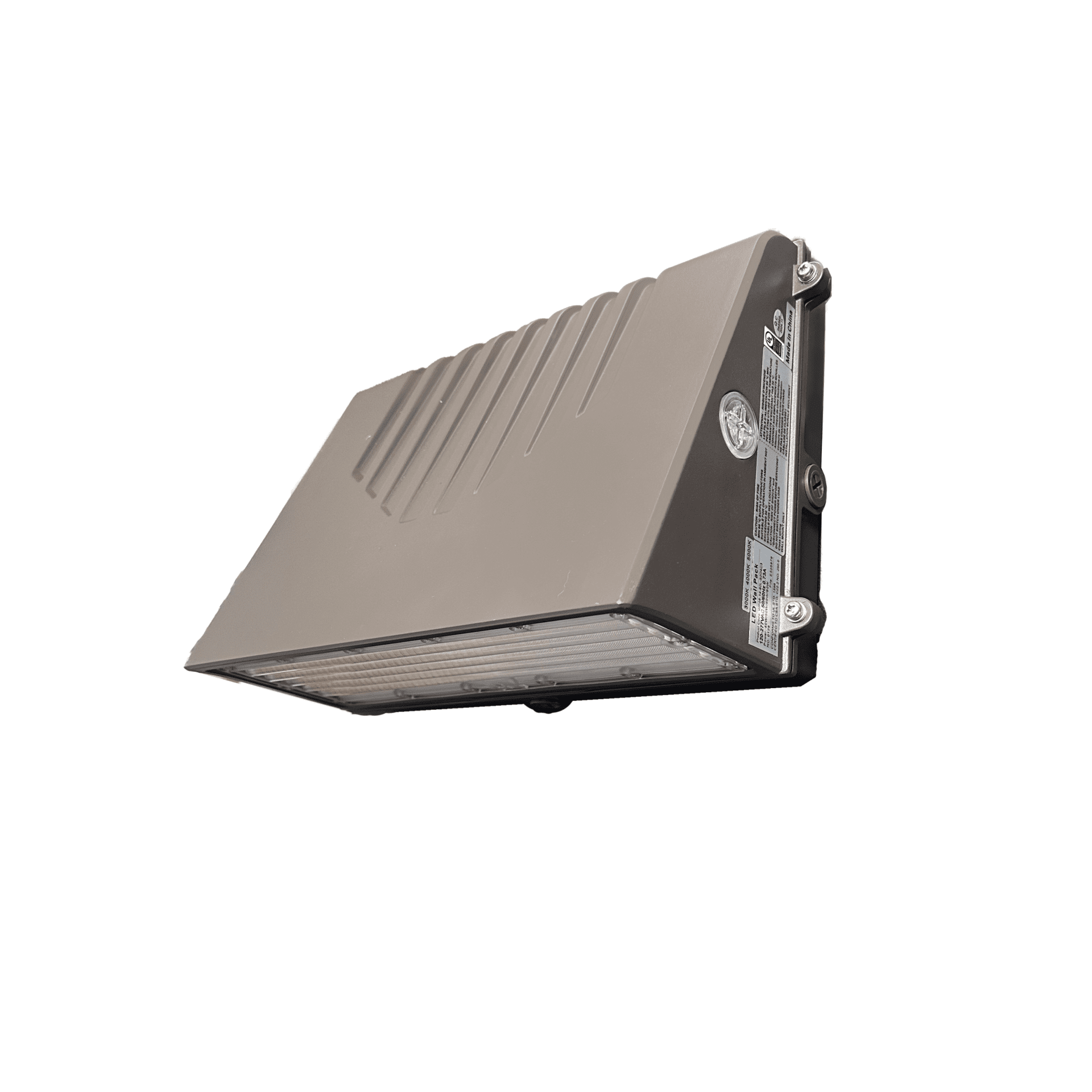

Full Cut-off Wall Pack with Emergency Battery Backup & Photocell
Full Cut-off Wall Pack with Emergency Battery Backup & Photocell
40/50/60/80W Wattage Selectable, Up to 13,600 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
Built-in 8W Emergency Battery, 90 Minutes
120-277 Volt
IP65
Bronze Finish
Specifications
| Light Source | SMD LED |
| Size | 14 in |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Distribution Type | Type III |
| Efficacy | 170 lm/W (at CRI >80, at 4000K) |
| Lumens | 13,600 lm (±10%) (at 80W, at 4000K, at CRI >80) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 40 / 50 / 60 / 80W |
| Ambient Temperature | -40–113 °F (operating, emergency version) |
| Color | Bronze |
| Knockouts | five 1/2-inch knockouts |
| Mounting | Wall |
| Weight | 2.7 kg (net, per piece) |
| Emergency Backup | Integrated |
| Emergency Lumens | 1,360 lm |
| Emergency Power | 8W |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button (button, manual, side-mounted, EM) |
| Motion Sensor | Optional (microwave) |
| Photocell | Included (built-in, ON/OFF control) |
| Sensor Settings | Photocell: ON (factory default) |
| Protection | Surge protection (surge) / Surge protection (surge, at 120–277V, at 40W) |
| Lifespan | 50,000 hours (at L70) |
| Warranty | 5 years |
| Pack Quantity | 1 (carton, piece) / 1,030 (shipping container, pieces, 20GP) / 2,365 (shipping container, pieces, 40HQ) |
| Listings | IP65 / UL |
| Family | Wall pack and wall luminaire |
| Series | WP28 full-cutoff wall pack |
Description

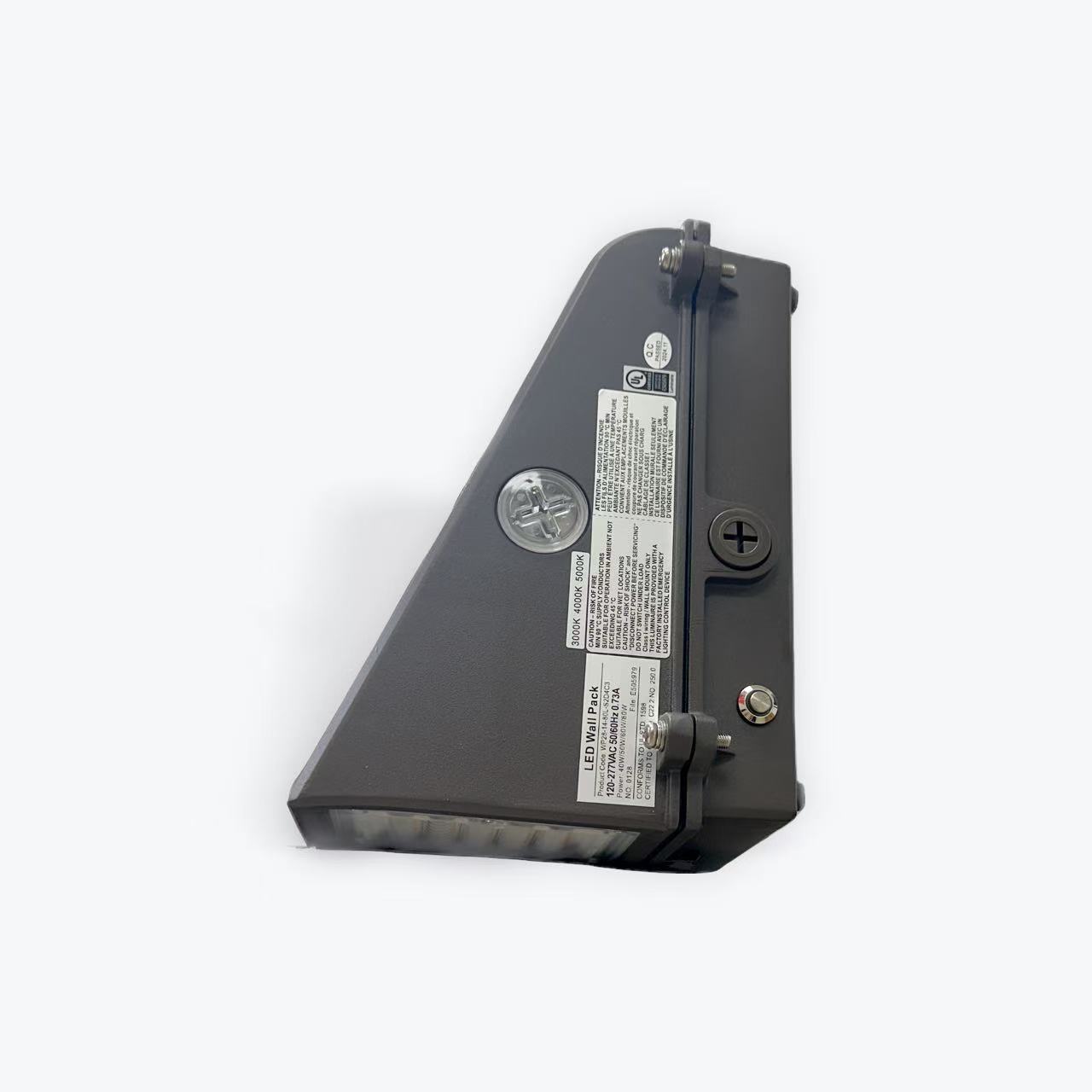

This full cutoff LED wall pack pairs a traditional appearance with a built-in emergency battery and a dusk-to-dawn photocell with on/off control, for outdoor perimeters such as parking garages, building entrances, hospitals and schools. During an outage the battery provides 8W and 1,360 lumens for 90 minutes, with a side-mounted test button.
Wattage is field-selectable at 40, 50, 60 or 80W, giving up to 13,600 lumens at 170 lm/W, and color temperature at 3000K, 4000K or 5000K with a CRI of 80+. It runs on 120–277V with surge protection. The 14-inch die-cast aluminum housing and polycarbonate lens with Type III distribution are IP65 rated from -40 to 113 °F, in a bronze finish with five knockouts for wiring.
UL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WP28 full-cutoff wall pack |
| Light Source | SMD LED |
| Size | 14 in |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Distribution Type | Type III |
| Efficacy | 170 lm/W (at CRI >80, at 4000K) |
| Lumens | 13,600 lm (±10%) (at 80W, at 4000K, at CRI >80) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 40 / 50 / 60 / 80W |
| Physical | |
|---|---|
| Ambient Temperature | -40–113 °F (operating, emergency version) |
| Finish | Bronze |
| Knockouts | five 1/2-inch knockouts |
| Mounting | Wall |
| Weight | 2.7 kg (net, per piece) |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 1,360 lm |
| Emergency Power | 8W |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button (button, manual, side-mounted, EM) |
| Controls | |
|---|---|
| Motion Sensor | Optional (microwave) |
| Photocell | Included (built-in, ON/OFF control) |
| Sensor Settings | Photocell: ON (factory default) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | UL |
| IP Rating | IP65 |
| Protection | Surge protection (surge) / Surge protection (surge, at 120–277V, at 40W) |
| Pack Quantity | 1 (carton, piece) / 1,030 (shipping container, pieces, 20GP) / 2,365 (shipping container, pieces, 40HQ) |
