LED Emergency RED Exit Sign with Double Face – 90 Min Battery Backup
LED Emergency RED Exit Sign with Double Face – 90 Min Battery Backup
Model: E2-EX-SETE30
4/5.2W Wattage Selectable
Built-in Emergency Battery, 90+ Minutes
Recharges in up to 24 Hours
120 / 277 Volt
Damp Location
Specifications
| Wattage | 4 W at 120 V; 5.2 W at 277 V: 4 / 5.2W |
| Voltage | 120-277V |
| Knockouts | Universal mounting pattern in back plate for J-box mounting (J-box mounting, back plate) |
| Mounting | Side / Wall |
| Dimensions | 11.5" × 7.25" × 1.5" |
| Recharge Time | up to 24 hours |
| Listings | UL / cUL |
| Directional Arrows | Knock-out right/left arrows |
| Warranty | 5-Year Manufacturer's Warranty |
| Emergency Backup | Integrated |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Charge indicator |
| Sign Faces | Double face |
| Test Switch | Test button (manual) |
| Dimmable | No |
| Location Rating | Damp location |
| Family | Exit sign |
Description

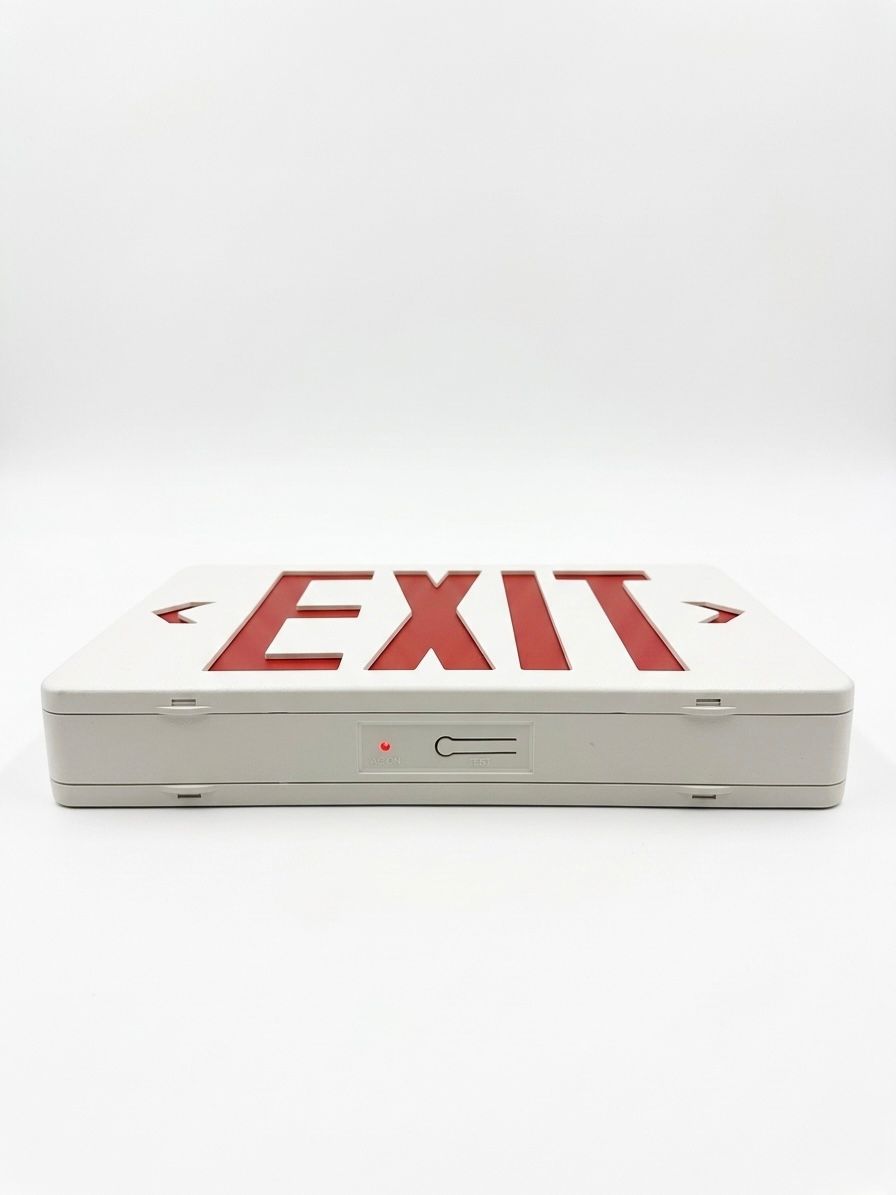

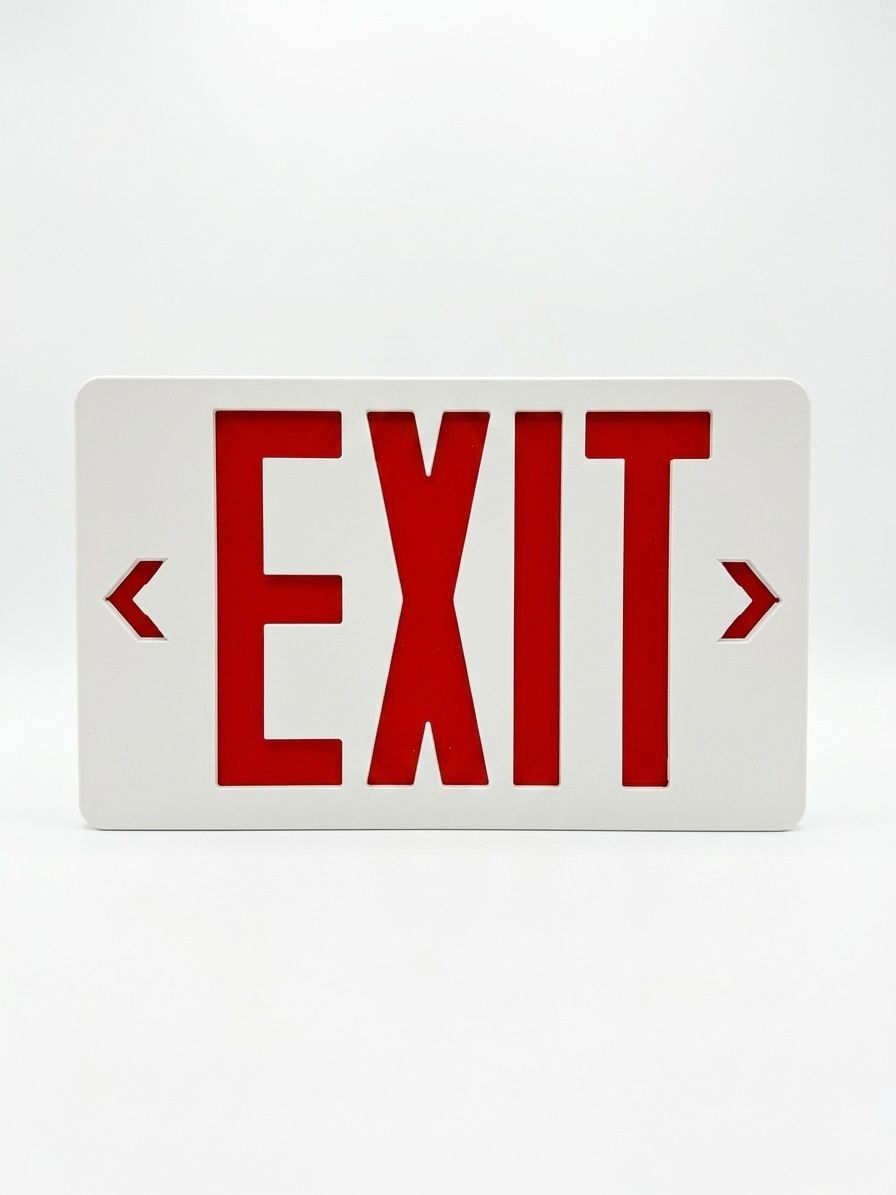

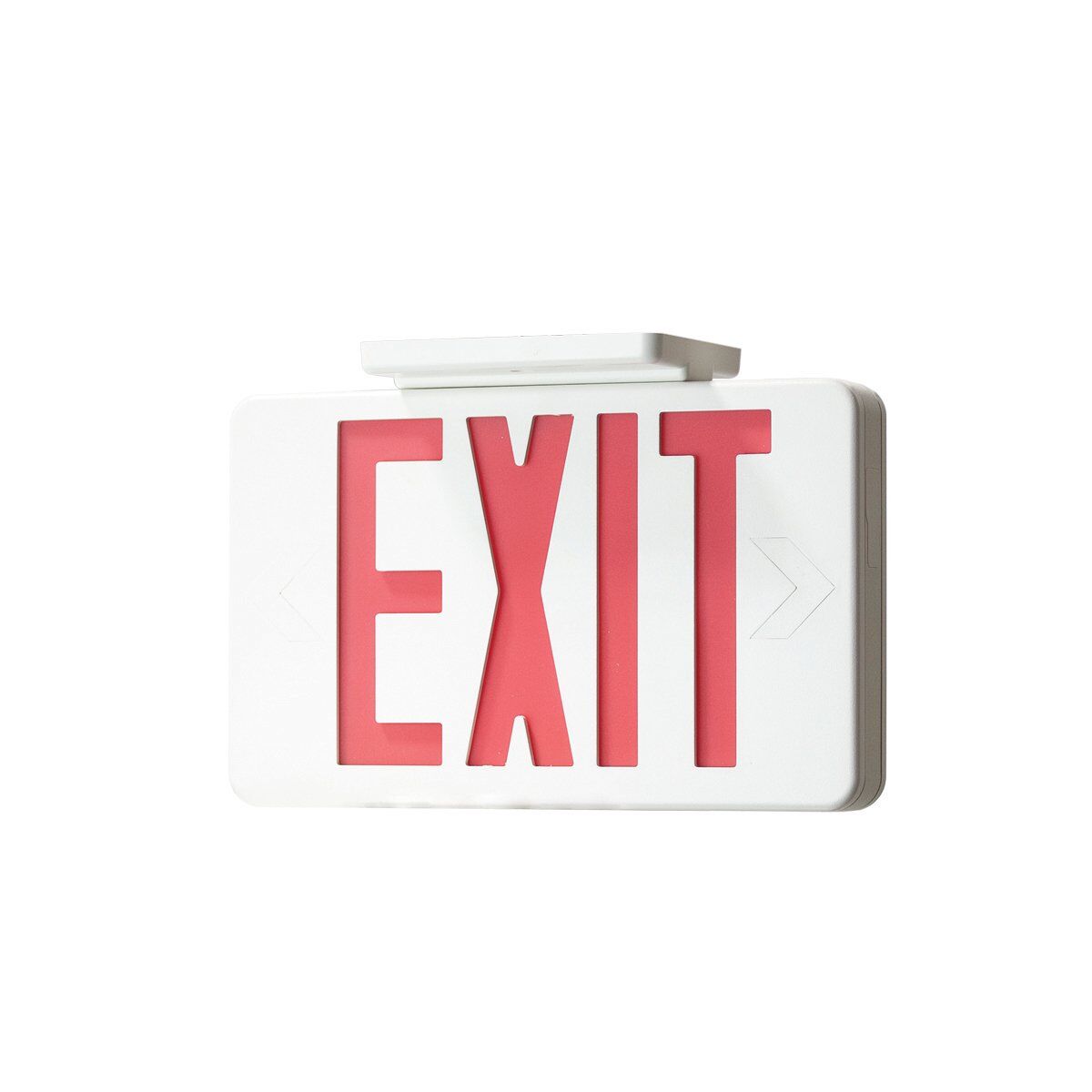

A double-face red LED exit sign with an integrated rechargeable battery, so exit identification stays visible from either side for 90+ minutes when the power fails. A test switch and charge indicator give access to checking the emergency backup system, and the battery recharges in up to 24 hours.
It operates on 120 or 277V, drawing 4 or 5.2W, and mounts to a wall or from the side, with a universal mounting pattern in the back plate for J-box mounting and knock-out right/left arrows. Rated for damp locations, it measures 11.5 × 7.25 × 1.5 in and is not dimmable.
UL and cUL listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Exit sign |
| Electrical | |
|---|---|
| Voltage | 120 / 277V |
| Wattage | 4 W at 120 V; 5.2 W at 277 V: 4 / 5.2W |
| Physical | |
|---|---|
| Dimensions | 11.5 × 7.25 × 1.5 in |
| Knockouts | Universal mounting pattern in back plate for J-box mounting (J-box mounting, back plate) |
| Mounting | Side / Wall |
| Emergency | |
|---|---|
| Charge Time | up to 24 hours |
| Directional Arrows | Knock-out right/left arrows |
| Emergency Backup | Integrated |
| Emergency Runtime | 90+ minutes |
| Indicator Light | Charge indicator |
| Sign Faces | Double face |
| Test Switch | Test button (manual) |
| Controls | |
|---|---|
| Dimmable | No |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL / cUL |
| Location Rating | Damp location |
