T8 Emergency Battery Backup Tube – G4 (On / Off)
T8 Emergency Battery Backup Tube – G4 (On / Off)
Model: E2-T8-4FT-ON/OFF-18W-40K-E
9/18W Wattage Selectable, Up to 2,319 Lumens
4000K/5000K CCT Selectable
Built-in Emergency Battery, 90 Minutes
G13 base, Double-ended ballast bypass, Single-ended ballast bypass
100-277 Volt
IP44
Specifications
| Wattage | 2 ft: 9W (nominal) / 4 ft: 18W (nominal) |
| Voltage | 100–277V |
| CCT | 4000K / 5000K |
| CRI | > 80 |
| Lumens | 998 lm (at 2 ft, at 9W nominal) / 2,319 lm (at 4 ft, at 18W nominal) |
| Lifespan | 50,000 hours (at L70) |
| Listings | ETL / cETLus / IP44 |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 9W: 2 ft / 18W: 4 ft |
| Beam Angle | 220° |
| Efficacy | 120+ lm/W |
| Frequency | 50–60 Hz |
| Power Factor | 0.9 |
| THD | up to 20% |

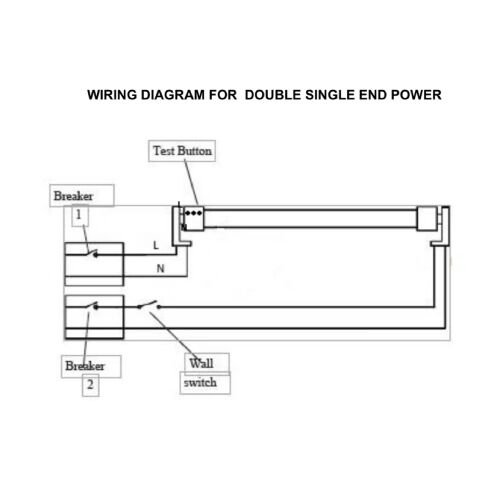

| Tube Wiring | Double-ended ballast bypass (default) / Single-ended ballast bypass |
| Ambient Temperature | -20–65 °C (operating) / 0–45 °C (charging) |
| Lamp Base | G13 |
| Conversion Time | 1 second |
| Emergency Backup | Integrated |
| Emergency Lumens | 384 lm (at 3W) / 1,024 lm (at 8W) |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button |

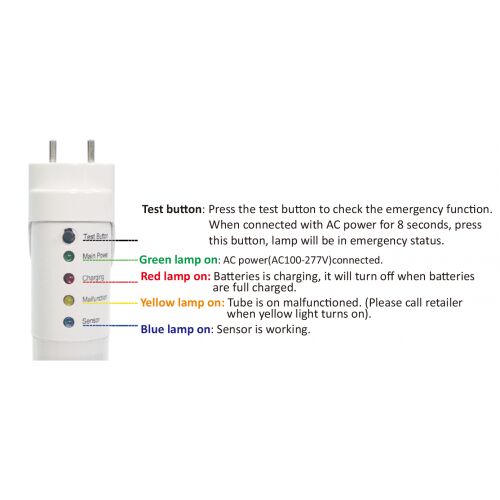

| Indicator Light | Status indicator (green: AC power connected) / Status indicator (red: charging; off when fully charged) / Status indicator (yellow: malfunction) / Status indicator (blue: sensor working) |
| Dimmable | No |
| Electrical Isolation | Internally isolated LED driver |
| Mercury Free | Yes |
| Standards | RoHS |
| Battery Cycle Life | 800 cycles |
| Family | T8 LED tube |
| Series | E2 G4 emergency T8 tube |
Description
An on/off T8 LED tube with a built-in lithium emergency battery, made for wall-switched fluorescent retrofits. The battery keeps charging whether the wall switch is on or off, and a loss of supply switches the tube to emergency lighting within 1 second, for 90 minutes at 384 or 1,024 lumens.
It comes as a 2-foot 9W tube giving 998 lumens or a 4-foot 18W tube giving 2,319 lumens, in 4000K or 5000K with CRI 80. Ballast-bypass wiring is double-ended by default, with single-ended as an option, and it runs on 100–277V at 120+ lm/W. A test button and indicator lights for AC power, charging, malfunction and sensor operation are built in, along with an internally isolated driver and a battery rated for 800 charge/discharge cycles.
Rated IP44 with a 220° beam, ETL / cETLus listed, with a 50,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | T8 LED tube |
| Series | E2 G4 emergency T8 tube |
| Size | 9W: 2 ft / 18W: 4 ft |
| Light | |
|---|---|
| Beam Angle | 220° |
| CCT | 4000 / 5000K |
| CRI | 80 |
| Efficacy | 120+ lm/W |
| Lumens | 998 lm (at 2 ft, at 9W nominal) / 2,319 lm (at 4 ft, at 18W nominal) |
| Electrical | |
|---|---|
| Frequency | 50–60 Hz |
| Power Factor | 0.9 |
| THD | up to 20% |
| Tube Wiring | Double-ended ballast bypass (default) / Single-ended ballast bypass |
| Voltage | 100–277V |
| Wattage | 2 ft: 9W (nominal) / 4 ft: 18W (nominal) |
| Physical | |
|---|---|
| Ambient Temperature | -20–65 °C (operating) / 0–45 °C (charging) |
| Lamp Base | G13 |
| Emergency | |
|---|---|
| Conversion Time | 1 second |
| Emergency Backup | Integrated |
| Emergency Lumens | 384 lm (at 3W) / 1,024 lm (at 8W) |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button |
| Indicator Light | Status indicator (green: AC power connected) / Status indicator (red: charging; off when fully charged) / Status indicator (yellow: malfunction) / Status indicator (blue: sensor working) |
| Controls | |
|---|---|
| Dimmable | No |
| Warranty | |
|---|---|
| Battery Cycle Life | 800 cycles |
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / cETLus |
| Electrical Isolation | Internally isolated LED driver |
| IP Rating | IP44 |
| Mercury Free | Yes |
| Standards | RoHS |
Javier Navarro –
Great light bulbs I recommended them to my company in a drilling rig they have been working for a year non stop performing better than phillips saving a lot of money in ballasts and emergency ballasts and batteries, it is a great quality T8 lamp, The only down side is that they don’t come with instructions on how to set the sensor or the options with the small buttons
