6″ Slim Downlight 5X CCT With Pre-wired Emergency Battery Backup -Black
6″ Slim Downlight 5X CCT With Pre-wired Emergency Battery Backup -Black
Model: E2-DL-SLIM-6Inch-16W-27/30/35/40/50K-E-BL
16W
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90+ Minutes
TRIAC Dimmable
120-277 Volt
Wet Location, IP54
Specifications
| Wattage | 16W |
| Voltage | 120-277V |
| Dimming | TRIAC |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 639 - 1278 lm |
| Lifespan | 50,000 hours |
| Dimensions | 7.48" |
| Listings | Energy Star, ETL Classified, IP54 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 6 in |
| Connection Type | Cable |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -4–104 °F (operating) |
| Diameter | 7.48 in |
| Mounting | Recessed / Pressure-fit clips |
| Emergency Backup | Integrated |
| Emergency Power | 10W (emergency backup module) |
| Emergency Runtime | 90+ minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in emergency mode; slow flicker while charging; quick flicker for an emergency-backup issue) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| IC Rating | Yes |
| Location Rating | Wet location / Indoor |
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
Description

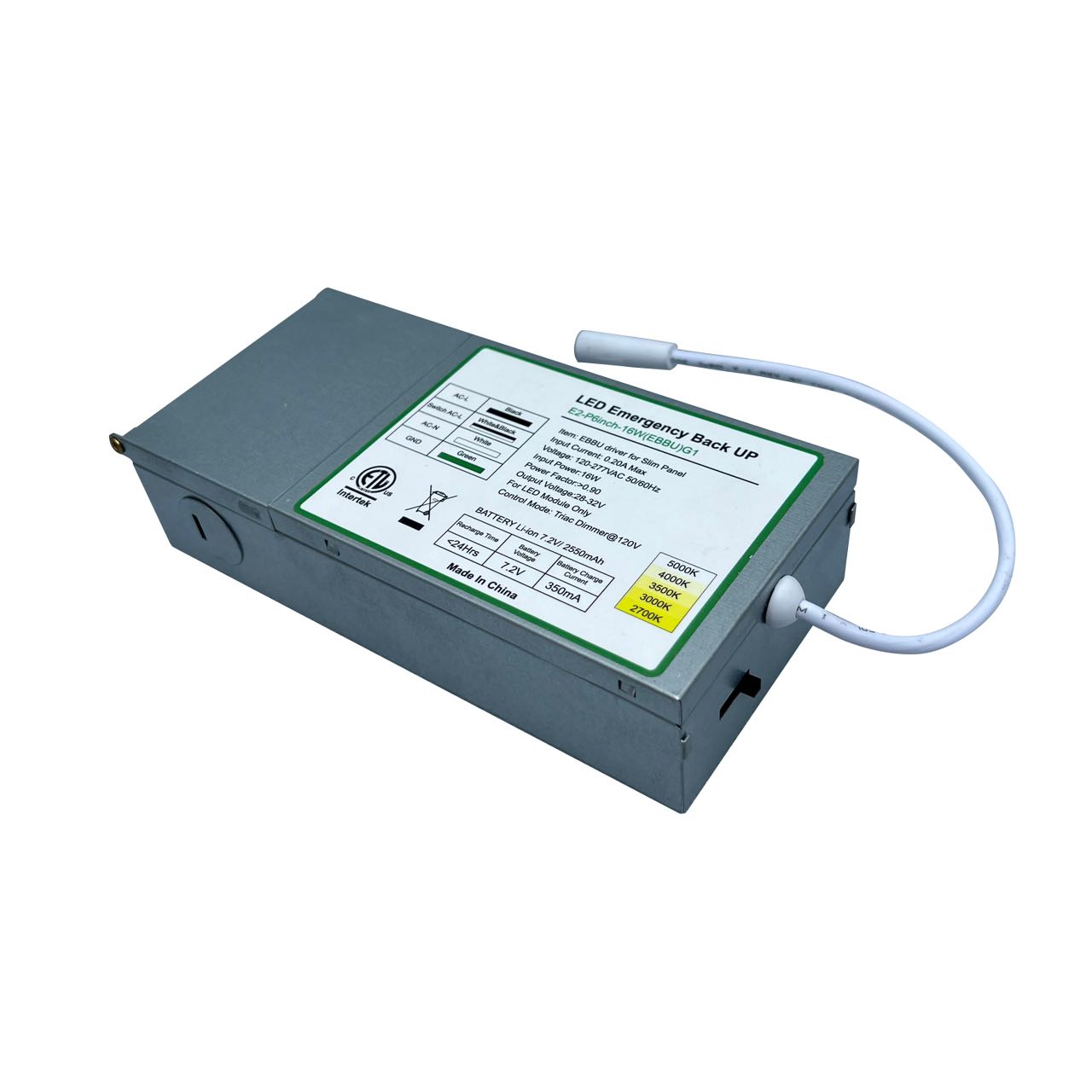

This 6-inch black slim downlight pairs everyday lighting with a pre-wired emergency battery backup that keeps it on for 90+ minutes during a power outage. The 10W battery connects to the panel by metal conduit cable, and a test button with an LED indicator checks its status.

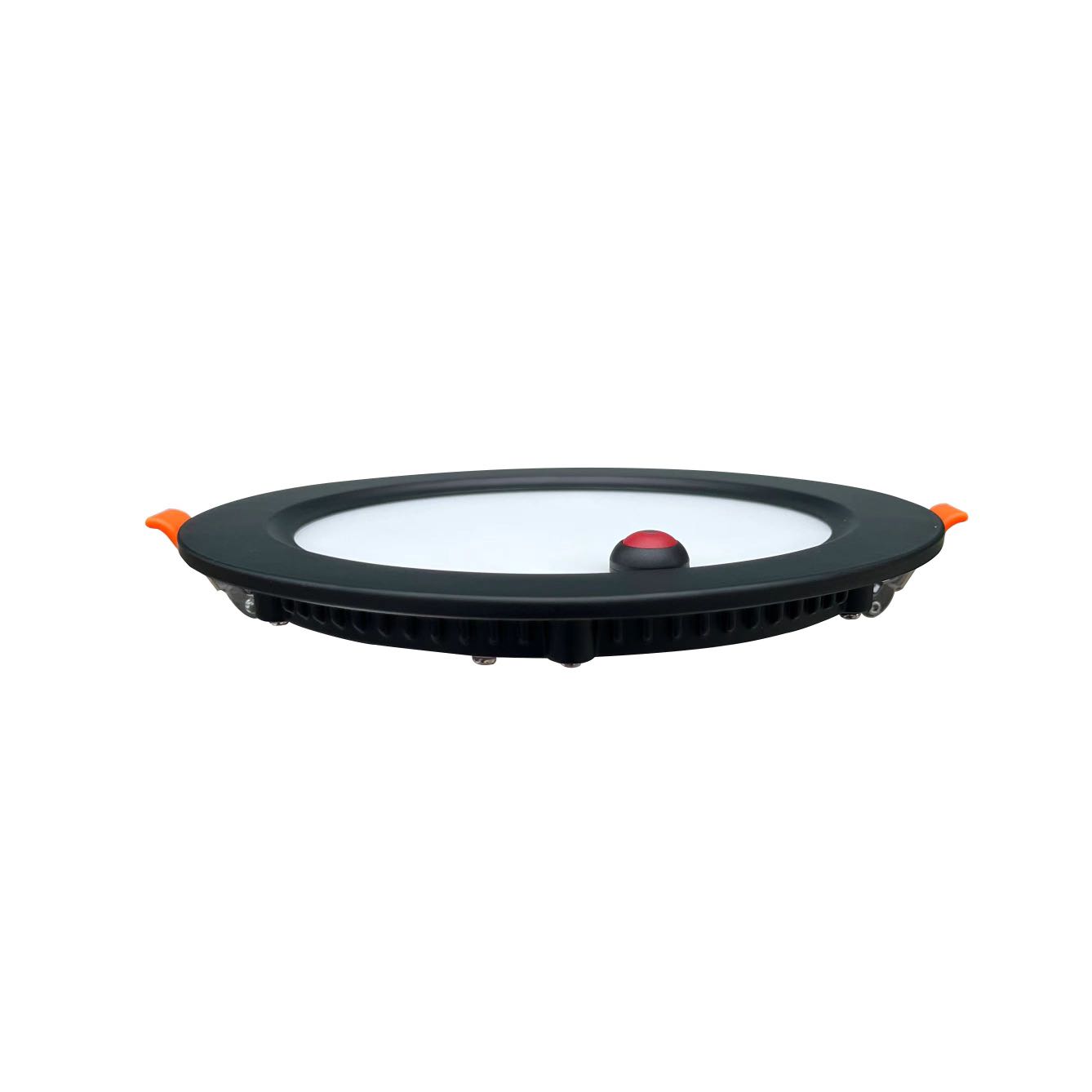

It draws 16W, with color temperature selectable from warm 2700K through 3000K, 3500K and 4000K to cool 5000K, and CRI 80+. It is TRIAC dimmable and runs on 120–277V. The low-profile, IC-rated fixture is 7.48 inches across and holds with pressure-fit clips, and its wet-location, IP54 rating suits indoor ceilings in offices, hallways, lobbies and hospitality spaces. It operates from -4 to 104 °F.
ETL and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
| Size | 6 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 80+ |
| Electrical | |
|---|---|
| Connection Type | Cable |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 16W |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Diameter | 7.48 in |
| Mounting | Recessed / Pressure-fit clips |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 10W (emergency backup module) |
| Emergency Runtime | 90+ minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in emergency mode; slow flicker while charging; quick flicker for an emergency-backup issue) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | ETL / ENERGY STAR |
| IC Rating | Yes |
| IP Rating | IP54 |
| Location Rating | Wet location / Indoor |
