Commercial Downlight 8 Inch 35W 5CCT & 5Wattage
Commercial Downlight 8 Inch 35W 5CCT & 5Wattage
Model: E2-DL-COM-8IN-16/22/26/30/35W-27/30/35/40/50K
16/22/26/30/35W Wattage Selectable, Up to 3,960 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
0-10V Dimmable
120-277 Volt
IP54
Specifications
| Wattage | 16W / 22W / 26W / 30W / 35W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | > 80 |
| Lumens | 1600 lm / 2200 lm / 2600 lm / 3120 lm / 3960 lm |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 10.31"C × 4.88"H |
| Listings | ENERGY STAR / IP54 / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 in |
| Efficacy | up to 120 lm/W |

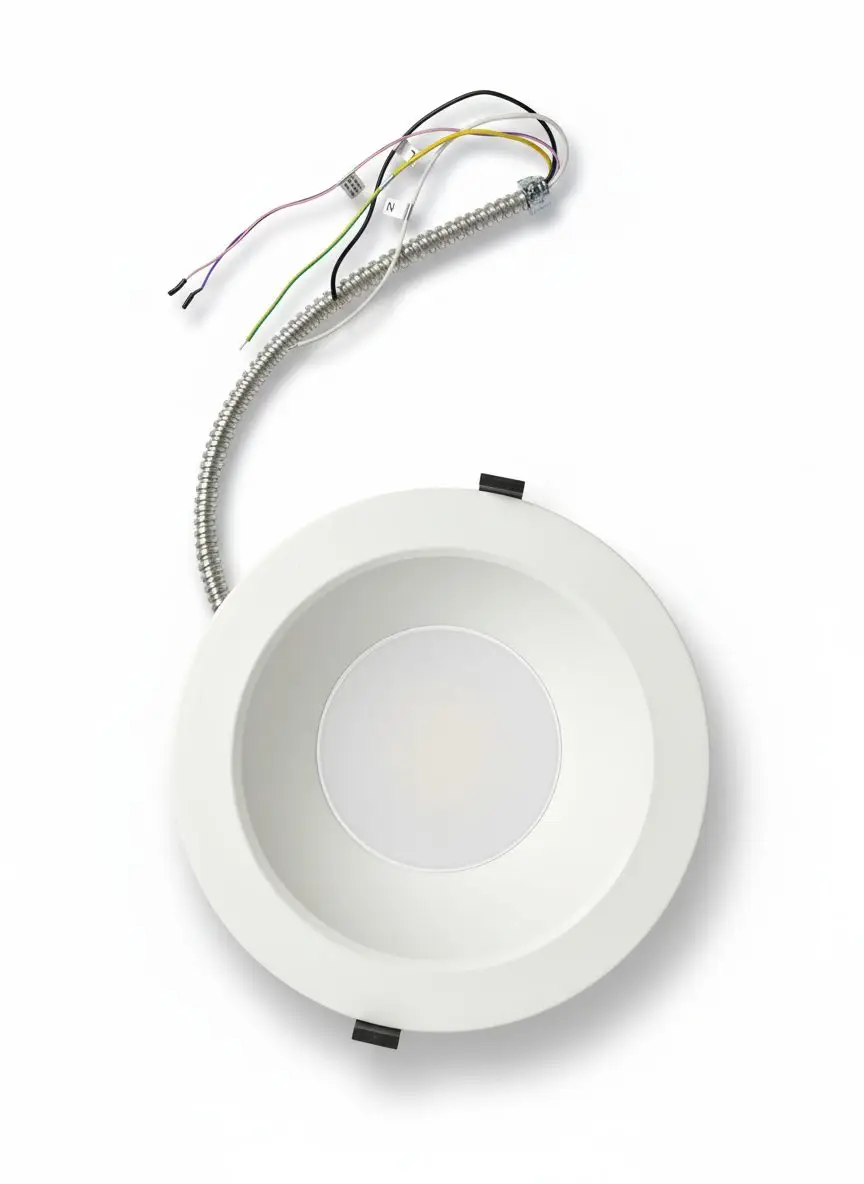

| Connection Type | Cable (integrated whip) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 8–9.5 in |
| Diameter | 10.31 in |
| Height | 4.88 in |
| Mounting | Recessed (ceiling) / Spring bars |
| Weight | 1.34 lb (net) |

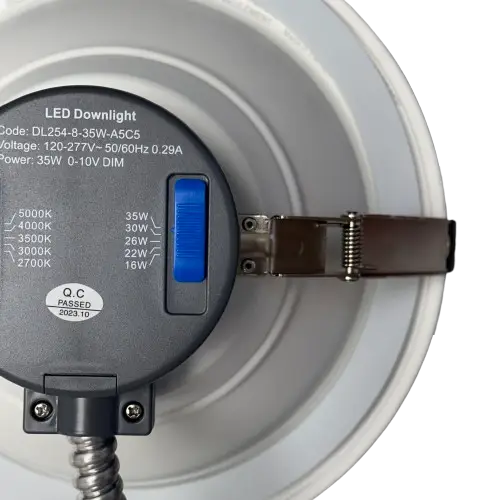

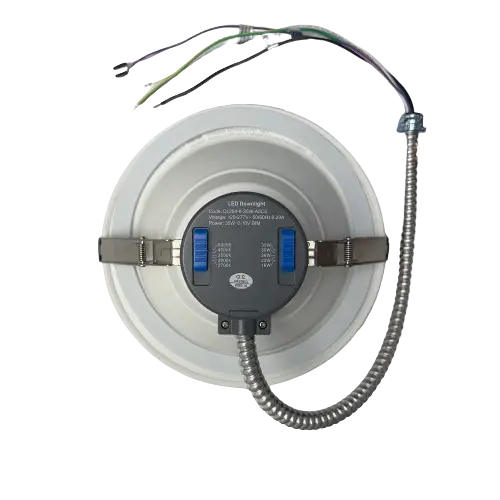

| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Standards | FCC / CE / RoHS |
| Family | Downlight |
| Series | Commercial Downlight (COM, COM-E) |
Description

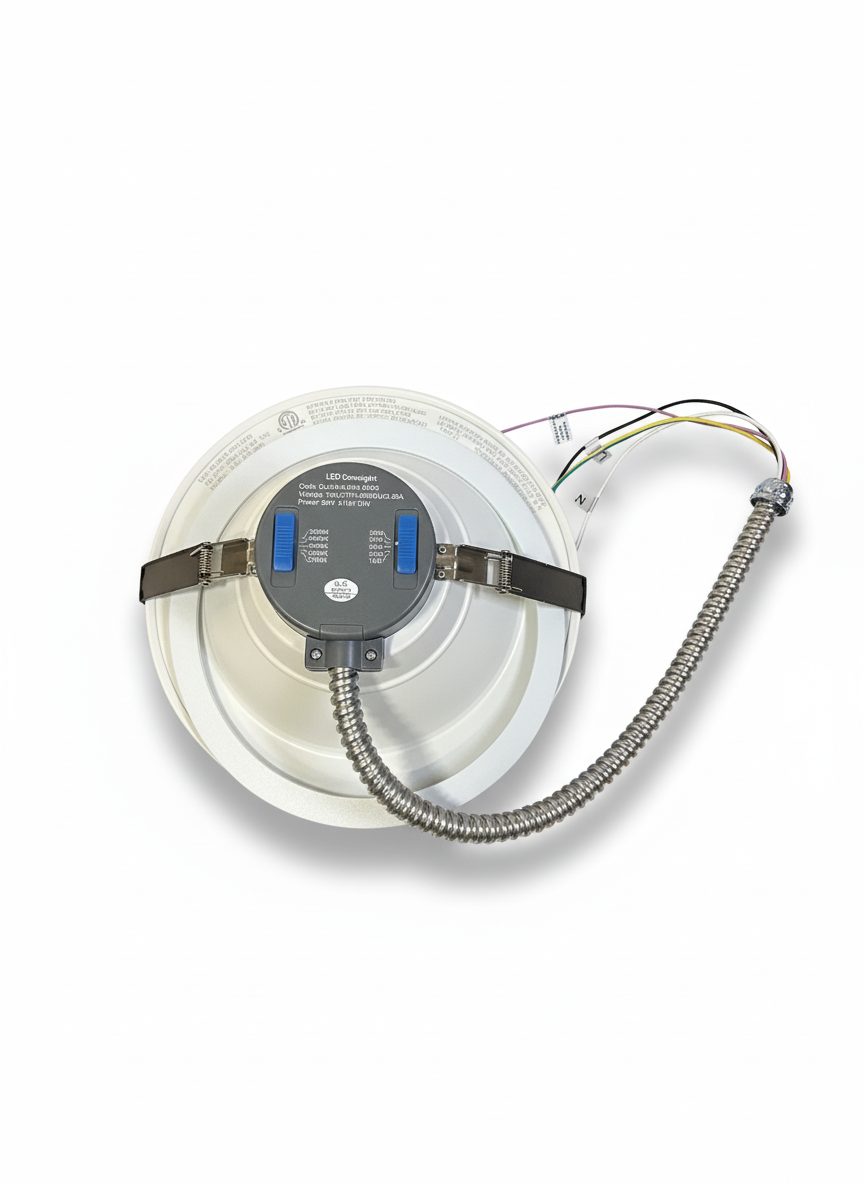

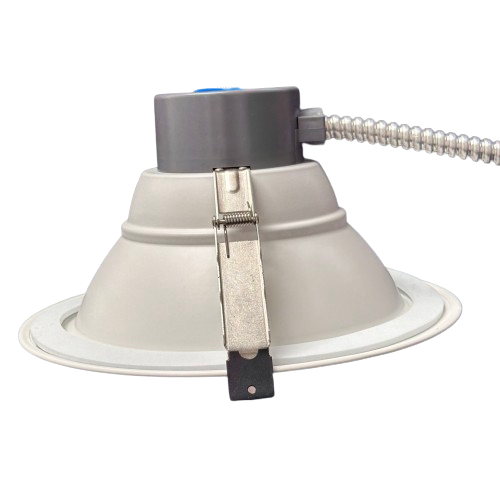

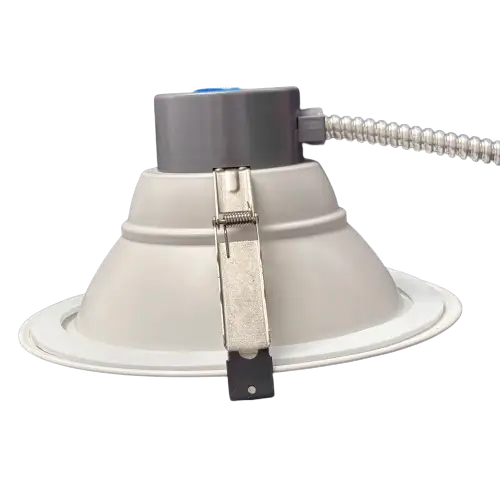

An 8-inch commercial recessed downlight for lobbies, offices, meeting rooms, hallways and hospitality spaces, with five wattages and five color temperatures to choose from on one fixture. Spring bars mount it into an 8–9.5 inch cutout without a housing.

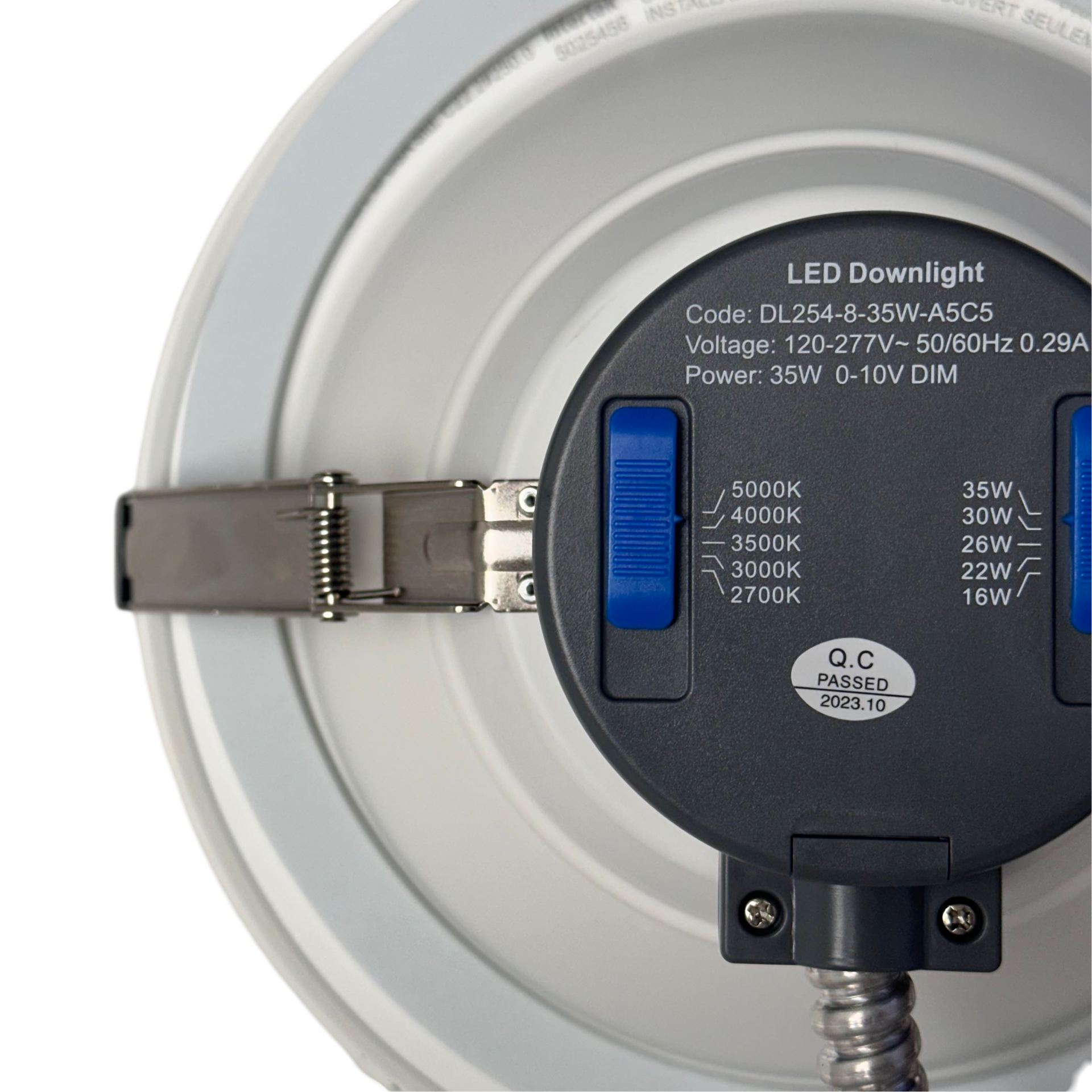

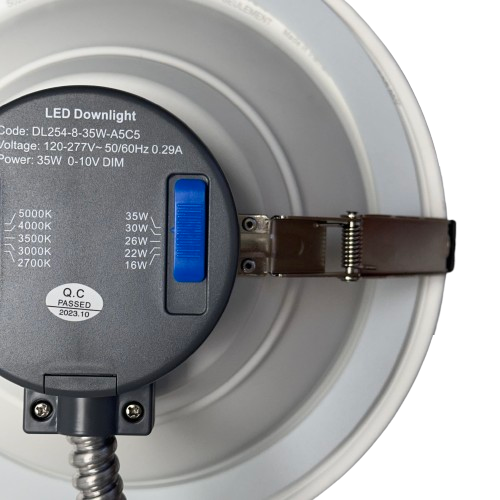

Wattage is selectable at 16, 22, 26, 30 or 35W, giving 1,600, 2,200, 2,600, 3,120 or 3,960 lumens at up to 120 lm/W, and color temperature at 2700K, 3000K, 3500K, 4000K or 5000K, with CRI 80+. It dims with 0–10V controls and runs on 120–277V. The fixture measures 10.31 × 4.88 inches, is IP54 rated and operates from -4 to 104 °F.
cETLus and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Commercial Downlight (COM, COM-E) |
| Size | 8 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | up to 120 lm/W |
| Lumens | 1,600 / 2,200 / 2,600 / 3,120 / 3,960 lm |
| Electrical | |
|---|---|
| Connection Type | Cable (integrated whip) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 16 / 22 / 26 / 30 / 35W |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 8–9.5 in |
| Diameter | 10.31 in |
| Dimensions | 10.31 × 4.88 in |
| Height | 4.88 in |
| Mounting | Recessed (ceiling) / Spring bars |
| Weight | 1.34 lb (net) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | cETLus / ENERGY STAR |
| IP Rating | IP54 |
| Standards | FCC / CE / RoHS |
