7″ Panel Disk Light with Emergency Battery120-277V
7″ Panel Disk Light with Emergency Battery120-277V
Model: E2-CL-7IN-12W-27/30/35/40/50K-E-WH
12W, Up to 900 Lumens
3000K CCT
Built-in 8W Emergency Battery, 90 Minutes
TRIAC Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 12W |
| Voltage | 120-277V |
| Dimming | TRIAC |
| CCT | 27000K / 3000K / 3500K / 4000K / 5000K |
| CRI | > 90 |
| Lumens | 900 lm (±5%) |
| Lifespan | 50,000 hours |
| Dimensions | 2.01 × 1.3 in |
| Listings | ETL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 7 in |
| Beam Angle | 120° |
| Color Consistency (SDCM) | up to 7 SDCM |
| Efficacy | 75 lm/W (±5%) |
| Current | 0.13A (rated, at 120V AC) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| Ambient Temperature | -10–45 °C (operating) |

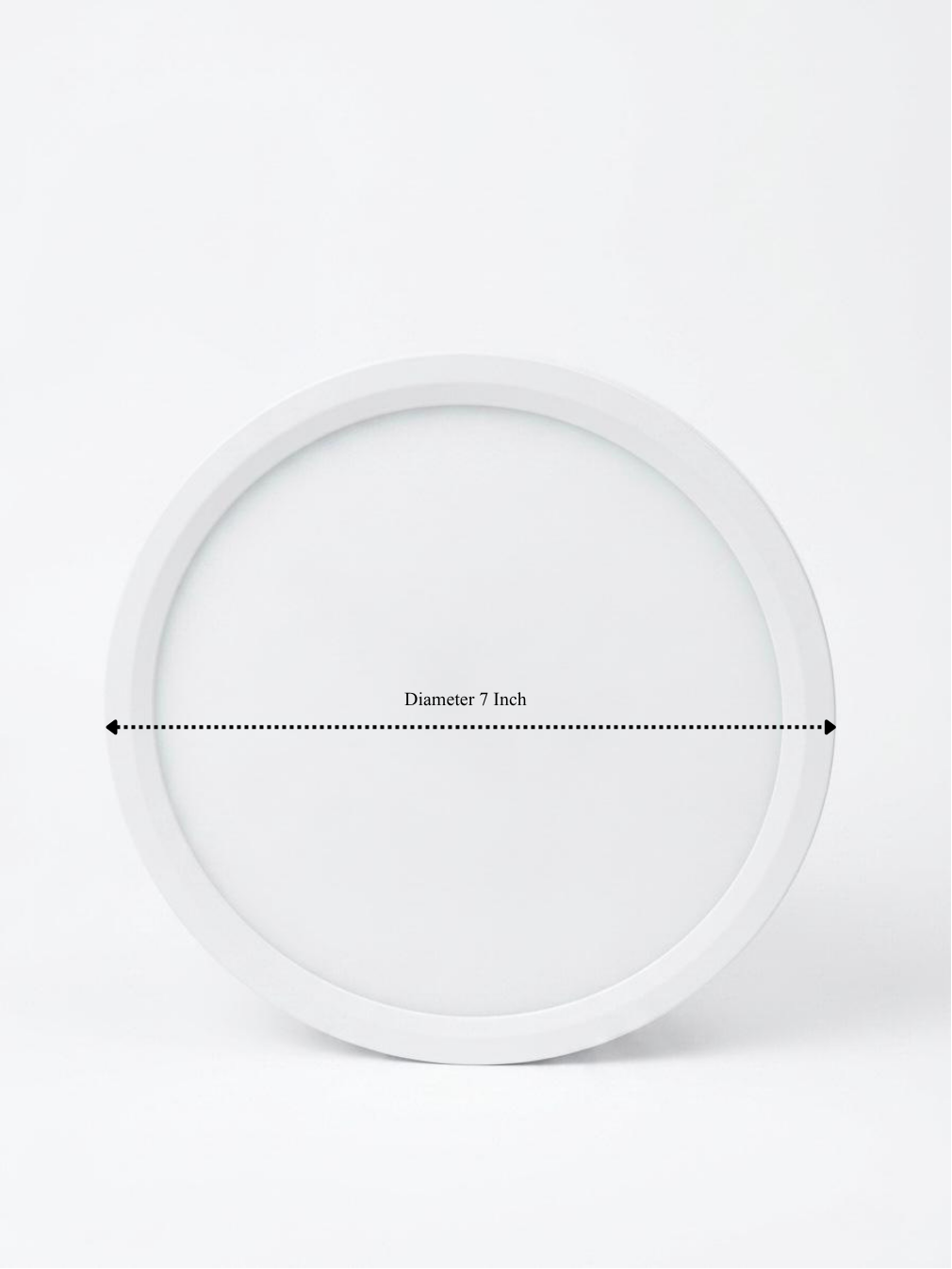

| Diameter | 7.08 in |
| Mounting | Bracket |
| Emergency Power | 8W |
| Emergency Runtime | 90 minutes |
| Indicator Light | Charge indicator kit |
| Test Switch | Yes (manual) |
| CCT Selectable | Yes, switchable |
| Dimming Range | 0–100% |
| Location Rating | Damp location |
| Protection | Surge protection (surge) |
| Standards | FCC / California Title 24 |
| Family | Downlight |
| Series | Emergency round panel (disk light) |
Description
A 7-inch round LED panel disk light for indoor ceilings, with an 8W emergency battery that keeps it lit for 90 minutes during a power outage. The modular emergency assembly includes a test switch and a charge indicator kit.
It delivers 900 lumens at 12W and 75 lm/W, with CRI 90, color consistency within 7 SDCM and a 120° beam. It is TRIAC dimmable from 0–100% with compatible dimmers and runs on 120–277V with surge protection. Twist-and-lock brackets mount the 7.08-inch disk, which is rated for damp locations and operates from -10 to 45 °C.
ETL listed and California Title 24 compliant, with a 50,000+ hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Emergency round panel (disk light) |
| Size | 7 in |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 3000K |
| CRI | 90 |
| Color Consistency (SDCM) | up to 7 SDCM |
| Efficacy | 75 lm/W (±5%) |
| Lumens | 900 lm (±5%) |
| Electrical | |
|---|---|
| Current | 0.13A (rated, at 120V AC) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| Voltage | 120–277V |
| Wattage | 12W |
| Physical | |
|---|---|
| Ambient Temperature | -10–45 °C (operating) |
| Diameter | 7.08 in |
| Dimensions | 2.01 × 1.3 in |
| Mounting | Bracket |
| Emergency | |
|---|---|
| Emergency Power | 8W |
| Emergency Runtime | 90 minutes |
| Indicator Light | Charge indicator kit |
| Test Switch | Yes (manual) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Range | 0–100% |
| Dimming Type | TRIAC |
| Warranty | |
|---|---|
| Rated Life | 50,000+ hours |
| Warranty | 5 years |
| Certifications | ETL |
| Location Rating | Damp location |
| Protection | Surge protection (surge) |
| Standards | FCC / California Title 24 |
