6″ Commercial Downlights with Emergency Battery 100-347V
6″ Commercial Downlights with Emergency Battery 100-347V
Model: E2-DL-COM-6IN-8/12/16W-30/40/50K-E
8/12/16W Wattage Selectable, Up to 1,600 Lumens
3000K/4000K/5000K CCT Selectable
Built-in 15W Emergency Battery
0-10V Dimmable
120-277 Volt
Wet Location, IP54
Specifications
| Wattage | 8W / 12W / 16W / 8W (at 800 lm) / 12W (at 1200 lm) / 16W (at 1600 lm) |
| Voltage | 120–277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 800 lm (at 8W) / 1,200 lm (at 12W) / 1,600 lm (at 16W) |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 8.31"C × 4.38"H |
| Listings | ENERGY STAR / IP54 / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 6 in |
| Beam Angle | 80° |
| Efficacy | 100 lm/W |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Current | 8W: 0.07A (at 120V) / 0.03A (at 277V); 12W: 0.1A (at 120V) / 0.04A (at 277V); 16W: 0.13A (at 120V) / 0.06A (at 277V) |
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 6.19–7.5 in |
| Diameter | 8.31 in |
| Color | White |
| Height | 4.38 in |

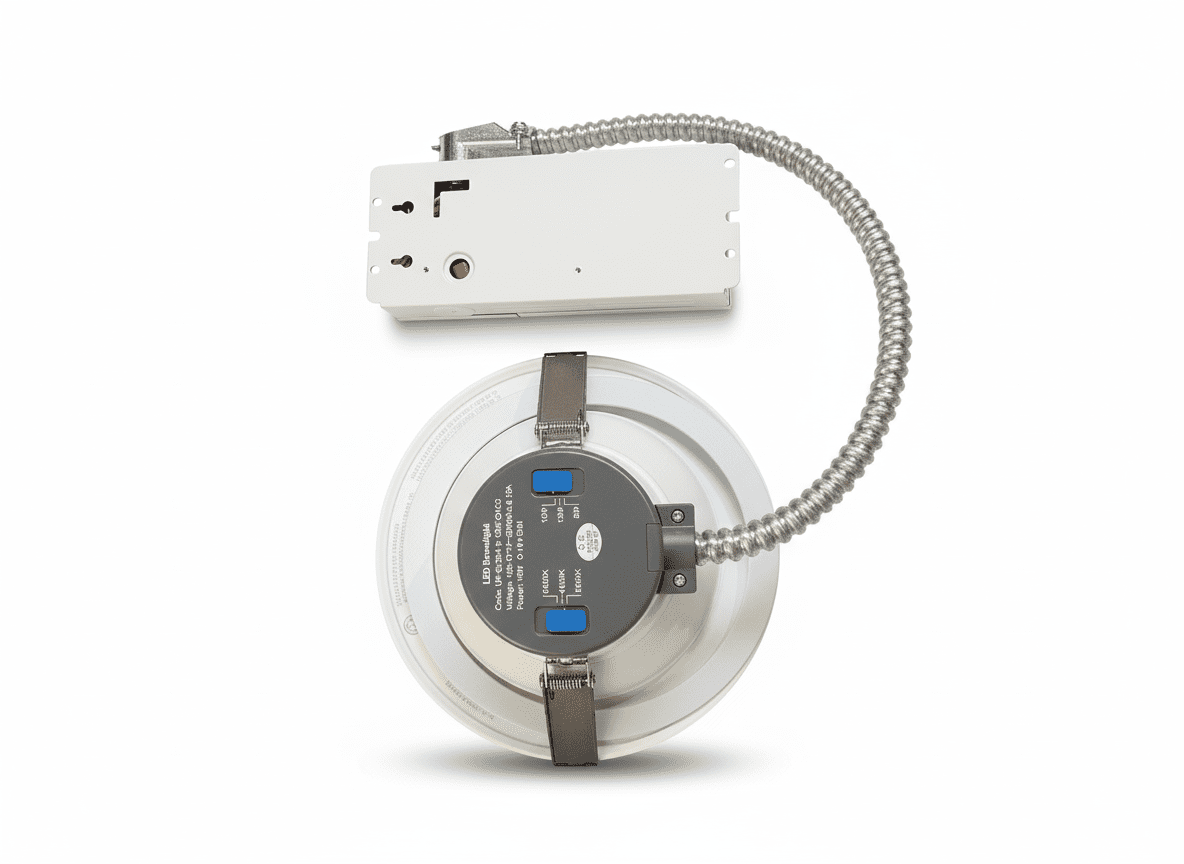

| Mounting | Spring bars |
| Weight | 1.12 lb |
| Emergency Backup | Integrated |
| Emergency Power | 15W |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Wet location |
| Standards | FCC / CE / RoHS |
| Family | Downlight |
| Series | Commercial Downlight (COM, COM-E) |
Description

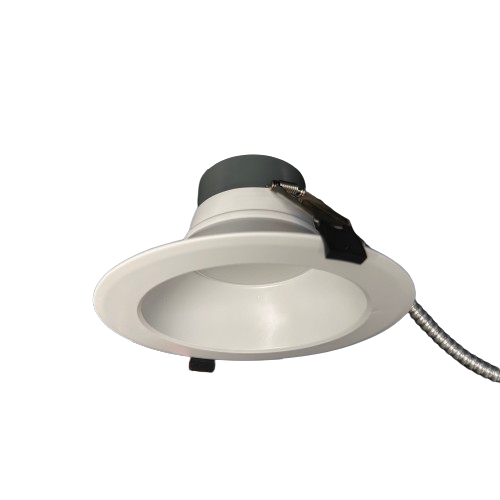

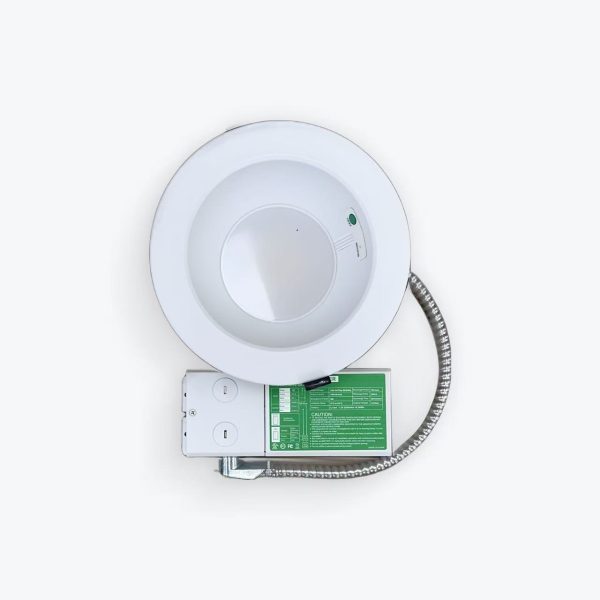

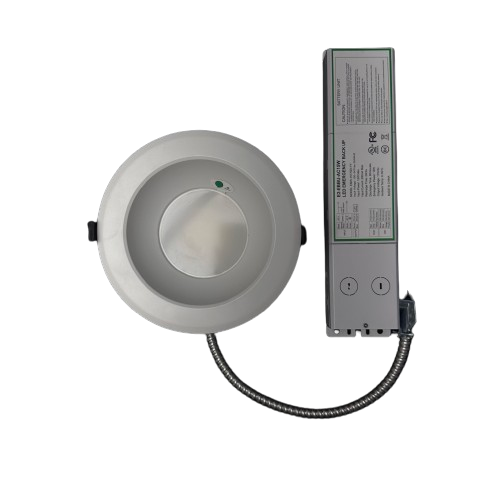

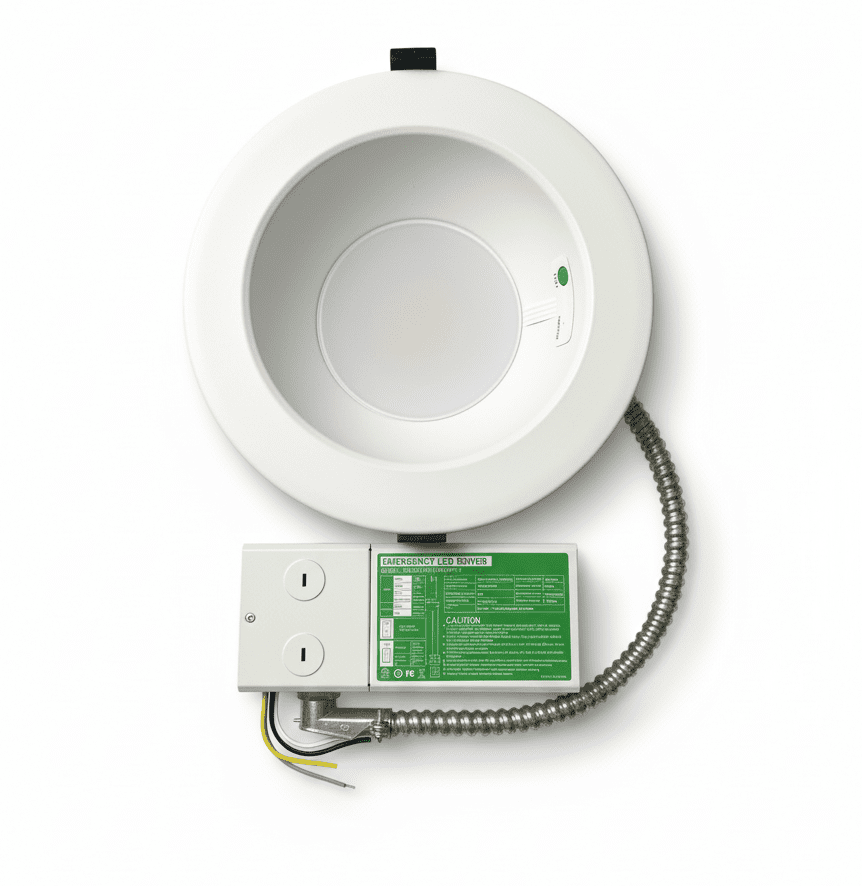

A 6-inch commercial recessed downlight with a 15W emergency battery built in, keeping lobbies, offices, meeting rooms, hallways and hospitality spaces lit during an outage without a separate emergency fixture.

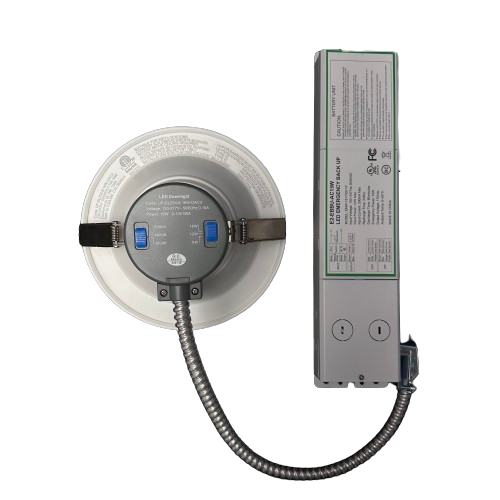

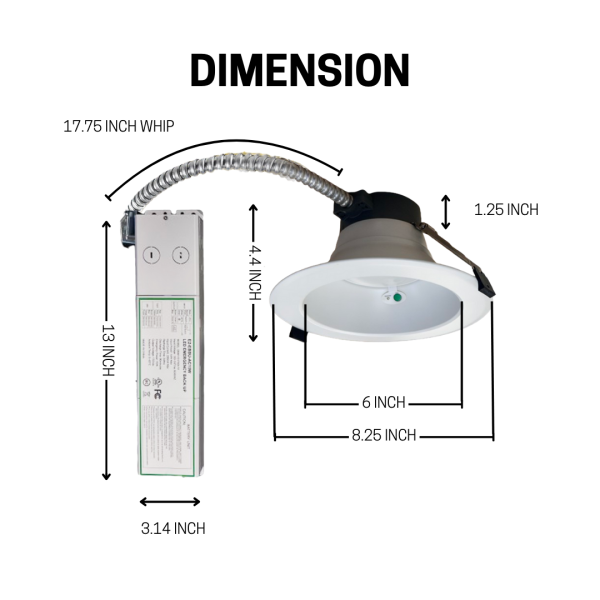

Wattage is selectable at 8, 12 or 16W, giving 800, 1,200 or 1,600 lumens at 100 lm/W, and color temperature at 3000K, 4000K or 5000K, with CRI 80+ and an 80° beam. It dims with 0–10V controls and runs on 120–277V. Spring bars mount it into a 6.19–7.5 inch cutout without a housing, and the white fixture measures 8.31 × 4.38 inches. Its wet-location, IP54 rating suits damp and covered areas, and it operates from -4 to 104 °F.
cETLus and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Commercial Downlight (COM, COM-E) |
| Size | 6 in |
| Light | |
|---|---|
| Beam Angle | 80° |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 100 lm/W |
| Lumens | 800 lm (at 8W) / 1,200 lm (at 12W) / 1,600 lm (at 16W) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 8W / 12W / 16W / 8W (at 800 lm) / 12W (at 1200 lm) / 16W (at 1600 lm) |
| Current | 8W: 0.07A (at 120V) / 0.03A (at 277V); 12W: 0.1A (at 120V) / 0.04A (at 277V); 16W: 0.13A (at 120V) / 0.06A (at 277V) |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 6.19–7.5 in |
| Diameter | 8.31 in |
| Dimensions | 8.31 × 4.38 in |
| Finish | White |
| Height | 4.38 in |
| Mounting | Spring bars |
| Weight | 1.12 lb |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 15W |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V (continuous) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | cETLus / ENERGY STAR |
| IP Rating | IP54 |
| Location Rating | Wet location |
| Standards | FCC / CE / RoHS |
