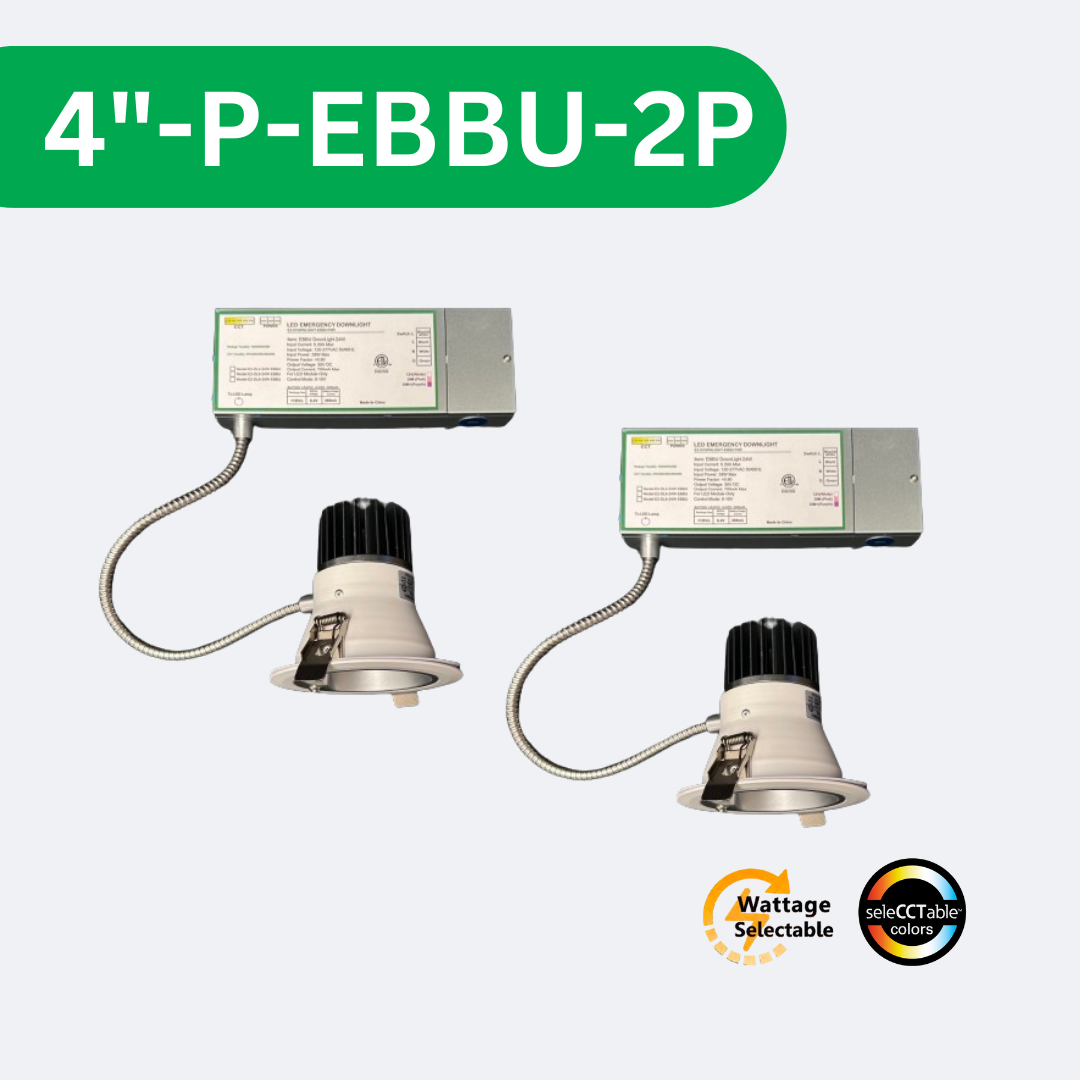

4 inch Premium Commercial Downlights with Emergency Battery
4 inch Premium Commercial Downlights with Emergency Battery
Model: E2-DL-PCOM-4IN-16/20/24W-27/30/35/40/50K-E-2P
16/20/24W Wattage Selectable, Up to 2,400 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90 Minutes
0-10V Dimmable
100-277 Volt
Damp Location
Specifications
| Wattage | 16W / 20W / 24W |
| Voltage | 100-277V |
| Dimming | 0-10V |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | > 85 |
| Lumens | 1600 lm / 2000 lm / 2400 lm |
| Lifespan | 50,000 hours |

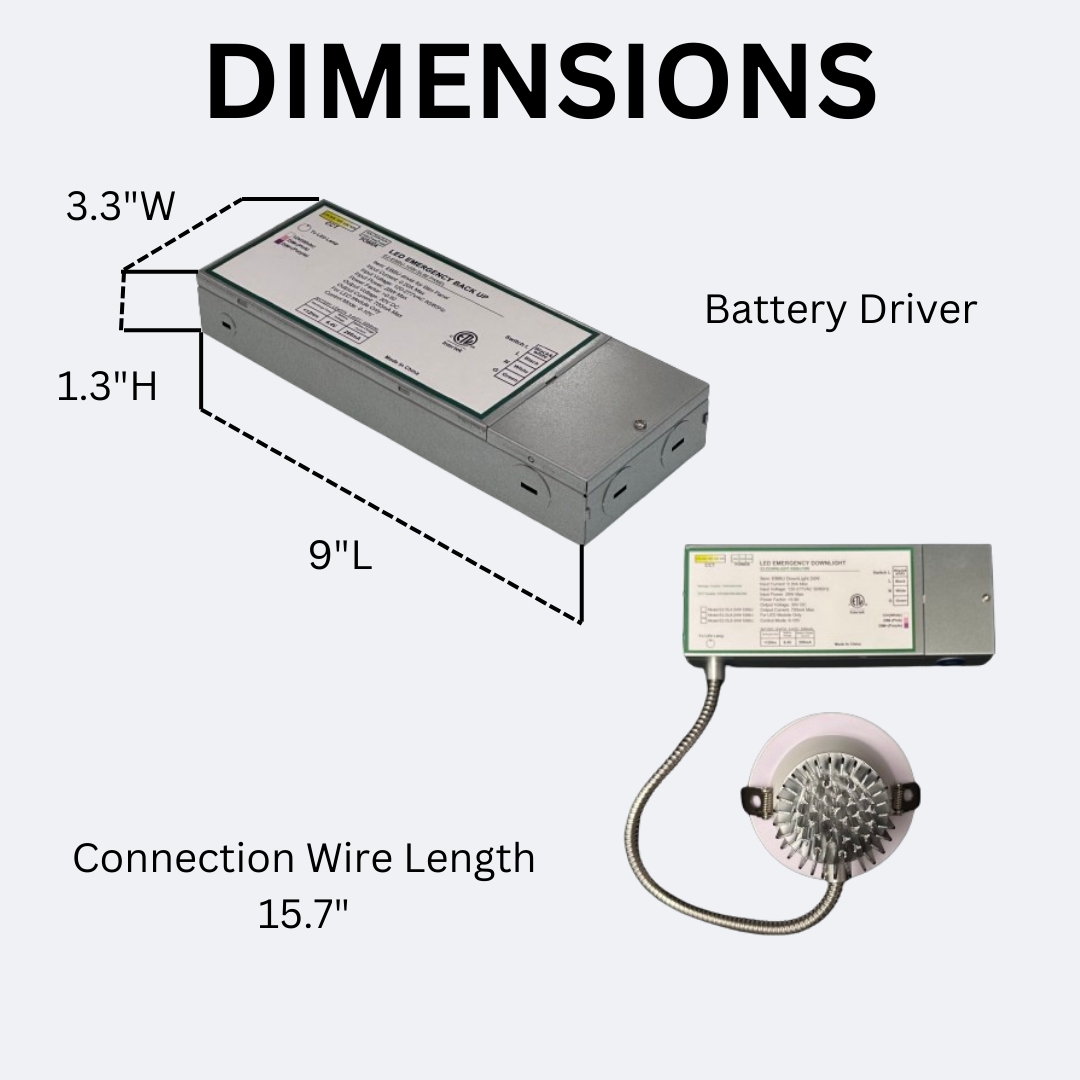

| Dimensions | 4.875 × 4 × 5.125 in |
| Listings | ETL / UL / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 in |
| Cutout | 4 in |
| Mounting | Recessed / Spring clips |
| Emergency Backup | Integrated |
| Emergency Lumens | 900–1,000 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |

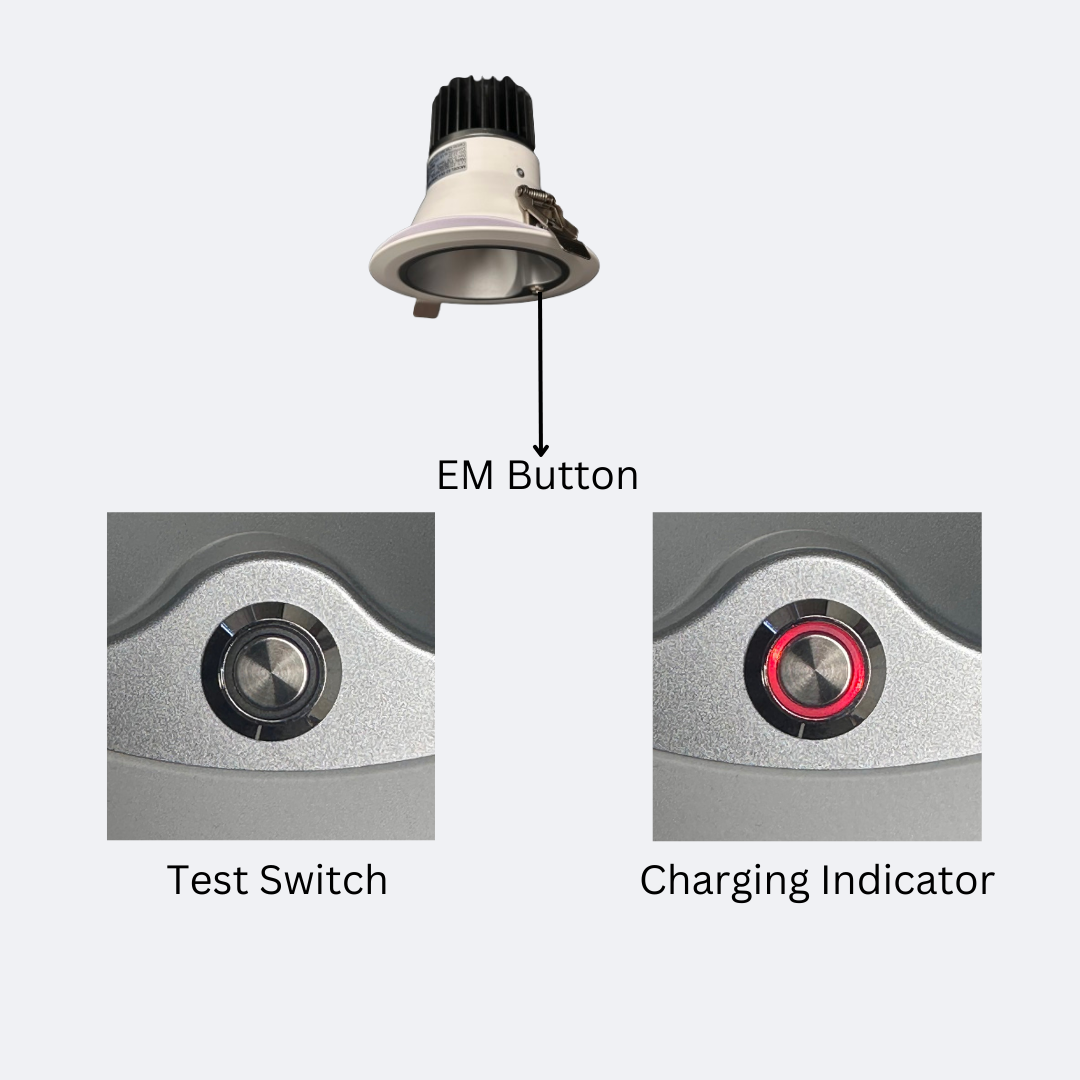

| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in emergency mode; slow flicker while charging; quick flicker for an emergency-backup issue) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
Description

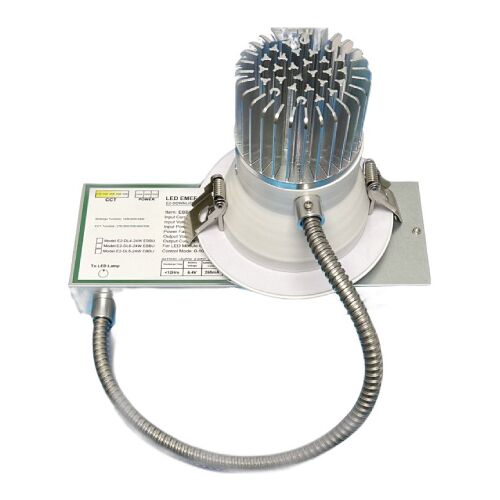

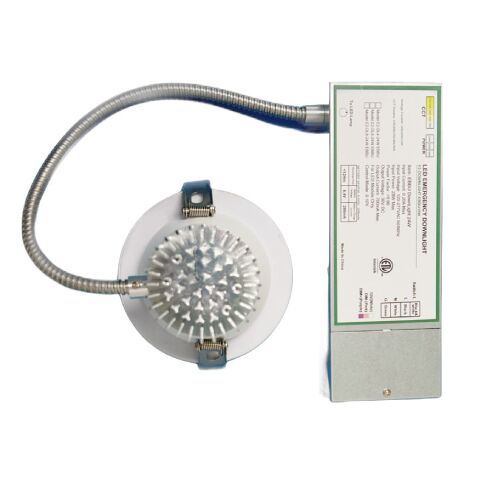

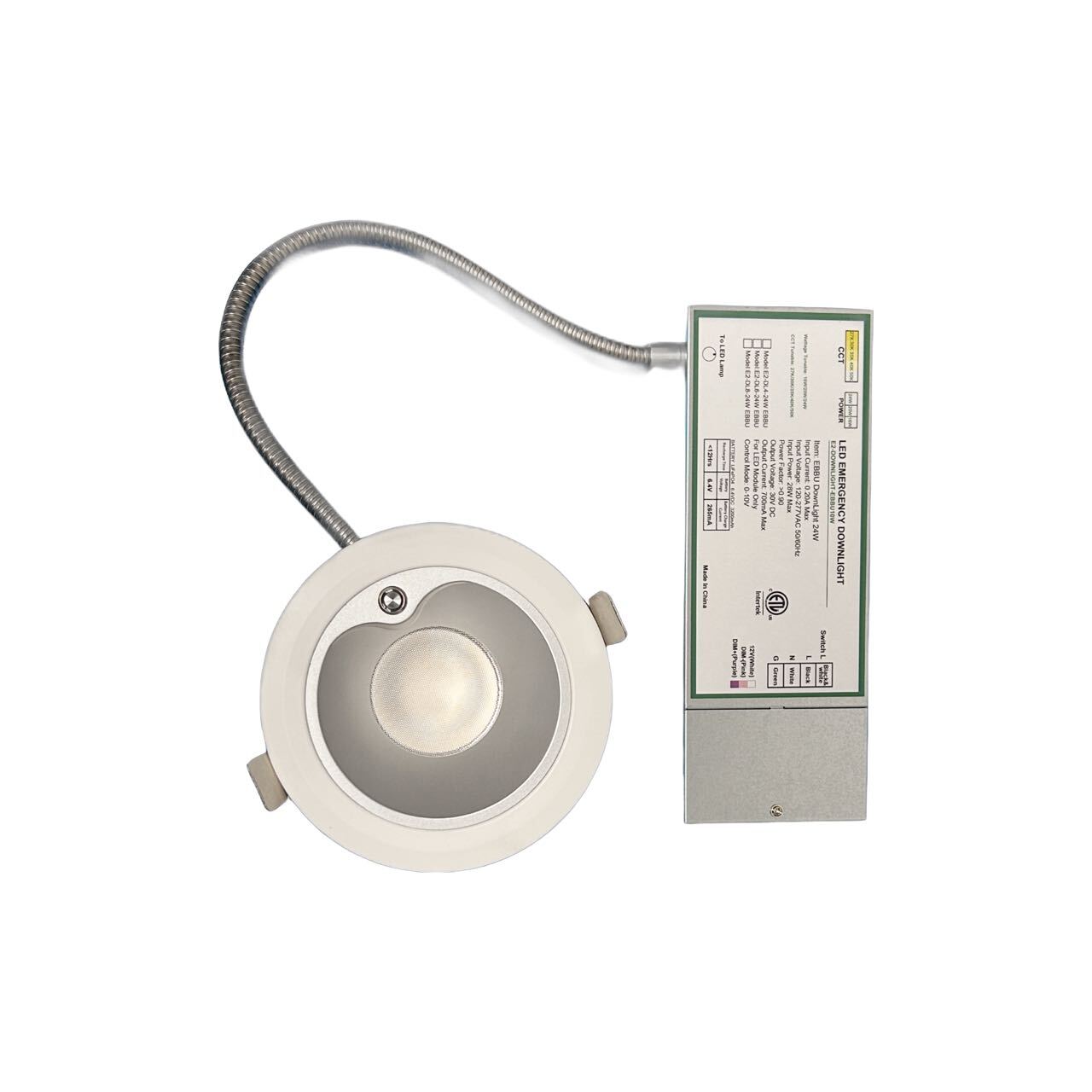

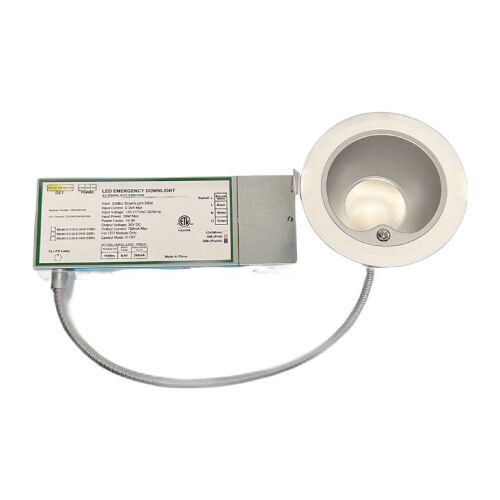

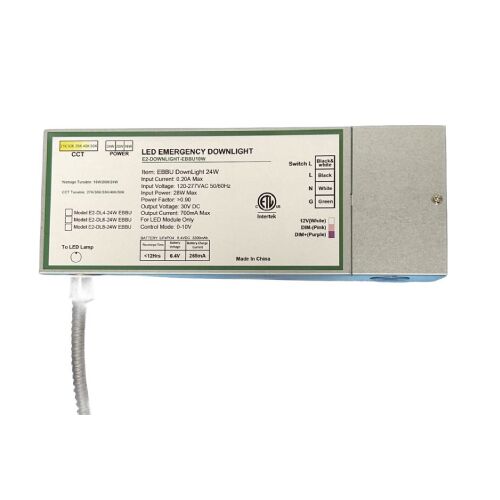

A 4-inch premium commercial round recessed downlight with a built-in emergency battery, so it keeps lighting the space during an outage without a separate emergency fixture. On battery it runs at 10W for 90 minutes, giving 900–1,000 lumens, and an LED indicator with a test button shows battery status.

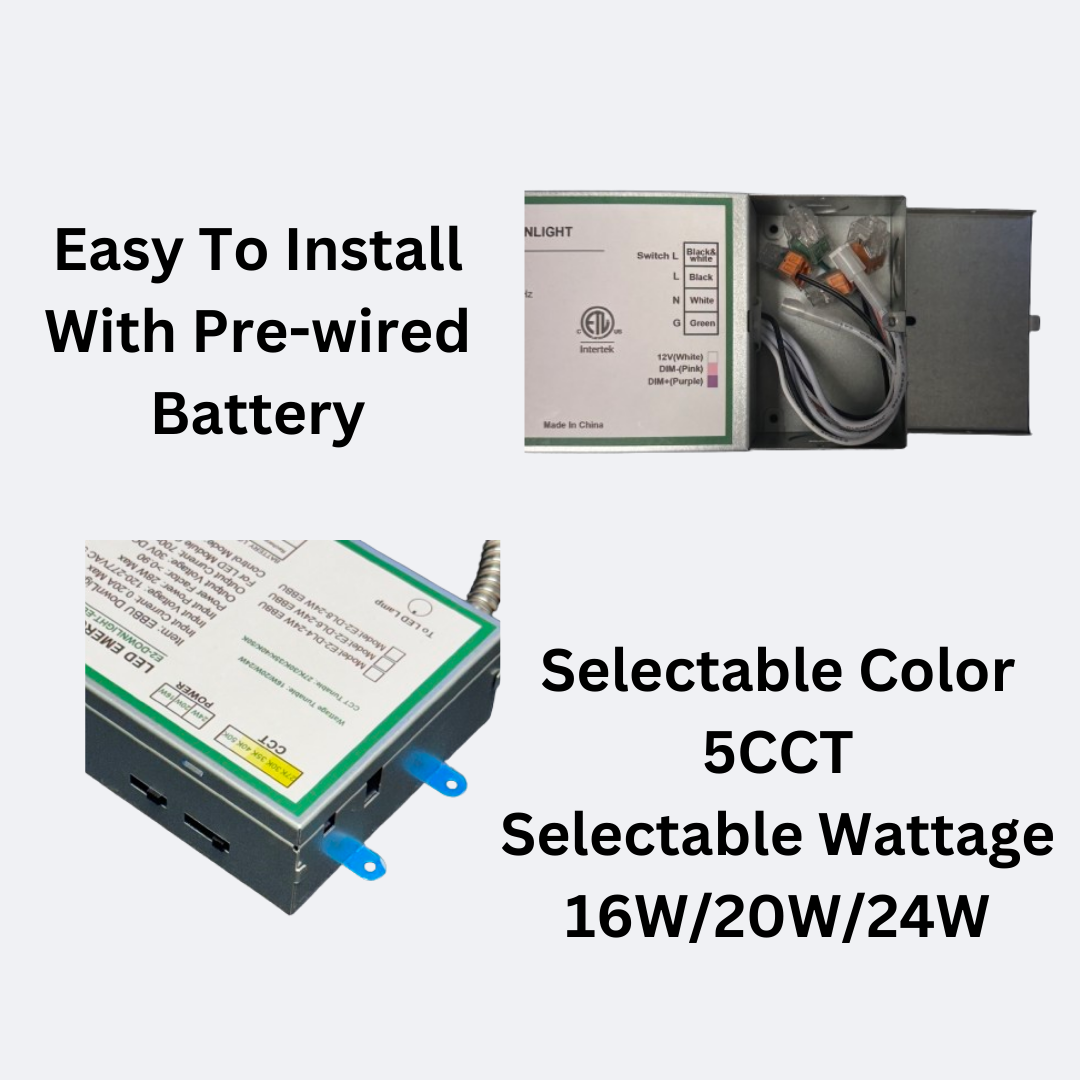

Wattage is selectable at 16W, 20W or 24W for 1,600–2,400 lumens, and color temperature at 2700K, 3000K, 3500K, 4000K or 5000K, with CRI 85+. It dims with 0–10V controls and runs on 100–277V. Spring clips hold it in a 4-inch cutout, and the fixture measures 4.875 × 4 × 5.125 inches.
It is rated for damp locations and is UL and cETLus listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
| Size | 4 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 85+ |
| Lumens | 1,600–2,400 lm |
| Electrical | |
|---|---|
| Voltage | 100–277V |
| Wattage | 16 / 20 / 24W |
| Physical | |
|---|---|
| Cutout | 4 in |
| Dimensions | 4.875 × 4 × 5.125 in |
| Mounting | Recessed / Spring clips |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 900–1,000 lm |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in emergency mode; slow flicker while charging; quick flicker for an emergency-backup issue) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cETLus / ETL / UL |
| Location Rating | Damp location |
| Standards | FCC |
