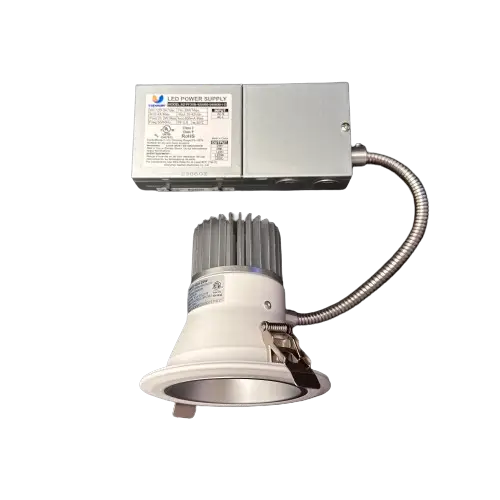

Premium Commercial Downlights 4 Inch
Premium Commercial Downlights 4 Inch
Model: E2-DL-PCOM-4IN-10/15/20W-30/35/40K
10/15/20W Wattage Selectable, Up to 2,000 Lumens
3000K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
Damp Location
Specifications
| Wattage | 10W / 15W / 20W |
| Voltage | 100-277V |
| Dimming | 0-10V |
| CCT | 3000 / 4000 / 5000K |
| CRI | > 90 |
| Lumens | 1000 lm / 1500 lm / 2000 lm |
| Lifespan | 50,000 hours |
| Listings | ETL / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 in |
| Cutout | 4 in |
| Dimensions | 4.875 × 4 × 5.125 in |
| Mounting | Recessed / Spring clips |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
Description
A 4-inch premium commercial round recessed downlight with wattage and color temperature both selectable in the field. Wattage sets to 10W, 15W or 20W for 1,000–2,000 lumens, and color temperature to 3000K, 4000K or 5000K, with CRI 90+.
It dims with 0–10V controls and runs on 100–277V. Spring clips hold it in a 4-inch cutout, and the fixture measures 4.875 × 4 × 5.125 inches.
It is rated for damp locations and is ETL and UL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Premium Commercial Downlight (PCOM, PCOM-E) |
| Size | 4 in |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 90+ |
| Lumens | 1,000–2,000 lm |
| Electrical | |
|---|---|
| Voltage | 100–277V |
| Wattage | 10 / 15 / 20W |
| Physical | |
|---|---|
| Cutout | 4 in |
| Dimensions | 4.875 × 4 × 5.125 in |
| Mounting | Recessed / Spring clips |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | ETL / UL |
| Location Rating | Damp location |
| Standards | FCC |
