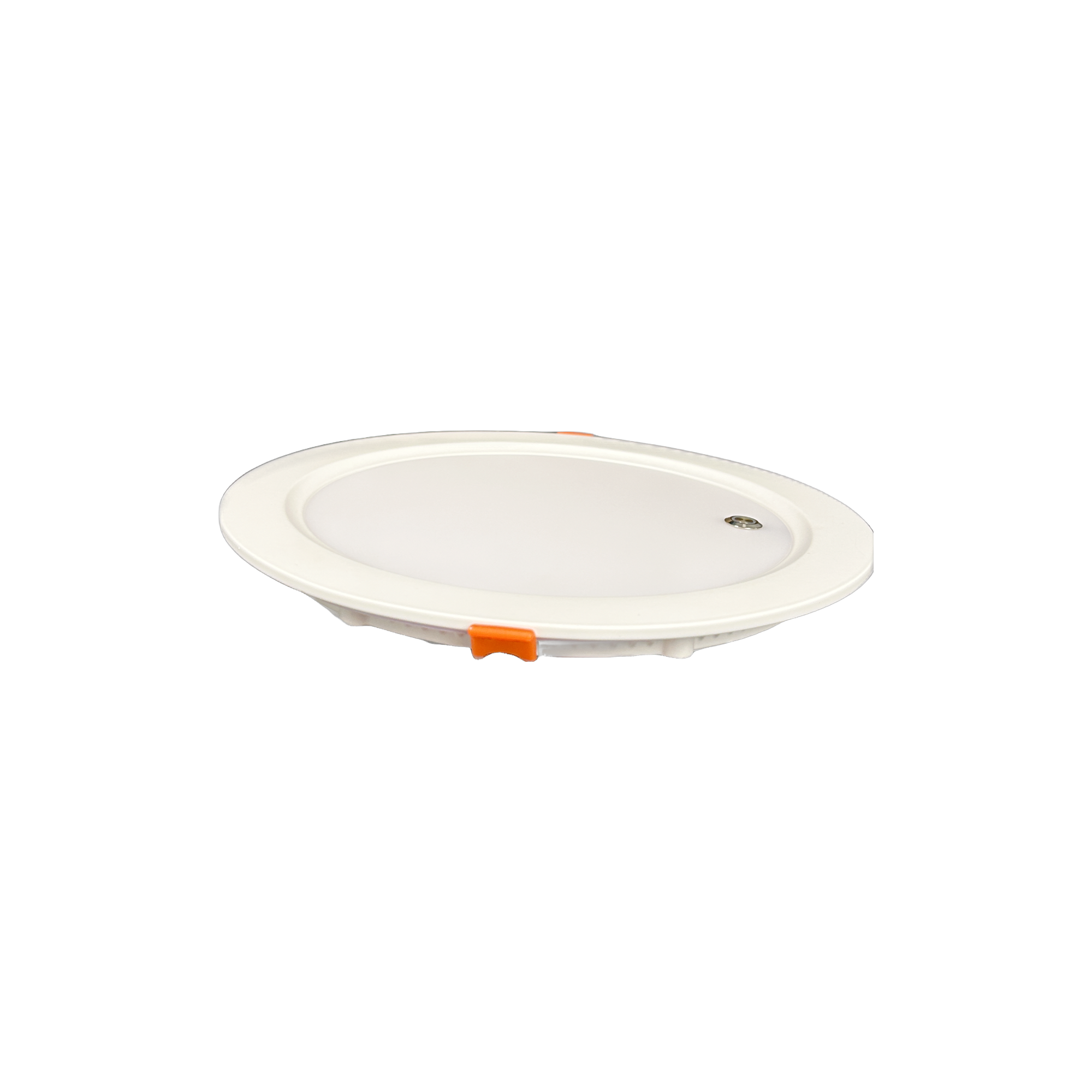

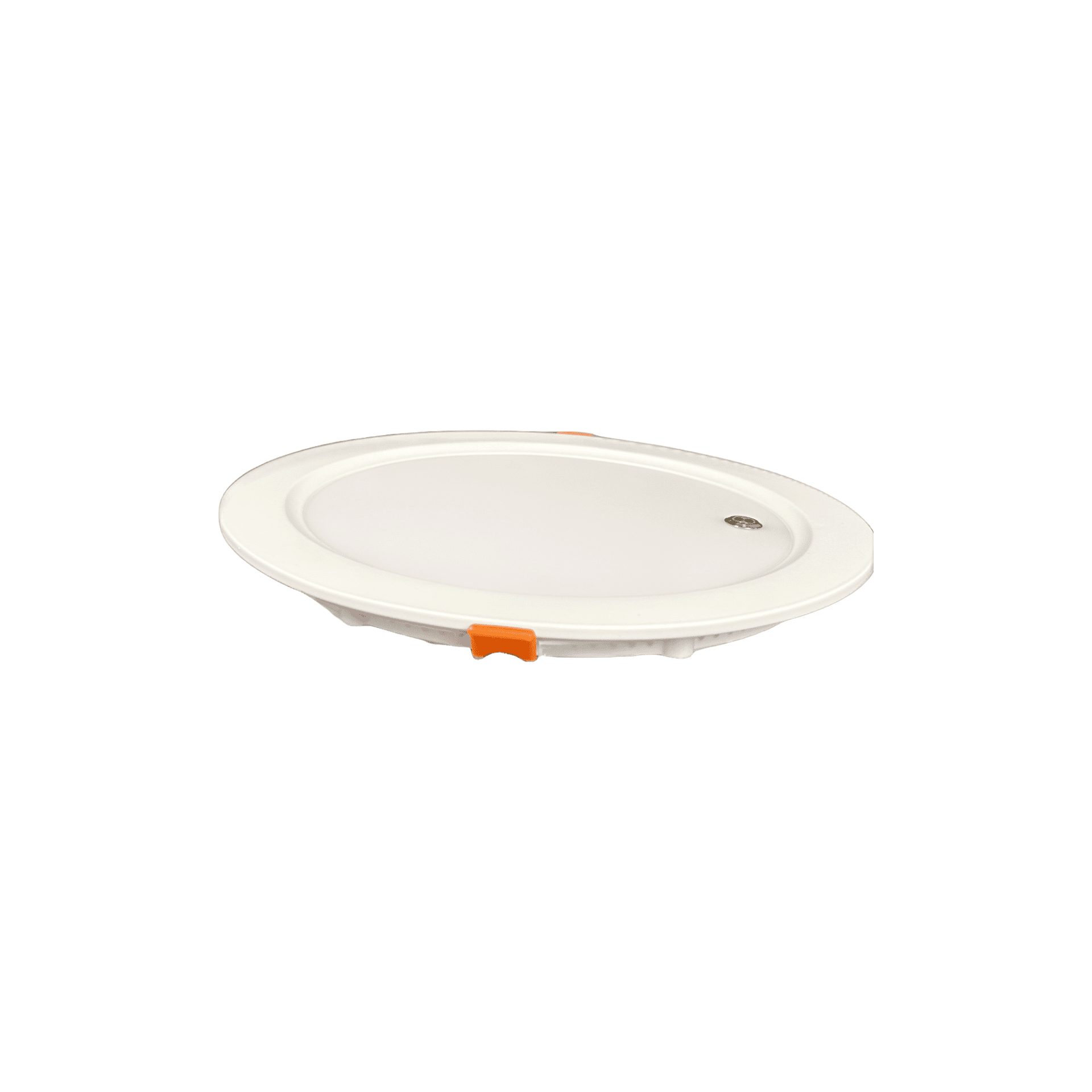

8″ Emergency LED Slim Panel SLIM-8Inch-18W – Up to 1350 Lumens – 5 CCT Selectable (2700K-5000K) – AC 100-277V – 10W EBBU for 90 Mins – 125W Equal
8″ Emergency LED Slim Panel SLIM-8Inch-18W – Up to 1350 Lumens – 5 CCT Selectable (2700K-5000K) – AC 100-277V – 10W EBBU for 90 Mins – 125W Equal
Model: E2-DL-SLIM-8Inch-10/16/18W-27/30/35/40/50K-E G2
9/16/18W Wattage Selectable, Up to 1,278 Lumens
2700K/3000K/3500K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90+ Minutes
TRIAC Dimmable
120-277 Volt
Wet Location, IP54
Specifications
| Wattage | 9W / 16W / 18W |
| Voltage | 120-277V |
| Dimming | TRIAC |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | > 80 |
| Lumens | 639 lm - 1278 lm |
| Lifespan | 50,000 hours |
| Dimensions | 9" |
| Listings | ETL / ENERGY STAR / IP54 |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 in |
| Efficacy | up to 71 lm/W |
| Connection Type | Cable |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -4–104 °F (operating) |
| Diameter | 9 in |
| Mounting | Recessed / Pressure-fit clips |
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in emergency mode; slow flickering while charging; quick flickering for a battery issue, at self-inspection) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| IC Rating | Yes |
| Location Rating | Wet location / Indoor |
| Standards | FCC |
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
Description

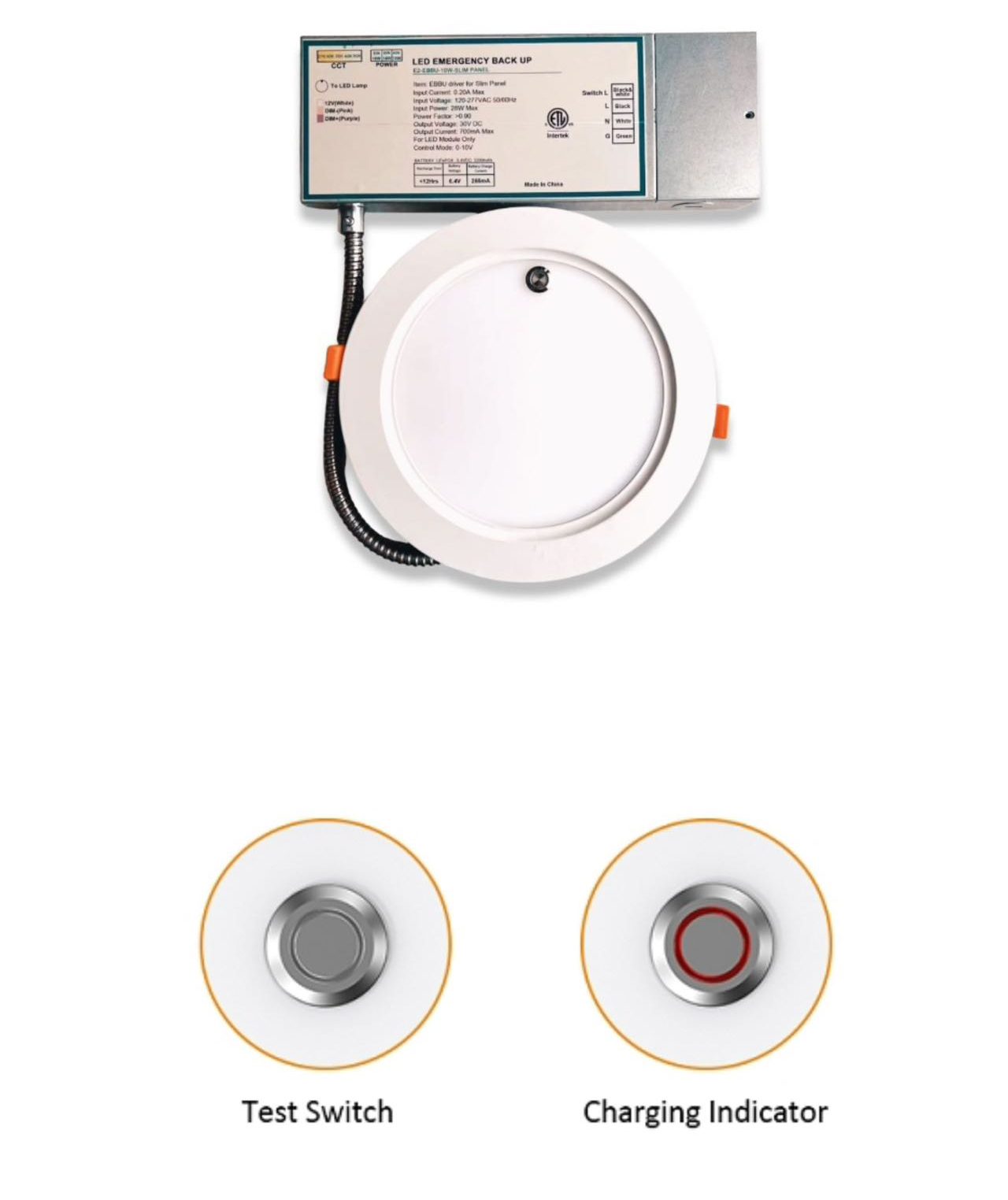

The 8-inch emergency LED slim panel pairs everyday downlighting with a built-in 10W emergency battery that switches on when the power fails and keeps it lit for 90+ minutes. A test button and LED indicator check the battery, which is pre-wired to the panel through conduit cable.
Wattage is selectable at 9, 16 or 18W for 639–1,278 lumens at up to 71 lm/W, and color temperature at 2700K, 3000K, 3500K, 4000K or 5000K, with CRI 80 and TRIAC dimming on 120–277V. The 9-inch, IC-rated panel holds with pressure-fit clips, with no ceiling can needed. Its wet-location, IP54 rating suits indoor ceilings in shopping centers, office buildings, hospitals and schools, and it operates from -4 to 104 °F.
ETL and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
| Size | 8 in |
| Light | |
|---|---|
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 80 |
| Efficacy | up to 71 lm/W |
| Lumens | 639–1,278 lm |
| Electrical | |
|---|---|
| Connection Type | Cable |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 9 / 16 / 18W |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Diameter | 9 in |
| Dimensions | 9 in |
| Mounting | Recessed / Pressure-fit clips |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90+ minutes |
| Test Switch | Test button (button, manual) |
| Indicator Light | LED indicator (on in emergency mode; slow flickering while charging; quick flickering for a battery issue, at self-inspection) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | ETL / ENERGY STAR |
| IC Rating | Yes |
| IP Rating | IP54 |
| Location Rating | Wet location / Indoor |
| Standards | FCC |
