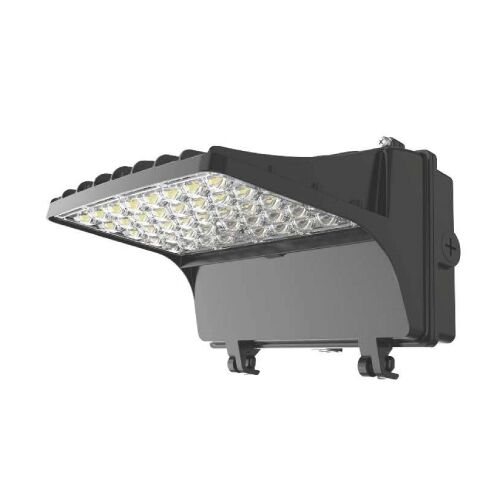

WP10 Series Full Cut Off Wall Pack CCT & Wattage Tunable
WP10 Series Full Cut Off Wall Pack CCT & Wattage Tunable
Model: E2-WPF-R10-30/40/60/80WS-30/40/50K
30/40/60/80W Wattage Selectable, Up to 10,400 Lumens
3000K/4000K/5000K CCT Selectable
120-277 Volt
Wet Location, IP65
Black / Bronze Finish
Specifications
| Wattage | 30W / 40W / 60W / 80W / 30W (at 3900 lm) / 40W (at 5200 lm) / 60W (at 7800 lm) / 80W (at 10400 lm) |
| Voltage | 120-277V |
| Dimming | 0–10V / 1–10V |
| CCT | 3000K / 4000K / 5000K |
| Lumens | 3,900 lm (at 30W) / 5,200 lm (at 40W) / 7,800 lm (at 60W) / 10,400 lm (at 80W) |
| Lifespan | 54,000 hours (at L70) |

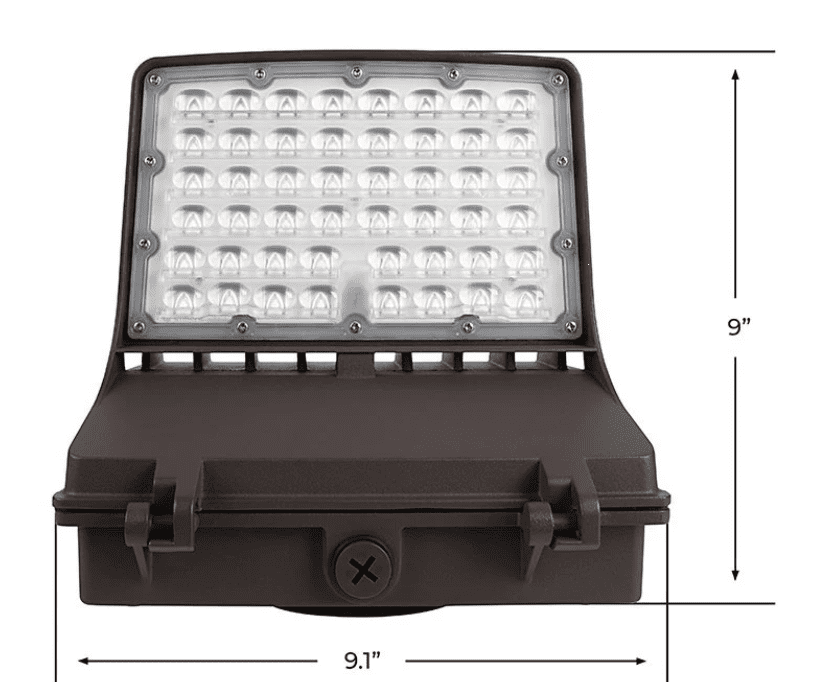

| Dimensions | 230.5 × 220.9 × 170.9 mm (9.08" × 8.71" × 3.73") |
| Listings | cETLus, DLC Premium, ETL Classified, IP65 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Distribution Type | Type II / Type III / Type IV |
| Efficacy | 130 lm/W (±5%) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -22–113 °F (operating) / -40–158 °F (storage) |
| Color | Black / Bronze |
| Humidity | up to 90% (operating) / up to 95% (storage) |
| Mounting | Wall |
| Emergency Power | 4W (optional) / 8W (optional) |
| Photocell | Optional (optional) |
| Wattage Selectable | Yes |
| Location Rating | Outdoor / Wet location |
| Family | Wall pack and wall luminaire |
| Series | R10 dark-sky full-cutoff wall pack |
Description

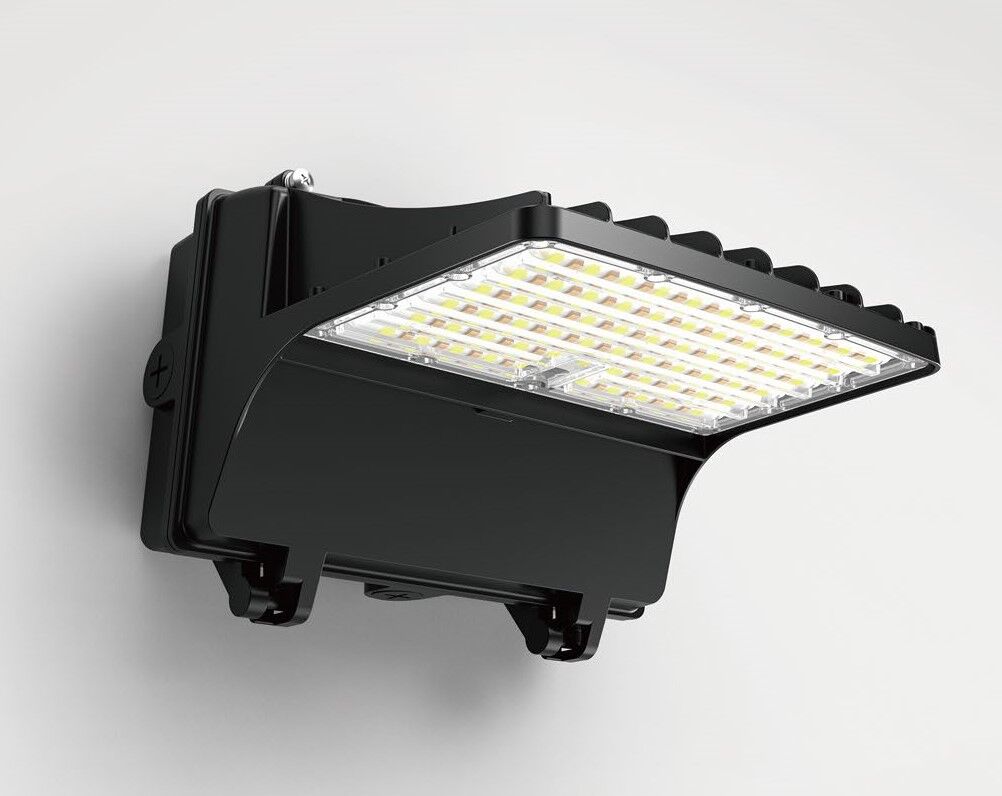

This full cutoff LED wall pack lets you switch between 30W, 40W, 60W and 80W to match the brightness you need, from a soft glow for walkways to a stronger output for security lighting. Color temperature switches between warm white (3000K), cool white (4000K) and daylight (5000K).

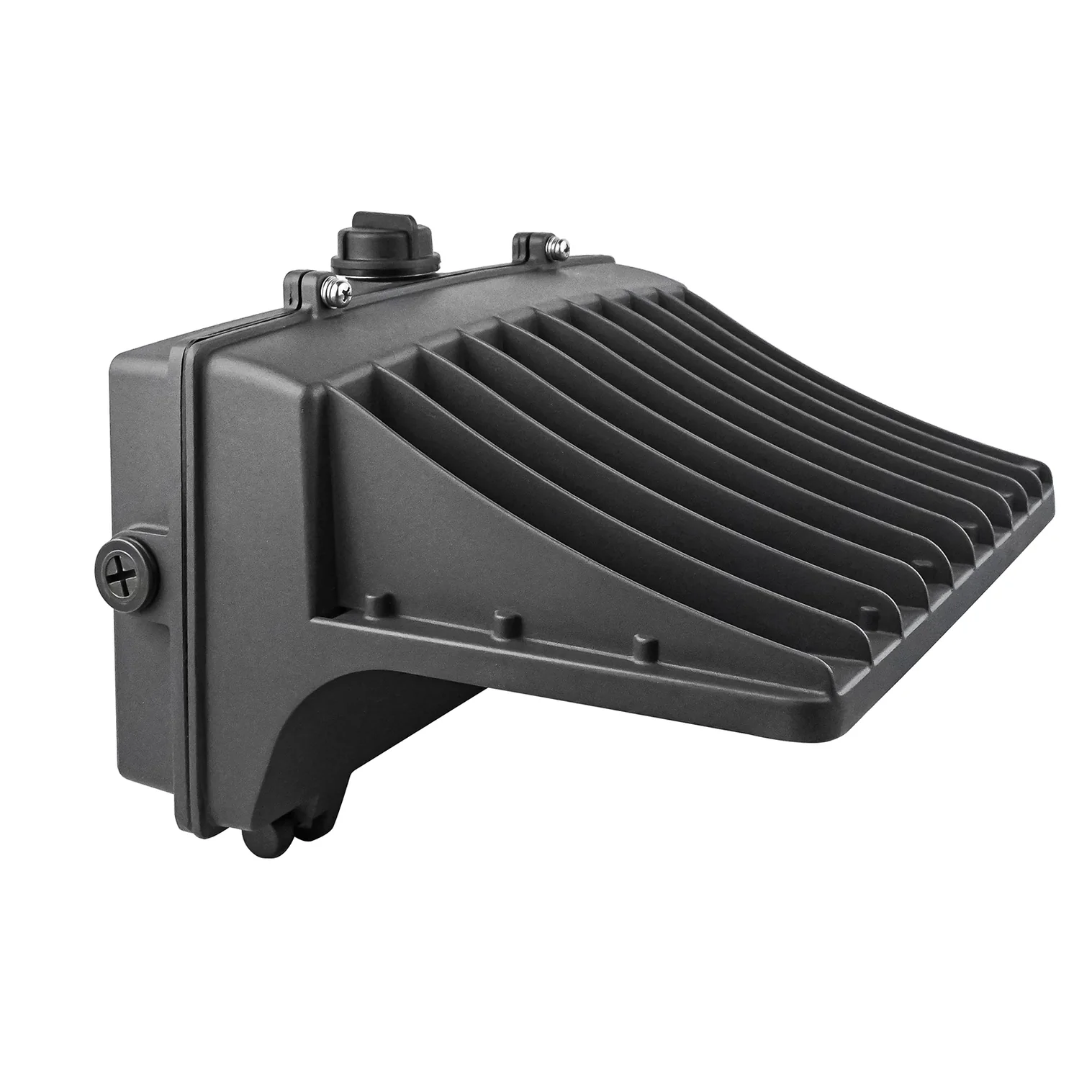

Those settings give 3,900, 5,200, 7,800 or 10,400 lumens at 130 lm/W, and it runs on 120–277V. A die-cast aluminum housing and UV-resistant polycarbonate refractor are wet-location and IP65 rated for building facades in commercial, industrial, retail and hospitality settings, with Type II, III or IV distribution and a black or bronze finish. A photocell, microwave motion sensor and emergency backup are available as options.
DLC Premium and cETLus listed, with a 54,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | R10 dark-sky full-cutoff wall pack |
| Light Source | LED |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| Distribution Type | Type II / Type III / Type IV |
| Efficacy | 130 lm/W (±5%) |
| Lumens | 3,900 lm (at 30W) / 5,200 lm (at 40W) / 7,800 lm (at 60W) / 10,400 lm (at 80W) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 30W / 40W / 60W / 80W / 30W (at 3900 lm) / 40W (at 5200 lm) / 60W (at 7800 lm) / 80W (at 10400 lm) |
| Physical | |
|---|---|
| Ambient Temperature | -22–113 °F (operating) / -40–158 °F (storage) |
| Dimensions | 230.5 × 220.9 × 170.9 mm |
| Finish | Black / Bronze |
| Humidity | up to 90% (operating) / up to 95% (storage) |
| Mounting | Wall |
| Emergency | |
|---|---|
| Emergency Power | 4W (optional) / 8W (optional) |
| Controls | |
|---|---|
| Dimming Type | 0–10V / 1–10V |
| Photocell | Optional (optional) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 54,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | cETLus / DLC Premium |
| IP Rating | IP65 |
| Location Rating | Outdoor / Wet location |
