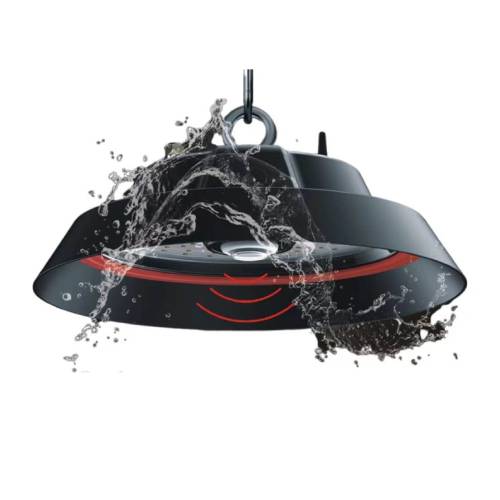

EHB LED UFO 145W High Bay
EHB LED UFO 145W High Bay
145W, Up to 24,650 Lumens
5000K CCT
100-240 or 120-277 or 249-528 Volt
IP65
Specifications
| Beam Angle | 60 / 90 / 120° |
| CCT | 5000K |
| CRI | 73+ / 80+ (optional) |
| Efficacy | up to 170 lm/W (Standard, ±5%) / up to 145 lm/W (Economic, ±5%) |
| Lighting Direction | Uplight |
| Lumens | 24,650 lm (±5%) (Standard) / 21,000 lm (±5%) (Economic) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.95+ |
| Voltage | 100–240V / 120–277V / 249–528V |
| Wattage | 145W |
| Adjustable Aiming | Yes (bracket) |
| Ambient Temperature | -40–50 °C (operating) |
| Color | Black / Silver / White / Custom color |
| Mounting | Bracket / Cable suspended (steel rope) / Pipe (converter) |
| Photocell | Optional (optional, daylight sensor) |
| Standards | FCC / CE / RoHS |
| Warranty | 5 years |
| Accessories | Motion sensor (optional) / Daylight sensor (optional) / PC reflector (optional) / Cable with plug (optional) / Plug (optional) / Steel chain (optional) / Cable connector (optional) / 1/2-inch NPT to 3/4-inch NPT converter (optional) |
| Listings | DLC Premium / ETL / IP65 / NSF / SAA / cETL |
| Family | High bay |
| Series | EHB smart high bay |
Description

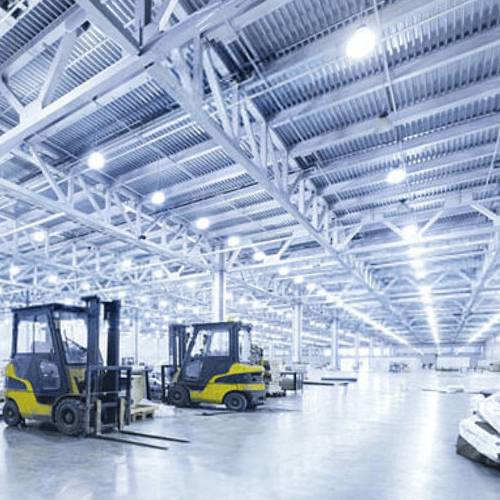

A 145W LED UFO high bay for high-ceiling spaces such as warehouses, storage aisles, factories, gymnasiums and large open areas. It delivers 24,650 lumens at up to 170 lm/W in its standard output, or 21,000 lumens at up to 145 lm/W in its economic version, with 5000K light and CRI 73+ or 80+.
Optics are offered at 60°, 90° or 120°, and optional motion and daylight sensors plug in to add occupancy and daylight control. It runs on 120–277V as standard, with 100–240V and 249–528V versions, and operates from -40°C to 50°C. The IP65-rated fixture comes in black, silver, white or a custom color, mounts by bracket, cable or pipe, and offers an uplight option.
ETL, cETL, DLC Premium, SAA and NSF listed, with a 5-year warranty that can be extended to 10 years.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | EHB smart high bay |
| Light | |
|---|---|
| Beam Angle | 60 / 90 / 120° |
| CCT | 5000K |
| CRI | 73+ / 80+ (optional) |
| Efficacy | up to 170 lm/W (Standard, ±5%) / up to 145 lm/W (Economic, ±5%) |
| Lighting Direction | Uplight |
| Lumens | 24,650 lm (±5%) (Standard) / 21,000 lm (±5%) (Economic) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.95+ |
| Voltage | 100–240V / 120–277V / 249–528V |
| Wattage | 145W |
| Physical | |
|---|---|
| Adjustable Aiming | Yes (bracket) |
| Ambient Temperature | -40–50 °C (operating) |
| Finish | Black / Silver / White / Custom color |
| Mounting | Bracket / Cable suspended (steel rope) / Pipe (converter) |
| Controls | |
|---|---|
| Photocell | Optional (optional, daylight sensor) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | ETL / cETL / DLC Premium / SAA / NSF |
| IP Rating | IP65 |
| Standards | FCC / CE / RoHS |
| Accessories | Motion sensor (optional) / Daylight sensor (optional) / PC reflector (optional) / Cable with plug (optional) / Plug (optional) / Steel chain (optional) / Cable connector (optional) / 1/2-inch NPT to 3/4-inch NPT converter (optional) |
