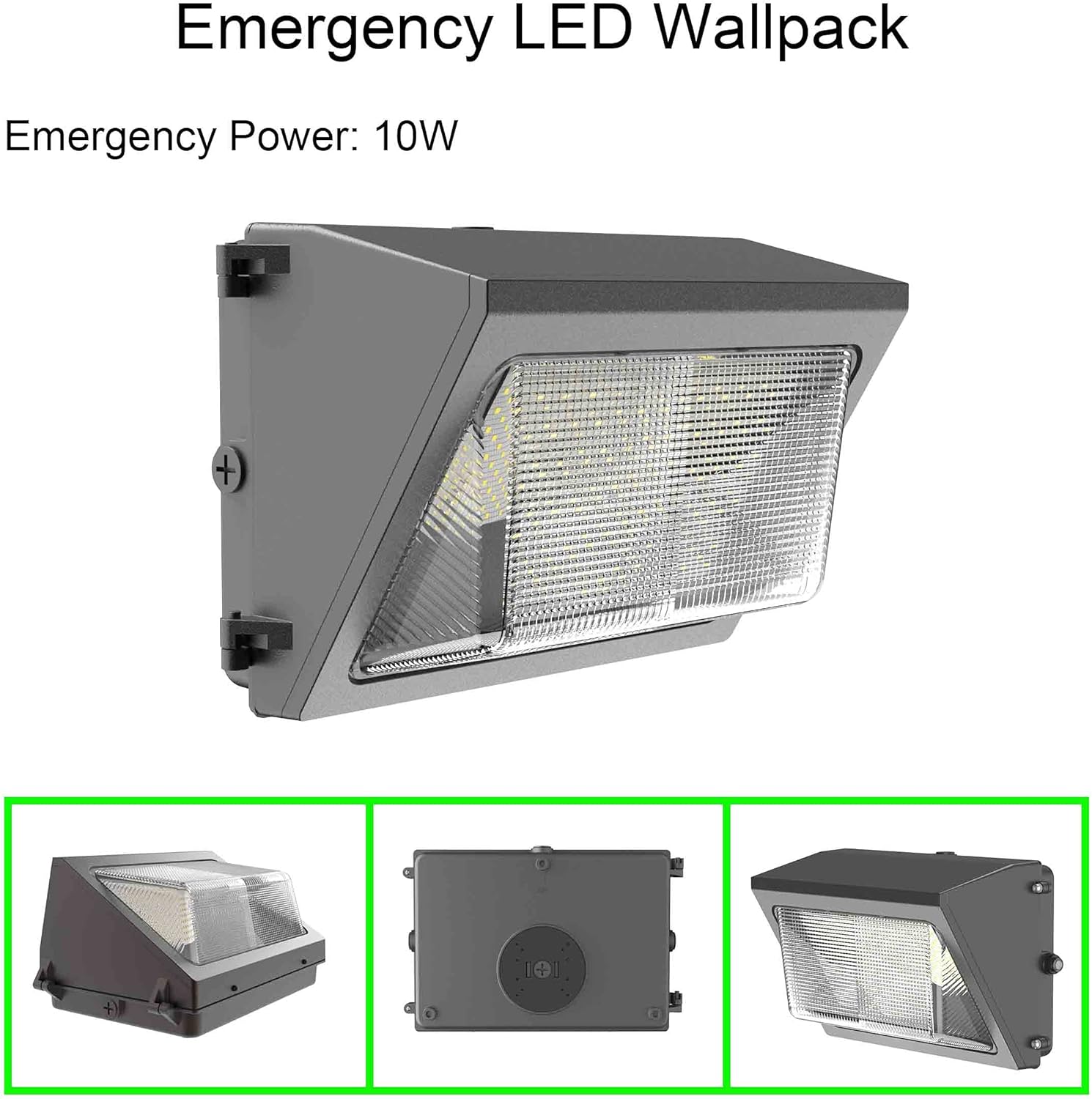

Non Cut Off Wall Pack 80W With Emergency Battery Backup & Photocell
Non Cut Off Wall Pack 80W With Emergency Battery Backup & Photocell
Model: E2-WP-N-40/50/60/80W-30/40/50K-P-E-BR
30/40/60/80W Wattage Selectable, Up to 10,400 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
Built-in Emergency Battery, 90 Minutes
120-277 Volt
Wet Location, IP65
Specifications
| Wattage | 30W / 40W / 60W / 80W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 70 |
| Lumens | 3900 / 5200 / 7800 / 10400 lm |
| Lifespan | 50,000 hours |
| Dimensions | 14.25 × 9.36 × 7.56 in |
| Listings | cETLus, DLC Premium, ETL Classified, IP65 Rating |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Efficacy | 125 lm/W (±10%) |
| THD | up to 20% |
| Humidity | up to 90% (operating) |
| Mounting | Wall |
| Emergency Backup | Integrated |
| Emergency Lumens | 1,250 lm |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator |
| Test Switch | Test button (push button, manual) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Motion Sensor | Optional |
| Photocell | Included |
| Wattage Selectable | Yes |
| Location Rating | Outdoor / Wet location |
| Family | Wall pack and wall luminaire |
| Series | E2-WPN-01 non cut-off wall pack |
Description
A non cut-off LED wall pack with a pre-wired emergency battery and an integrated photocell, keeping commercial building exteriors lit for safe navigation during normal operation and through a blackout. During an outage the battery provides 90 minutes of light at 1,250 lumens, with an indicator push button to check it.
Internal switches set the wattage at 30, 40, 60 or 80W, giving 3,900, 5,200, 7,800 or 10,400 lumens at 125 lm/W, and color temperature at 3000K, 4000K or 5000K with a CRI of 70+. It dims with 0–10V controls and runs on 120–277V. A die-cast aluminum housing with a UV-resistant polycarbonate refractor is wet-location and IP65 rated.
DLC Premium and cETLus listed, with a 50,000+ hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | E2-WPN-01 non cut-off wall pack |
| Light Source | LED |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 70+ |
| Efficacy | 125 lm/W (±10%) |
| Lumens | 3,900 / 5,200 / 7,800 / 10,400 lm |
| Electrical | |
|---|---|
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 30 / 40 / 60 / 80W |
| Physical | |
|---|---|
| Dimensions | 14.25 × 9.36 × 7.56 in |
| Humidity | up to 90% (operating) |
| Mounting | Wall |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 1,250 lm |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator |
| Test Switch | Test button (push button, manual) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Motion Sensor | Optional |
| Photocell | Included |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000+ hours |
| Warranty | 5 years |
| Certifications | cETLus / DLC Premium |
| IP Rating | IP65 |
| Location Rating | Outdoor / Wet location |
