E2-WPR 25W CCT Tunable
E2-WPR 25W CCT Tunable
Model: E2-WP-R-25W-30/40/50K-P-E-BK
25W, Up to 3,600 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
120-277 Volt
Wet Location, IP65
Black / Brown / White / Custom Color Finish
Specifications
| Wattage | 25W (±10%) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 70 |
| Lumens | 3,100–3,600 lm (−10%) |
| Lifespan | 50,000 hours |
| Dimensions | 240 × 149 × 166 mm (9.45" × 5.87" × 6.54") |
| Listings | IP65 Rating, RoHS, UL and DLC® Premium |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Beam Angle | 60° (±15%) |
| Efficacy | 125 lm/W (at 3000K) / 145 lm/W (at 4000K) / 135 lm/W (±3%) (at 5000K) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ (−3%) |
| THD | up to 20% (+5%) |
| Ambient Temperature | -30–45 °C (operating) / -40–80 °C (storage) |
| Color | Black / Brown / White / Custom color |
| Humidity | 10–90% (operating) / 10–95% (storage) |
| CCT Selectable | Yes, switchable |
| Photocell | Included |
| Location Rating | Wet location |
| Family | Wall pack and wall luminaire |
| Series | WPR rotatable wall pack |
Description

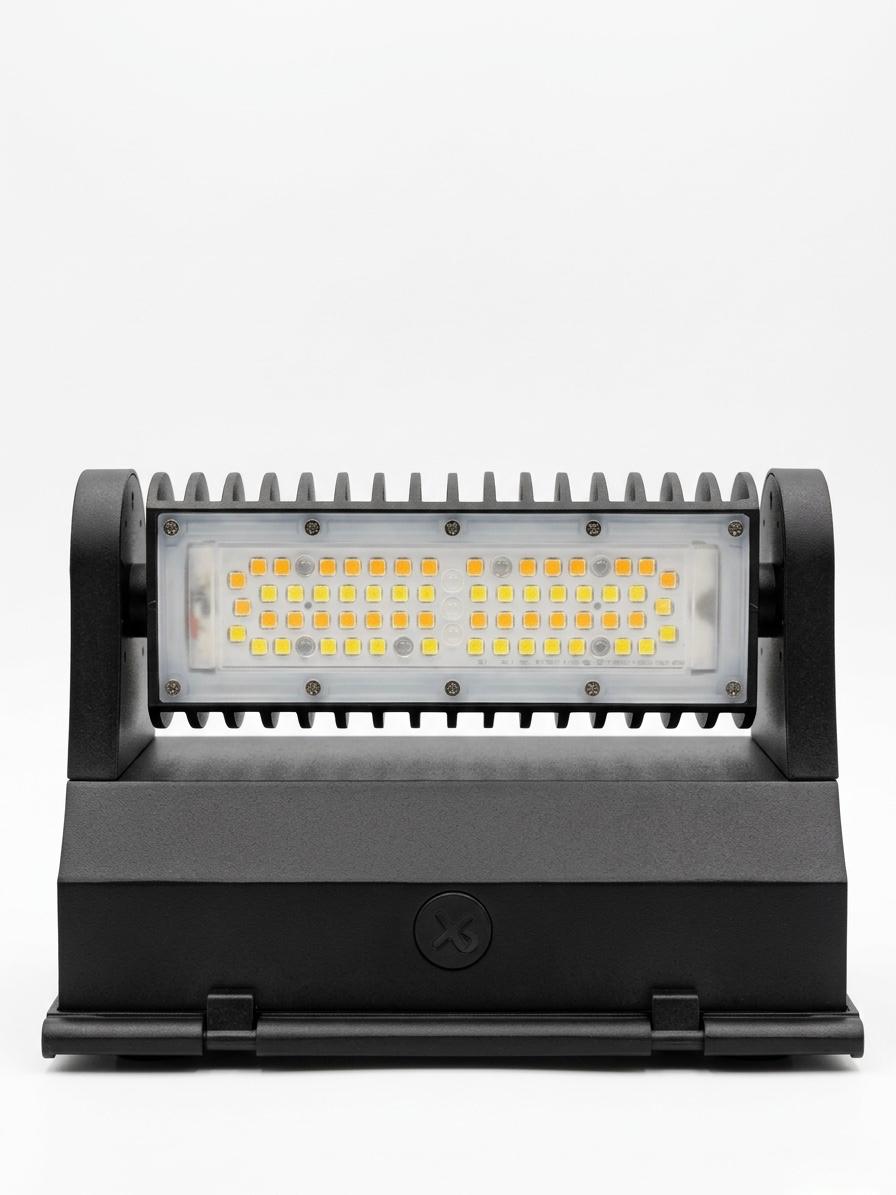

A single-panel rotatable LED wall pack that can be aimed where the light is needed, for entryways, courtyards, alleyways and building perimeters.
It draws 25W and delivers 3,100–3,600 lumens, with color temperature selectable at 3000K, 4000K or 5000K and a CRI of 70+. It dims with 0–10V controls and runs on 120–277V. The aluminum-alloy housing is wet-location and IP65 rated, with a 60° beam, and comes in black, brown, white or a custom colour.
It carries a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WPR rotatable wall pack |
| Light Source | SMD LED |
| Light | |
|---|---|
| Beam Angle | 60° (±15%) |
| CCT | 3000 / 4000 / 5000K |
| CRI | 70+ |
| Efficacy | 125 lm/W (at 3000K) / 145 lm/W (at 4000K) / 135 lm/W (±3%) (at 5000K) |
| Lumens | 3,100–3,600 lm (−10%) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ (−3%) |
| THD | up to 20% (+5%) |
| Voltage | 120–277V |
| Wattage | 25W (±10%) |
| Physical | |
|---|---|
| Ambient Temperature | -30–45 °C (operating) / -40–80 °C (storage) |
| Dimensions | 240 × 149 × 166 mm |
| Finish | Black / Brown / White / Custom color |
| Humidity | 10–90% (operating) / 10–95% (storage) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Photocell | Included |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| IP Rating | IP65 |
| Location Rating | Wet location |
