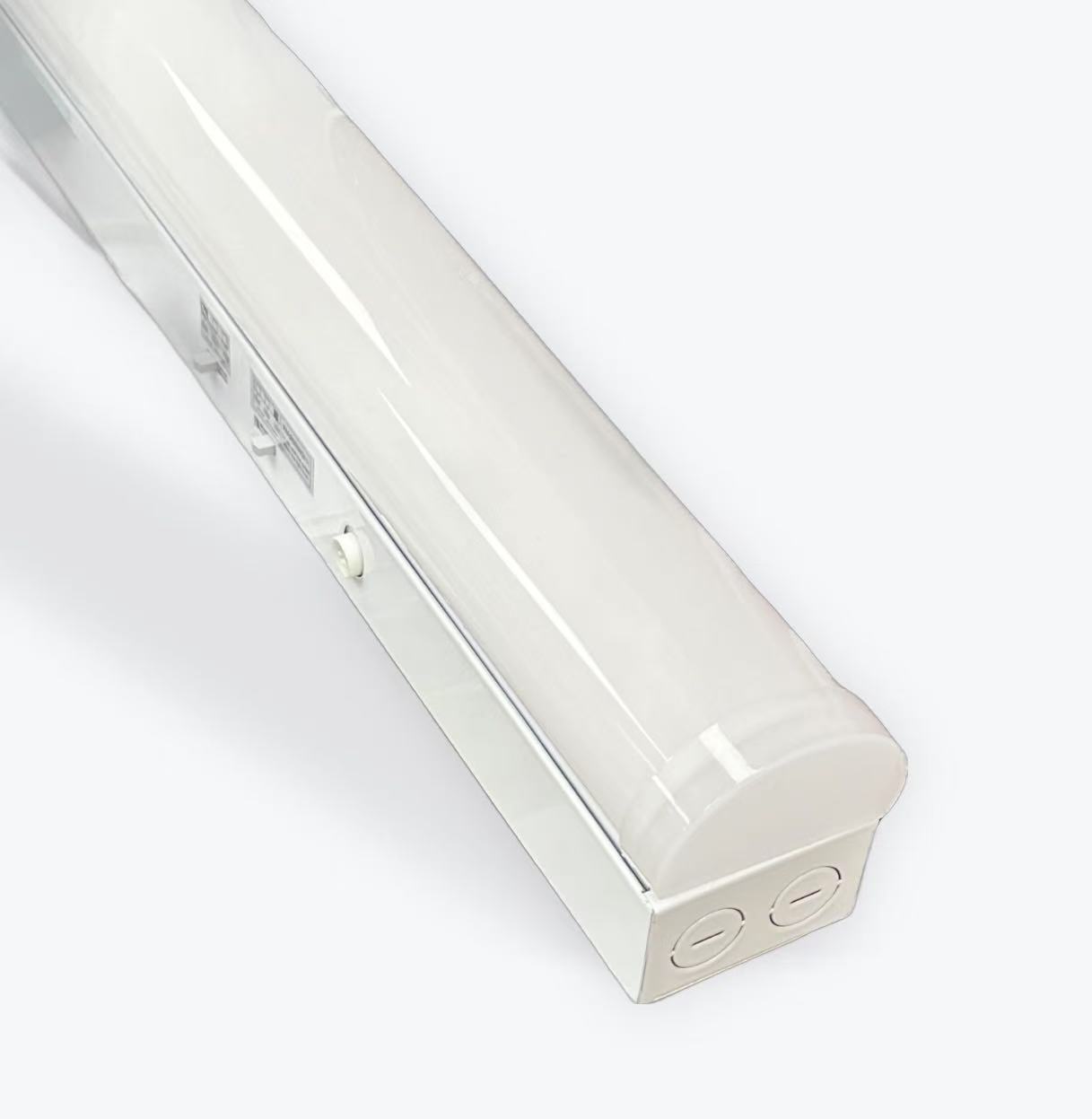

8FT Standard LED Linear Strip
8FT Standard LED Linear Strip
Model: E2-LS-STD-8FT-60/70/80W-35/40/50K
64/75/90W Wattage Selectable, 11,700 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
Specifications
| Wattage | 64W / 75W / 90W |
| Voltage | 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 8320 lm / 9750 lm / 11700 lm |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 2438 × 75 × 83 mm (95.98" × 2.95" × 3.26") |
| Listings | DLC Premium / ETL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 ft |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Mounting | Surface / Chain suspended |
| CCT Selectable | Yes, switchable |
| Wattage Selectable | Yes |
| Standards | CE / RoHS |
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
Description
Ideal for indoor applications, this 8-foot standard-width LED linear strip provides task and general lighting in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more, as well as storage and utility buildings, workshops and garages. Integrated switches set wattage and color temperature to suit the installation.
Wattage is selectable at 64, 75 or 90W for up to 11,700 lumens at 130 lm/W, and color temperature at 3500K, 4000K or 5000K. It dims with 0–10V controls, runs on 100–277V and mounts to a surface or on chains.
ETL and DLC Premium listed and CE and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
| Size | 8 ft |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130 lm/W |
| Lumens | 11,700 lm |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 100–277V |
| Wattage | 64 / 75 / 90W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 2,438 × 75 × 83 mm |
| Mounting | Surface / Chain suspended |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / DLC Premium |
| Standards | CE / RoHS |
