Linear High Bay Light 24,750LM to 45,000lm 120-277V
Linear High Bay Light 24,750LM to 45,000lm 120-277V
Models: E2-HB-LIN-2FT-80/110/165W-35/40/50K-E, E2-HB-LIN-3FT-300W-50K-E
80/110/165/300W Wattage Selectable, Up to 42,000 Lumens
3500K/4000K/5000K CCT Selectable
Built-in 18/40W Emergency Battery, 90 Minutes
0-10V Dimmable
120-277 or 120-347 Volt
Damp Location
Specifications
| Wattage | 2 ft: 80 / 110 / 165W; 3 ft: 300W |
| Voltage | 120-277V / 120-347V |
| Dimming | 0-10V |
| CCT | 2 ft: 3500 / 4000 / 5000K; 3 ft: 5000K |
| CRI | > 80 |
| Lumens | 11200 lm - 42000 lm |
| Listings | UL / cUL |
| Warranty | 5-Year Manufacturer's Warranty |
| Efficacy | 140 lm/W |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -4–122 °F (operating) / -22–158 °F (storage) |
| Mounting | Chain suspended |
| Emergency Backup | Integrated |
| Emergency Power | 18–40W |
| Emergency Runtime | 90 minutes |
| CCT Selectable | 2 ft: Yes, switchable |
| Connectivity | Bluetooth Low Energy |
| Wattage Selectable | 2 ft: Yes |
| Location Rating | Dry location / Damp location |
| Standards | FCC / IES LM-79 / IES LM-80 |
| Family | High bay |
| Series | Linear high bay |
Description
This linear LED high bay comes pre-wired with an emergency battery backup of 18–40W that keeps the lights on for 90 minutes during a power outage, for large high-ceiling spaces such as warehouses, factories, gyms and recreational facilities. It is compatible with a Bluetooth Low Energy smart control system for adjusting the lights from a phone or tablet.
One model is selectable at 80, 110 or 165W and 3500K, 4000K or 5000K, and a 300W model runs at 5000K, with output from 11,200 to 42,000 lumens across the range. It produces 140 lm/W with CRI 80+ and dims with 0–10V controls. The fixtures hang by chain, are rated for dry and damp locations and operate from -4°F to 122°F.
UL/cUL listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | Linear high bay |
| Light | |
|---|---|
| CCT | 2 ft: 3500 / 4000 / 5000K; 3 ft: 5000K |
| CRI | 80+ |
| Efficacy | 140 lm/W |
| Lumens | 11,200–42,000 lm |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V / 120–347V |
| Wattage | 2 ft: 80 / 110 / 165W; 3 ft: 300W |
| Physical | |
|---|---|
| Ambient Temperature | -4–122 °F (operating) / -22–158 °F (storage) |

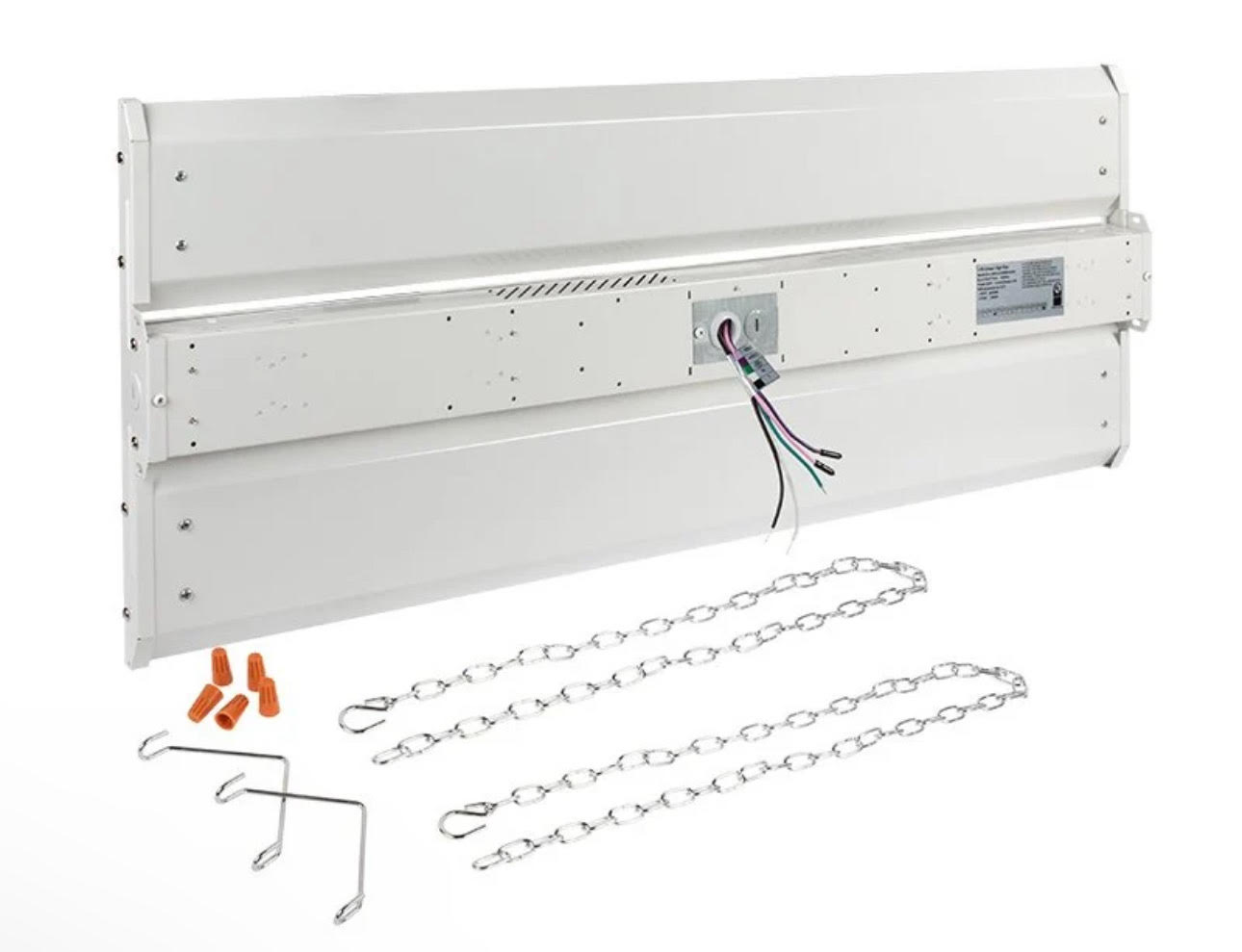

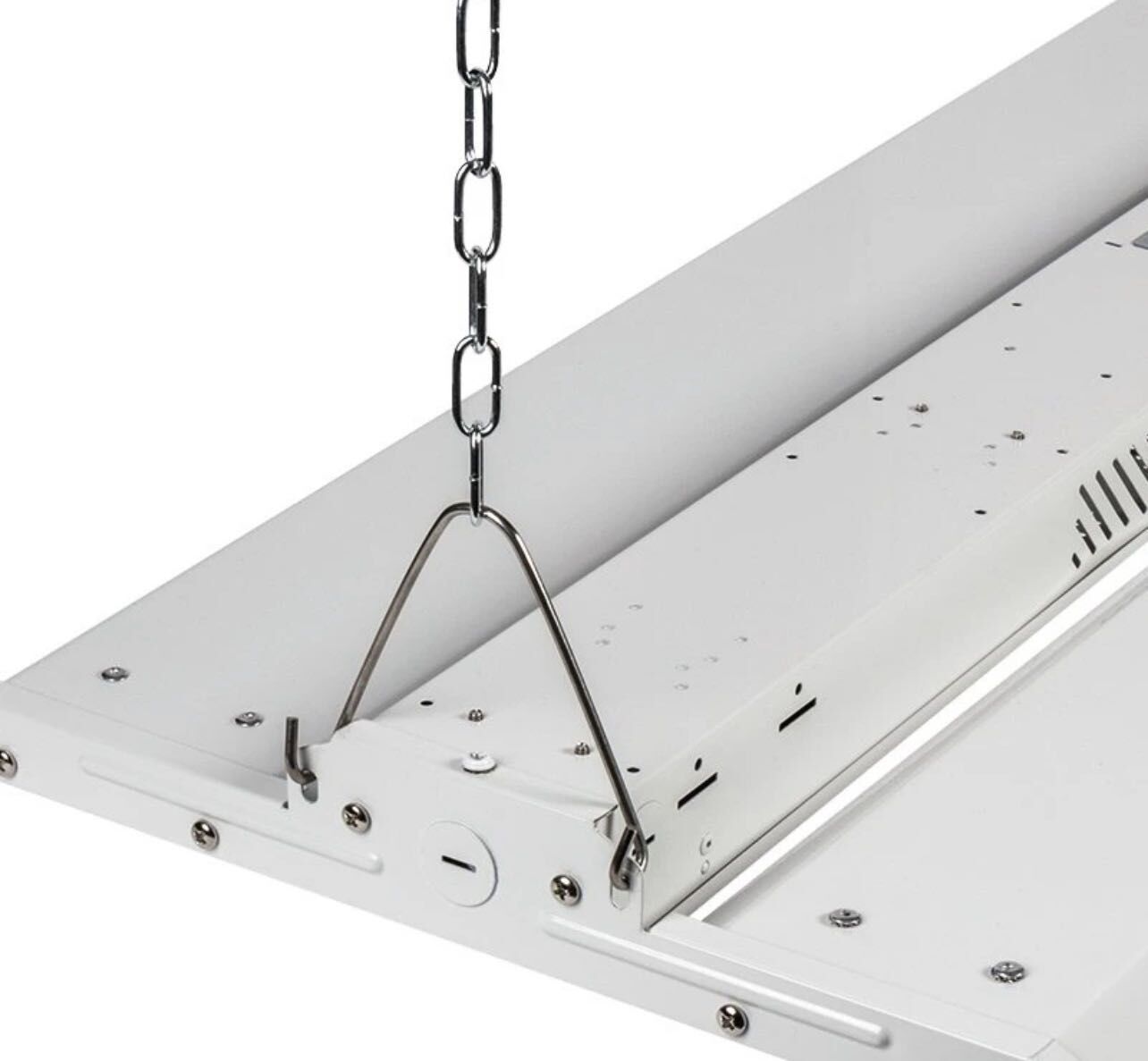

| Mounting | Chain suspended |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 18–40W |
| Emergency Runtime | 90 minutes |
| Controls | |
|---|---|
| CCT Selectable | 2 ft: Yes, switchable |
| Connectivity | Bluetooth Low Energy |
| Dimming Type | 0–10V |
| Wattage Selectable | 2 ft: Yes |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL / cUL |
| Location Rating | Dry location / Damp location |
| Standards | FCC / IES LM-79 / IES LM-80 |
