2X2 LED Troffer Smart, with Photocell, Motion Sensor and Bluetooth Mesh
2X2 LED Troffer Smart, with Photocell, Motion Sensor and Bluetooth Mesh
Model: E2-TRF-2X2-20/25/30W-35/45K-G2
20/25/30W Wattage Selectable, Up to 3,850 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 30W (factory default, at 4000K) / 20W / 25W / 30W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K / 4000K (factory default, at 30W) |
| CRI | > 80 |
| Lumens | 2570 lm / 3125 lm / 3850 lm |
| Lifespan | 75,000 hours |
| Dimensions | 603 × 603 × 54 mm |
| Listings | DLC Premium / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Size | 2×2 ft |
| Beam Angle | 119° |
| Efficacy | 125+ lm/W |
| Connection Type | Receptacle |
| Power Factor | 0.98+ |
| Mounting | Recessed |
| Weight | 6.8 lb |
| Emergency Backup | Optional (E2-EMLY15W27-XX, sold separately, emergency driver) |
| Emergency Lumens | 1,725 lm (optional, at WSD-EMLY15W27-XX) |
| CCT Selectable | Yes, switchable (sliding switch) |
| Dimmable | Yes |
| Wattage Selectable | Yes (sliding switch) |
| IC Rating | Yes |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | FCC / RoHS |
| Pack Quantity | 2 (carton, pieces) |
| Family | Troffer and flat panel |
| Series | Sensor-based troffer |
Description

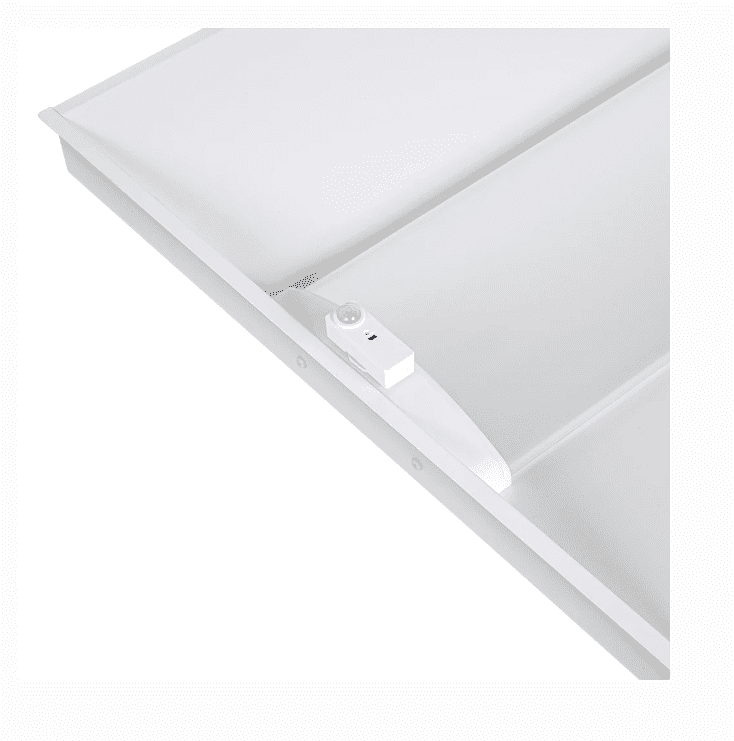

This 2×2 LED troffer is a versatile choice for offices, hallways, multipurpose rooms, conference rooms, supermarkets and stores, and it is ready for smart controls: a sensor receptacle built into the frame accepts occupancy and daylight sensors fitted in the field. On-fixture switches set the wattage and color temperature, shipping at 30W and 4000K.
Wattage is selectable at 20, 25 or 30W, giving 2,570, 3,125 or 3,850 lumens at 125+ lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+. It dims on 0–10V controls and runs on 120–277V with a power factor of 0.98+. The fixture recesses into the ceiling, measures 603 × 603 × 54 mm and is IC rated and rated for damp locations.
UL and DLC Premium listed and mercury-free, with a 75,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Sensor-based troffer |
| Light Source | SMD LED |
| Size | 2×2 ft |
| Light | |
|---|---|
| Beam Angle | 119° |
| CCT | 3500K / 4000K / 5000K / 4000K (factory default, at 30W) |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 2,570 / 3,125 / 3,850 lm |
| Electrical | |
|---|---|
| Connection Type | Receptacle |
| Power Factor | 0.98+ |
| Voltage | 120–277V |
| Wattage | 30W (factory default, at 4000K) / 20W / 25W / 30W |
| Physical | |
|---|---|
| Dimensions | 603 × 603 × 54 mm |
| Mounting | Recessed |
| Weight | 6.8 lb |
| Emergency | |
|---|---|
| Emergency Backup | Optional (E2-EMLY15W27-XX, sold separately, emergency driver) |
| Emergency Lumens | 1,725 lm (optional, at WSD-EMLY15W27-XX) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (sliding switch) |
| Dimmable | Yes |
| Dimming Type | 0–10V (continuous) |
| Wattage Selectable | Yes (sliding switch) |
| Warranty | |
|---|---|
| Rated Life | 75,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| IC Rating | Yes |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | FCC / RoHS |
| Pack Quantity | 2 (carton, pieces) |
