Model: E2-LS-STD-2-10/15/24W-M
18/24W Wattage Selectable, 3,120 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
| Wattage | 18W / 24W |
| Voltage | 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 1950 lm / 2600 lm / 3120 lm |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 609 ×75 × 83 mm (23.97" ×2.95" × 3.26") |
| Listings | DLC Premium / ETL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 2 ft |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Mounting | Surface / Chain suspended |
| Emergency Backup | Not included |
| CCT Selectable | Yes, switchable |

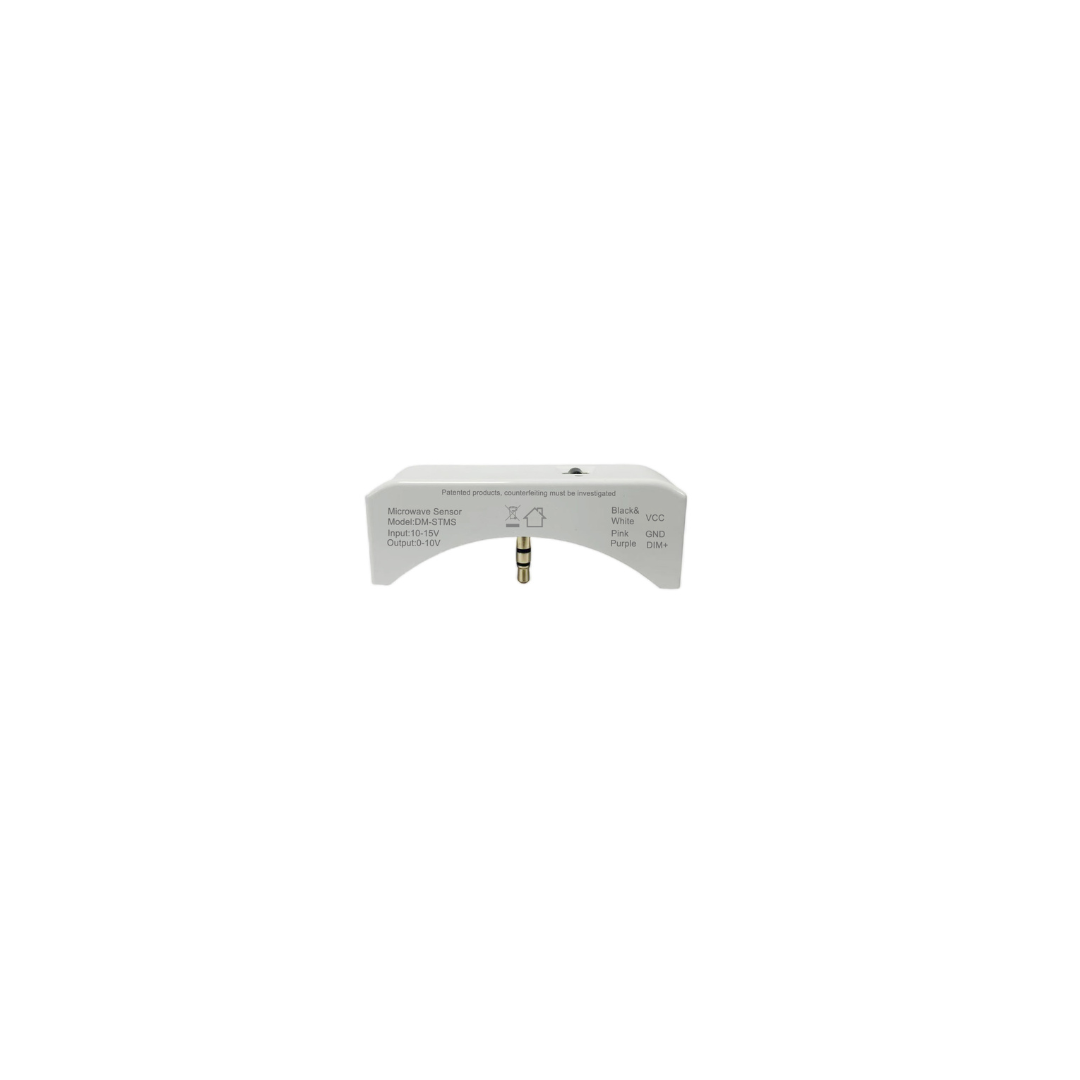

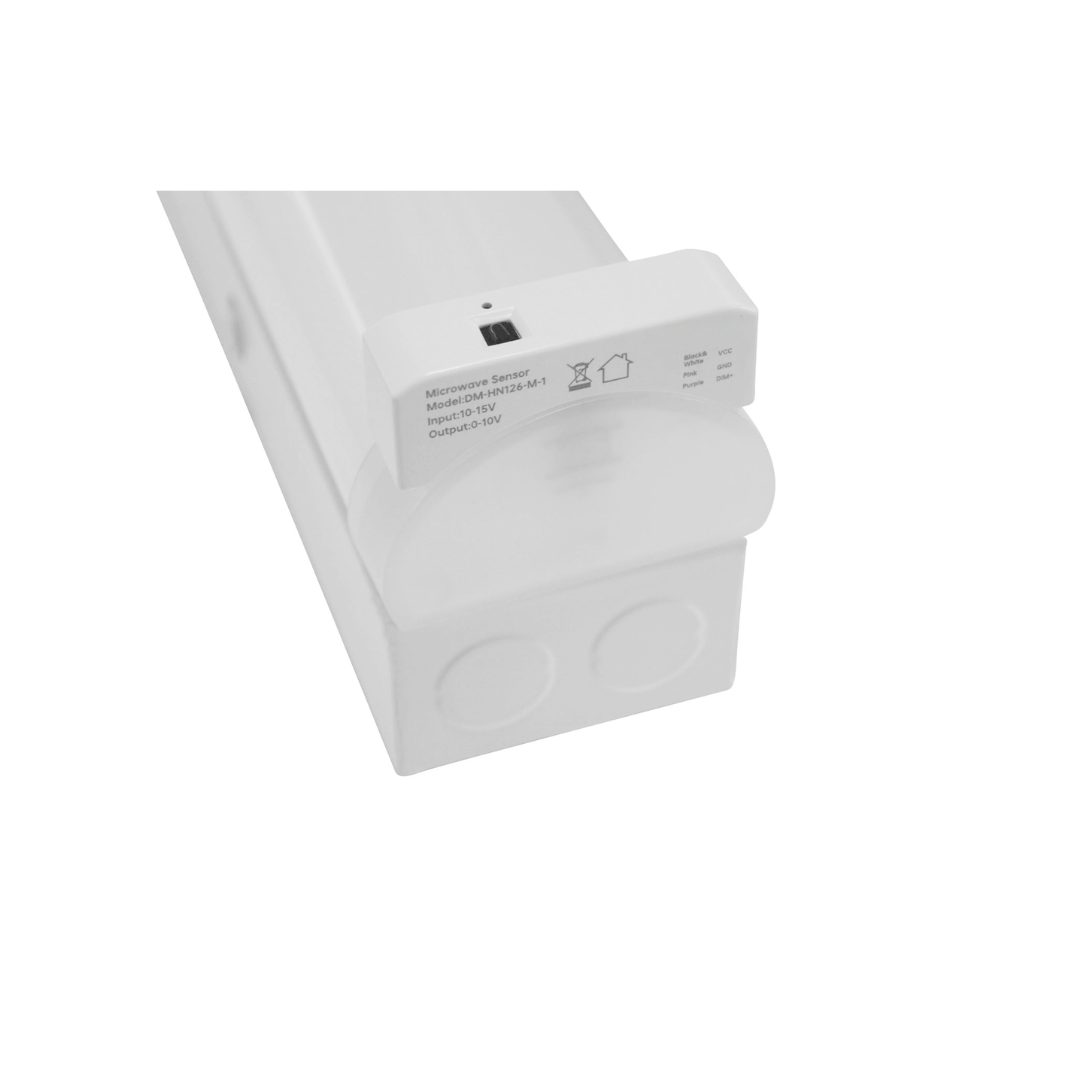

| Motion Sensor | Integrated |
| Wattage Selectable | Yes |
| Standards | CE / RoHS |
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |

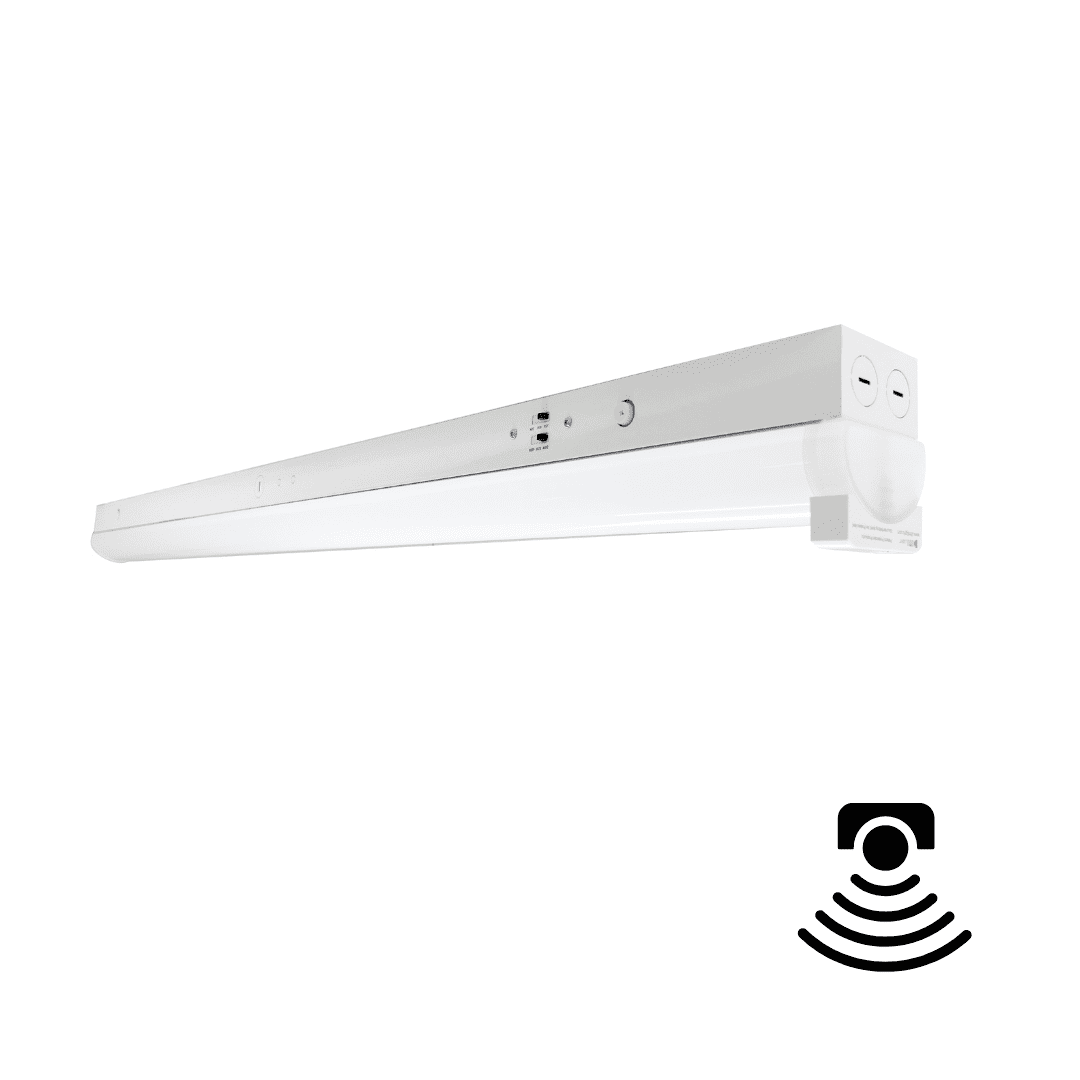

Ideal for indoor applications, this 2-foot standard-width LED linear strip comes with a motion sensor installed and provides task and general lighting in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more, as well as storage and utility spaces, workshops, garages, coves and display areas. Integrated switches set wattage and color temperature, and a smooth lens spreads light evenly.
Wattage is selectable at 18 or 24W for up to 3,120 lumens at 130 lm/W, and color temperature at 3500K, 4000K or 5000K. It dims with 0–10V controls, runs on 100–277V and mounts to a surface or on chains.
ETL and DLC Premium listed and CE and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
| Size | 2 ft |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130 lm/W |
| Lumens | 3,120 lm |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 100–277V |
| Wattage | 18 / 24W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 609 × 75 × 83 mm |
| Mounting | Surface / Chain suspended |
| Emergency | |
|---|---|
| Emergency Backup | Not included |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Integrated |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / DLC Premium |
| Standards | CE / RoHS |
