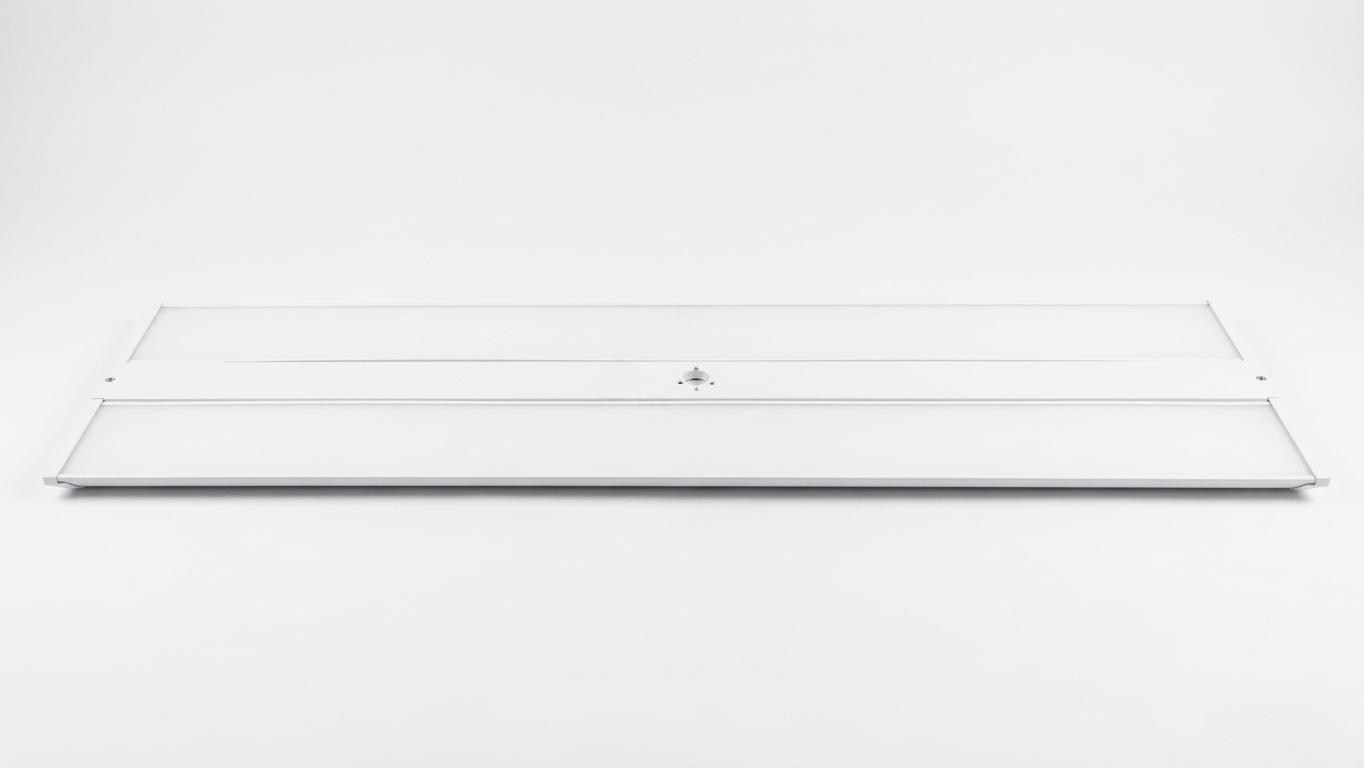

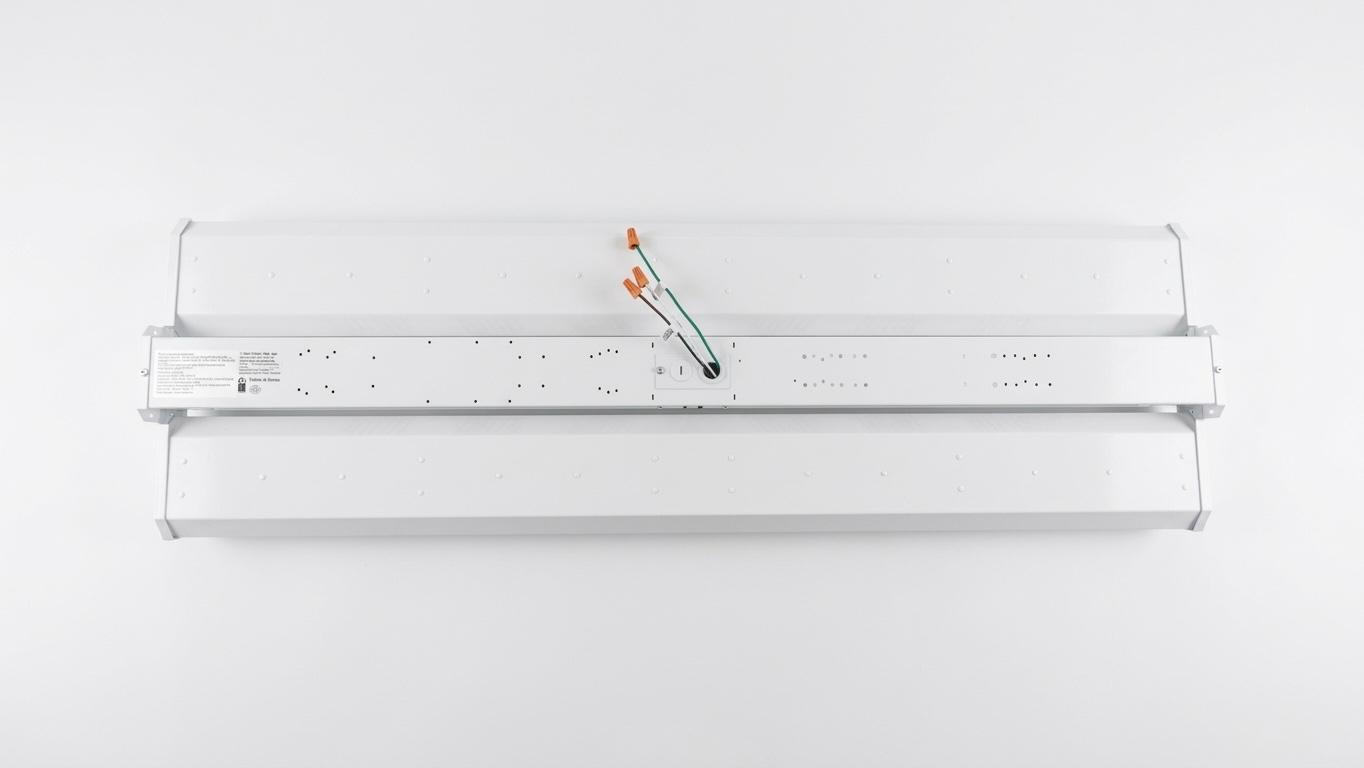

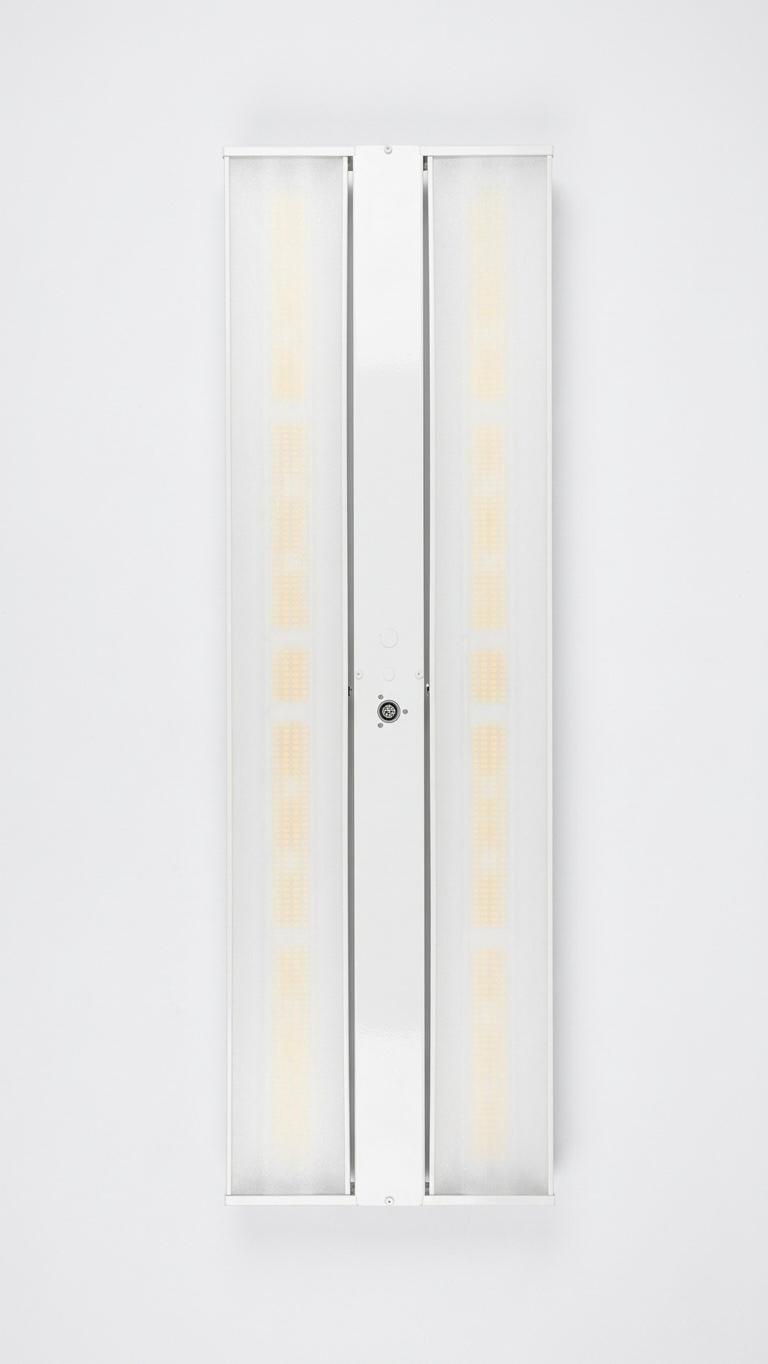

4FT Linear High Bay Light 3X Wattage and 3X CCT Tunable
4FT Linear High Bay Light 3X Wattage and 3X CCT Tunable
Models: E2-HB-LIN-4FT-165/220/320W-35/40/50K, E2-HB-LIN-4FT-165/220/320W-35/40/50K-E
165/220/320W Wattage Selectable, Up to 43,200 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
120-277 Volt
IP20
Specifications
| Wattage | 165W / 220W / 320W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 29,700 lm (at LHB02-4F220Z, at 220W) / 43,200 lm (at LHB02-4F320Z, at 320W) |
| Lifespan | 50,000 hours |
| Dimensions | 4FT: 1,160 × 360 × 47.5 mm / 4FT: 23 mm |
| Listings | DLC Premium / IP20 / UL / cUL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Size | 4 ft |
| Beam Angle | 90° |
| Efficacy | 135 lm/W (±5%) |
| UGR | up to 28 |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -30–40 °C (operating) |
| Color | White |
| Mounting | Hook (ceiling) / Pipe |
| Weight | LHB02-4F220W: 4.5 kg (net, per fixture) / LHB02-4F320W: 4.7 kg (net, per fixture) |
| Emergency Backup | Optional (series, emergency driver) |
| CCT Selectable | ordering code C: Yes, switchable |
| Wattage Selectable | Yes (ordering code S) |
| Accessories | Microwave or PIR smart controller (optional) / Wire guard (optional) |
| Family | High bay |
| Series | TAA-compliant linear high bay |
Description
This 4-foot linear LED high bay replaces HID high bays in warehouses, factories, supermarkets, gyms and production areas, with wattage selectable at 165, 220 or 320W and color temperature at 3500K, 4000K or 5000K. Output reaches up to 43,200 lumens at 135 lm/W, with CRI 80+ and a 90° beam.
It dims with 0–10V controls and runs on 120–277V at 50/60 Hz. The white, IP20-rated fixture mounts by hook or pipe and operates from -30°C to 40°C. An emergency driver, a microwave or PIR smart controller and a wire guard are available as options.
UL/cUL and DLC Premium listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | High bay |
| Series | TAA-compliant linear high bay |
| Light Source | LED |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 90° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 135 lm/W (±5%) |
| Lumens | 29,700 lm (at LHB02-4F220Z, at 220W) / 43,200 lm (at LHB02-4F320Z, at 320W) |
| UGR | up to 28 |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | ordering code L: 120–277V |
| Wattage | 165 / 220 / 320W |
| Physical | |
|---|---|
| Ambient Temperature | -30–40 °C (operating) |
| Dimensions | 4FT: 1,160 × 360 × 47.5 mm / 4FT: 23 mm |
| Finish | White |
| Mounting | Hook (ceiling) / Pipe |
| Weight | LHB02-4F220W: 4.5 kg (net, per fixture) / LHB02-4F320W: 4.7 kg (net, per fixture) |
| Emergency | |
|---|---|
| Emergency Backup | Optional (series, emergency driver) |
| Controls | |
|---|---|
| CCT Selectable | ordering code C: Yes, switchable |
| Dimming Type | ordering code D: 0–10V |
| Wattage Selectable | Yes (ordering code S) |
| Warranty | |
|---|---|
| Rated Life | 50,000+ hours |
| Warranty | 5 years |
| Certifications | UL / cUL / DLC Premium |
| IP Rating | IP20 |
| Accessories | Microwave or PIR smart controller (optional) / Wire guard (optional) |
