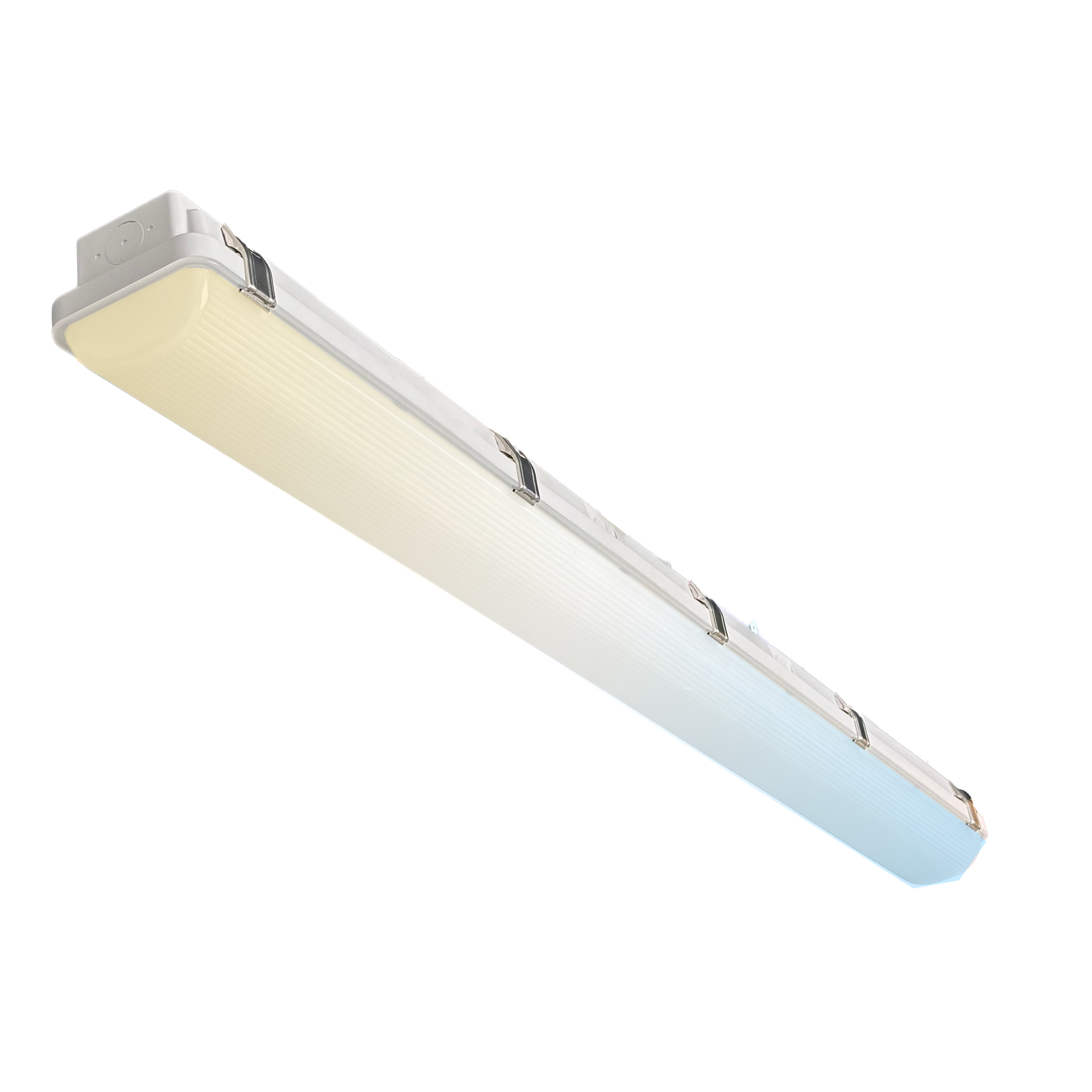

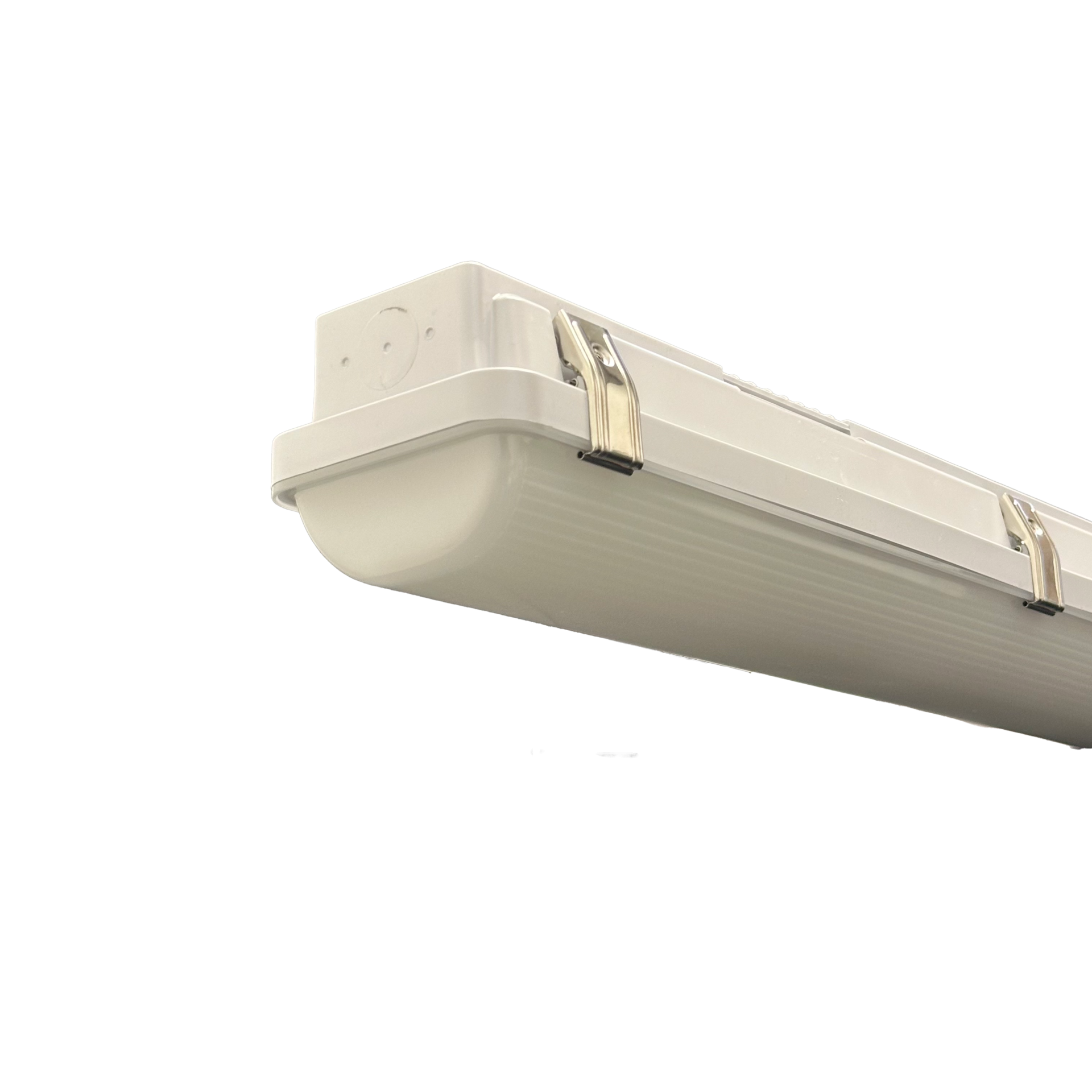

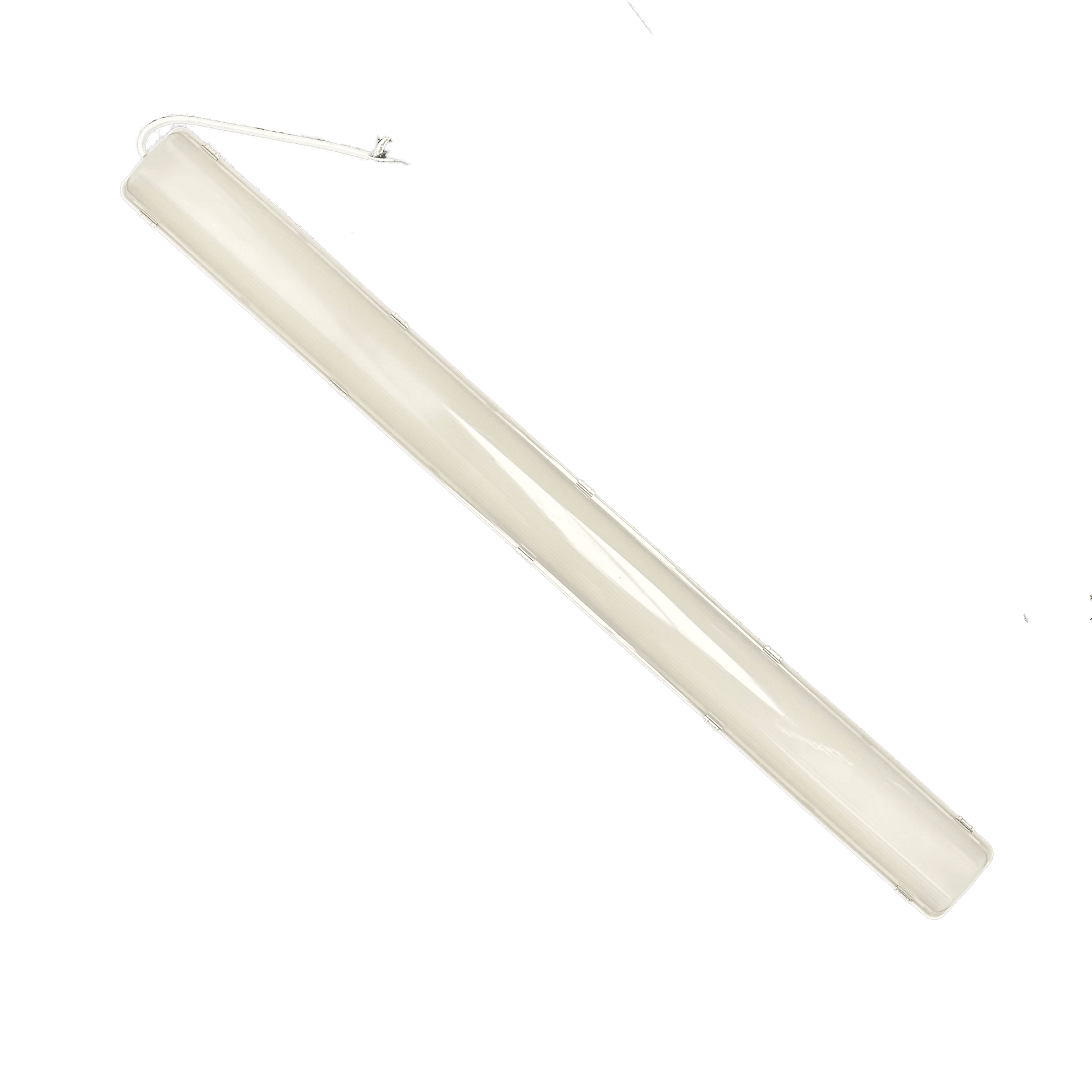

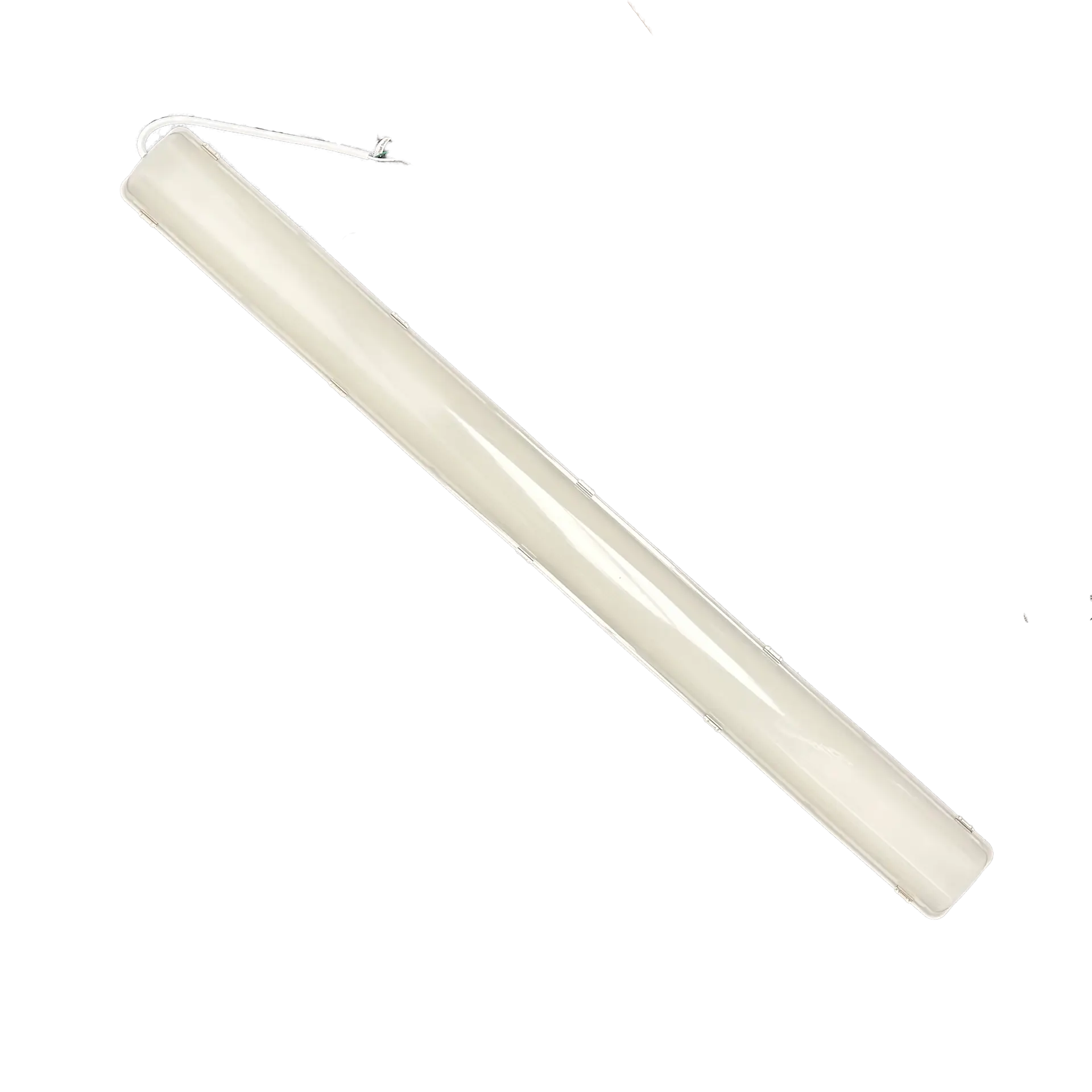

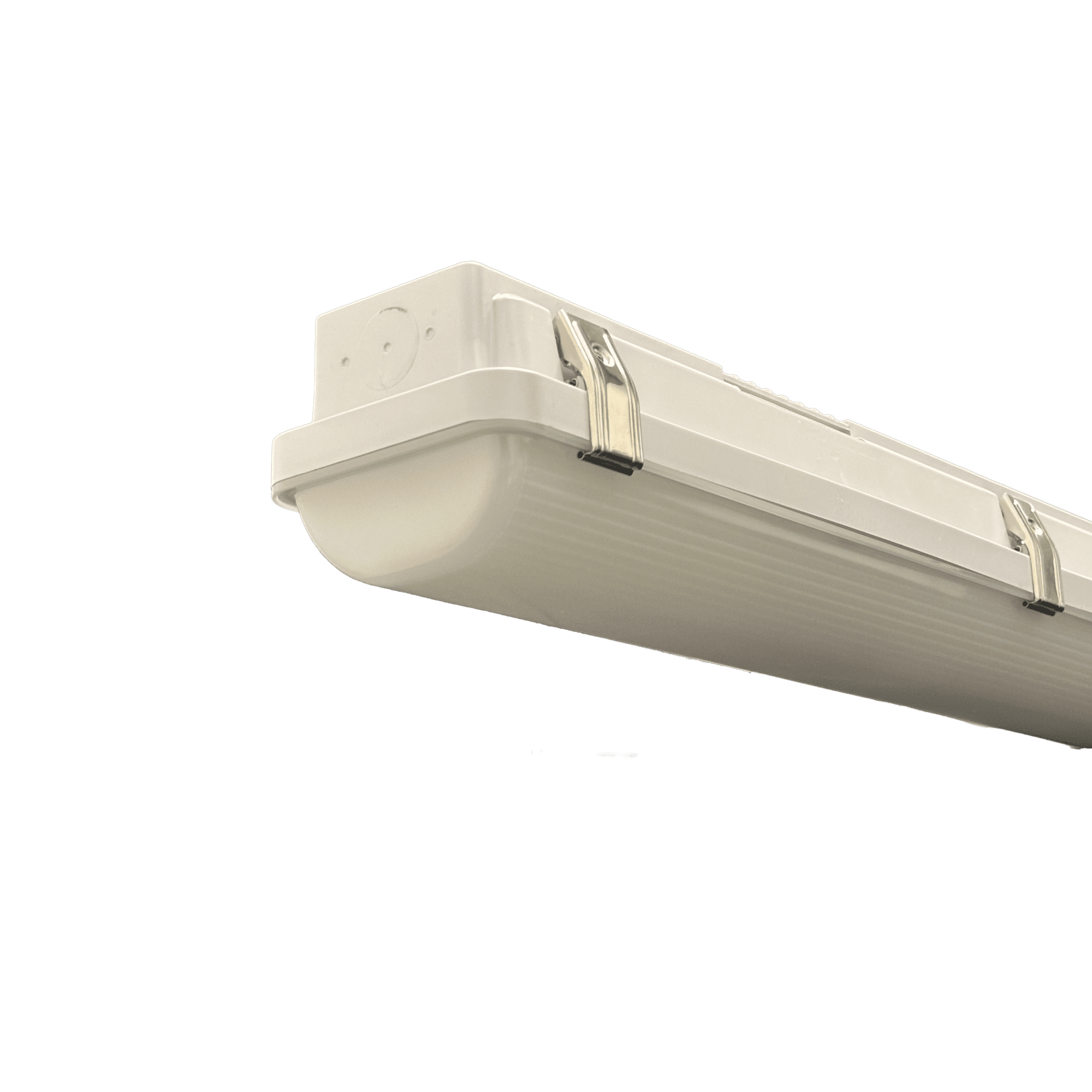

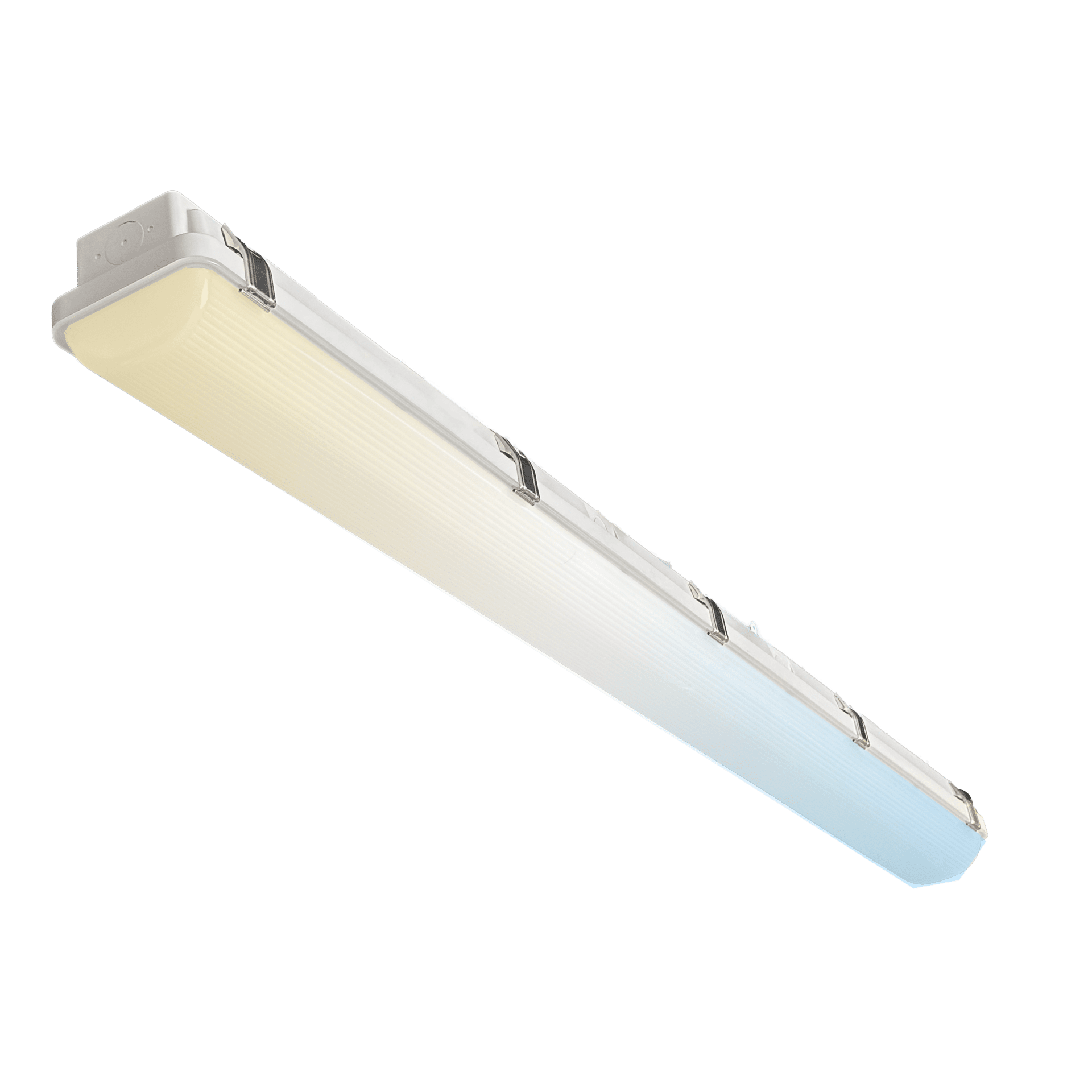

Vapor Tight Fixture with Pre-wired Emergency Battery 4FT 50W
Vapor Tight Fixture with Pre-wired Emergency Battery 4FT 50W
Model: E2-VT-EDI-4FT-32/40/50W-35/40/50K-E
40/50W Wattage Selectable, Up to 6,250 Lumens
3500K/4000K/5000K CCT Selectable

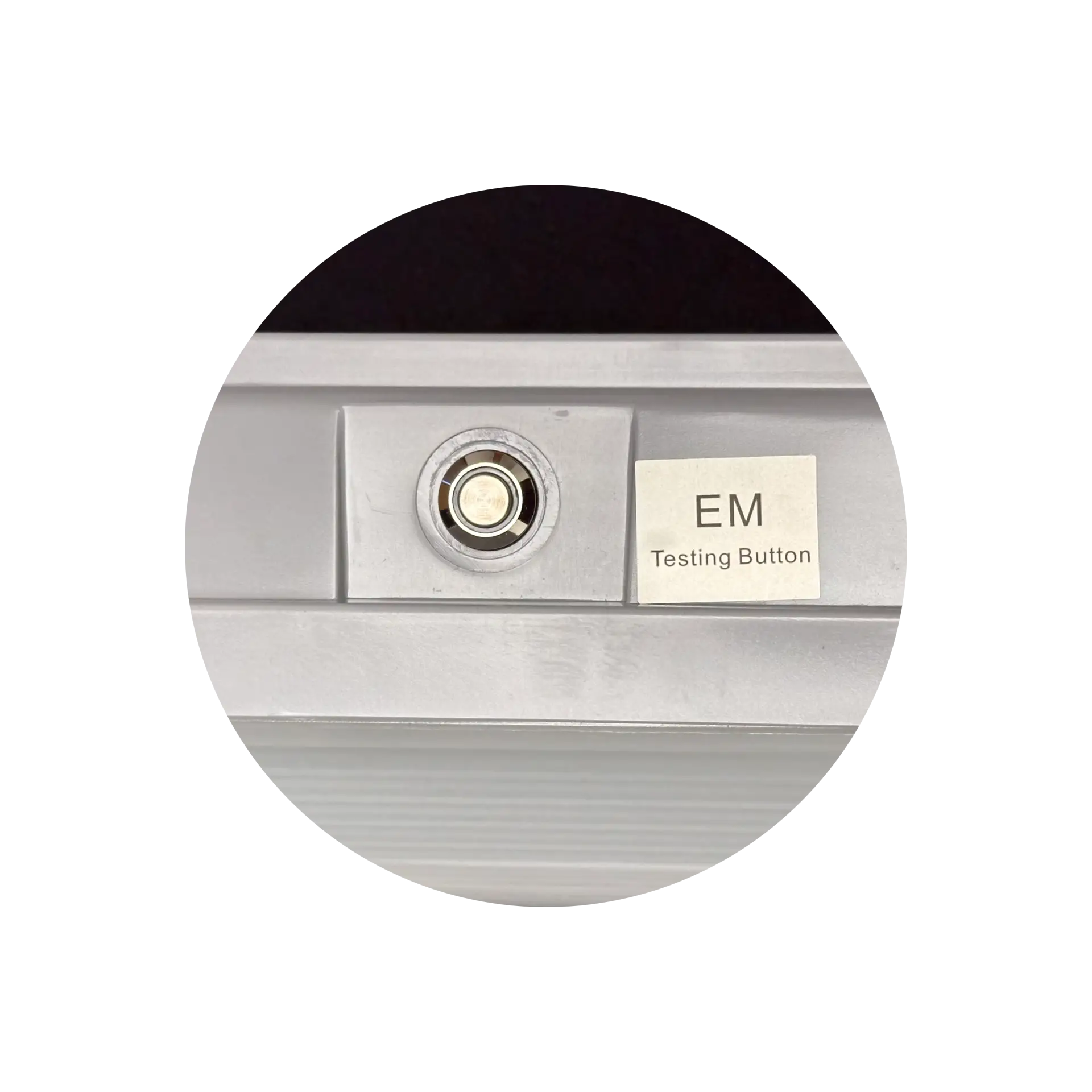

Built-in 10W Emergency Battery, 90 Minutes
100-277 Volt
Specifications
| Wattage | 40W / 50W / 40W (at 5000 lm) / 50W (at 6250 lm) |
| Voltage | 100-277V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 5,000 lm (at 40W) / 6,250 lm (at 50W) |

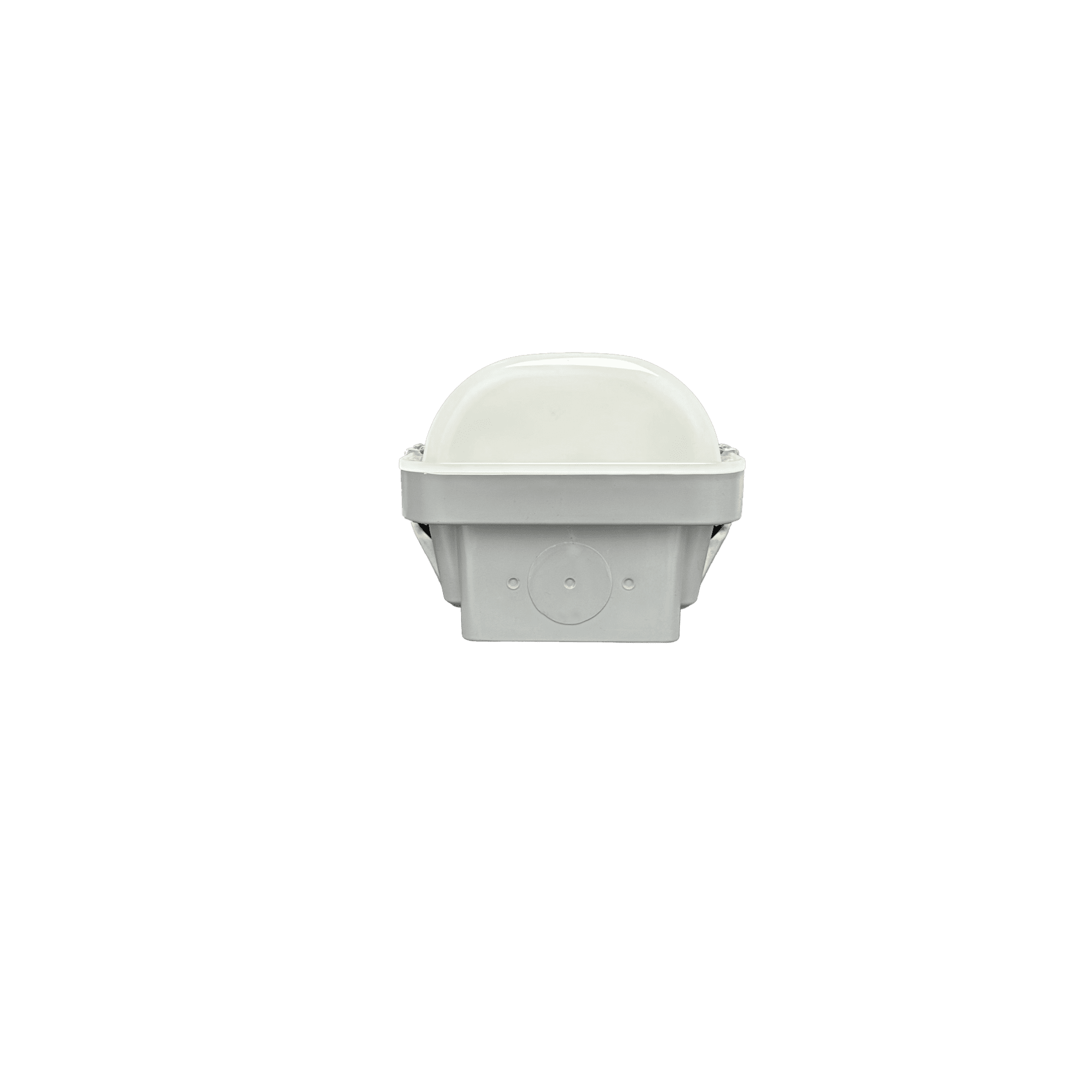

| Dimensions | 1200 × 110 × 88 mm (47.2" × 3.86" × 3.46") |
| Listings | DLC Premium / cETLus |
| Size | 4 ft |
| Warranty | 5-Year Manufacturer's Warranty |
| Beam Angle | 120° |
| Efficacy | 125 lm/W |
| Power Factor | 0.9+ |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |

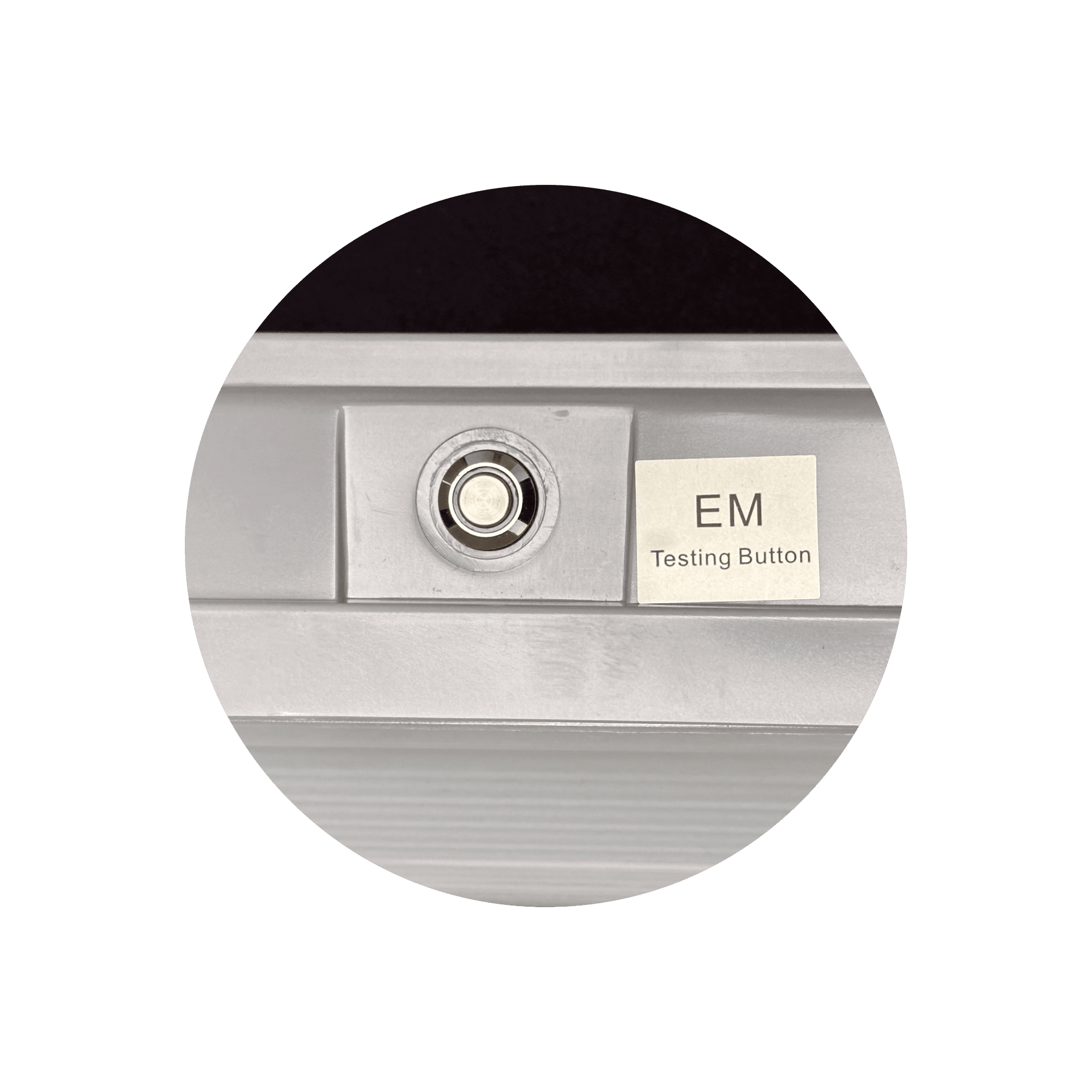

| Emergency Backup | Integrated |
| Emergency Lumens | 1,250 lm (at 90 minutes) |
| Emergency Power | 10W (emergency battery) |
| Emergency Runtime | 90 minutes (at 1250 lm) |
| CCT Selectable | Yes, switchable |
| Wattage Selectable | Yes |
| Family | Vapor-tight linear luminaire |
Description

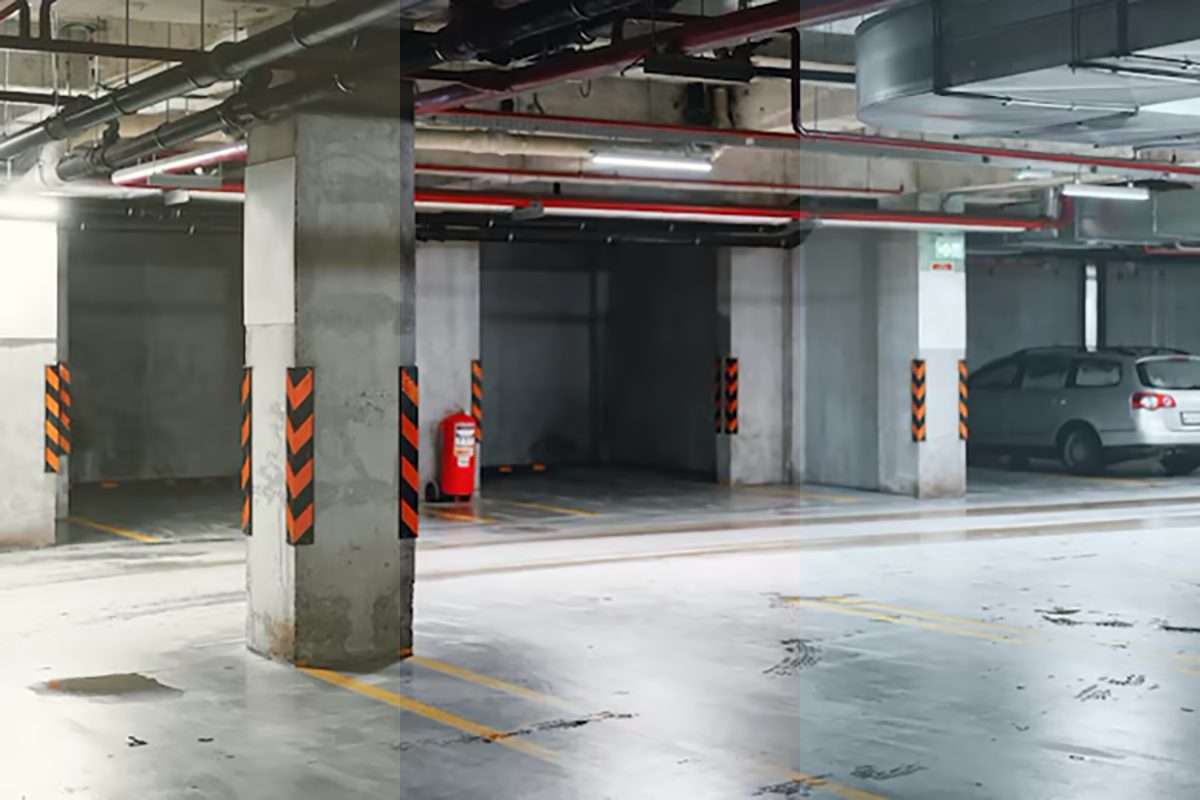

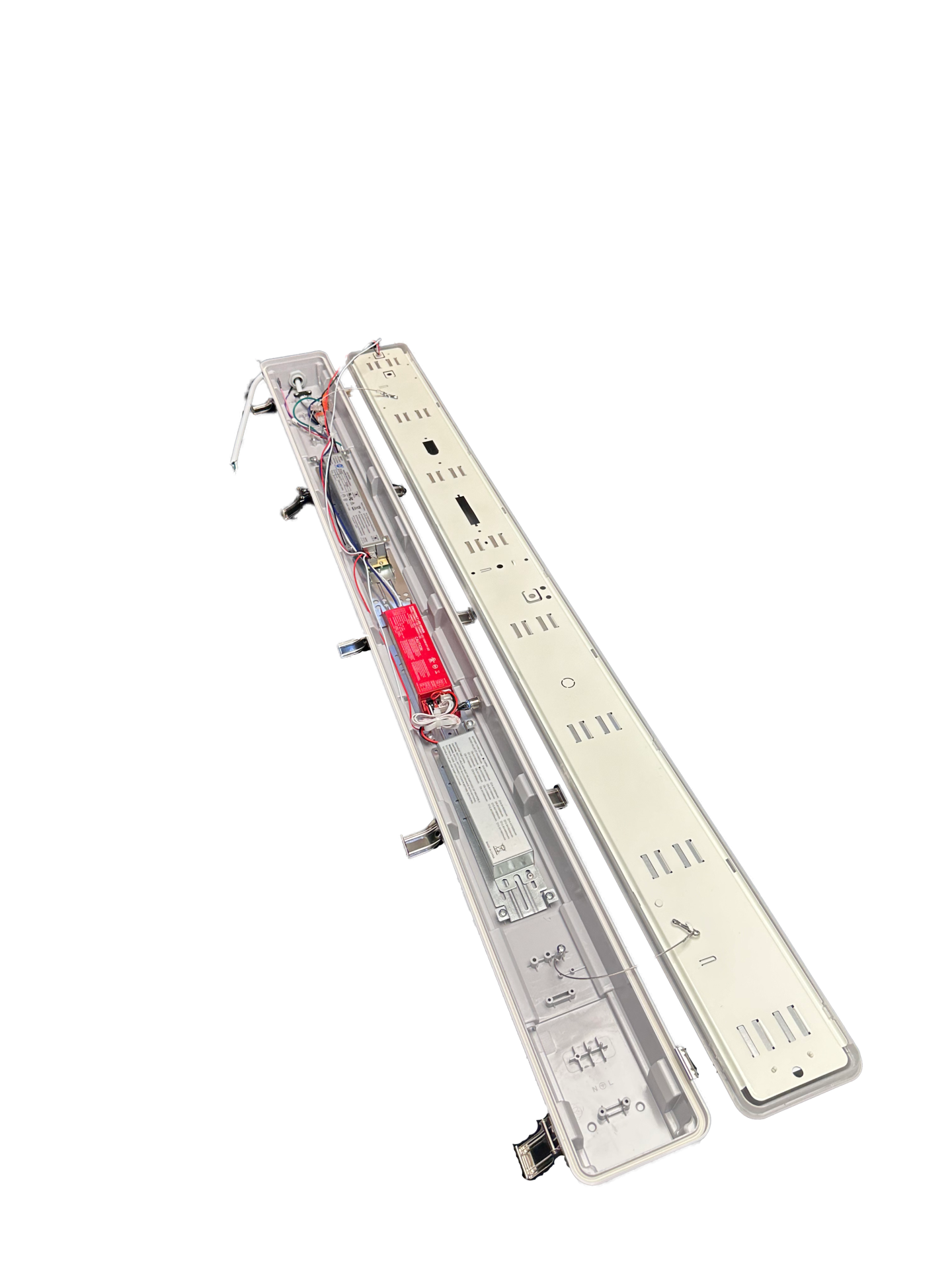

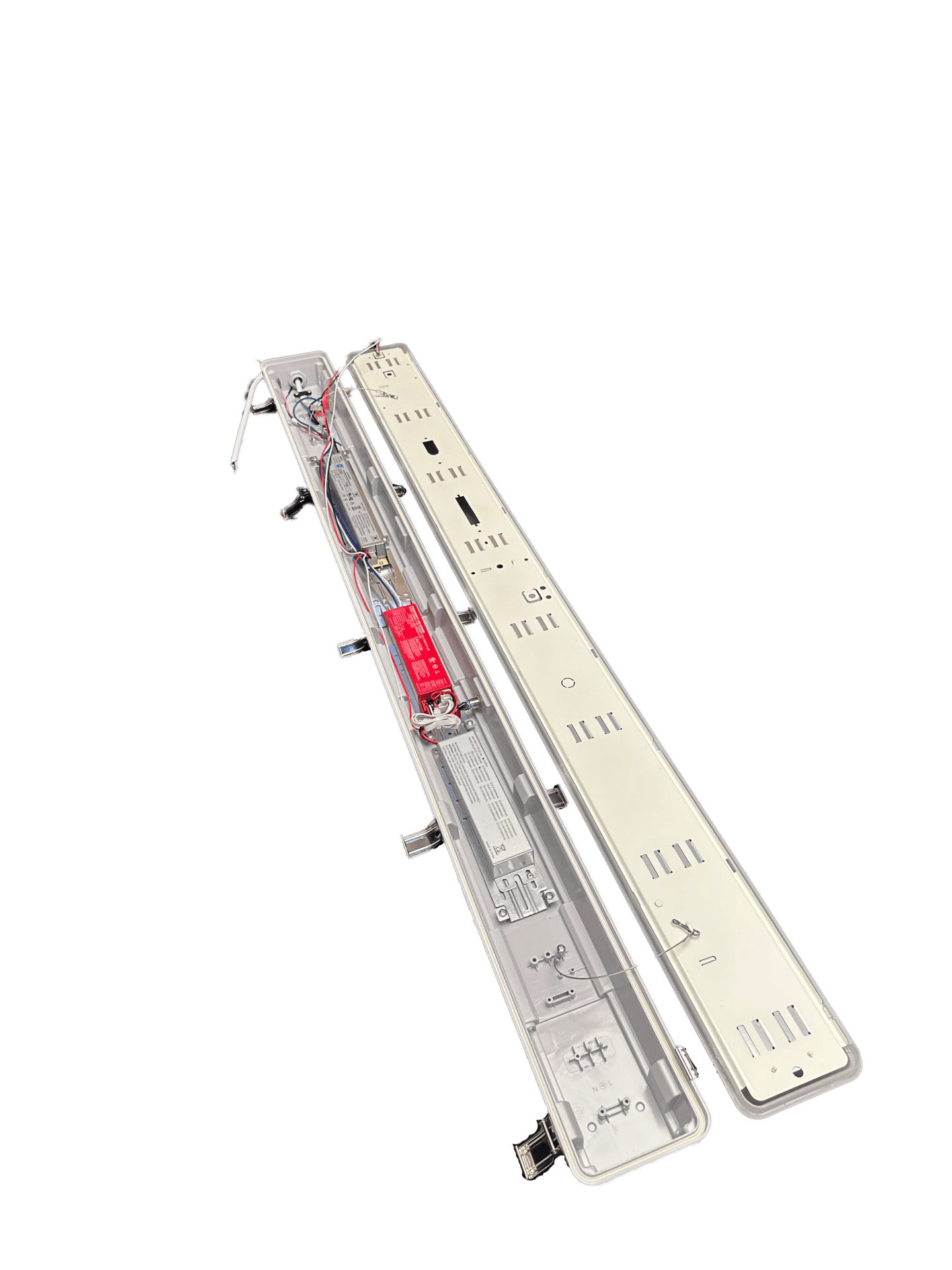

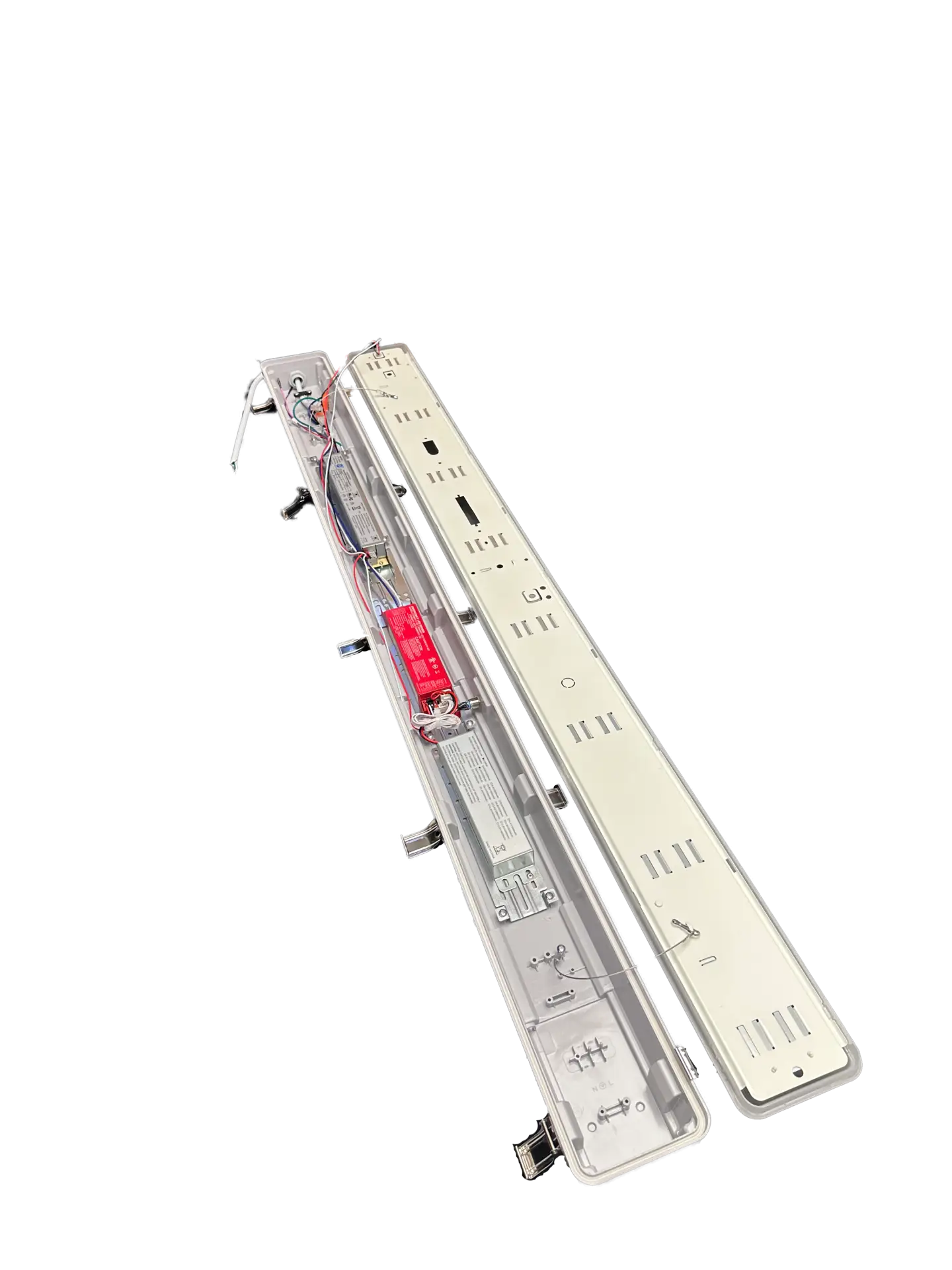

This 4-foot LED vapor tight fixture has a pre-wired 10W emergency battery that delivers 1,250 lumens for 90 minutes during a power outage, for commercial, industrial and residential applications. Internal switches set the wattage and color temperature before installation.
Wattage is selectable at 40 or 50W, giving 5,000 or 6,250 lumens at 125 lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+. It runs on 100–277V with a power factor of 0.9+ and spreads light over a 120° beam. The fixture measures 1,200 × 110 × 88 mm.
cETLus and DLC Premium listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Vapor-tight linear luminaire |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 125 lm/W |
| Lumens | 5,000 lm (at 40W) / 6,250 lm (at 50W) |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 100–277V |
| Wattage | 40W / 50W / 40W (at 5000 lm) / 50W (at 6250 lm) |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 1,200 × 110 × 88 mm |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Lumens | 1,250 lm (at 90 minutes) |
| Emergency Power | 10W (emergency battery) |
| Emergency Runtime | 90 minutes (at 1250 lm) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cETLus / DLC Premium |
