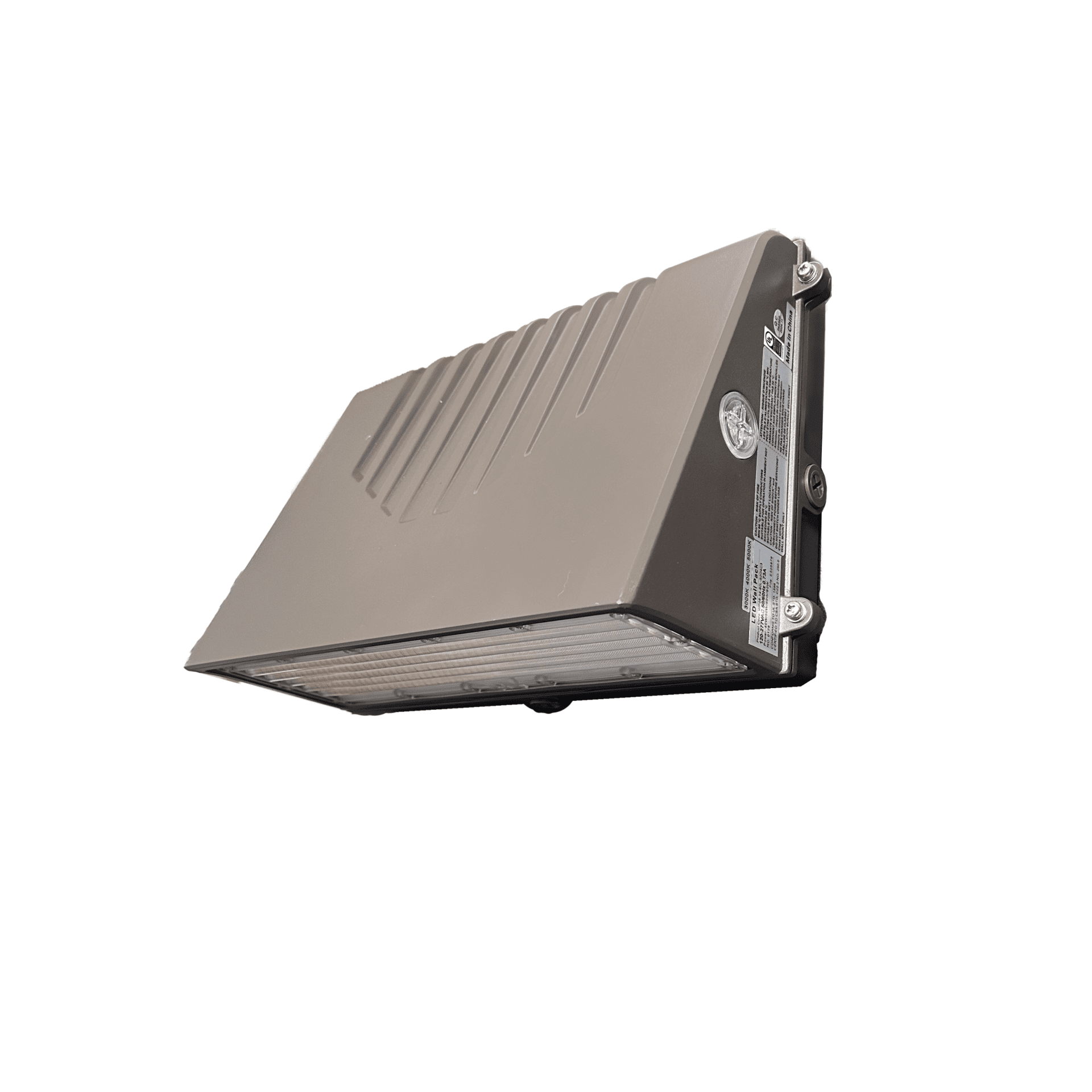

Full Cutoff Wall Pack With Emergency Battery Backup-WP28 series
Full Cutoff Wall Pack With Emergency Battery Backup-WP28 series
Model: E2-WP-F-WP28-40/50/60/80W-30/40/50K-P-E-DB
40/50/60/80W Wattage Selectable, Up to 13,600 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
Optional 8W Emergency Battery, 90 Minutes
120-277 or 120-347 Volt
IP65
Bronze Finish
Specifications
| Wattage | 40W / 50W / 60W / 80W |
| Voltage | 120–277V / 120–347V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 13,600 lm (±10%) (at 80W, at 4000K, at CRI >80) |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 367.8 × 235 × 163.7 mm (14.48" × 9.25" × 6.44") |
| Listings | DLC Premium / IP65 / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Size | 14 in |
| Cutoff | Full cutoff |
| Distribution Type | Type III |
| Efficacy | 170 lm/W (at CRI >80, at 4000K) |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Ambient Temperature | -40–50 °C (operating, standard) / -40–45 °C (operating, emergency version) |
| Color | Bronze |
| Knockouts | Five 1/2-inch knockouts |
| Mounting | Wall |
| Weight | 2.7 kg (net, per fixture) |
| Emergency Power | cold-temperature EM configuration: 8W |
| Test Switch | Self-test (automatic, EMX driver) / Test button (button, manual, side-mounted, EM) |
| Emergency Backup | Optional / Optional (cold-temperature EM) / Optional (EMX-08058DO-HC, sold separately, emergency driver) |
| Dimmable | Yes |
| Motion Sensor | Optional (ANT-5-ZT, sold separately) / Optional (ANT-5-ZT-BLE-GE, sold separately) |
| Photocell | Included (built-in, ON/OFF selection) |
| Pack Quantity | 1 (carton) |
| Family | Wall pack and wall luminaire |
| Series | WP28 full-cutoff wall pack |
Description
A 14-inch full-cutoff LED wall pack with field-selectable wattage and color temperature and a built-in dusk-to-dawn photocell with on/off selection, for parking garages, building entrances, public areas, schools, hospitals, hotels and outdoor walkways. Emergency backup configurations are available, giving 8W for 90 minutes during an outage.
Wattage is selectable at 40, 50, 60 or 80W, giving up to 13,600 lumens at 170 lm/W, and color temperature at 3000K, 4000K or 5000K with a CRI of 80+. It is dimmable and runs on 120–277V, with 120–347V as an option. A die-cast aluminum housing with a polycarbonate lens and Type III optics is IP65 rated, operates from -40 to 50 °C and has a bronze finish and five knockouts for wiring.
DLC Premium and UL listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WP28 full-cutoff wall pack |
| Light Source | SMD LED |
| Size | 14 in |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Cutoff | Full cutoff |
| Distribution Type | Type III |
| Efficacy | 170 lm/W (at CRI >80, at 4000K) |
| Lumens | 13,600 lm (±10%) (at 80W, at 4000K, at CRI >80) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V / 120–347V |
| Wattage | 40 / 50 / 60 / 80W |
| Physical | |
|---|---|
| Ambient Temperature | -40–50 °C (operating, standard) / -40–45 °C (operating, emergency version) |
| Dimensions | 367.8 × 235 × 163.7 mm |
| Finish | Bronze |
| Knockouts | Five 1/2-inch knockouts |
| Mounting | Wall |
| Weight | 2.7 kg (net, per fixture) |
| Emergency | |
|---|---|
| Emergency Power | cold-temperature EM configuration: 8W |
| Test Switch | Self-test (automatic, EMX driver) / Test button (button, manual, side-mounted, EM) |
| Emergency Backup | Optional / Optional (cold-temperature EM) / Optional (EMX-08058DO-HC, sold separately, emergency driver) |
| Controls | |
|---|---|
| Dimmable | Yes |
| Motion Sensor | Optional (ANT-5-ZT, sold separately) / Optional (ANT-5-ZT-BLE-GE, sold separately) |
| Photocell | Included (built-in, ON/OFF selection) |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| IP Rating | IP65 |
| Pack Quantity | 1 (carton) |
