E2-WPR Rotatable Wall Pack CCT and Wattage Tunable Series
E2-WPR Rotatable Wall Pack CCT and Wattage Tunable Series
Model: E2-WP-R-25/40/60W-30/40/50K-P-BK
25/40/60W Wattage Selectable, Up to 7,920 Lumens
3000K/4000K/5000K CCT Selectable
Integrated Photocell
120-277 Volt
Wet Location, IP65
Bronze / Black / Custom Color Finish
Specifications
| Wattage | ±10%: 25 / 40 / 60W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 70 |
| Lumens | 3300 lm / 5280 lm / 7920 lm |
| Lifespan | 50,000 hours |
| Dimensions | 240 × 149 × 254 mm (9.45" × 5.87" × 10") |
| Listings | IP65 Rating, RoHS, UL and DLC® Premium |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | SMD LED |
| Beam Angle | 60° (±15%) |
| Color Consistency (SDCM) | up to 7 SDCM |
| Cutoff | BUG rating (B4-U1-G1) |
| Flicker | up to 50% |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ (−3%) |
| THD | up to 20% (+5%) |
| Ambient Temperature | -40–45 °C (operating) / -40–80 °C (storage) |
| Color | Bronze / Black / Custom color |
| Humidity | 10–90% (operating) / 10–95% (storage) |
| Photocell | Included |
| Wattage Selectable | Yes |
| Location Rating | Wet location |
| Mercury Free | Yes |
| Standards | RoHS |
| Family | Wall pack and wall luminaire |
| Series | WPR rotatable wall pack |
Description

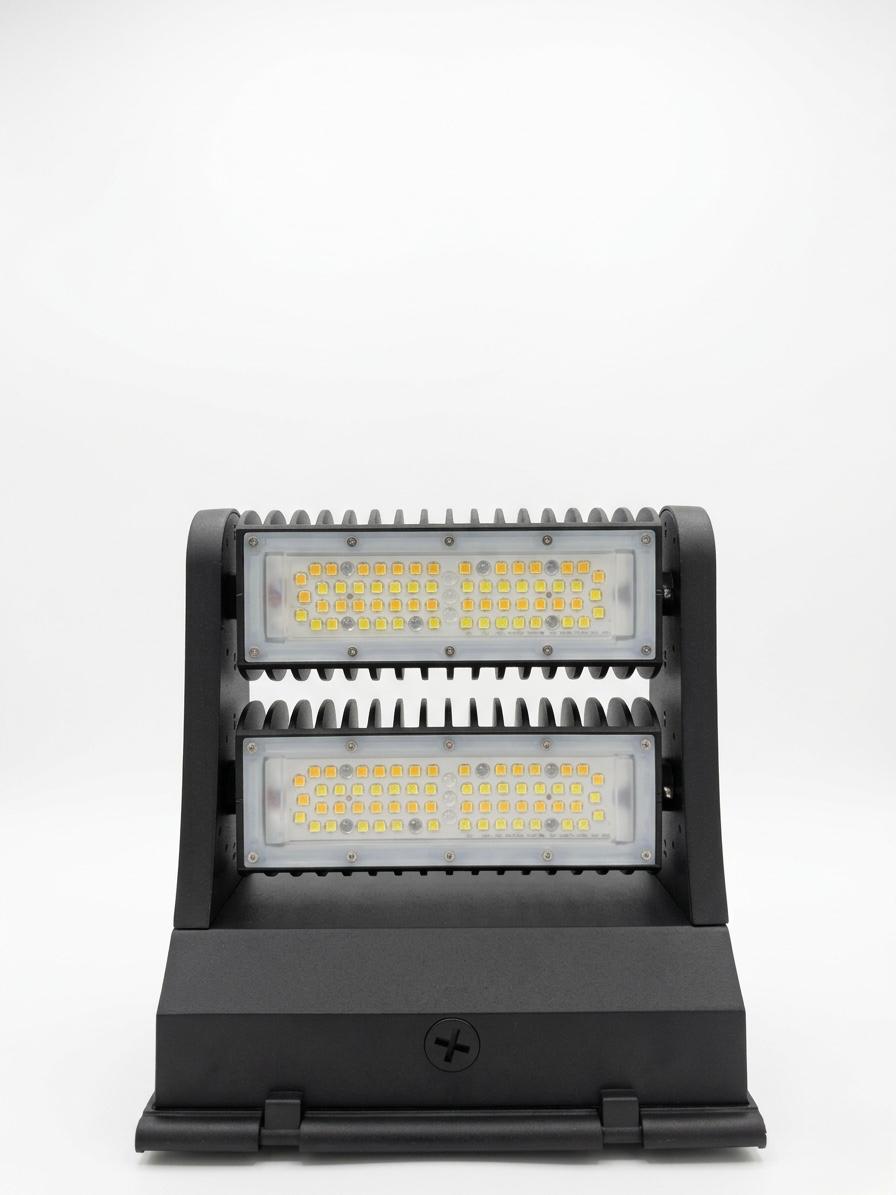

A rotatable double-panel LED wall pack whose light panels can be aimed for the job, for building perimeters, alleyways, stairways, entrances and courtyards.
Wattage is selectable at 25, 40 or 60W, giving 3,300, 5,280 or 7,920 lumens, and color temperature at 3000K, 4000K or 5000K with a CRI of 70+. It dims with 0–10V controls and runs on 120–277V. The die-cast aluminum housing is wet-location and IP65 rated, operates from -40 to 45 °C and comes in bronze, black or a custom colour. A photocell is included.
UL, cUL and DLC listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WPR rotatable wall pack |
| Light Source | SMD LED |
| Light | |
|---|---|
| Beam Angle | 60° (±15%) |
| CCT | 3000 / 4000 / 5000K |
| CRI | 70+ |
| Color Consistency (SDCM) | up to 7 SDCM |
| Cutoff | BUG rating (B4-U1-G1) |
| Flicker | up to 50% |
| Lumens | 3,300 / 5,280 / 7,920 lm |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ (−3%) |
| THD | up to 20% (+5%) |
| Voltage | 120–277V |
| Wattage | ±10%: 25 / 40 / 60W |
| Physical | |
|---|---|
| Ambient Temperature | -40–45 °C (operating) / -40–80 °C (storage) |
| Dimensions | 240 × 149 × 254 mm |
| Finish | Bronze / Black / Custom color |
| Humidity | 10–90% (operating) / 10–95% (storage) |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Photocell | Included |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | UL / cUL / DLC |
| IP Rating | IP65 |
| Location Rating | Wet location |
| Mercury Free | Yes |
| Standards | RoHS |
