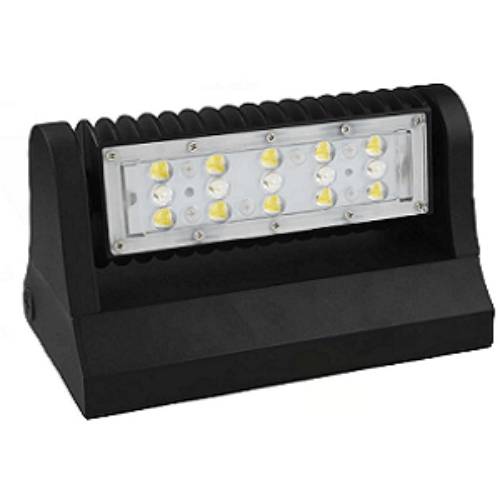

Rotatable Wall Pack: 2 Panel

Rotatable Wall Pack: 2 Panel

60/80W Wattage Selectable, Up to 10,900 Lumens
4000K/5000K/5700K CCT Selectable
100-277 Volt
Wet Location, IP54
Black Finish

📄 Download Spec Sheet (PDF)

Specifications

CCT4000 / 5000 / 5700K
Distribution TypeType III
CRIE2-RWP-60WA1: 73.8 (at 4000K, 5000K) / 73.1 (at 5700K); E2-RWP-80WA1: 73.6 (at 4000K, 5000K) / 73 (at 5700K)
LumensE2-RWP-60WA1: 7,800 lm (at 4000K) / 7,900 lm (at 5000K) / 8,100 lm (at 5700K); E2-RWP-80WA1: 10,600 lm (at 4000K, at 5000K) / 10,900 lm (at 5700K)
Frequency50–60 Hz
Power Factor0.9+ (E2-RWP-60WA1) / 0.94+ (E2-RWP-80WA1)
THDup to 12.31% (E2-RWP-60WA1) / up to 12.3% (E2-RWP-80WA1)
Voltage100–277V
WattageE2-RWP-60WA1: 60W / E2-RWP-80WA1: 80W
Ambient Temperature-4–113 °F / -20–45 °C (operating)
Dimensions9.13 × 8.85 × 5.19 in
ColorBlack
Weight6.68 lb (net)
Location RatingWet location
Mercury FreeYes
StandardsRoHS
Lifespan50,000 hours (at L70)
Warranty5 years
ListingsDLC Premium / IP54 / cULus
FamilyWall pack and wall luminaire
SeriesRWP rotatable wall pack

Description

A two-panel rotatable LED wall pack with adjustable modules that aim the light where it is needed, designed as a maintenance-free alternative to fluorescent, sodium, metal halide and induction fixtures. It suits entrances, garages, courtyards, commercial buildings, hotels, public spaces, schools, universities and hospitals.

It comes in 60W or 80W and in 4000K, 5000K or 5700K. The 60W model delivers 7,800 to 8,100 lumens and the 80W model 10,600 to 10,900 lumens, depending on color temperature. It runs on 100–277V, with Type III distribution, a polycarbonate lens and a black finish, and is wet-location and IP54 rated from -4 to 113 °F.

Mercury free and RoHS compliant, DLC Premium and cULus listed, with a 50,000-hour rated life and a 5-year warranty.

Specifications

General
FamilyWall pack and wall luminaire
SeriesRWP rotatable wall pack
Light
CCT4000K / 5000K / 5700K
Distribution TypeType III
CRIE2-RWP-60WA1: 73.8 (at 4000K, 5000K) / 73.1 (at 5700K); E2-RWP-80WA1: 73.6 (at 4000K, 5000K) / 73 (at 5700K)
LumensE2-RWP-60WA1: 7,800 lm (at 4000K) / 7,900 lm (at 5000K) / 8,100 lm (at 5700K); E2-RWP-80WA1: 10,600 lm (at 4000K, at 5000K) / 10,900 lm (at 5700K)
Electrical
Frequency50–60 Hz
Power Factor0.9+ (E2-RWP-60WA1) / 0.94+ (E2-RWP-80WA1)
THDup to 12.31% (E2-RWP-60WA1) / up to 12.3% (E2-RWP-80WA1)
Voltage100–277V
WattageE2-RWP-60WA1: 60W / E2-RWP-80WA1: 80W
Physical
Ambient Temperature-4–113 °F / -20–45 °C (operating)
Dimensions9.13 × 8.85 × 5.19 in
FinishBlack
Weight6.68 lb (net)
Warranty
Rated Life50,000 hours (at L70)
Warranty5 years
CertificationscULus / DLC Premium
IP RatingIP54
Location RatingWet location
Mercury FreeYes
StandardsRoHS
