Wall Mount

15/17/25W Wattage Selectable, Up to 2,700 Lumens
3000K/4000K/5000K CCT Selectable
120-277 Volt
Wet Location

📄 Download Spec Sheet (PDF)

Specifications

CCT	3000 / 4000 / 5000K
CRI	70
Lens	Clear / Frosted
Efficacy	107 lm/W (at 3000K, at 15W) / 113 lm/W (at 4000K, at 15W) / 117 lm/W (at 5000K, at 15W) / 117 lm/W (at 3000K, at 15W) / 120 lm/W (at 4000K, at 15W) / 121 lm/W (at 5000K, at 15W) / 106 lm/W (at 3000K, at 17W) / 112 lm/W (at 4000K, at 17W) / 115 lm/W (at 5000K, at 17W) / 112 lm/W (at 3000K, at 17W) / 118 lm/W (at 4000K, at 17W) / 119 lm/W (at 5000K, at 17W) / 100 lm/W (at 3000K, at 25W) / 102 lm/W (at 4000K, at 25W) / 104 lm/W (at 5000K, at 25W) / 102 lm/W (at 3000K, at 25W) / 104 lm/W (at 4000K, at 25W) / 108 lm/W (at 5000K, at 25W)
Lumens	1,600 lm (at 3000K, at 15W) / 1,700 lm (at 4000K, at 15W) / 1,750 lm (at 5000K, at 15W) / 1,760 lm (at 3000K, at 15W) / 1,800 lm (at 4000K, at 15W) / 1,820 lm (at 5000K, at 15W) / 1,800 lm (at 3000K, at 17W) / 1,900 lm (at 4000K, at 17W) / 1,950 lm (at 5000K, at 17W) / 1,900 lm (at 3000K, at 17W) / 2,000 lm (at 4000K, at 17W) / 2,020 lm (at 5000K, at 17W) / 2,500 lm (at 3000K, at 25W) / 2,550 lm (at 4000K, at 25W) / 2,600 lm (at 5000K, at 25W) / 2,550 lm (at 3000K, at 25W) / 2,600 lm (at 4000K, at 25W) / 2,700 lm (at 5000K, at 25W)
Power Factor	0.9+
THD	up to 20%
Voltage	120–277V
Wattage	15 / 17 / 25W
Current	0.13A (at 120V, at 15W) / 0.07A (at 208V, at 15W) / 0.06A (at 240V, at 15W) / 0.05A (at 277V, at 15W) / 0.14A (at 120V, at 17W) / 0.08A (at 208V, at 17W) / 0.07A (at 240V, at 17W) / 0.06A (at 277V, at 17W) / 0.21A (at 120V, at 25W) / 0.12A (at 208V, at 25W) / 0.1A (at 240V, at 25W) / 0.09A (at 277V, at 25W)
Ambient Temperature	-40–40 °C (operating)
Dimensions	138.9 × 212.74 × 87.9 mm
Weight	15W/17W fixture: 1.931 lb / 25W fixture: 2.015 lb
Photocell	Optional (photocell PC-JL-120-277V, field installed or pre-installed in factory on request)
Location Rating	Wet location
Warranty	5 years
Listings	DLC Standard / cULus (wet location)
Family	Wall pack and wall luminaire
Series	MWM01 wall mount

Category: Outdoor LED Lighting

Request A Quote

Description

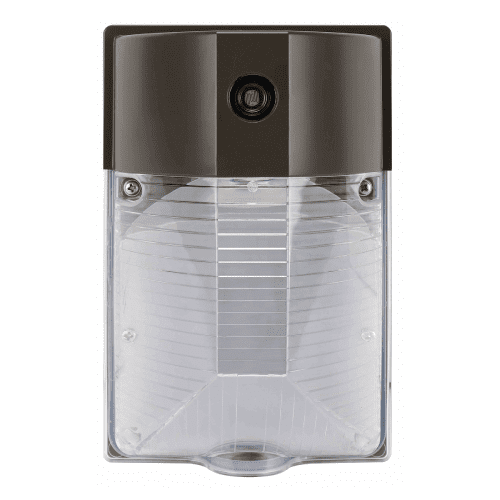

Cast in a traditional design, this LED wall mount luminaire brings energy-efficient LEDs to the familiar wall pack shape. Wattage is selectable at 15, 17 or 25W, giving 1,600 to 2,700 lumens, and color temperature at 3000K, 4000K or 5000K.

It runs on 120–277V and is wet-location rated, with a clear or frosted lens. A photocell for dusk-to-dawn operation is available as an option. It suits safety and security lighting and facilities of any kind.

cULus and DLC Standard listed, with a 5-year warranty.

Specifications

General
Family	Wall pack and wall luminaire
Series	MWM01 wall mount

Light
CCT	3000 / 4000 / 5000K
CRI	70
Lens	Clear / Frosted
Efficacy	107 lm/W (at 3000K, at 15W) / 113 lm/W (at 4000K, at 15W) / 117 lm/W (at 5000K, at 15W) / 117 lm/W (at 3000K, at 15W) / 120 lm/W (at 4000K, at 15W) / 121 lm/W (at 5000K, at 15W) / 106 lm/W (at 3000K, at 17W) / 112 lm/W (at 4000K, at 17W) / 115 lm/W (at 5000K, at 17W) / 112 lm/W (at 3000K, at 17W) / 118 lm/W (at 4000K, at 17W) / 119 lm/W (at 5000K, at 17W) / 100 lm/W (at 3000K, at 25W) / 102 lm/W (at 4000K, at 25W) / 104 lm/W (at 5000K, at 25W) / 102 lm/W (at 3000K, at 25W) / 104 lm/W (at 4000K, at 25W) / 108 lm/W (at 5000K, at 25W)
Lumens	1,600 lm (at 3000K, at 15W) / 1,700 lm (at 4000K, at 15W) / 1,750 lm (at 5000K, at 15W) / 1,760 lm (at 3000K, at 15W) / 1,800 lm (at 4000K, at 15W) / 1,820 lm (at 5000K, at 15W) / 1,800 lm (at 3000K, at 17W) / 1,900 lm (at 4000K, at 17W) / 1,950 lm (at 5000K, at 17W) / 1,900 lm (at 3000K, at 17W) / 2,000 lm (at 4000K, at 17W) / 2,020 lm (at 5000K, at 17W) / 2,500 lm (at 3000K, at 25W) / 2,550 lm (at 4000K, at 25W) / 2,600 lm (at 5000K, at 25W) / 2,550 lm (at 3000K, at 25W) / 2,600 lm (at 4000K, at 25W) / 2,700 lm (at 5000K, at 25W)

Electrical
Power Factor	0.9+
THD	up to 20%
Voltage	120–277V
Wattage	15 / 17 / 25W
Current	0.13A (at 120V, at 15W) / 0.07A (at 208V, at 15W) / 0.06A (at 240V, at 15W) / 0.05A (at 277V, at 15W) / 0.14A (at 120V, at 17W) / 0.08A (at 208V, at 17W) / 0.07A (at 240V, at 17W) / 0.06A (at 277V, at 17W) / 0.21A (at 120V, at 25W) / 0.12A (at 208V, at 25W) / 0.1A (at 240V, at 25W) / 0.09A (at 277V, at 25W)
