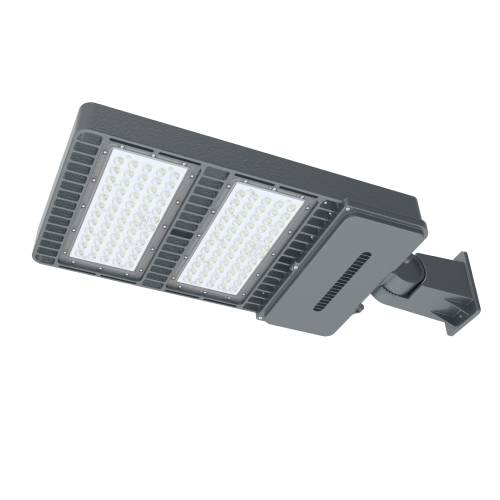

G1 Area Pole Light

G1 Area Pole Light

Model: E2-SB-G1-400W-57K-DB

400/500W Wattage Selectable, Up to 65,000 Lumens
2600K/3000K/4000K/5000K CCT Selectable
Type III/V Distribution
100-277 or 277-480 Volt
IP65

📄 Download Spec Sheet (PDF)

Specifications

Wattage400W / 500W
Voltage100–277V / 277–480V
Dimming0-10V
CCT2600 / 3000 / 4000 / 5000K
CRI> 70
Lumens52,000 lm (at E2-SB-400W-50K) / 65,000 lm (at E2-SB-500W-50K)
Lifespan100,000 hours (at L70)
ListingsDLC Premium (at 3000K–5000K models) / ETL / IP65
Warranty5-Year Manufacturer's Warranty
Distribution TypeType III / Type V
Efficacy130+ lm/W
Frequency50–60 Hz
Ambient Temperature-40–122 °F / -40–50 °C (operating)
CoatingPowder coating
DimensionsE2-SB-400W-50K / E2-SB-500W-50K: 30.1 × 13.5 × 4.4 in
ColorDark bronze
Adjustable AimingYes (adjustable fitter mount) / B2 / D2: Yes (square-pole mount) / C2 / E2: Yes (round-pole mount)
MountingA: Slip fitter / B / D: Square pole / C / E: Round pole / A2: Slip fitter / B2 / D2: Square pole / C2 / E2: Round pole / F: Trunnion / F2: Wall
Motion SensorOptional
PhotocellOptional
StandardsRoHS
FamilyArea and roadway light
SeriesG1 area light

Description

The G1 is a high-output LED area light for parking lots and large outdoor sites. Wattage is selectable at 400W or 500W, giving 52,000 or 65,000 lumens at 130+ lm/W, and color temperature at 2600K, 3000K, 4000K or 5000K, with CRI 70+.

It runs on 100–277V, with 277–480V available, and offers Type III or Type V distribution. Mounting options are slip fitter, square pole, round pole, trunnion or wall bracket, with motion sensor and photocell control available. The dark bronze powder-coated fixture is IP65 rated for operation from -40 to 122°F and measures 30.1 × 13.5 × 4.4 in.

ETL and DLC Premium listed, RoHS compliant, with a 100,000-hour rated life and a 5-year limited warranty.

Specifications

General
FamilyArea and roadway light
SeriesG1 area light
Light
CCT2600K / 3000K / 4000K / 5000K
CRI70+
Distribution TypeType III / Type V
Efficacy130+ lm/W
Lumens52,000 lm (at E2-SB-400W-50K) / 65,000 lm (at E2-SB-500W-50K)
Electrical
Frequency50–60 Hz
Voltage100–277V / 277–480V
Wattage400 / 500W
Physical
Ambient Temperature-40–122 °F / -40–50 °C (operating)
CoatingPowder coating
DimensionsE2-SB-400W-50K / E2-SB-500W-50K: 30.1 × 13.5 × 4.4 in
FinishDark bronze
Adjustable AimingYes (adjustable fitter mount) / B2 / D2: Yes (square-pole mount) / C2 / E2: Yes (round-pole mount)
MountingA: Slip fitter / B / D: Square pole / C / E: Round pole / A2: Slip fitter / B2 / D2: Square pole / C2 / E2: Round pole / F: Trunnion / F2: Wall
Controls
Dimming Type0–10V
Motion SensorOptional
PhotocellOptional
Warranty
Rated Life100,000 hours (at L70)
Warranty5 years
CertificationsETL / DLC Premium (at 3000K–5000K models)
IP RatingIP65
StandardsRoHS
