Mini Wall Pack With Emergency Battery Backup – Dark Bronze
Mini Wall Pack With Emergency Battery Backup – Dark Bronze
Model: E2-WP-M-15W-35K/40K/50K-E-DB
15W, 1,800 Lumens
3500K/4000K/5000K CCT Selectable
Integrated Photocell
Built-in Emergency Battery, 90 Minutes
120-277 Volt
Wet Location, IP65
Dark Bronze Finish
Specifications
| Wattage | 15W (input) |
| Voltage | 120-277V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 1800lm |
| Lifespan | 50,000 hours |

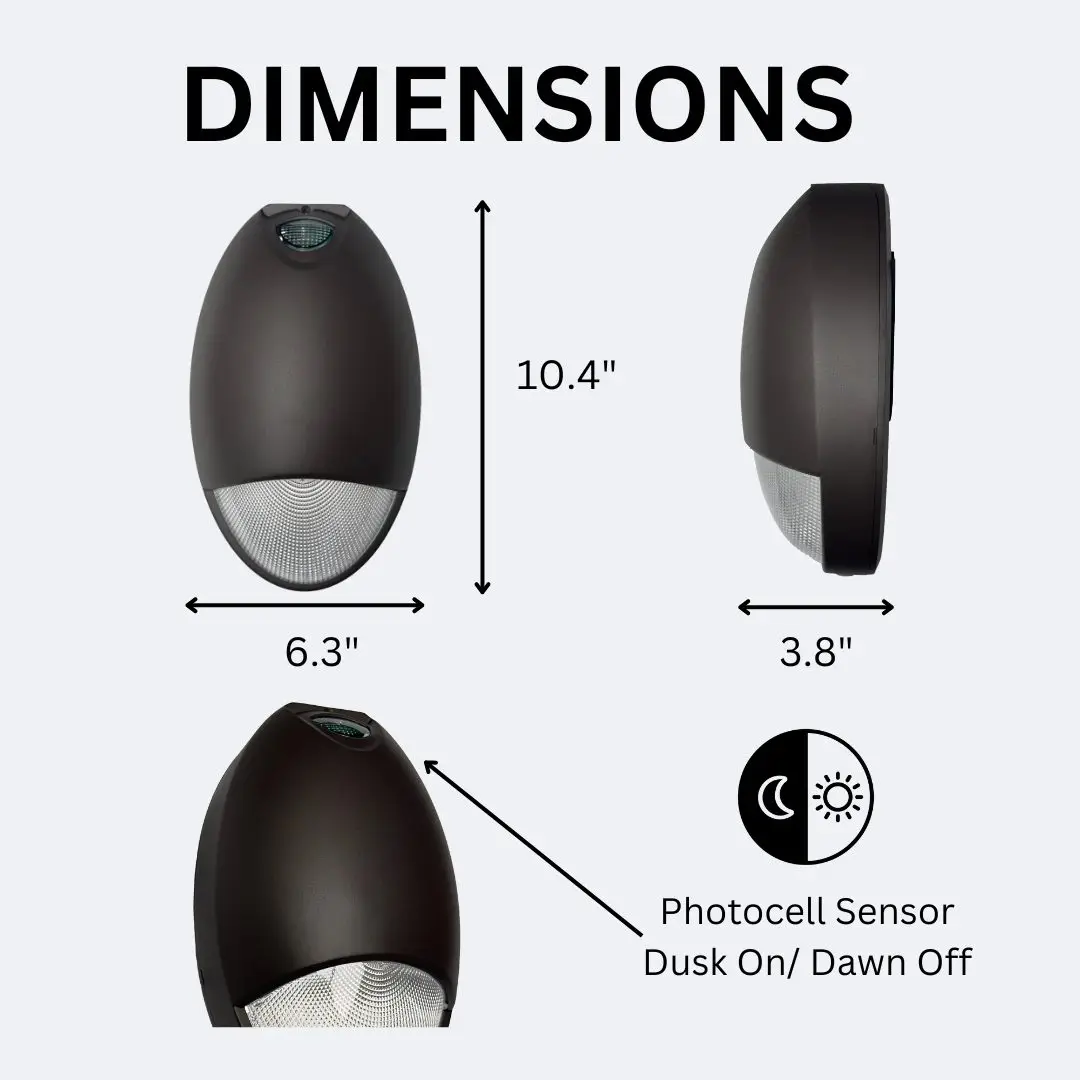

| Dimensions | 10.4 × 6.3 × 3.86 in |
| Listings | DLC Standard, IP65 Rating, UL Listed |
| Warranty | 5-Year Manufacturer's Warranty |
| Connection Type | Quick connector |
| Frequency | 60 Hz |
| Coating | Powder coating / Paint coating |
| Color | Dark bronze |
| Recharge Time | 24 hours |
| Emergency Backup | Integrated |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator |
| Operating Mode | AC + Emergency |
| Test Switch | Self-test and diagnostics (automatic) / Test button (button, manual) |
| CCT Selectable | Yes, switchable |
| Control Type | Wall switch |
| Photocell | Included |
| Control Functions | Photo-sensor control / Wall-switch control |
| Location Rating | Wet location |
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
Description

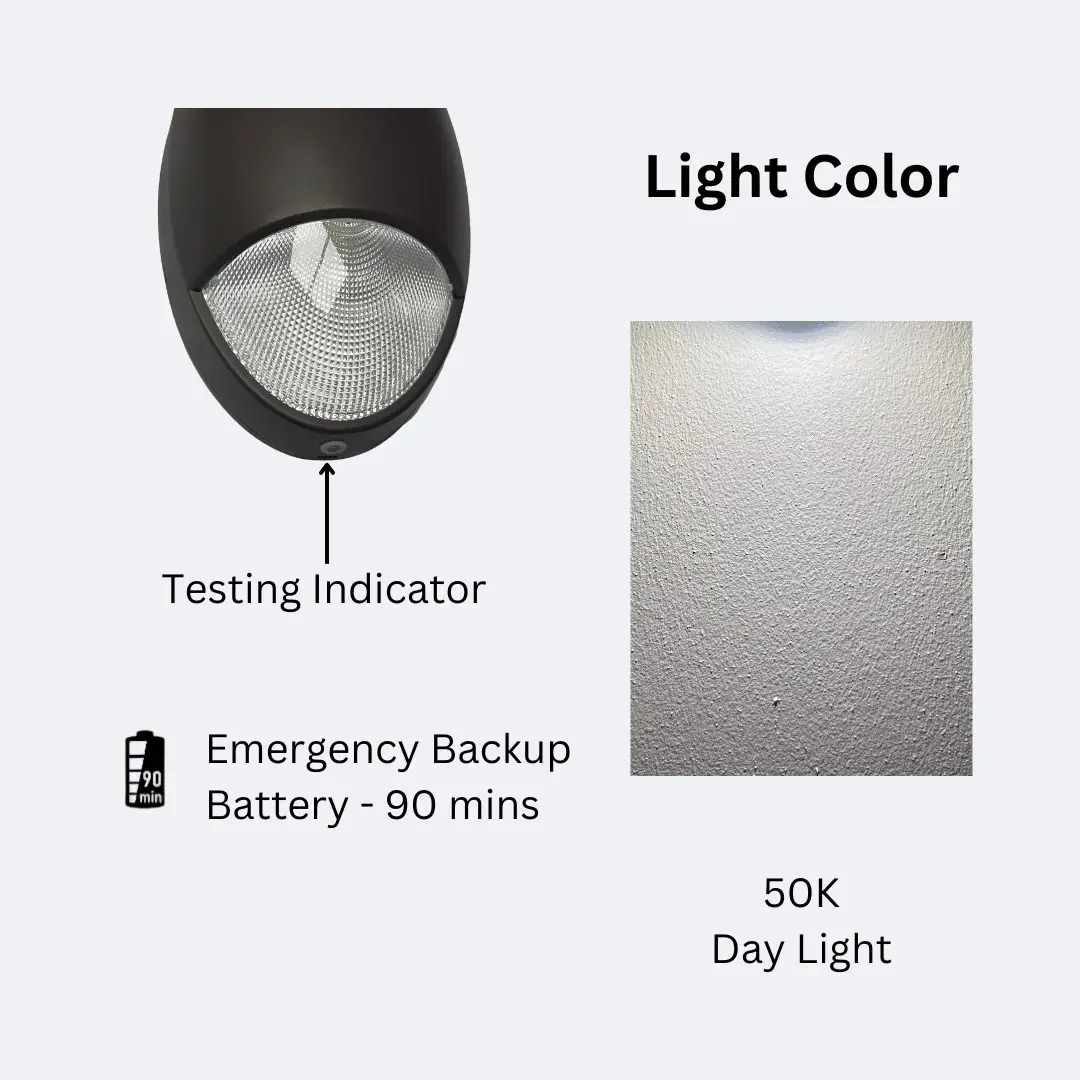

This 15W LED mini wall pack has an emergency battery backup that provides 90 minutes of light in a power outage, which makes it a good choice for safety and security lighting outdoors. A test button, indicator and self-test diagnostics keep track of the battery, which recharges in 24 hours.
The low-profile fixture delivers 1,800 lumens, with color temperature selectable at 3500K, 4000K or 5000K and a CRI of 80+. An integrated photocell or a wall switch controls it, and it runs on 120–277V. The die-cast aluminum housing has a dark bronze powder coat and a prismatic polycarbonate lens, and is wet-location and IP65 rated to withstand rain and harsh weather, for parking lots, parks and pathways.
cULus listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Wall pack and wall luminaire |
| Series | WPM mini wall pack with photocell |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Lumens | 1,800 lm |
| Electrical | |
|---|---|
| Connection Type | Quick connector |
| Frequency | 60 Hz |
| Voltage | 120–277V |
| Wattage | 15W (input) |
| Physical | |
|---|---|
| Coating | Powder coating / Paint coating |
| Dimensions | 10.4 × 6.3 × 3.86 in |
| Finish | Dark bronze |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Backup | Integrated |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator |
| Operating Mode | AC + Emergency |
| Test Switch | Self-test and diagnostics (automatic) / Test button (button, manual) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Control Type | Wall switch |
| Photocell | Included |
| Control Functions | Photo-sensor control / Wall-switch control |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cULus |
| IP Rating | IP65 |
| Location Rating | Wet location |
