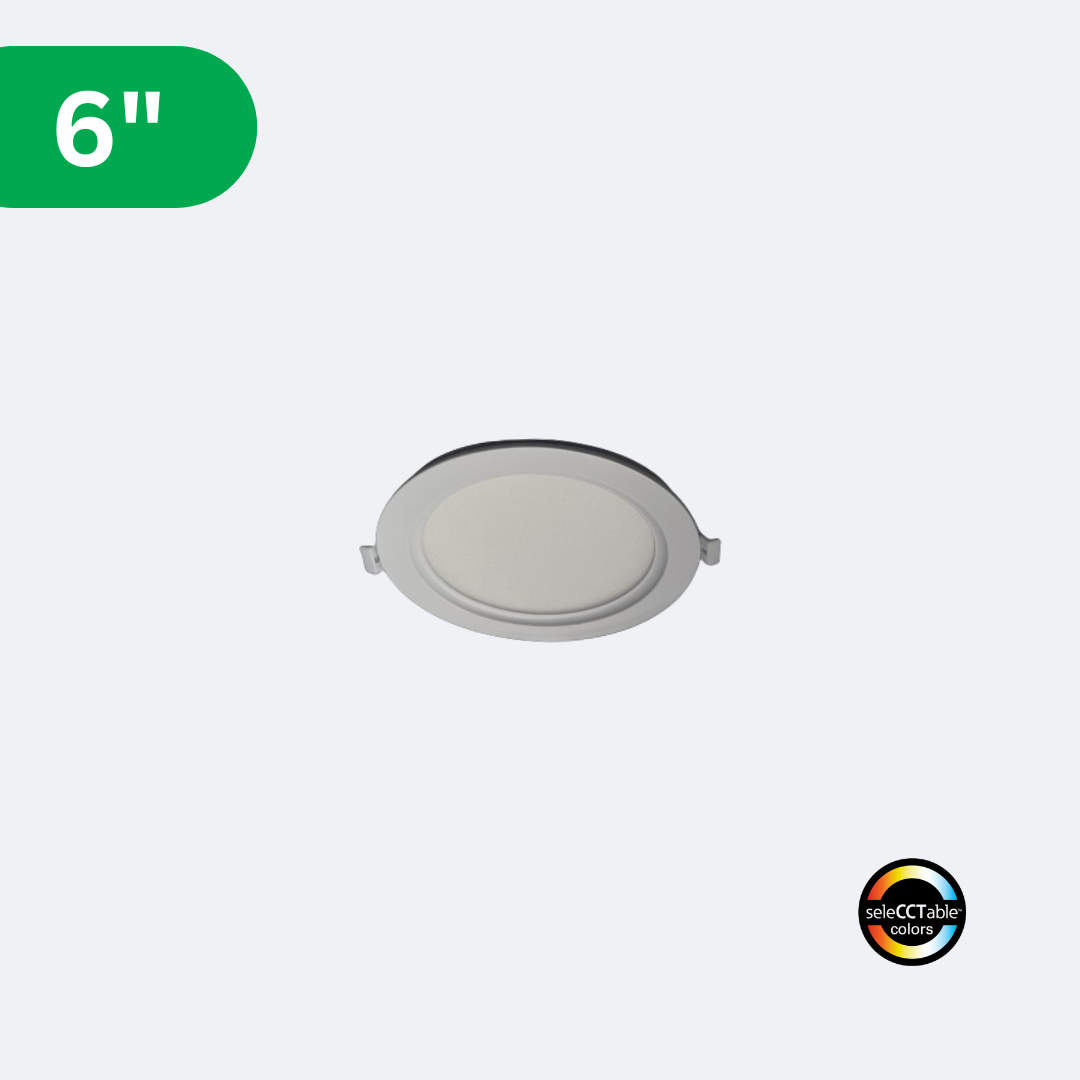

6″ Ultra Thin Recessed LED Light – 16W – Up to 1250 Lumens – 5CCT Selectable (2700K/3000K/3500K/4000K/5000K) – Poly Lens – AC 100-277V Tri-Dimming & Type IC – Energy Star – 100W Equal
6″ Ultra Thin Recessed LED Light – 16W – Up to 1250 Lumens – 5CCT Selectable (2700K/3000K/3500K/4000K/5000K) – Poly Lens – AC 100-277V Tri-Dimming & Type IC – Energy Star – 100W Equal
Model: E2-DL-SLIM-6IN-16W-27/30/35/40/50K
16W, 1,120 Lumens
3000K/4000K/5000K CCT Selectable
TRIAC Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 16W |
| Voltage | 120-277V |
| Dimming | TRIAC |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 1,120+ lm |
| Lifespan | 50,000 hours |
| Listings | ENERGY STAR / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 6 in |
| Beam Angle | 110° |
| Optical Arrangement | Edge-lit |
| Power Factor | 0.95+ |

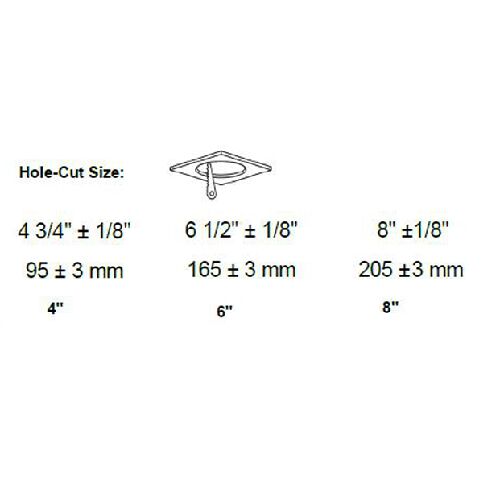

| Cutout | 6.5 in (± 1/8 in) |
| Mounting | Pressure-fit clips |
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC |

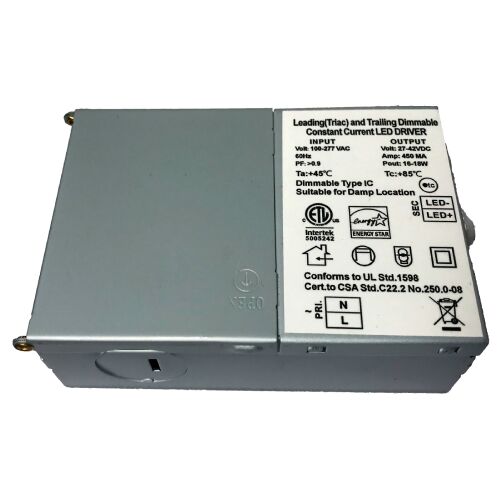

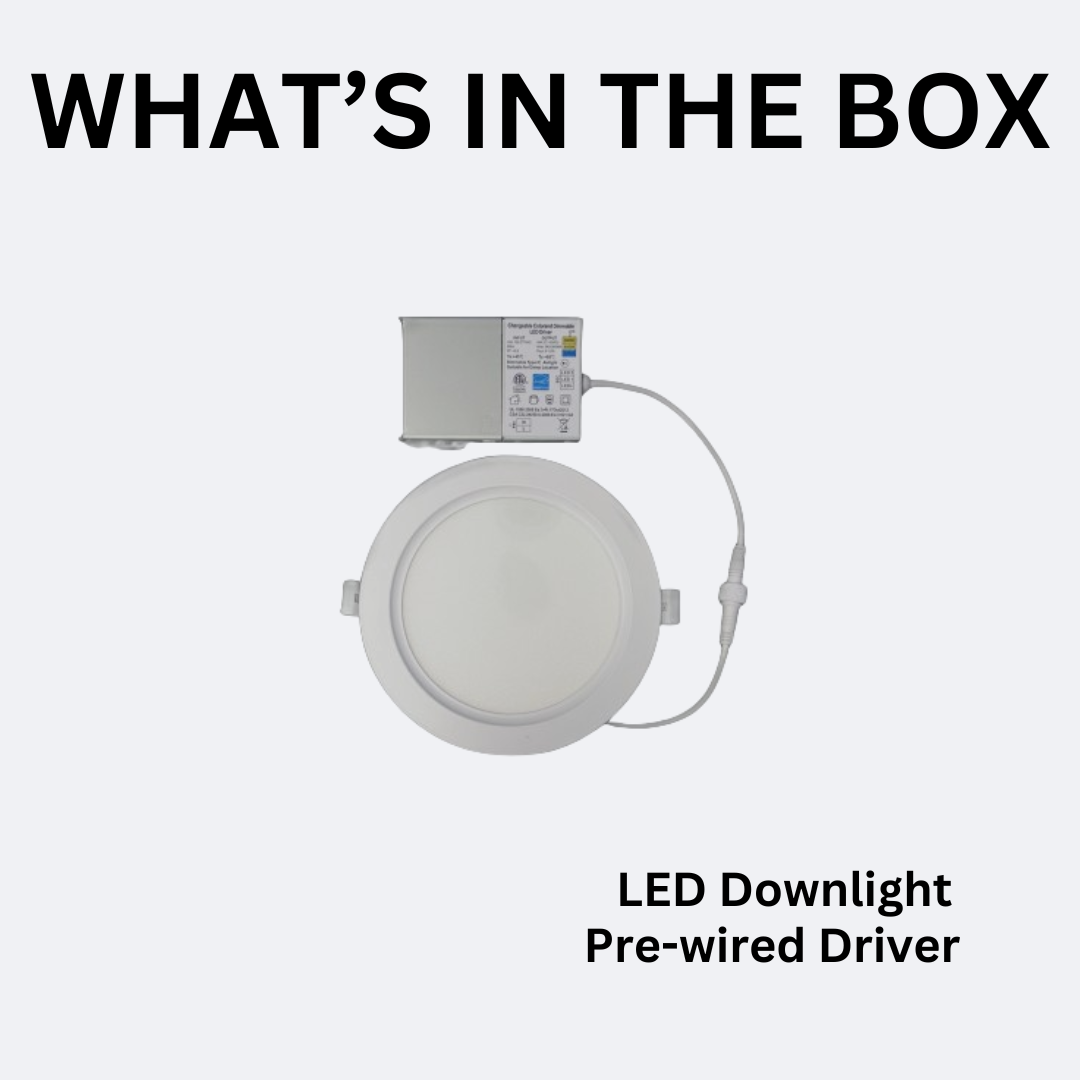

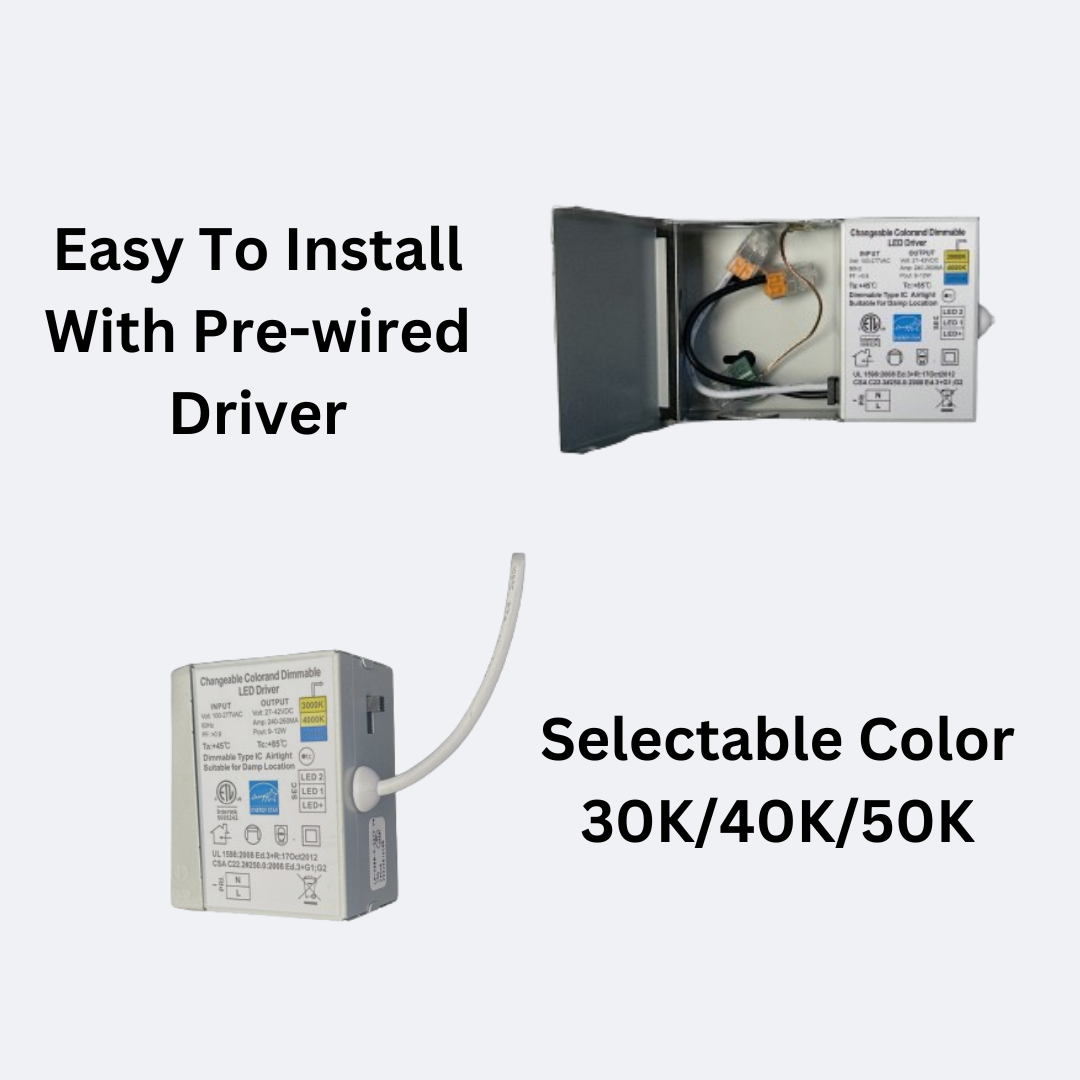

| Accessories | Driver junction box (included) |
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
Description

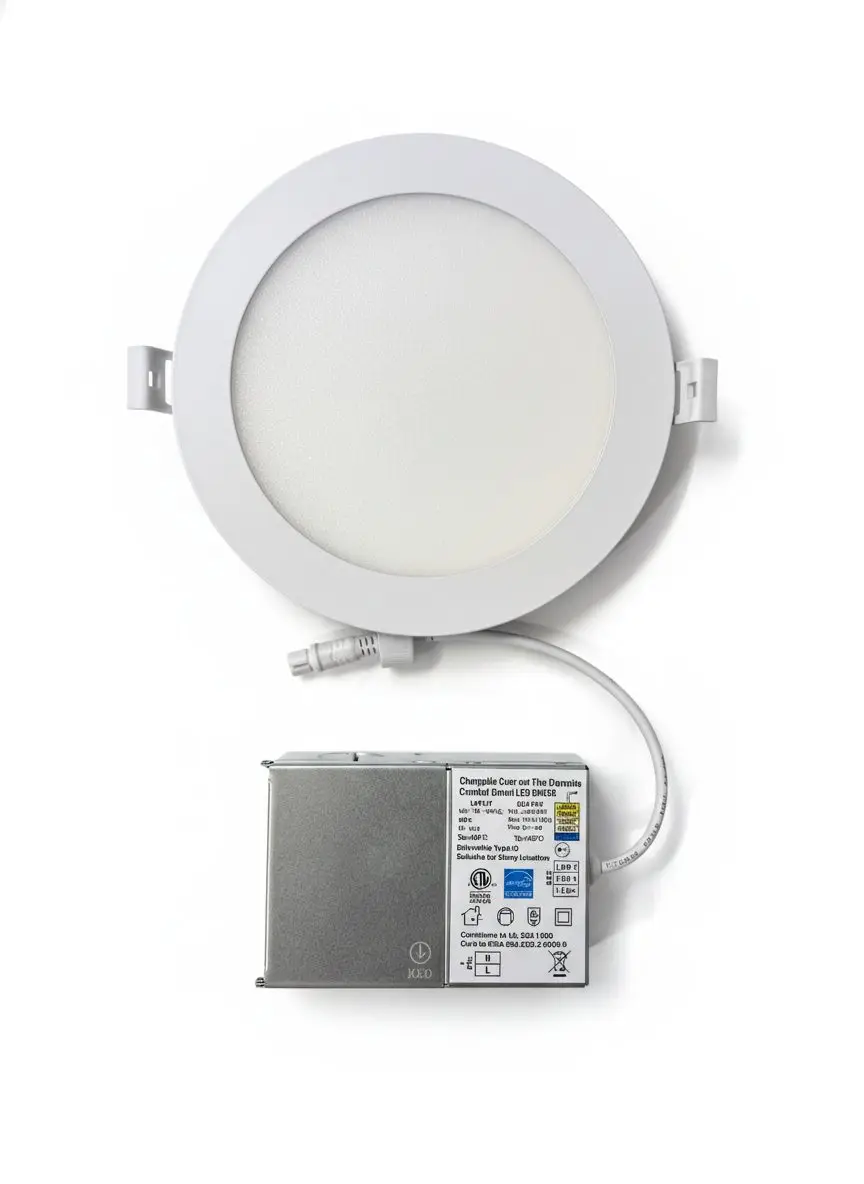

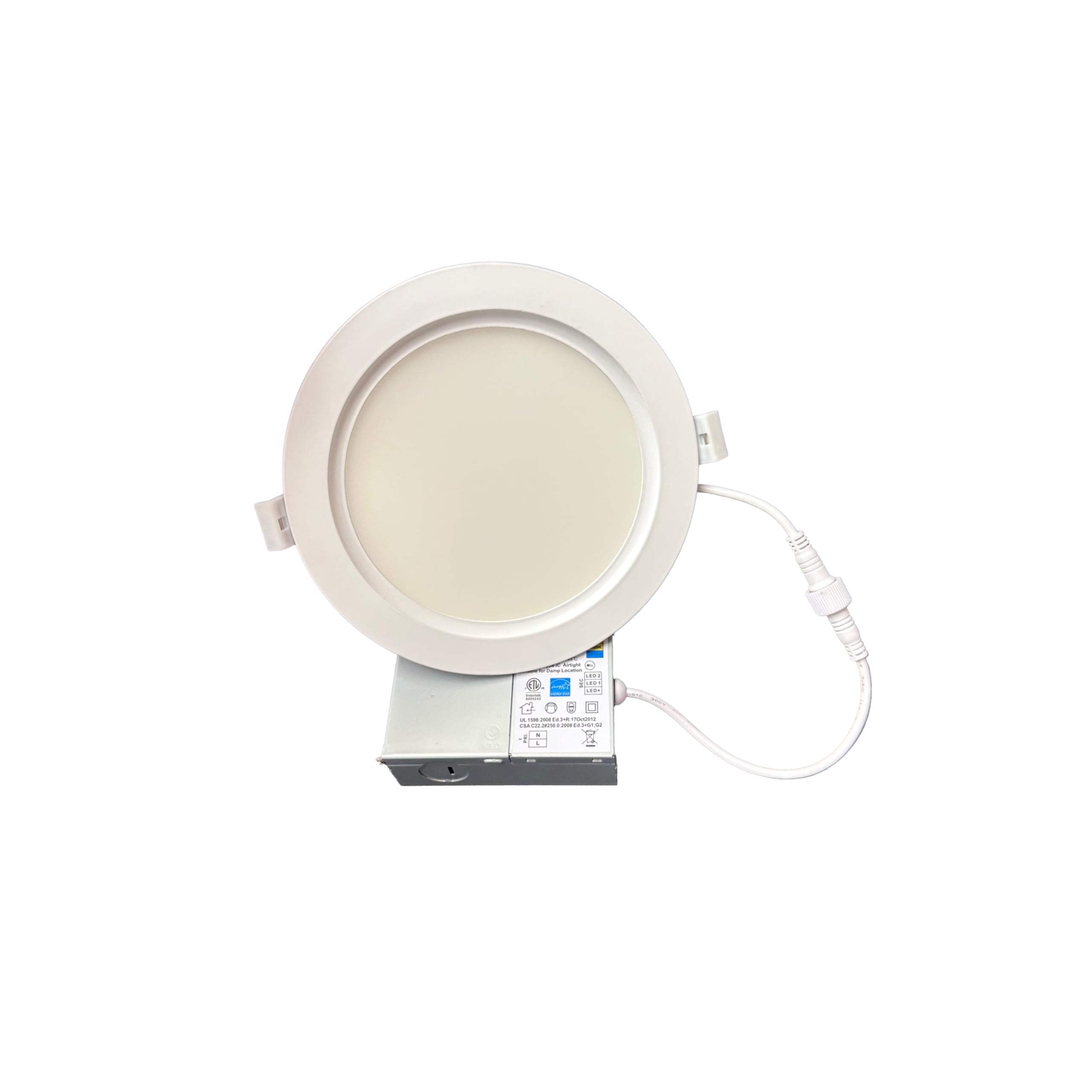

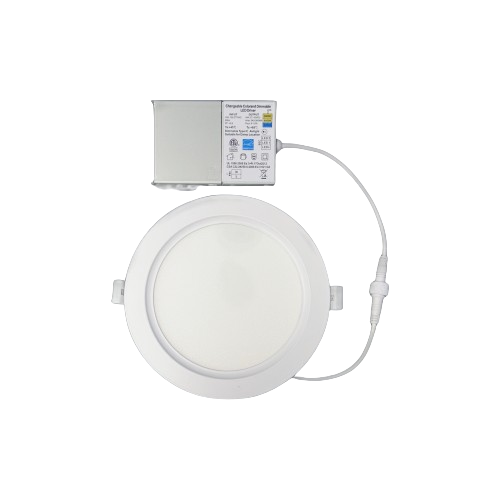

This 6-inch ultra-slim, edge-lit recessed downlight suits space-limited ceilings and soffits in homes, hotels and offices. It is Type IC rated for insulation contact, comes with a driver junction box and installs with pressure-fit clips, with no recessed housing needed.
It draws 16W for 1,120+ lumens with a 110° beam, and a dip switch selects 3000K, 4000K or 5000K, with CRI 80. TRIAC dimming works with most wall dimmers, and it runs on 120–277V. It fits a 6.5-inch cutout and is rated for damp locations.
ENERGY STAR and cETLus listed, with a 50,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Series | Ultra Slim Downlight (SLIM, SLIM-E) |
| Size | 6 in |
| Light | |
|---|---|
| Beam Angle | 110° |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80 |
| Lumens | 1,120+ lm |
| Optical Arrangement | Edge-lit |
| Electrical | |
|---|---|
| Power Factor | 0.95+ |
| Voltage | 120–277V |
| Wattage | 16W |
| Physical | |
|---|---|
| Cutout | 6.5 in (± 1/8 in) |
| Mounting | Pressure-fit clips |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable (DIP switch) |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cETLus / ENERGY STAR |
| IC Rating | Yes |
| Location Rating | Damp location |
| Standards | FCC |
| Accessories | Driver junction box (included) |
