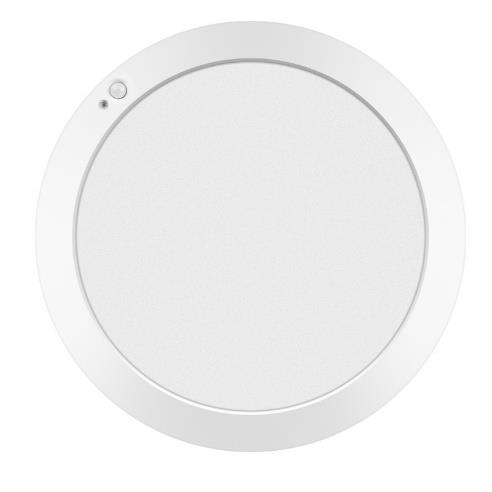

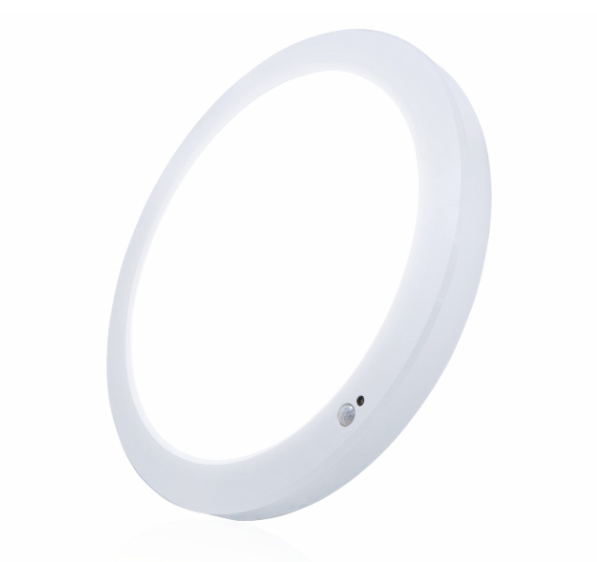

8″ LED Disk Light With PIR Motion Sensor 3 CCT Selectable (3000K/4000K/5000K) -120V/120-277V
8″ LED Disk Light With PIR Motion Sensor 3 CCT Selectable (3000K/4000K/5000K) -120V/120-277V
Model: E2-DL-8inch-18W-30/40/50K-M 120V
18W, 1,440 Lumens
3000K/4000K/5000K CCT Selectable
120 Volt or 120-277 Volt
Damp Location
Specifications
| Wattage | 18W |
| Voltage | 120V / E2-DL-8inch-18W-30/40/50K-M-120277V: 120–277V |
| Dimming | Motion Sensor |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 1,440 lm |
| Dimensions | 8" |
| Listings | ETL / cETL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 8 in |
| Diameter | 9 in |
| Color | White |
| Height | 0.79 in |
| Mounting | Junction box |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Integrated (PIR) |
| Photocell | Included |
| Sensor Type | Passive infrared (PIR) |

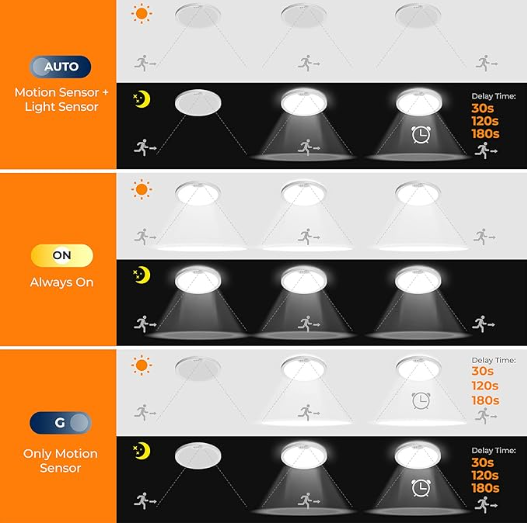

| Control Functions | day mode (Photocell off; PIR controls light at all times) / night mode (Photocell on; light off during daytime, PIR controls light at night) / on/off |
| Location Rating | Damp location |
| Standards | FCC |
| Family | Downlight |
Description
This 8-inch ultra-slim LED disk light has a PIR motion sensor and a daylight sensor built in, with day mode, night mode and on/off settings, so the light comes on only when a space is in use. It draws 18W for 1,440 lumens, with color temperature selectable at 3000K, 4000K or 5000K and CRI 80+.
It is available in a 120V model and a 120–277V model. The white fixture is just 0.79 inches high and 9 inches across, mounts to a junction box and is rated for damp locations.
ETL / cETL listed, with a 5-year warranty on the driver and LED module.
Specifications
| General | |
|---|---|
| Family | Downlight |
| Size | 8 in |
| Light | |
|---|---|
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Lumens | 1,440 lm |
| Electrical | |
|---|---|
| Voltage | 120V / E2-DL-8inch-18W-30/40/50K-M-120277V: 120–277V |
| Wattage | 18W |
| Physical | |
|---|---|
| Diameter | 9 in |
| Dimensions | 8 in |
| Finish | White |
| Height | 0.79 in |
| Mounting | Junction box |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Motion Sensor | Integrated (PIR) |
| Photocell | Included |
| Sensor Type | Passive infrared (PIR) |
| Control Functions | day mode (Photocell off; PIR controls light at all times) / night mode (Photocell on; light off during daytime, PIR controls light at night) / on/off |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | ETL / cETL |
| Location Rating | Damp location |
| Standards | FCC |
