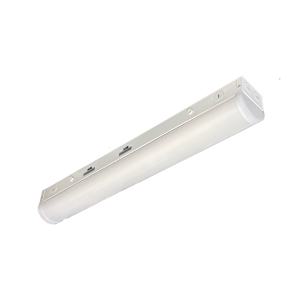

4FT Slim Linear Strip With Motion Sensor
4FT Slim Linear Strip With Motion Sensor
Model: E2-LS-SLIM-4-24/36W-M
24/36W Wattage Selectable, 4,680 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
Specifications
| Wattage | 24W / 36W |
| Voltage | 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | 80+ |
| Lumens | 4,680 lm |
| Lifespan | 50,000 hours |
| Dimensions | 1175 × 60 × 82 mm (48.03" ×2.36" × 3.23") |
| Listings | DLC Premium / cULus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 ft |
| Beam Angle | 120° |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Mounting | Surface / Chain suspended |
| Emergency Backup | Not included |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Integrated |
| Wattage Selectable | Yes |
| Standards | RoHS |
| Family | Linear strip and wraparound |
| Series | Slim linear strip |
Description
Ideal for indoor applications, this slim 4-foot LED linear strip comes with a motion sensor installed and replaces existing T8 and T12 strip fixtures in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more, including schools and supermarkets. Selectable wattage and color temperature let the lighting be adjusted for the space.
Wattage is selectable at 24 or 36W for up to 4,680 lumens at 130 lm/W, and color temperature at 3500K, 4000K or 5000K, over a 120° beam. It dims with 0–10V controls, runs on 100–277V and mounts to a surface or on chains.
cULus and DLC Premium listed and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Slim linear strip |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130 lm/W |
| Lumens | 4,680 lm |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 100–277V |
| Wattage | 24 / 36W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 1,175 × 60 × 82 mm |
| Mounting | Surface / Chain suspended |
| Emergency | |
|---|---|
| Emergency Backup | Not included |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Integrated |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | cULus / DLC Premium |
| Standards | RoHS |
