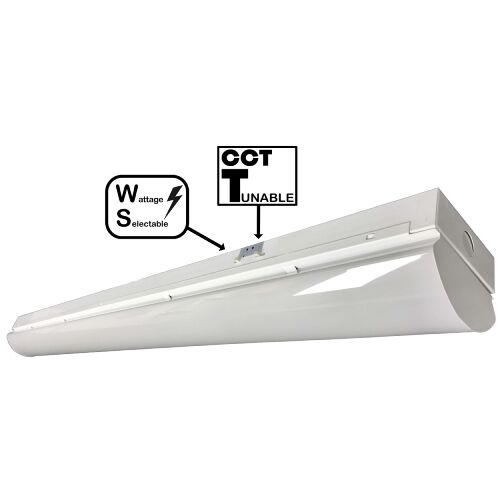

8FT Wide LED Linear Strip
8FT Wide LED Linear Strip
Model: E2-LS-WIDE-8-63/85W
63/85W Wattage Selectable, Up to 10,625 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
Specifications
| Wattage | 63W / 85W / 63W (at 7875 lm) / 85W (at 10625 lm) |
| Voltage | 63W configuration: 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | 80+ (at 63 W configuration) |
| Lumens | 7,875 lm (at 63 W) / 10,625 lm (at 85 W) |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 2438 × 115 × 91 mm (95.98" × 4.53" × 3.58") |
| Listings | DLC Premium / cULus |
| Warranty | 5-Year Manufacturer's Warranty |
| Replaces | T12 and T8 strip fixtures |
| Size | 8 ft |
| Power Factor | 0.9+ (at 63 W configuration) |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Knockouts | 8 knockout locations |
| Mounting | Surface / Suspended |
| Emergency Backup | Not included |
| Motion Sensor | Not included |
| Wattage Selectable | Yes |
| Standards | RoHS |
| Family | Linear strip and wraparound |
| Series | Wide linear strip |
Description
Ideal for indoor commercial applications, this 8-foot wide LED linear strip replaces existing T12 and T8 strip fixtures in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more. Wattage and color temperature are set at the fixture, so one model covers different spaces.
Wattage is selectable at 63 or 85W, giving 7,875 or 10,625 lumens, and color temperature at 3500K, 4000K or 5000K. It dims with 0–10V controls and runs on 100–277V. Surface or suspended mounting and 8 knockout locations give installation flexibility.
cULus and DLC Premium listed and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Wide linear strip |
| Replaces | T12 and T8 strip fixtures |
| Size | 8 ft |
| Light | |
|---|---|
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ (at 63 W configuration) |
| Lumens | 7,875 lm (at 63 W) / 10,625 lm (at 85 W) |
| Electrical | |
|---|---|
| Power Factor | 0.9+ (at 63 W configuration) |
| Voltage | 63W configuration: 100–277V |
| Wattage | 63W / 85W / 63W (at 7875 lm) / 85W (at 10625 lm) |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 2,438 × 115 × 91 mm |
| Knockouts | 8 knockout locations |
| Mounting | Surface / Suspended |
| Emergency | |
|---|---|
| Emergency Backup | Not included |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Motion Sensor | Not included |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | cULus / DLC Premium |
| Standards | RoHS |
