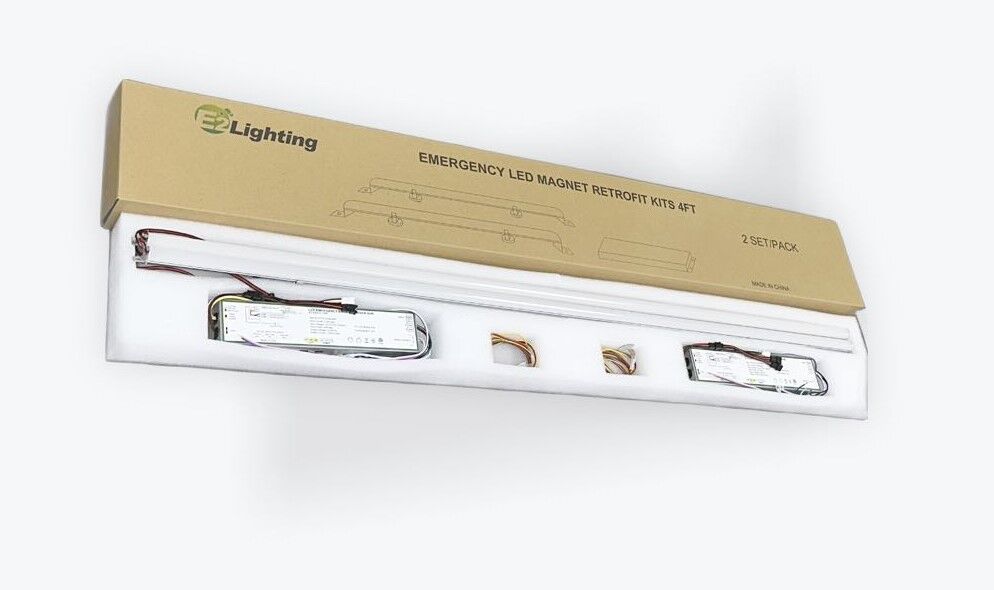

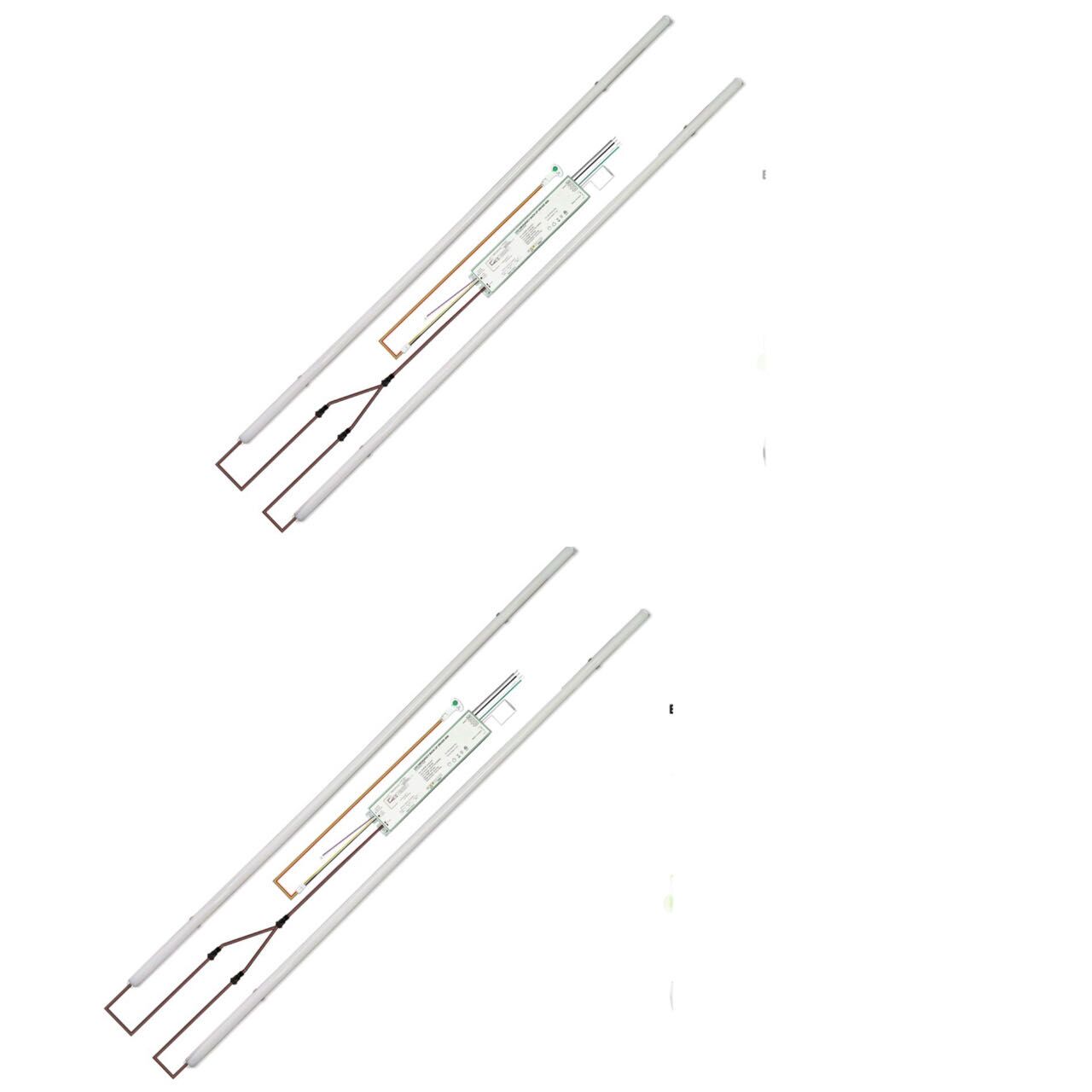

Magnetic LED Strip Retrofit Kit 4FT w/ 10W Pre-wired Emergency Battery
Magnetic LED Strip Retrofit Kit 4FT w/ 10W Pre-wired Emergency Battery
Model: E2-RTST-4FT-2S-24/30/40W-35/40/50K-E
24/30/40W Wattage Selectable, Up to 5,200 Lumens
3000K/4000K/5000K CCT Selectable
Built-in 10W Emergency Battery, 90 Minutes
0-10V Dimmable
120-277 Volt
IP20
Specifications
| Wattage | 24W / 30W / 40W |
| Voltage | 120-277V |
| Dimming | 0–10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 3120 lm / 3900 lm / 5200 lm |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 44.5" × 0.71" × 0.63" |
| Listings | DLC Premium / ETL / IP20 |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 ft |
| Beam Angle | 120–160° |
| Efficacy | 130+ lm/W |
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Ambient Temperature | -4–113 °F (working) |
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator (charging: slow flashing, 1 second on / 1 second off); Status indicator (fully charged: steady on); Status indicator (issue: fast flashing; contact vendor); Status indicator (emergency operation: indicator unlit) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Motion Sensor | Optional (PIR, not included) / Optional (microwave, not included) |
| Wattage Selectable | Yes |
| Mercury Free | Yes |
| Standards | RoHS |
| Family | LED retrofit kit |
| Series | E2-RTST LED troffer retrofit kit (magnetic strips) |
Description

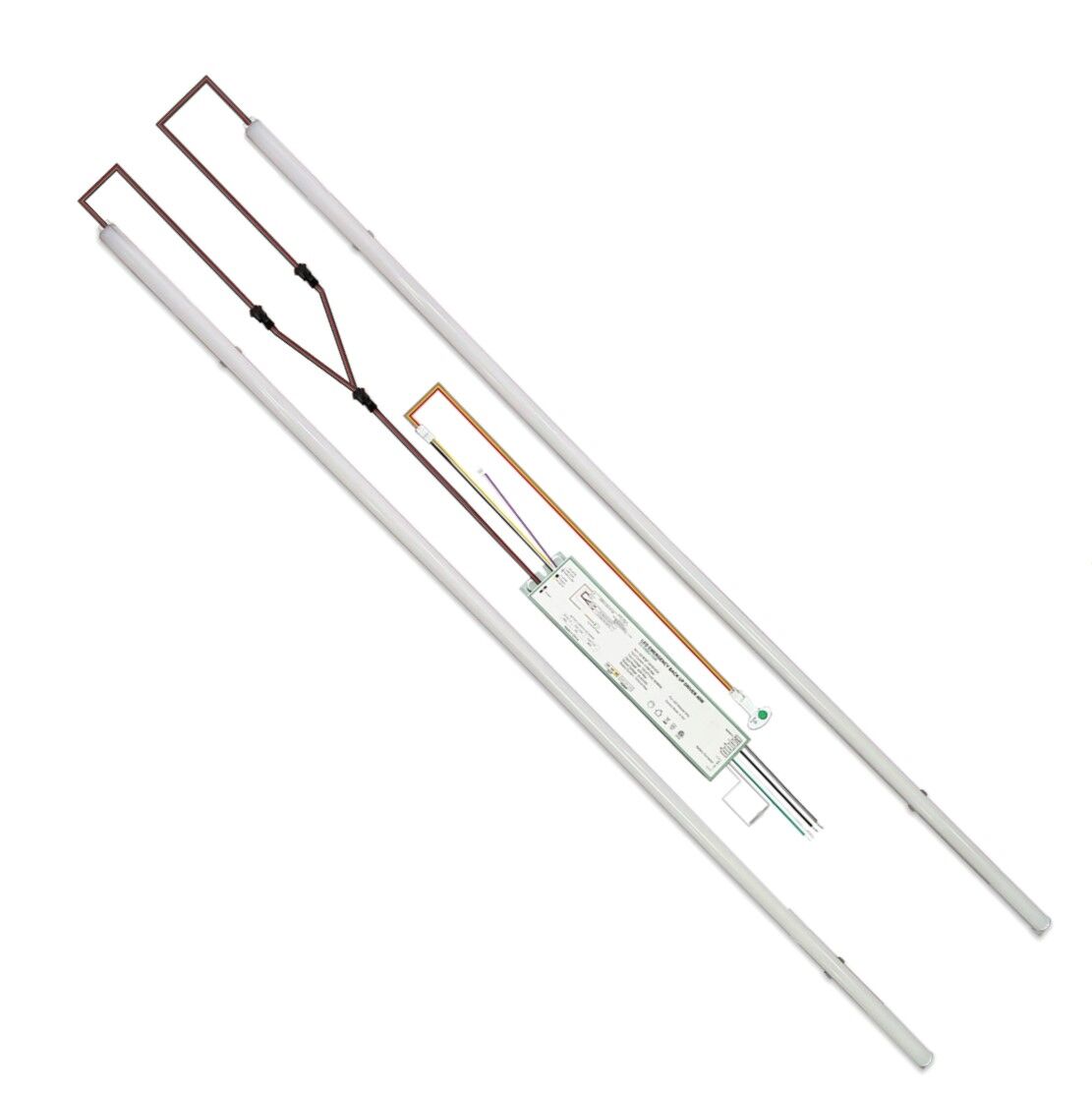

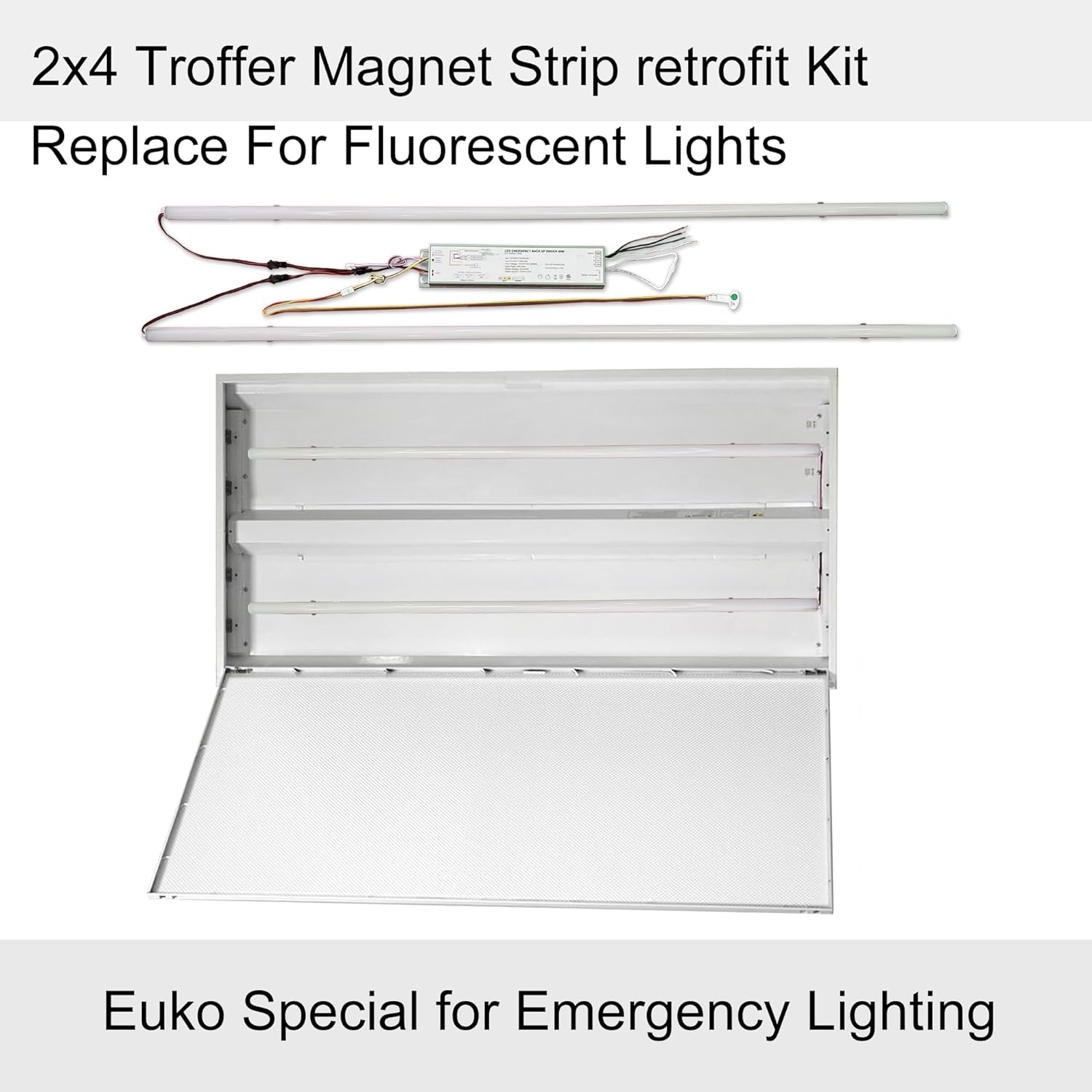

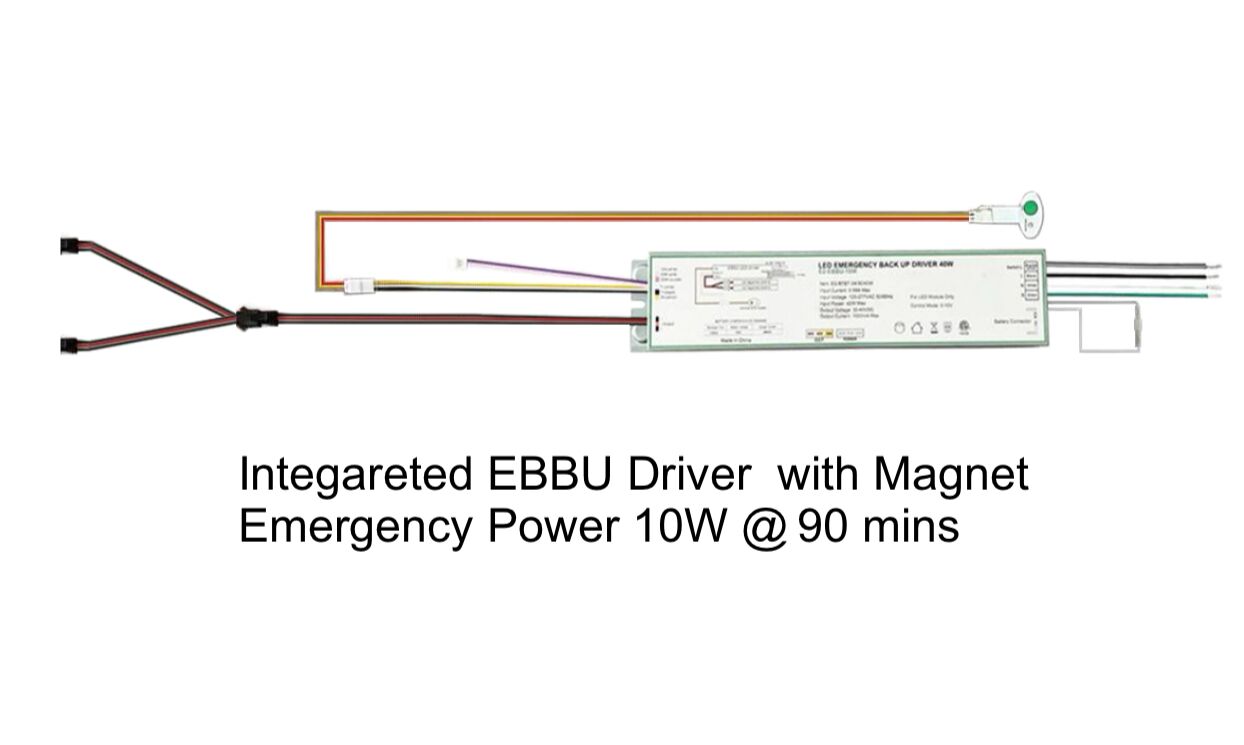

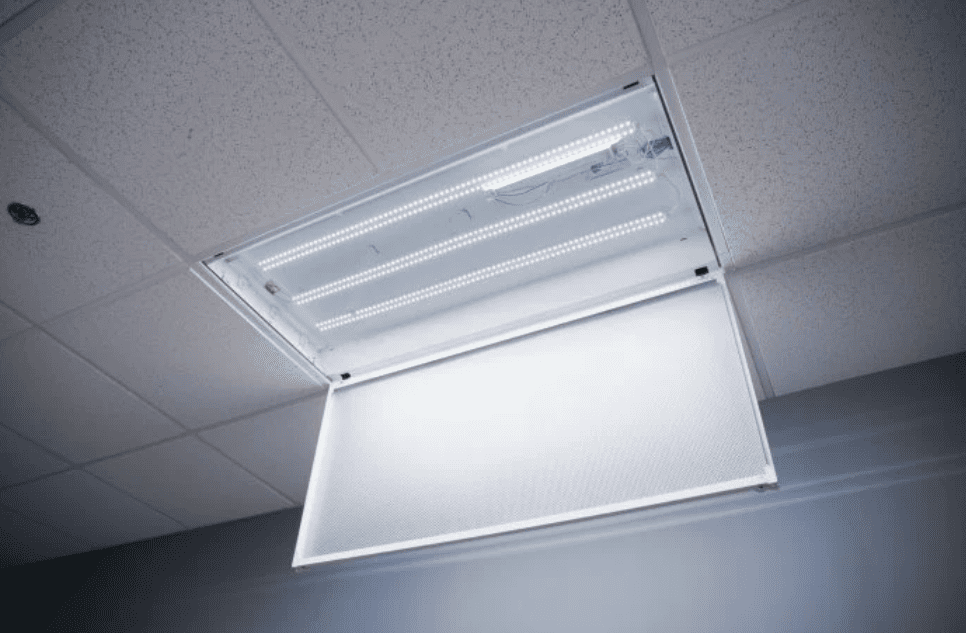

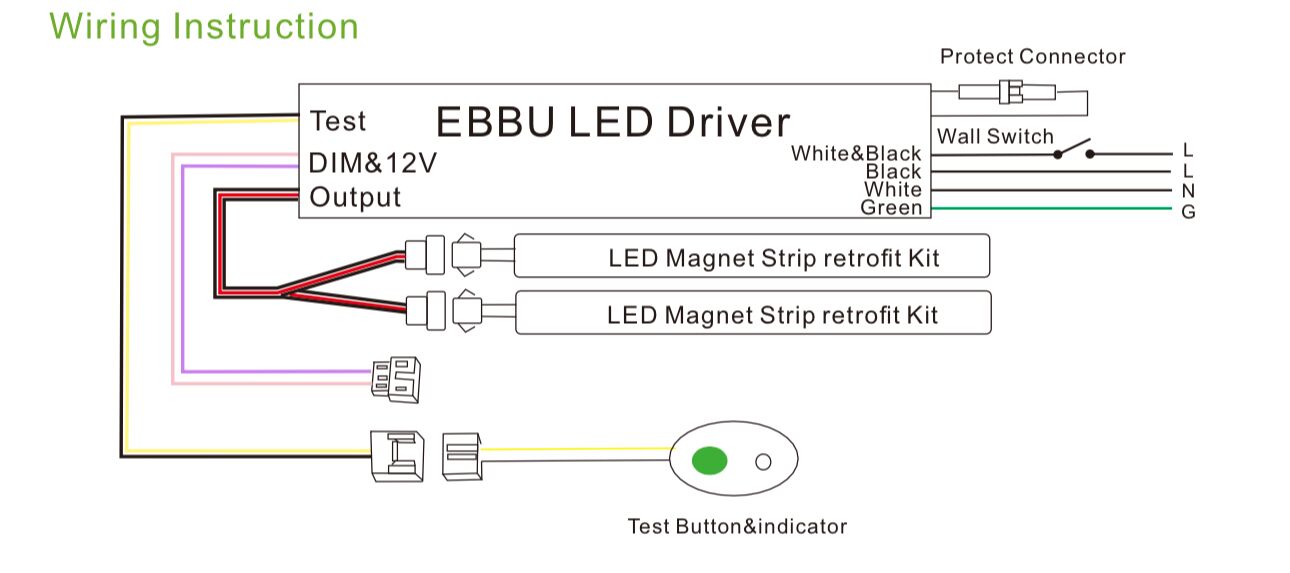

A 4-foot magnetic LED strip retrofit kit for existing T5, T8 and T12 strip fixtures and troffers, with a 10W emergency backup built in that keeps the strips lit for 90 minutes when the power fails. Quick connectors join the strips, the test button and indicator, and an optional PIR or microwave sensor, sold separately.
Wattage is selectable at 24, 30 or 40W, giving 3,120, 3,900 or 5,200 lumens, and color temperature at 3000K, 4000K or 5000K. It dims with 0–10V controls, runs on 120–277V and spreads light through a 120–160° beam. The IP20 rating and -4–113 °F operating range suit indoor fixtures.
ETL and DLC Premium listed and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | LED retrofit kit |
| Series | E2-RTST LED troffer retrofit kit (magnetic strips) |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 120–160° |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130+ lm/W |
| Lumens | 3,120 / 3,900 / 5,200 lm |
| Electrical | |
|---|---|
| Connection Type | Quick connector |
| Frequency | 50–60 Hz |
| Power Factor | 0.99+ |
| THD | up to 15% |
| Voltage | 120–277V |
| Wattage | 24 / 30 / 40W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) |
| Dimensions | 44.5 × 0.71 × 0.63 in |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 10W |
| Emergency Runtime | 90 minutes |
| Indicator Light | Status indicator (charging: slow flashing, 1 second on / 1 second off); Status indicator (fully charged: steady on); Status indicator (issue: fast flashing; contact vendor); Status indicator (emergency operation: indicator unlit) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Motion Sensor | Optional (PIR, not included) / Optional (microwave, not included) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / DLC Premium |
| IP Rating | IP20 |
| Mercury Free | Yes |
| Standards | RoHS |
