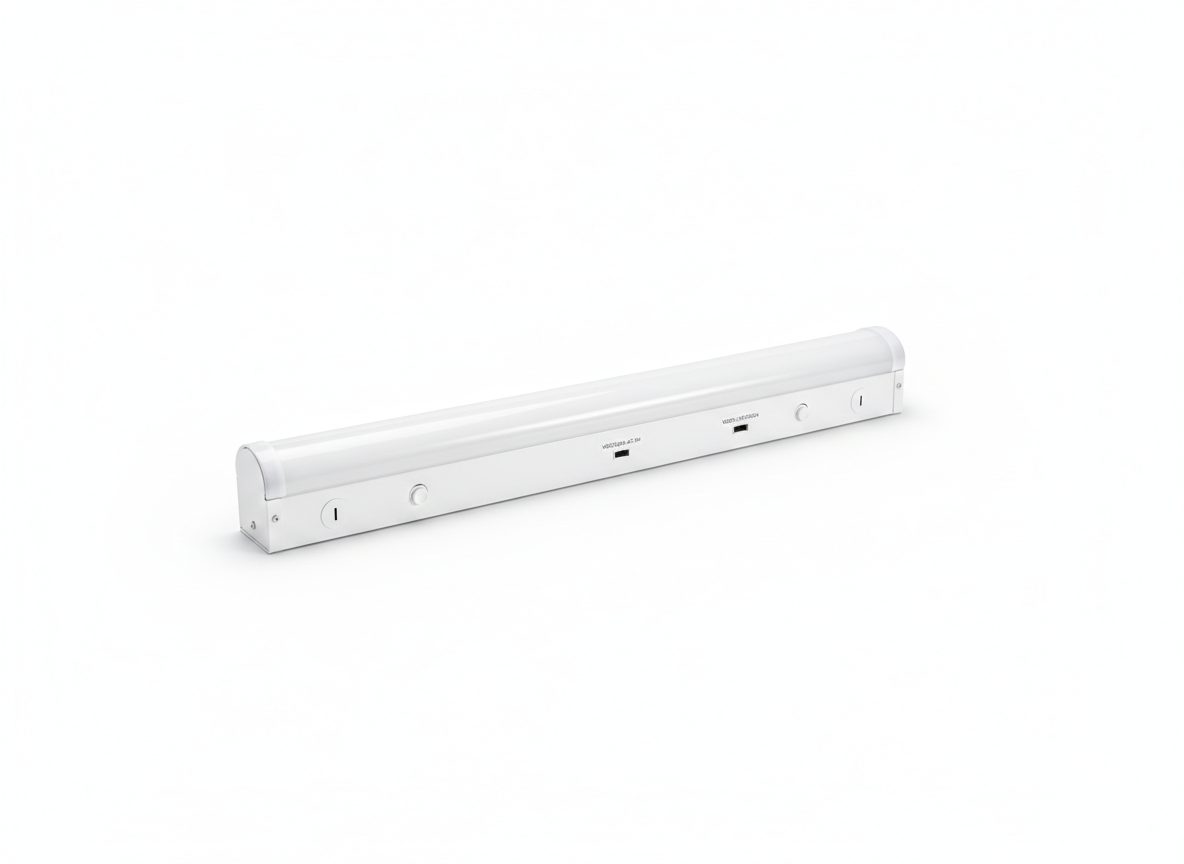

2FT Standard LED Linear Strip
2FT Standard LED Linear Strip
Model: E2-LS-STD-2FT-10/12/15/20/26W-30/35/40/50/65K
10/15/24W Wattage Selectable, 3,120 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
Wet Location
Specifications
| Wattage | 10W / 15W / 24W |
| Voltage | 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 3,120 lm (at 2ft) |
| Lifespan | 50,000 hours (at L70) |
| Dimensions | 609 ×75 × 83 mm (23.97" ×2.95" × 3.26") |
| Listings | DLC Premium / ETL / cETLus |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 2 ft |
| Beam Angle | 120° |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Ambient Temperature | -4–113 °F (operating) / -22–140 °F (storage) |
| Mounting | Surface / Chain suspended |
| Emergency Backup | Optional (on request) |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Optional (microwave, on request, external or built-in) |
| Wattage Selectable | Yes |
| Location Rating | Wet location |
| Standards | CE / RoHS |
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
Description
Ideal for versatile applications, this compact 2-foot LED linear strip is wet-location rated and provides task and general lighting in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more, as well as storage and utility buildings, coves, display cases, workshops and garages. Integrated switches set wattage and color temperature in the field, and a smooth lens spreads light evenly.
Wattage is selectable at 10, 15 or 24W for up to 3,120 lumens at 130 lm/W, and color temperature at 3500K, 4000K or 5000K, over a 120° beam. It dims with 0–10V controls and runs on 100–277V. It mounts to a surface or on chains, and microwave motion sensors and emergency battery configurations are available on request.
ETL, cETLus and DLC Premium listed and CE and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
| Size | 2 ft |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130 lm/W |
| Lumens | 3,120 lm (at 2ft) |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 100–277V |
| Wattage | 10 / 15 / 24W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (operating) / -22–140 °F (storage) |
| Dimensions | 609 × 75 × 83 mm |
| Mounting | Surface / Chain suspended |
| Emergency | |
|---|---|
| Emergency Backup | Optional (on request) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Optional (microwave, on request, external or built-in) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / cETLus / DLC Premium |
| Location Rating | Wet location |
| Standards | CE / RoHS |
