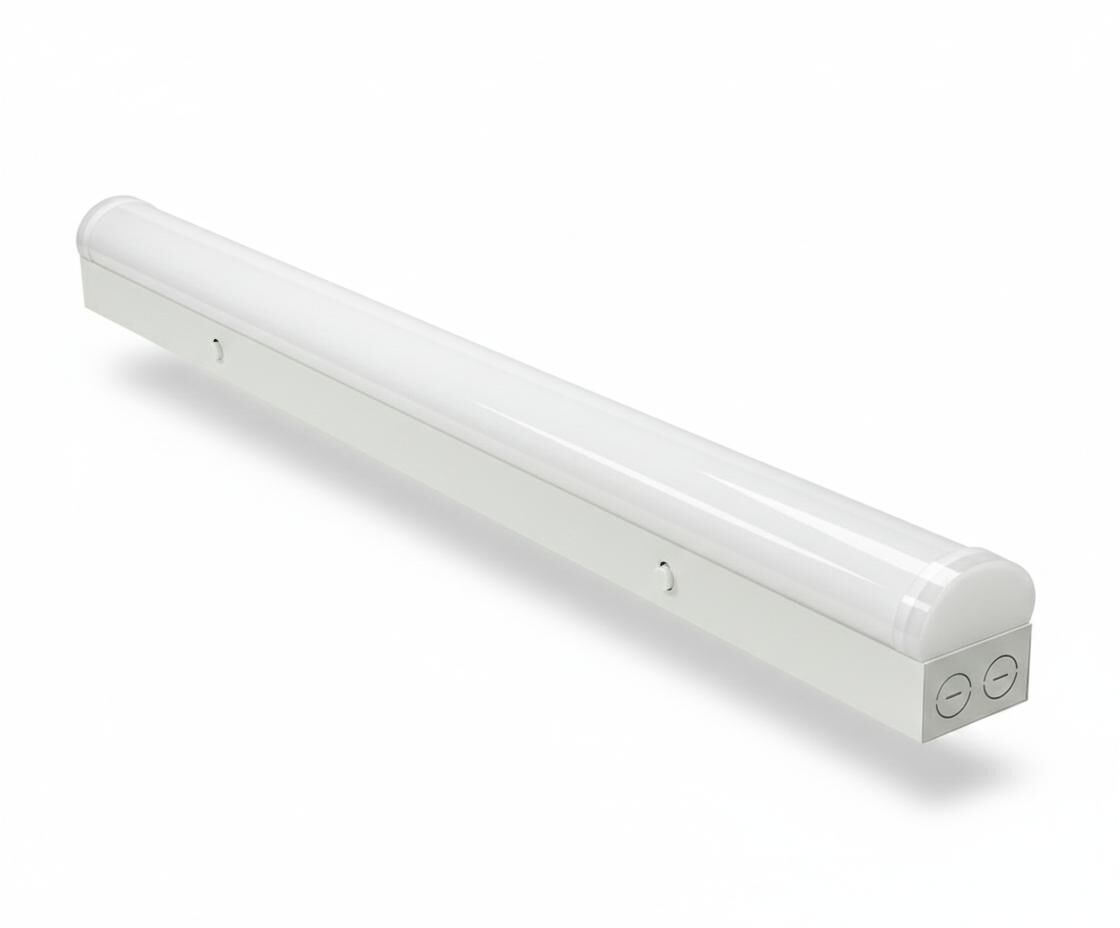

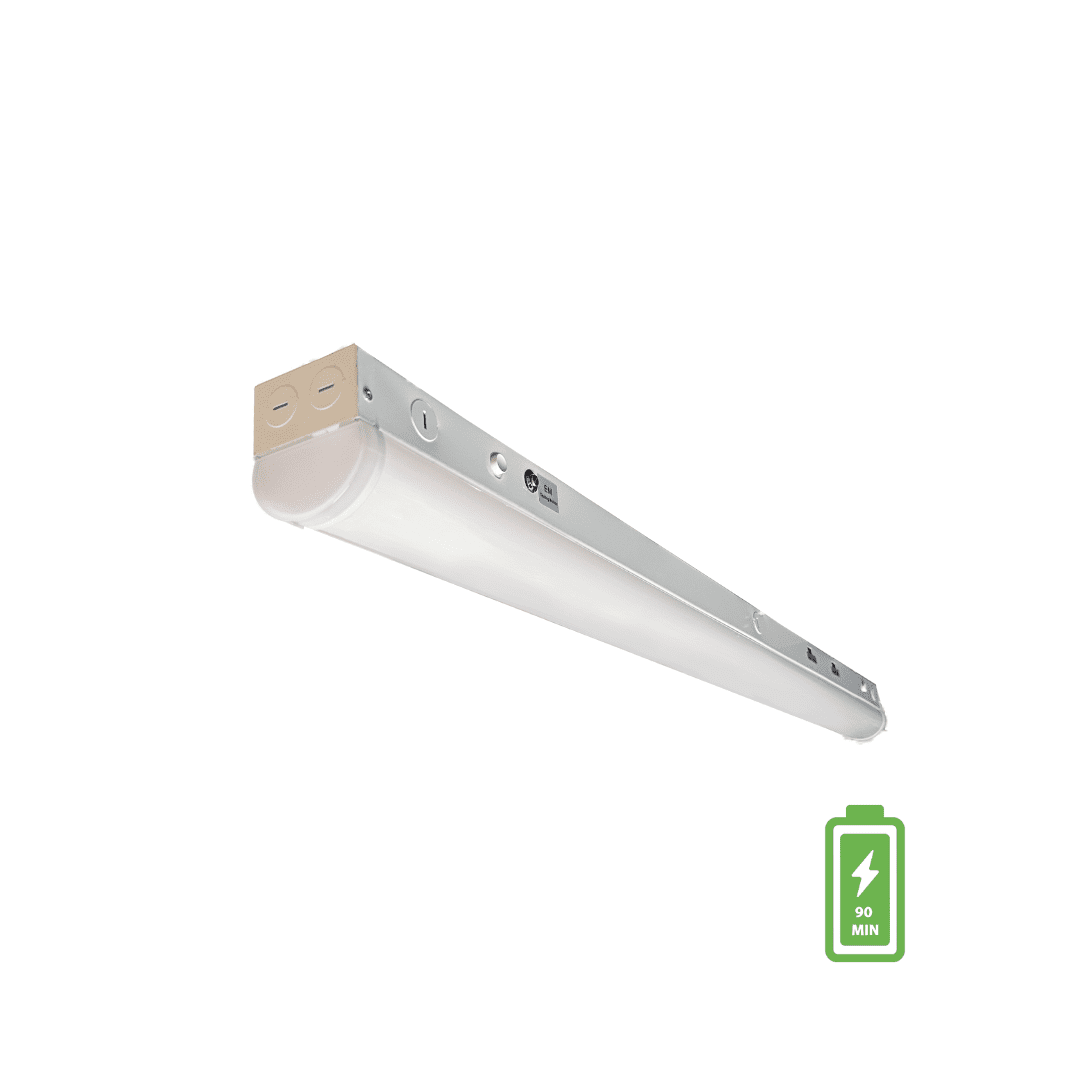

4FT Standard Linear Strip With Emergency Battery Backup
4FT Standard Linear Strip With Emergency Battery Backup
Models: E2-LS-STD-4FT-20/25/30/35/40W-30/35/40/50/65K-E-G3
20/25/30/35/40W Wattage Selectable, Up to 5,200 Lumens
3000K/3500K/4000K/5000K/6500K CCT Selectable
Built-in Emergency Battery
0-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 20W / 25W / 30W / 35W / 40W |
| Voltage | 120-277V |
| Dimming | 0-10V |
| CCT | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | > 80 |
| Lumens | 3120 lm / 4160 lm / 5200 lm |
| Lifespan | 50,000 hours |
| Dimensions | 1220 × 75 × 83 mm (48.03" × 2.95" × 3.26") |
| Listings | UL / DLC Premium |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 ft |
| Emergency Backup | Integrated |
| Motion Sensor | Not included |
| Location Rating | Indoor / Damp location |
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
Description
Ideal for indoor applications in damp locations, this 4-foot standard-width LED linear strip comes with an emergency battery installed and provides task and general lighting in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more. Selectable wattage and color temperature let the lighting be matched to the application.
Wattage is selectable at 20, 25, 30, 35 or 40W, giving 3,120 to 5,200 lumens, and color temperature at 3000K, 3500K, 4000K, 5000K or 6500K. It dims with 0–10V controls and runs on 120–277V.
UL and DLC Premium listed, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
| Size | 4 ft |
| Light | |
|---|---|
| CCT | 3000 / 3500 / 4000 / 5000 / 6500K |
| CRI | 80+ |
| Lumens | 3,120 / 4,160 / 5,200 lm |
| Electrical | |
|---|---|
| Voltage | 120–277V |
| Wattage | 20 / 25 / 30 / 35 / 40W |
| Physical | |
|---|---|
| Dimensions | 1,220 × 75 × 83 mm |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Controls | |
|---|---|
| Dimming Type | 0–10V |
| Motion Sensor | Not included |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Location Rating | Indoor / Damp location |
