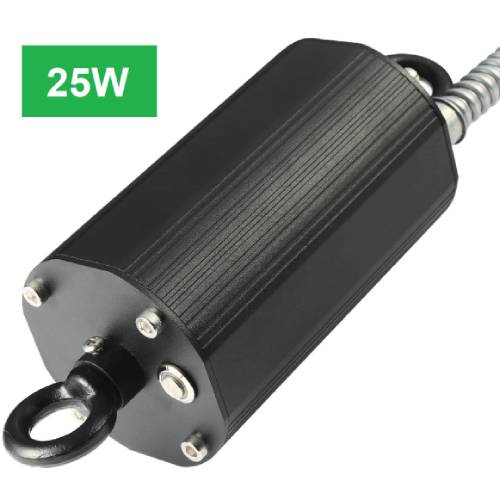

UFO Emergency Battery Backup Driver 25W
UFO Emergency Battery Backup Driver 25W
25W Emergency Output, 90 Minutes
100-347 Volt
Output 170V
Recharges in 24 Hours
Specifications
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 170V |
| Voltage | 100–347V |
| Wattage | 10W (input) |
| Ambient Temperature | 5–50 °C (ambient) |
| Flexible Conduit | Yes (13 in) |

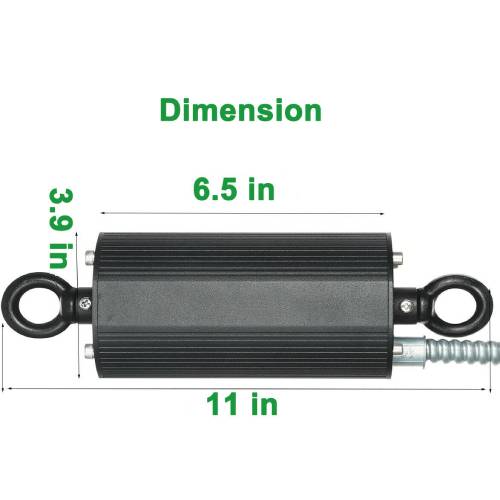

| Length | 280 mm |
| Weight | 7.3 lb |
| Recharge Time | 24 hours |
| Emergency Power | 25W |
| Emergency Runtime | 90 minutes |
| Test Switch | Self-test (automatic) |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 / RoHS |
| Warranty | 5 years |
| Listings | UL |
| Family | Emergency LED driver and battery |
Description
A 25W emergency battery backup driver for UFO high bay LED fixtures, which already need a driver to operate. Like a normal driver it regulates the power to the fixture, but during an outage it runs off its battery instead of line voltage, delivering 25W at 170V DC for 90 minutes.
It runs on 100–347V input at 50/60 Hz, draws 10W and recharges in 24 hours, with self-testing built in. Wiring runs through flexible conduit, and it supports field or factory installation with a dimmer, a wall switch or a sensor. The unit is 280 mm long and weighs 7.3 lb, rated for 5–50 °C ambient.
It is UL listed to UL 924, tested to CSA C22.2 No. 141 and compliant with California Title 20 and RoHS, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Emergency LED driver and battery |
| Electrical | |
|---|---|
| Current | up to 200mA (maximum) |
| Frequency | 50 / 60 Hz |
| Output Voltage | 170V |
| Voltage | 100–347V |
| Wattage | 10W (input) |
| Physical | |
|---|---|
| Ambient Temperature | 5–50 °C (ambient) |
| Flexible Conduit | Yes (13 in) |
| Length | 280 mm |
| Weight | 7.3 lb |
| Emergency | |
|---|---|
| Charge Time | 24 hours |
| Emergency Power | 25W |
| Emergency Runtime | 90 minutes |
| Test Switch | Self-test (automatic) |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | UL |
| Standards | UL 924 / CSA C22.2 No. 141 / California Title 20 / RoHS |
