4FT Standard LED Linear Strip
4FT Standard LED Linear Strip
Model: E2-LS-STD-4FT-24/32/40W-35/40/50K
24/32/40W Wattage Selectable, 5,200 Lumens
3500K/4000K/5000K CCT Selectable
0-10V Dimmable
100-277 Volt
Specifications
| Wattage | 24W / 32W / 40W |
| Voltage | 100–277V |
| Dimming | 0-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 5,200 lm (at 4-ft model) |
| Lifespan | 50,000 hours (at L70) |

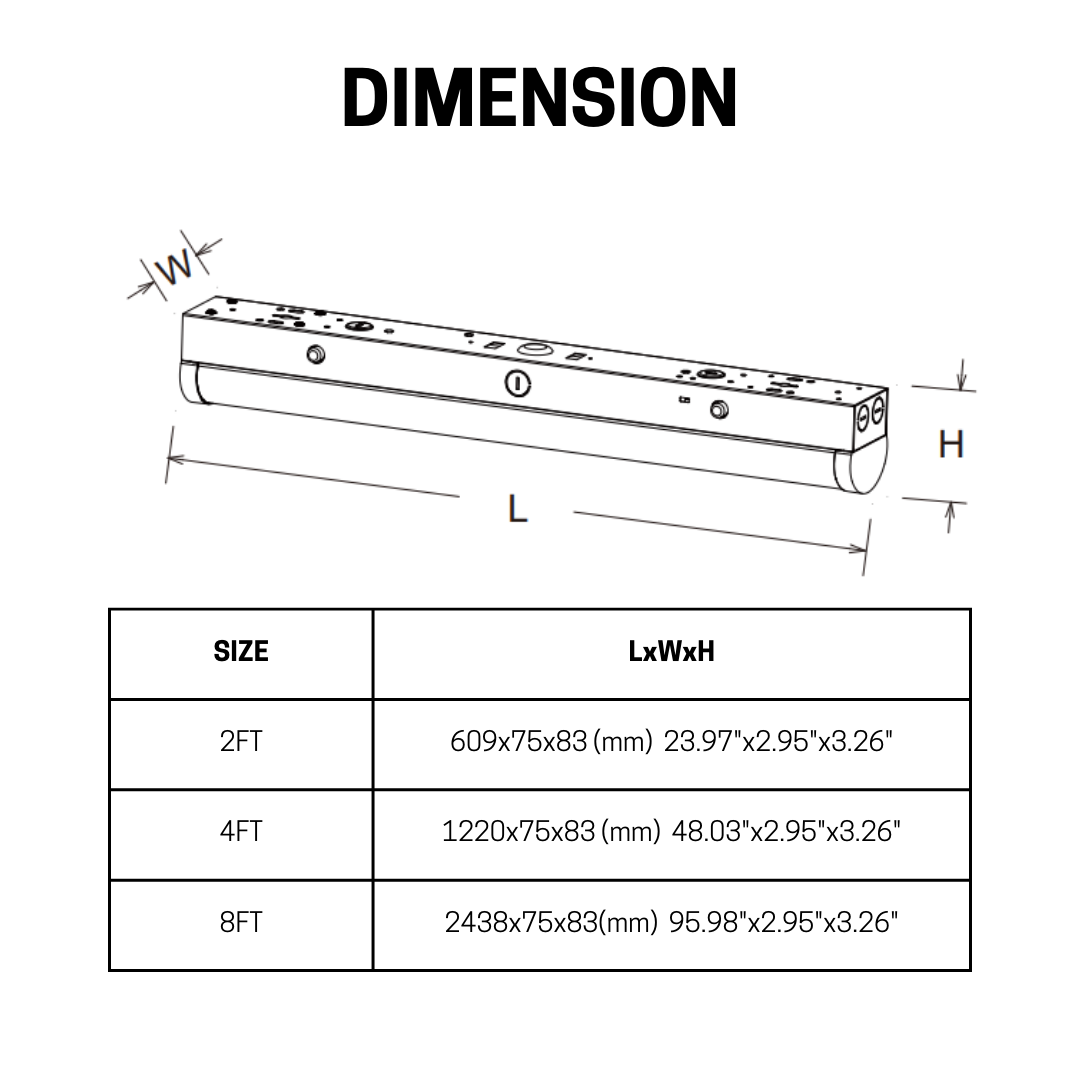

| Dimensions | 1220 × 75 × 83 mm (48.03" × 2.95" × 3.26") |
| Listings | DLC Premium / ETL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 4 ft |
| Beam Angle | 120° |
| Efficacy | 130 lm/W |
| Power Factor | 0.9+ |
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Mounting | Surface / Chain suspended |
| Emergency Backup | Not included |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Not included |
| Wattage Selectable | Yes |
| Standards | CE / RoHS |
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
Description
Ideal for indoor applications, this 4-foot standard-width LED linear strip provides task and general lighting in healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more, as well as storage and utility buildings, workshops, garages and display areas. Integrated switches set wattage and color temperature, and a smooth lens spreads light evenly.
Wattage is selectable at 24, 32 or 40W for up to 5,200 lumens at 130 lm/W, and color temperature at 3500K, 4000K or 5000K, over a 120° beam. It dims with 0–10V controls, runs on 100–277V and mounts to a surface or on chains.
ETL and DLC Premium listed and CE and RoHS compliant, with a 50,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Linear strip and wraparound |
| Series | Standard-width linear strip |
| Size | 4 ft |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 130 lm/W |
| Lumens | 5,200 lm (at 4-ft model) |
| Electrical | |
|---|---|
| Power Factor | 0.9+ |
| Voltage | 100–277V |
| Wattage | 24 / 32 / 40W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (working) / -22–140 °F (storage) |
| Dimensions | 1,220 × 75 × 83 mm |
| Mounting | Surface / Chain suspended |
| Emergency | |
|---|---|
| Emergency Backup | Not included |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Not included |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
| Certifications | ETL / DLC Premium |
| Standards | CE / RoHS |
