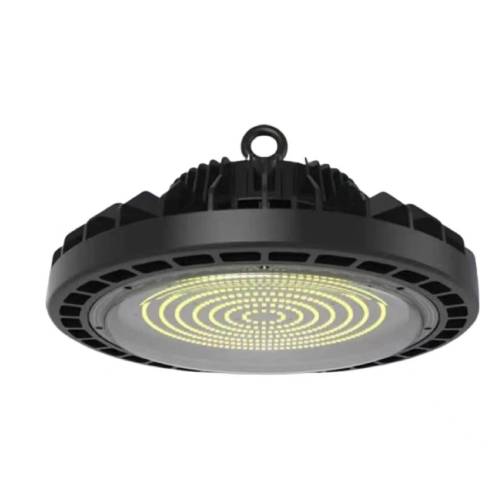

LED UFO High Bay 150W
LED UFO High Bay 150W
150W, Up to 25,500 Lumens
5000K CCT
1-10V / DALI Dimmable
100-277 Volt
IP65
Specifications
| Light Source | SMD LED |
| Beam Angle | 90 / 120° |
| CCT | 5000K |
| CRI | 70+ |
| Color Consistency (SDCM) | up to 5 SDCM |
| Efficacy | 170 lm/W (±10lm/W) |
| Lumens | 25,500 lm (±1500lm) |
| Start Time | 0.1 / 0.5 seconds |
| UGR | up to 27 |
| Connection Type | Hardwire |
| Driver Efficiency | 91+% |
| Frequency | 47–63 Hz |
| Power Factor | 0.95+ |
| THD | up to 12% |
| Voltage | 100–277V |
| Wattage | 150W |
| Diameter | 100/150W model group: 320 mm |
| Dimensions | 100/150W model group: 188 mm |
| Weight | 3.8 kg (net) |
| Dimmable | Yes |
| Dimming | 1–10V / DALI |
| Protection | Open-circuit protection / Short-circuit protection / Overvoltage protection |
| Lifespan | 100,000 hours (at 70% lumen maintenance at end of life (L70)) |
| Switching Cycles | 100,000 |
| Warranty | 5 years |
| Pack Quantity | 1 (package, unit) |
| Listings | IP65 |
| Family | High bay |
Description
A 150W LED UFO high bay for warehouses, logistics facilities, production areas and indoor sports venues, delivering 25,500 lumens of 5000K light at 170 lm/W. Choose a 90° or 120° beam to suit the layout.
It dims with 1–10V or DALI controls, runs on 100–277V and is hardwired. Built-in open-circuit, short-circuit and overvoltage protection guards the driver, and the IP65-rated fixture is 320 mm across and weighs 3.8 kg.
It has CRI 70+, a 100,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | High bay |
| Light Source | SMD LED |
| Light | |
|---|---|
| Beam Angle | 90 / 120° |
| CCT | 5000K |
| CRI | 70+ |
| Color Consistency (SDCM) | up to 5 SDCM |
| Efficacy | 170 lm/W (±10lm/W) |
| Lumens | 25,500 lm (±1500lm) |
| Start Time | 0.1 / 0.5 seconds |
| UGR | up to 27 |
| Electrical | |
|---|---|
| Connection Type | Hardwire |
| Driver Efficiency | 91+% |
| Frequency | 47–63 Hz |
| Power Factor | 0.95+ |
| THD | up to 12% |
| Voltage | 100–277V |
| Wattage | 150W |
| Physical | |
|---|---|
| Diameter | 100/150W model group: 320 mm |
| Dimensions | 100/150W model group: 188 mm |
| Weight | 3.8 kg (net) |
| Controls | |
|---|---|
| Dimmable | Yes |
| Dimming Type | 1–10V / DALI |
| Warranty | |
|---|---|
| Rated Life | 100,000 hours (at 70% lumen maintenance at end of life (L70)) |
| Switching Cycles | 100,000 |
| Warranty | 5 years |
| IP Rating | IP65 |
| Protection | Open-circuit protection / Short-circuit protection / Overvoltage protection |
| Pack Quantity | 1 (package, unit) |
