150W G6 Area Light WAT & CCT Tunable
150W G6 Area Light WAT & CCT Tunable
Model: E2-SB-G6-50/100/150W-3000/4000/5000K
50/100/150W Wattage Selectable, Up to 19,500 Lumens
3000K/4000K/5000K CCT Selectable
Type III/IV/V Distribution
100-277 Volt
Wet Location, IP65
Specifications
| Wattage | 50W / 100W / 150W |
| Voltage | 100-277V |
| Dimming | 0-10V |
| CCT | 3000K / 4000K / 5000K |
| CRI | > 70, > 80 |
| Lumens | 6500 lm / 13000 lm / 19500 lm |
| Dimensions | 50–150W configuration: 441 × 322.95 × 67.5 mm |
| Listings | IP65 Rating, UL and DLC® Premium |
| Warranty | 5-Year Manufacturer's Warranty |
| Light Source | LED |
| Beam Angle | 120° (at Type V) / 60° (Flood) / 30° (Flood) |
| Distribution Type | Type III / Type IV / Type V |
| Efficacy | 130 lm/W |
| Frequency | 50 / 60 Hz |
| THD | up to 20% |
| Ambient Temperature | -40–45 °C (operating) / -20–60 °C (storage) |
| Color | Bronze / Black / Silver / White |
| Humidity | 10–90% (storage) |
| Mounting | Slip fitter / Square pole / Round pole / Wall |
| CCT Selectable | Yes, switchable |
| Motion Sensor | Optional (microwave, bi-level) |
| Photocell | Optional (option, built-in) / Optional (option, twist-lock) |
| Wattage Selectable | Yes |
| Location Rating | Wet location |
| Family | Area and roadway light |
| Series | G6 slim area light |
Description

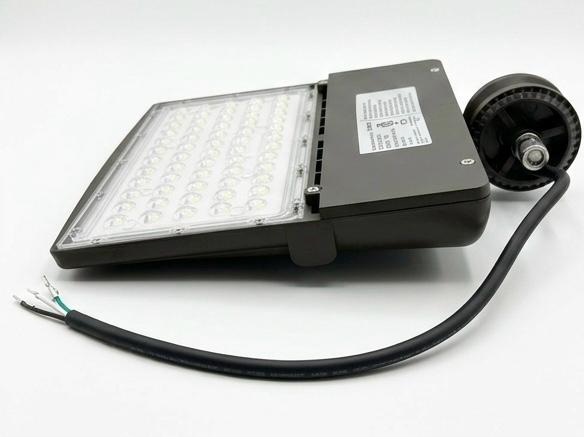

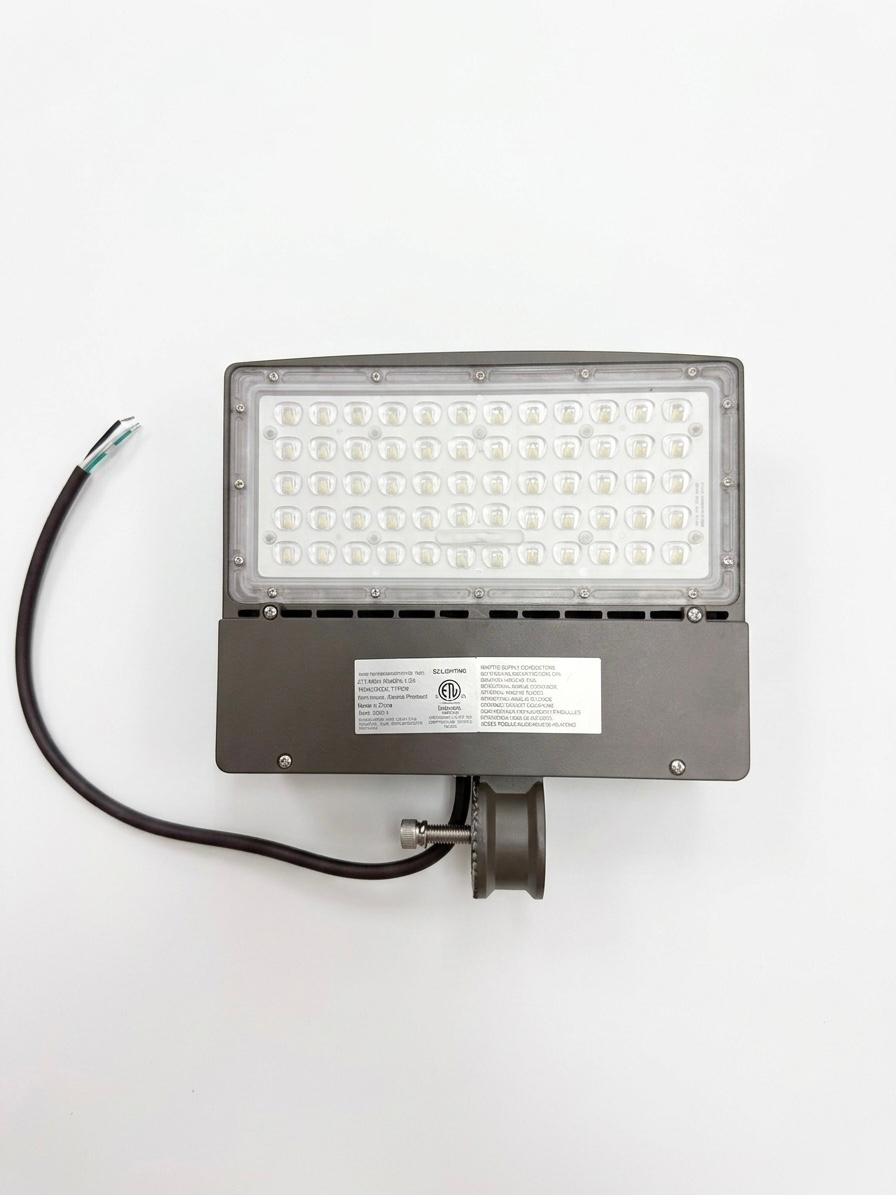

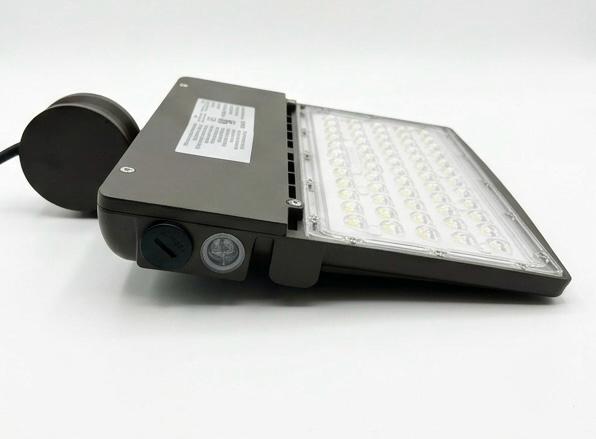

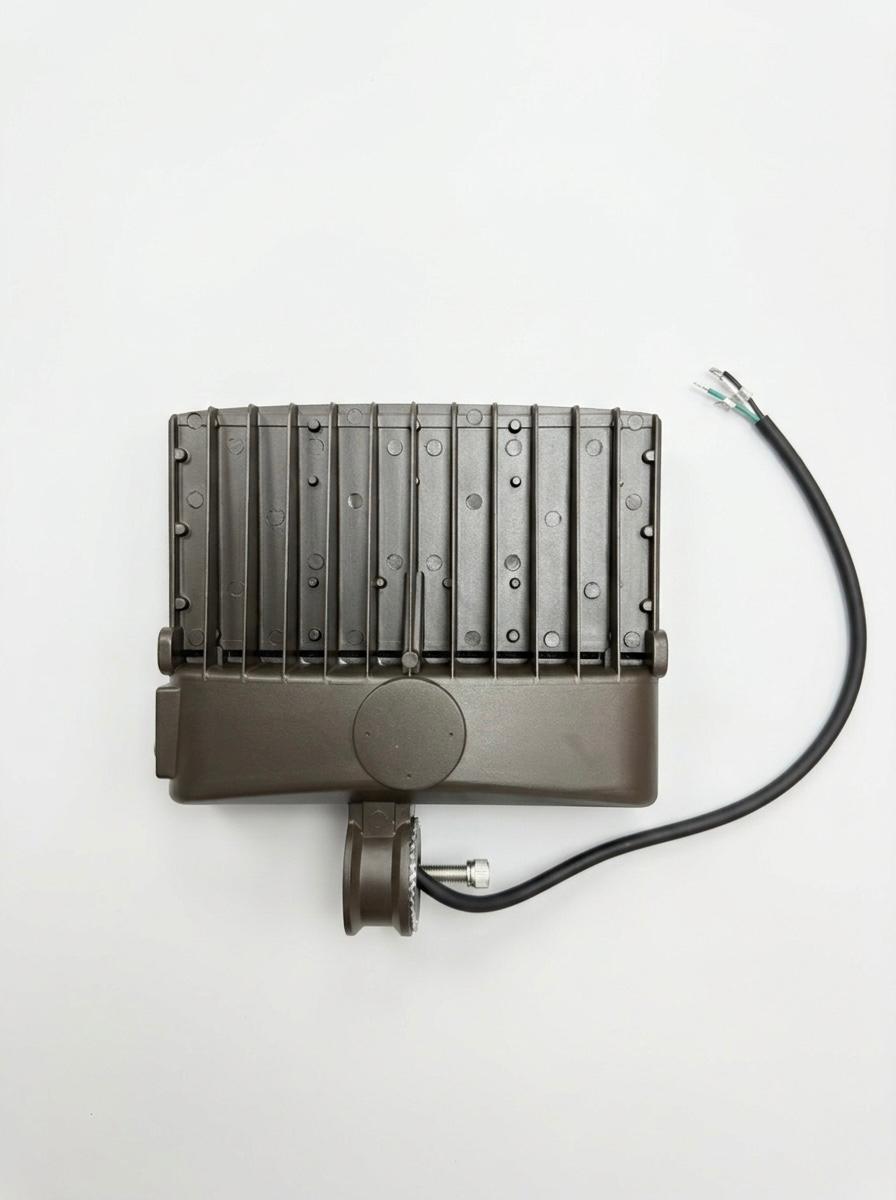

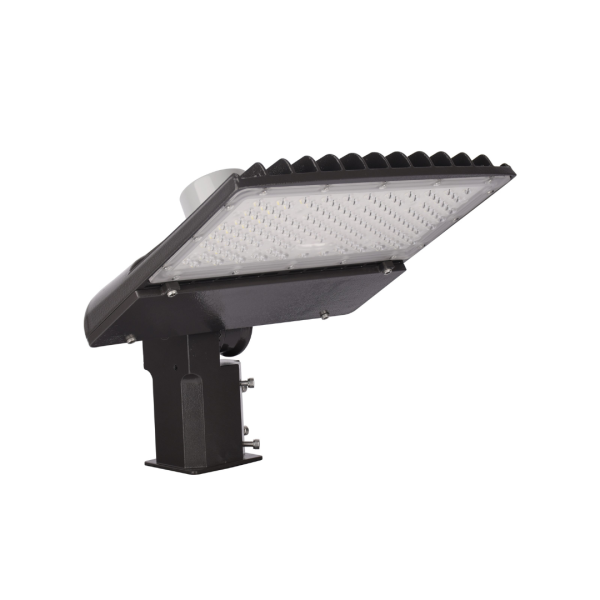

A 150W-class G6 slim LED area light, sold as the fixture only, with wattage and color temperature both selectable in the field. Wattage sets to 50W, 100W or 150W, giving 6,500, 13,000 or 19,500 lumens at 130 lm/W, and color temperature to 3000K, 4000K or 5000K.
It dims with 0–10V controls and runs on 100–277V. Type III, Type IV or Type V distribution is offered, and it mounts by slip fitter, square pole, round pole or wall bracket. The wet-location, IP65-rated fixture measures 441 × 322.95 × 67.5 mm and comes in bronze, black, silver or white, with motion sensor and photocell control available as options.
cULus and DLC Premium listed, with a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Area and roadway light |
| Series | G6 slim area light |
| Light Source | LED |
| Light | |
|---|---|
| Beam Angle | 120° (at Type V) / 60° (Flood) / 30° (Flood) |
| CCT | 3000 / 4000 / 5000K |
| Distribution Type | Type III / Type IV / Type V |
| Efficacy | 130 lm/W |
| Lumens | 6,500 / 13,000 / 19,500 lm |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| THD | up to 20% |
| Voltage | 100–277V |
| Wattage | 50 / 100 / 150W |
| Physical | |
|---|---|
| Ambient Temperature | -40–45 °C (operating) / -20–60 °C (storage) |
| Dimensions | 50–150W configuration: 441 × 322.95 × 67.5 mm |
| Finish | Bronze / Black / Silver / White |
| Humidity | 10–90% (storage) |
| Mounting | Slip fitter / Square pole / Round pole / Wall |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimming Type | 0–10V |
| Motion Sensor | Optional (microwave, bi-level) |
| Photocell | Optional (option, built-in) / Optional (option, twist-lock) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Warranty | 5 years |
| Certifications | cULus / DLC Premium |
| IP Rating | IP65 |
| Location Rating | Wet location |
