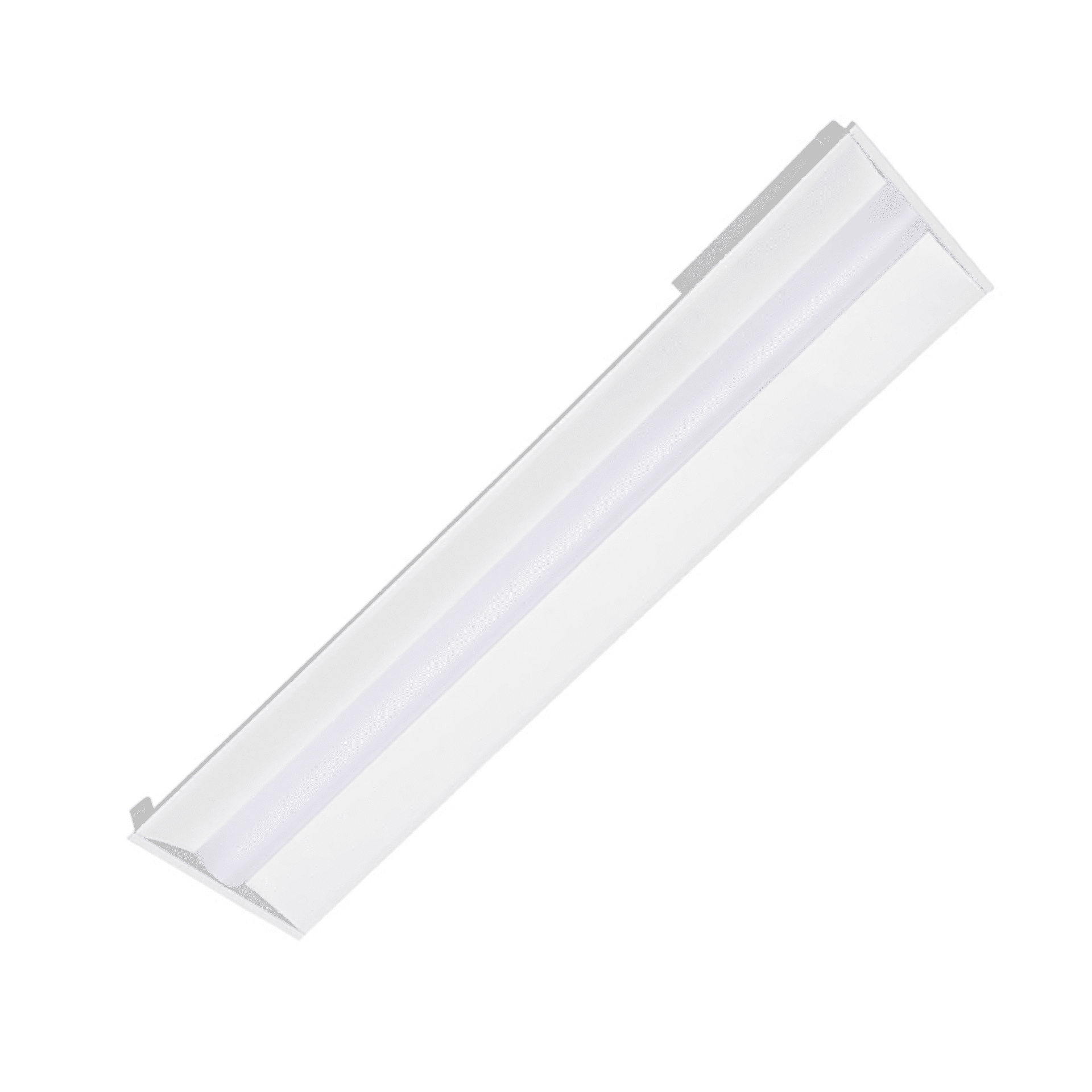

1X4 LED Troffer 3CCT & Wattage Tunable
1X4 LED Troffer 3CCT & Wattage Tunable
Model: E2-TR-F-1×4-20/25/30W-35/40/50K
20/25/30W Wattage Selectable, Up to 3,950 Lumens
3500K/4000K/5000K CCT Selectable
1-10V Dimmable
120-277 Volt
Damp Location
Specifications
| Wattage | 20W / 25W / 30W |
| Voltage | 120-277V |
| Dimming | 1-10V |
| CCT | 3500K / 4000K / 5000K |
| CRI | > 80 |
| Lumens | 2500 lm / 3225 lm / 3950 lm |
| Lifespan | 75,000 hours |
| Dimensions | 1,213 × 298 × 50 mm |
| Listings | DLC Premium / UL |
| Warranty | 5-Year Manufacturer's Warranty |

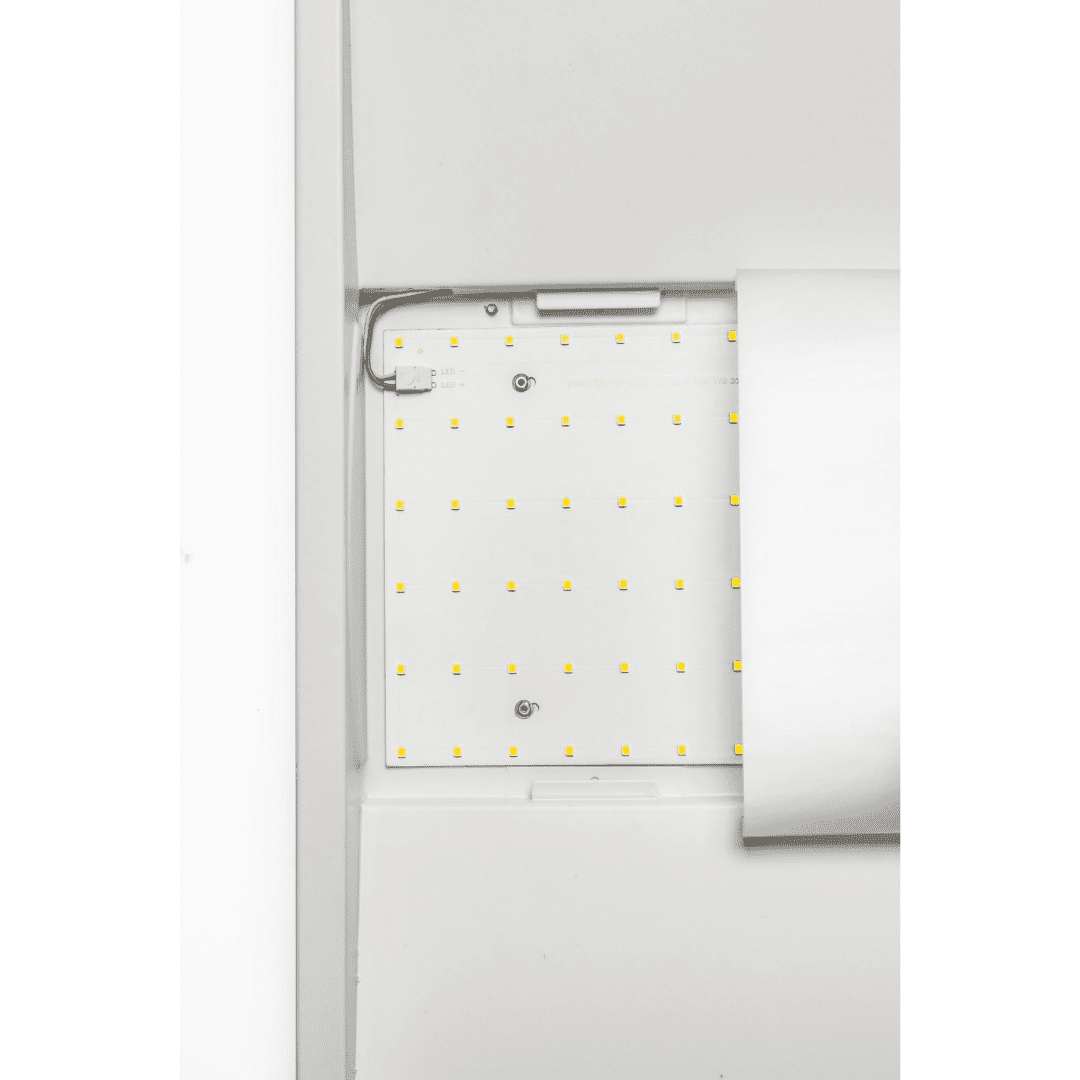

| Light Source | SMD LED |
| Size | 1×4 ft |
| Beam Angle | 119° / 110.2° (at 30W, at 3500K) |
| Efficacy | 125+ lm/W |
| Startup | Instant-on |
| Power Factor | 0.98+ |
| Mounting | Recessed |
| Weight | 7.7 lb |
| Emergency Backup | Optional (WSD-EMLY15W27-XX, sold separately, emergency driver) |
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Wattage Selectable | Yes |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | RoHS |
| Pack Quantity | 2 (fixtures, carton) |
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
Description
Ideal for versatile indoor applications in damp environments, this 1×4 LED troffer has wattage and color temperature selectable at the fixture for healthcare facilities, educational institutions, corporate offices, retail stores, hospitality venues, warehouses, grocery markets and more. Wattage is selectable at 20, 25 or 30W, giving 2,500, 3,225 or 3,950 lumens at 125+ lm/W, and color temperature at 3500K, 4000K or 5000K with CRI 80+.
It dims on 1–10V controls and runs on 120–277V with a power factor of 0.98+ and switches on instantly. The fixture recesses into the ceiling, measures 1,213 × 298 × 50 mm and is rated for damp locations.
UL and DLC Premium listed, mercury-free and RoHS compliant, with a 75,000-hour rated life and a 5-year limited warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Center basket troffer (TR-F) |
| Light Source | SMD LED |
| Size | 1×4 ft |
| Light | |
|---|---|
| Beam Angle | 119° / 110.2° (at 30W, at 3500K) |
| CCT | 3500 / 4000 / 5000K |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 2,500 / 3,225 / 3,950 lm |
| Startup | Instant-on |
| Electrical | |
|---|---|
| Power Factor | 0.98+ |
| Voltage | 120–277V |
| Wattage | 20 / 25 / 30W |
| Physical | |
|---|---|
| Dimensions | 1,213 × 298 × 50 mm |
| Mounting | Recessed |
| Weight | 7.7 lb |
| Emergency | |
|---|---|
| Emergency Backup | Optional (WSD-EMLY15W27-XX, sold separately, emergency driver) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 1–10V |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 75,000 hours |
| Warranty | 5 years |
| Certifications | UL / DLC Premium |
| Location Rating | Damp location |
| Mercury Free | Yes |
| Standards | RoHS |
| Pack Quantity | 2 (fixtures, carton) |
