LED Troffer With Emergency Battery 2X4 – 4000K
LED Troffer With Emergency Battery 2X4 – 4000K
Model: E2-TRF-2X4-24/36/42/50W-40K-E
24/36/42/50W Wattage Selectable, Up to 6,250 Lumens
4000K CCT

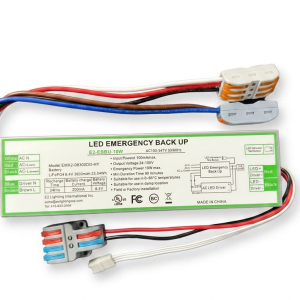

Built-in 10W Emergency Battery, 90+ Minutes
0-10V Dimmable
120-277 Volt
IP20
Specifications
| Wattage | 24W / 36W / 42W / 50W |
| Voltage | 120-277V |
| Dimming | 0–10V |
| CCT | 4000K / 5000K |
| CRI | > 80 |
| Lumens | 3000 lm - 6250 lm |
| Lifespan | 100,000 hours |
| Dimensions | 1212 × 603 × 45 mm (47.76" × 23.74" × 1.77") |
| Listings | DLC Premium / ETL / IP20 / UL |
| Warranty | 5-Year Manufacturer's Warranty |
| Size | 2×4 ft |
| Beam Angle | 120° |
| Efficacy | 125+ lm/W |
| Frequency | 50–60 Hz |
| Power Factor | 0.9+ |
| THD | up to 15% |
| Ambient Temperature | -4–113 °F (operating) |
| Coating | Powder coating |
| Color | White |
| Weight | 11.91 lb |
| Emergency Backup | Integrated |
| Emergency Power | 10W (after power off) |
| Emergency Runtime | 90+ minutes |
| Dimmable | Yes |
| Motion Sensor | Optional (microwave) |
| Wattage Selectable | Yes |
| Mercury Free | Yes |
| Standards | RoHS |
| Accessories | Relay to control LED driver |
| Family | Troffer and flat panel |
| Series | Wattage-selectable troffer (TRS) |
Description

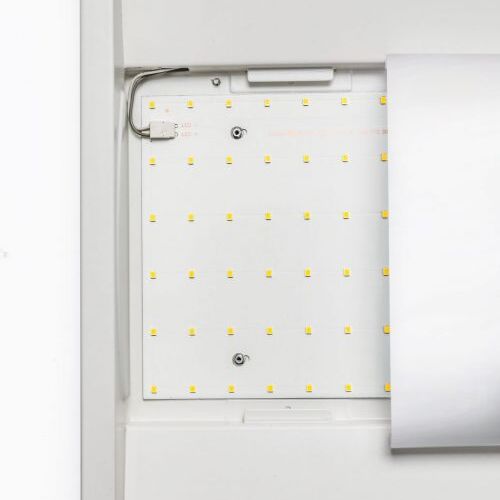

This 2×4 center-basket LED troffer has an emergency battery backup built in, keeping the fixture lit at 10W for over 90 minutes when the power fails. Wattage is selectable at 24, 36, 42 or 50W, giving 3,000 to 6,250 lumens at 125+ lm/W, in 4000K with CRI 80+, and an optional microwave sensor is available.
It is a good choice for ambient lighting in commercial offices, schools, hospitals and retail spaces. The fixture dims on 0–10V controls, runs on 120–277V and operates from -4 to 113 °F. The white powder-coated housing measures 47.76 × 23.74 × 1.77 in, is rated IP20 and weighs 11.91 lb.
ETL listed with a UL driver, DLC Premium and RoHS compliant, with a 100,000-hour rated life and a 5-year warranty.
Specifications
| General | |
|---|---|
| Family | Troffer and flat panel |
| Series | Wattage-selectable troffer (TRS) |
| Size | 2×4 ft |
| Light | |
|---|---|
| Beam Angle | 120° |
| CCT | 4000K |
| CRI | 80+ |
| Efficacy | 125+ lm/W |
| Lumens | 3,000–6,250 lm |
| Electrical | |
|---|---|
| Frequency | 50–60 Hz |
| Power Factor | 0.9+ |
| THD | up to 15% |
| Voltage | 120–277V |
| Wattage | 24 / 36 / 42 / 50W |
| Physical | |
|---|---|
| Ambient Temperature | -4–113 °F (operating) |
| Coating | Powder coating |
| Dimensions | 47.76 × 23.74 × 1.77 in |
| Finish | White |
| Weight | 11.91 lb |
| Emergency | |
|---|---|
| Emergency Backup | Integrated |
| Emergency Power | 10W (after power off) |
| Emergency Runtime | 90+ minutes |
| Controls | |
|---|---|
| Dimmable | Yes |
| Dimming Type | 0–10V |
| Motion Sensor | Optional (microwave) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 100,000 hours |
| Warranty | 5 years |
| Certifications | ETL / DLC Premium / UL |
| IP Rating | IP20 |
| Mercury Free | Yes |
| Standards | RoHS |
| Accessories | Relay to control LED driver |
